Model # HGSW Official Thermador range hood

Here are the diagrams and repair parts for Official Thermador HGSW range hood, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

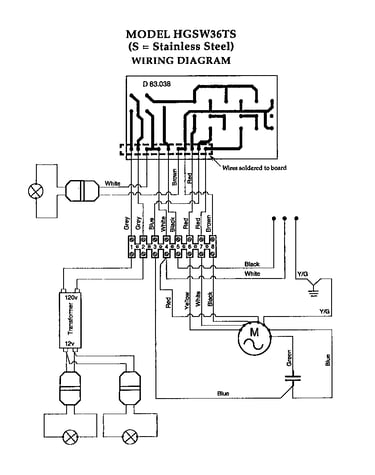

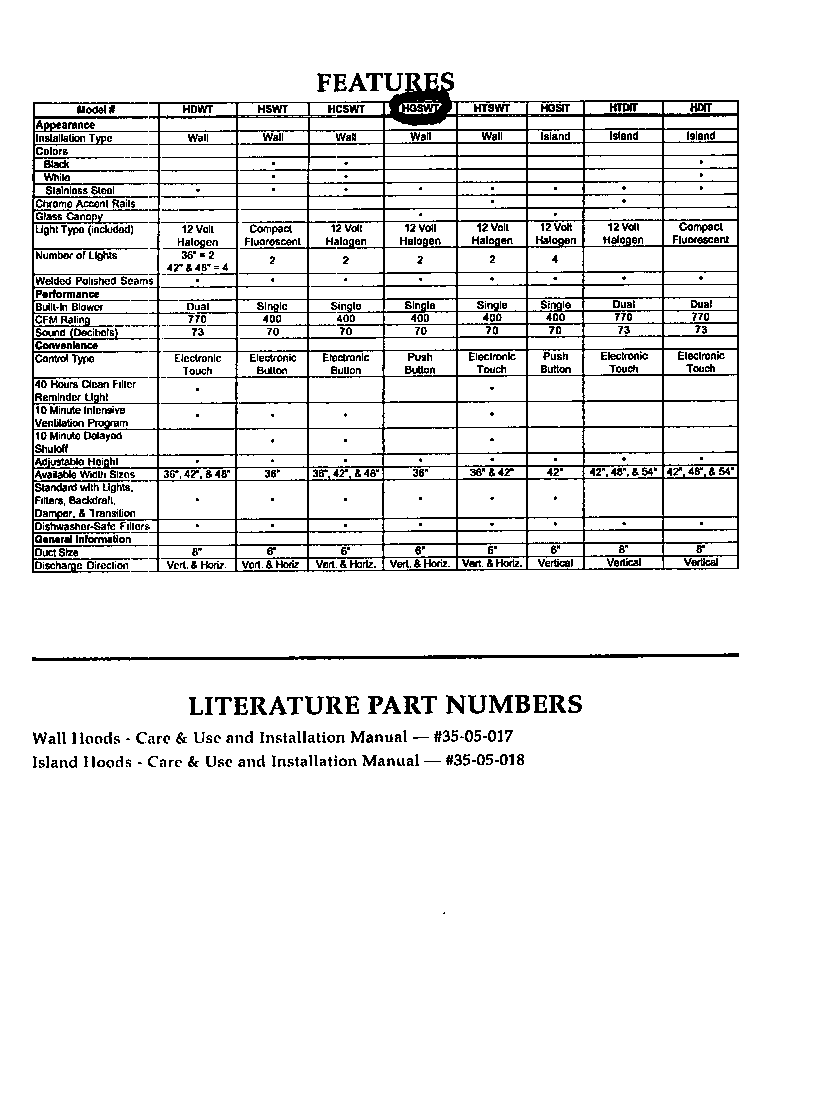

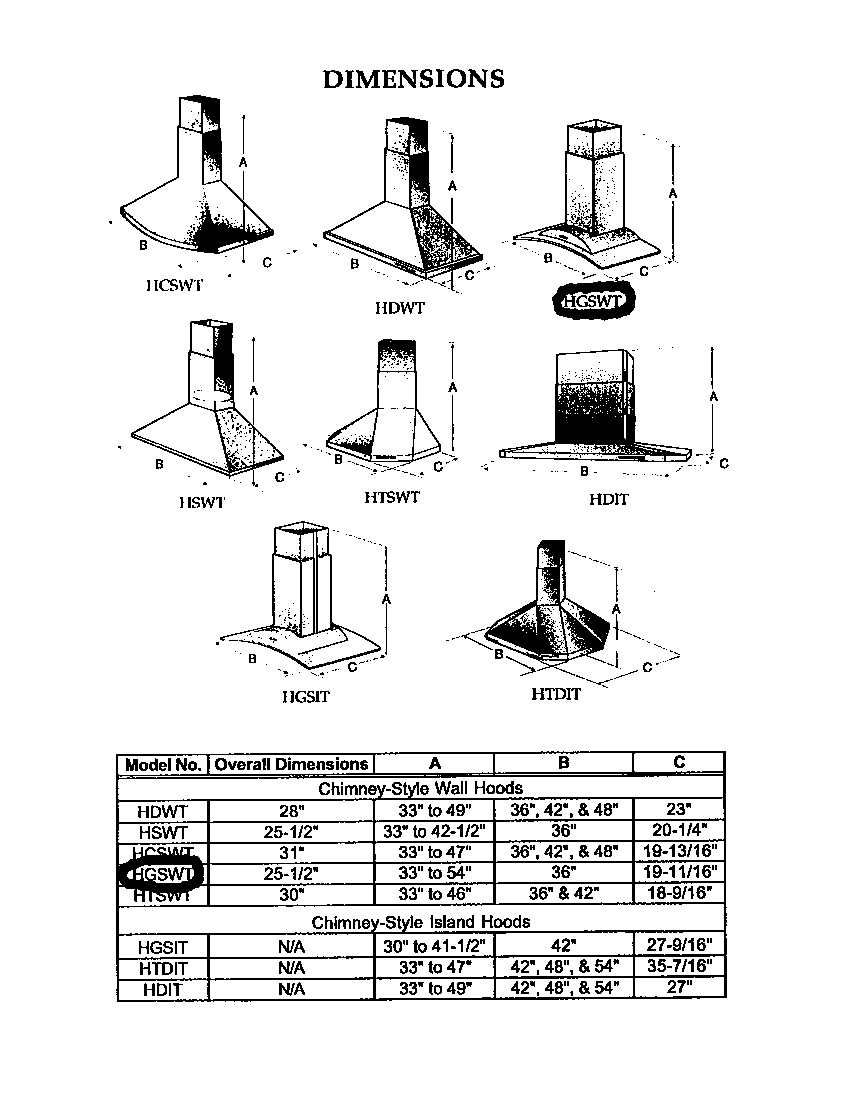

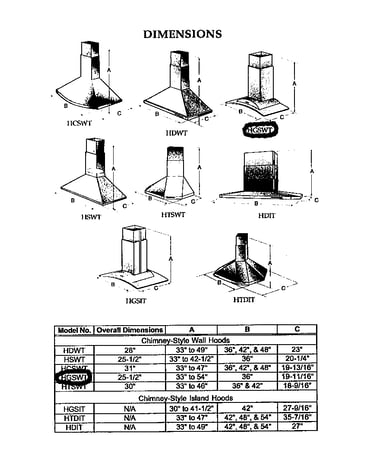

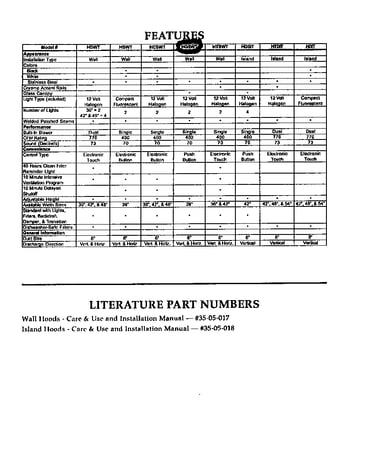

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 23 parts  |
Blower Assembly (includes Motor, Housing, Wheel And Inle 35-05-198
#3

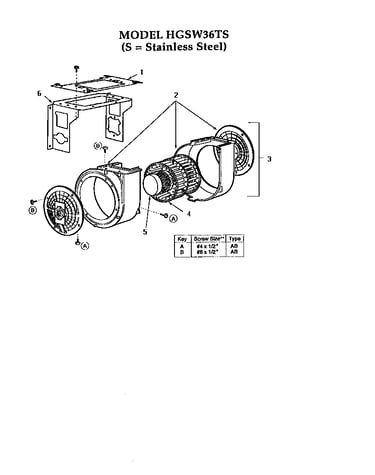

Blower assembly diagram

Blower assembly (includes motor, housing, wheel and inle

Part #35-05-198

The manufacturer no longer makes this part, and there's no substitute part

Range Hood Blower Housing 35-05-007
#2

Blower assembly diagram

Range hood blower housing

Part #35-05-007

The manufacturer no longer makes this part, and there's no substitute part

Plastic Transition 35-05-022
#5

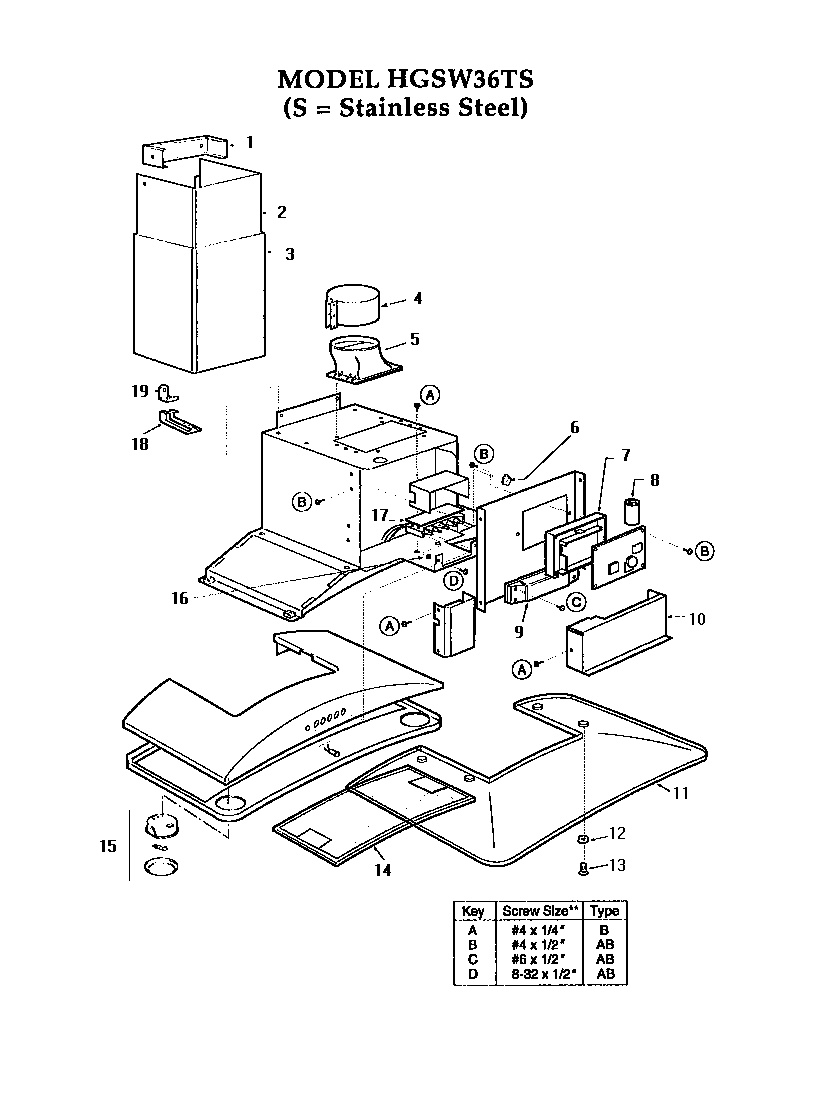

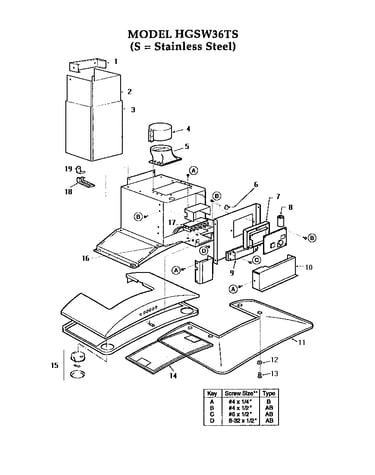

Range hood diagram

Plastic transition

Part #35-05-022

The manufacturer no longer makes this part, and there's no substitute part

Metal Transistion HGTR6
#5A

Range hood diagram

Metal transistion

Part #HGTR6

The manufacturer no longer makes this part, and there's no substitute part

Filter 35-05-004
#14

Range hood diagram

Filter

Part #35-05-004

The manufacturer no longer makes this part, and there's no substitute part

Glass Canopy 35-05-093
#11

Range hood diagram

Glass canopy

Part #35-05-093

The manufacturer no longer makes this part, and there's no substitute part

Spacer (part Is Not Normally Stocked Because Of Low Fail 35-05-147
#12

Range hood diagram

Spacer (part is not normally stocked because of low fail

Part #35-05-147

The manufacturer no longer makes this part, and there's no substitute part

Duct Cover, Lower 35-05-039
#3

Range hood diagram

Duct cover, lower

Part #35-05-039

The manufacturer no longer makes this part, and there's no substitute part

Hook W/screw And Plug (part Is Not Normally Stocked Beca 35-05-142
#19

Range hood diagram

Hook w/screw and plug (part is not normally stocked beca

Part #35-05-142

The manufacturer no longer makes this part, and there's no substitute part

Glass Clamping Screw (part Is Not Normally Stocked Becau 35-05-148
#13

Range hood diagram

Glass clamping screw (part is not normally stocked becau

Part #35-05-148

The manufacturer no longer makes this part, and there's no substitute part
