Amana
Range/Microwave Combo

Model # MRR-1000-P8551402S Official Amana microwave

Here are the diagrams and repair parts for Official Amana MRR-1000-P8551402S microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 196 parts  |
Surface Element R0167085
#4

Page 6 diagram

Surface element

Part #R0167085

Replaced by #WPW10259868

?
Manufacturer substitution
This part replaces R0167085. Substitute parts can look different from the original.
$76.43 |
7% OFF Phone Price : $82.43
In Stock
Leveling Leg R0183035
#11

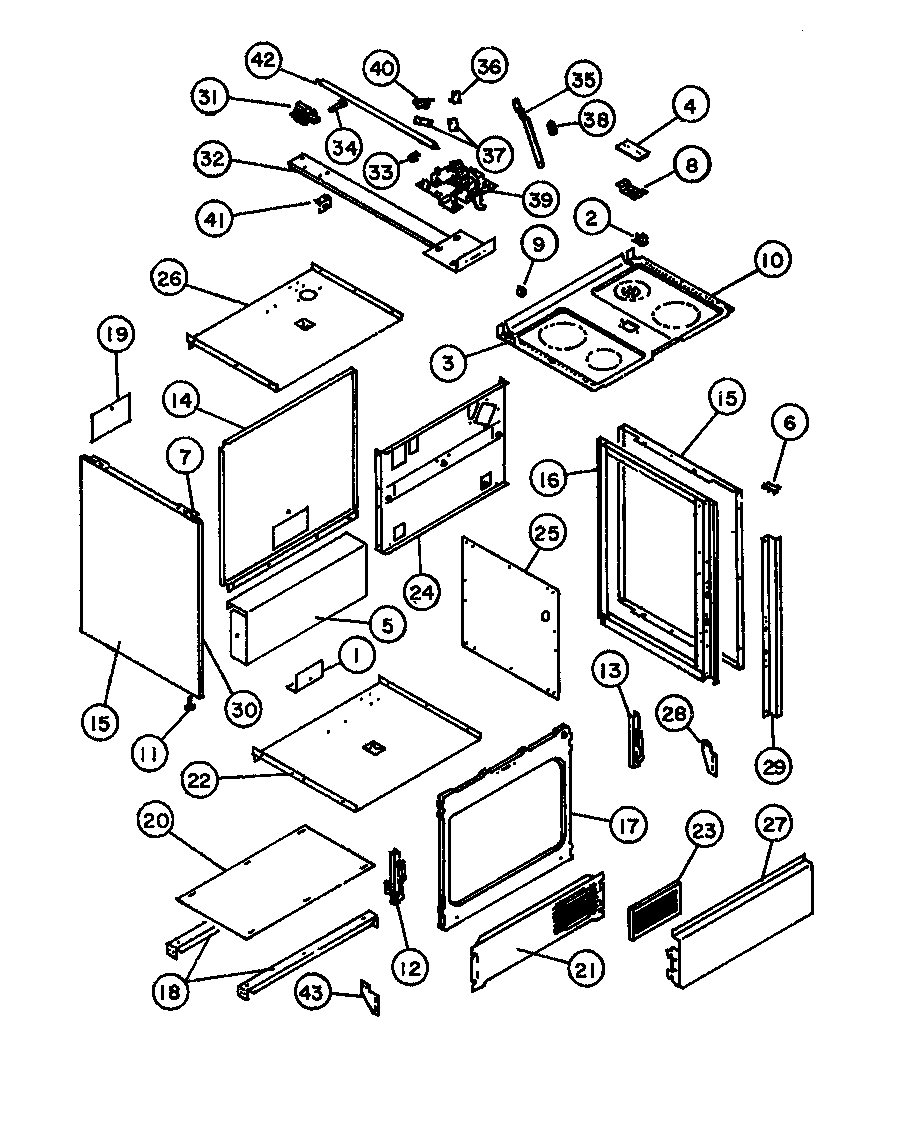

Page 2 diagram

Leveling leg

Part #R0183035

The manufacturer no longer makes this part, and there's no substitute part

Bezel-light Switch R0181087
#31

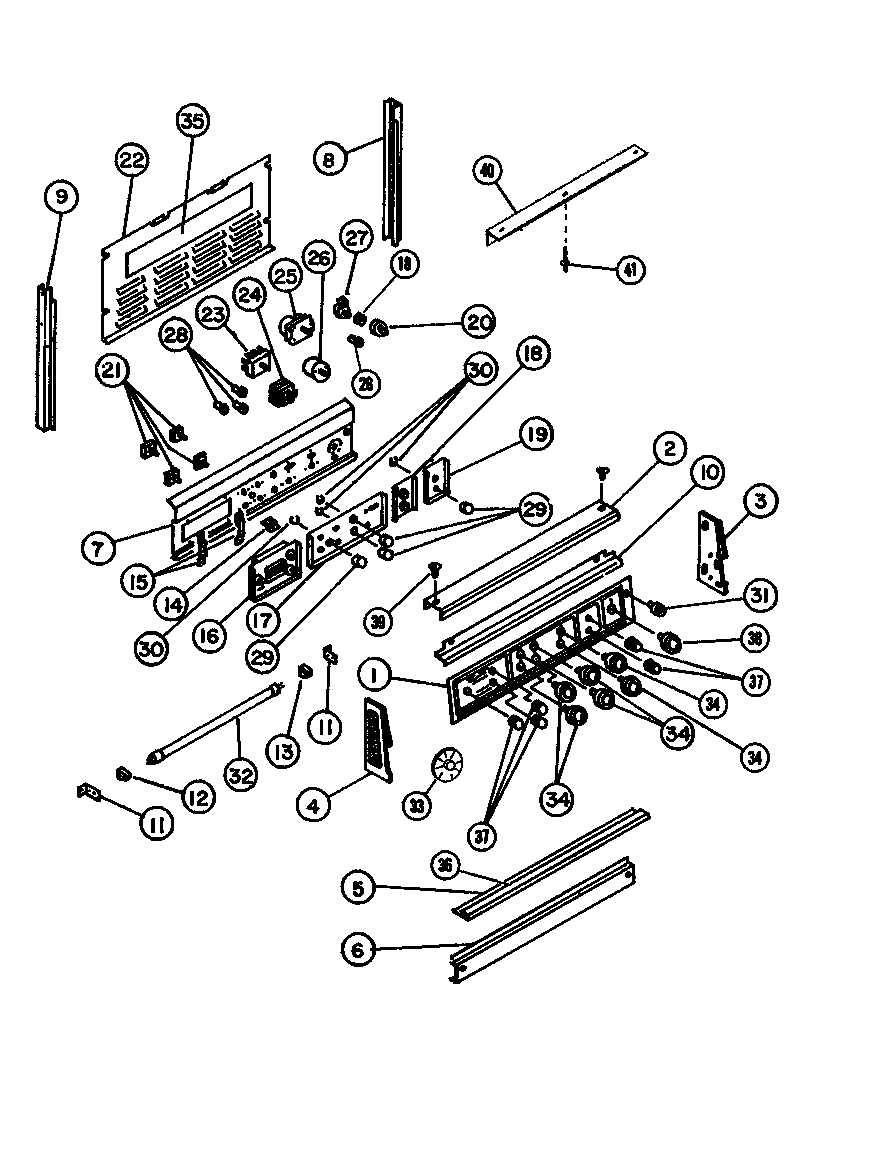

Page 4 diagram

Bezel-light switch

Part #R0181087

The manufacturer no longer makes this part, and there's no substitute part

Bake Element R0167114
#1

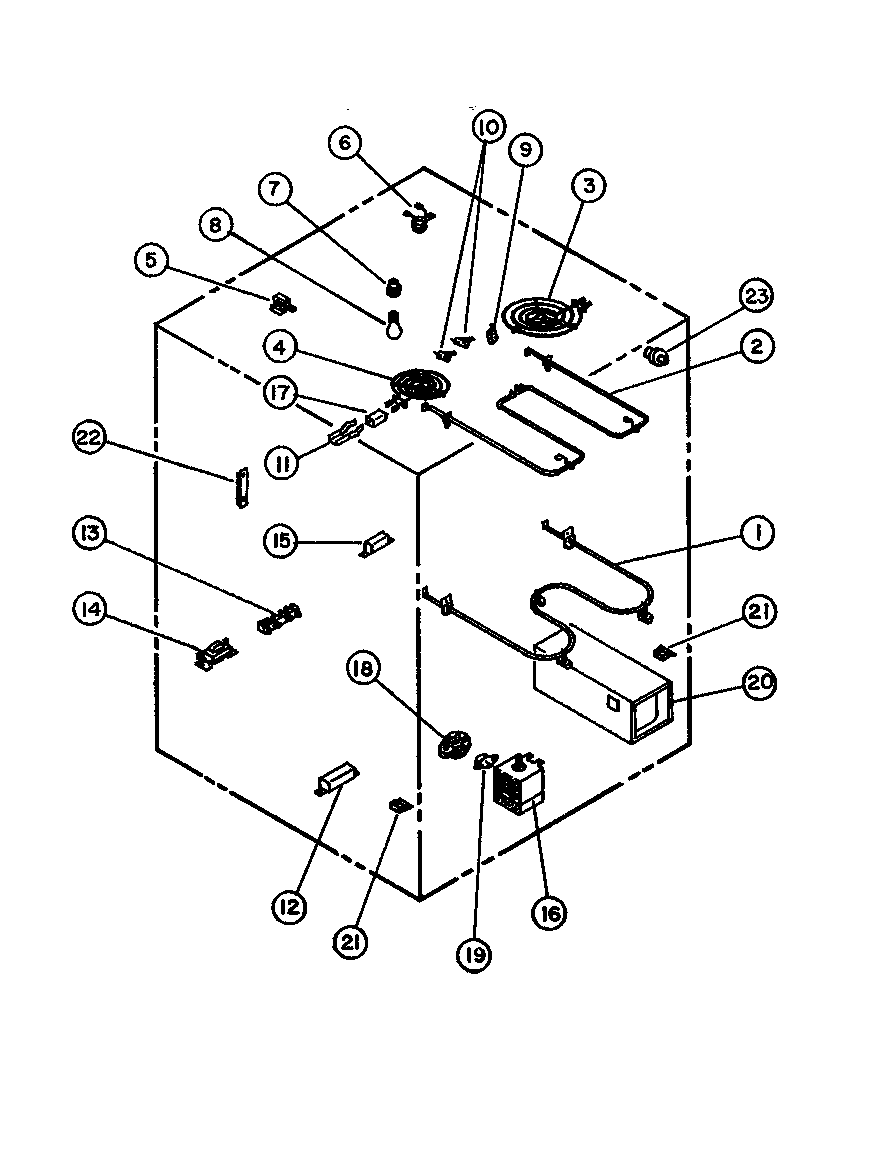

Page 6 diagram

Bake element

Part #R0167114

The manufacturer no longer makes this part, and there's no substitute part

Oven Rack R0180040
#30

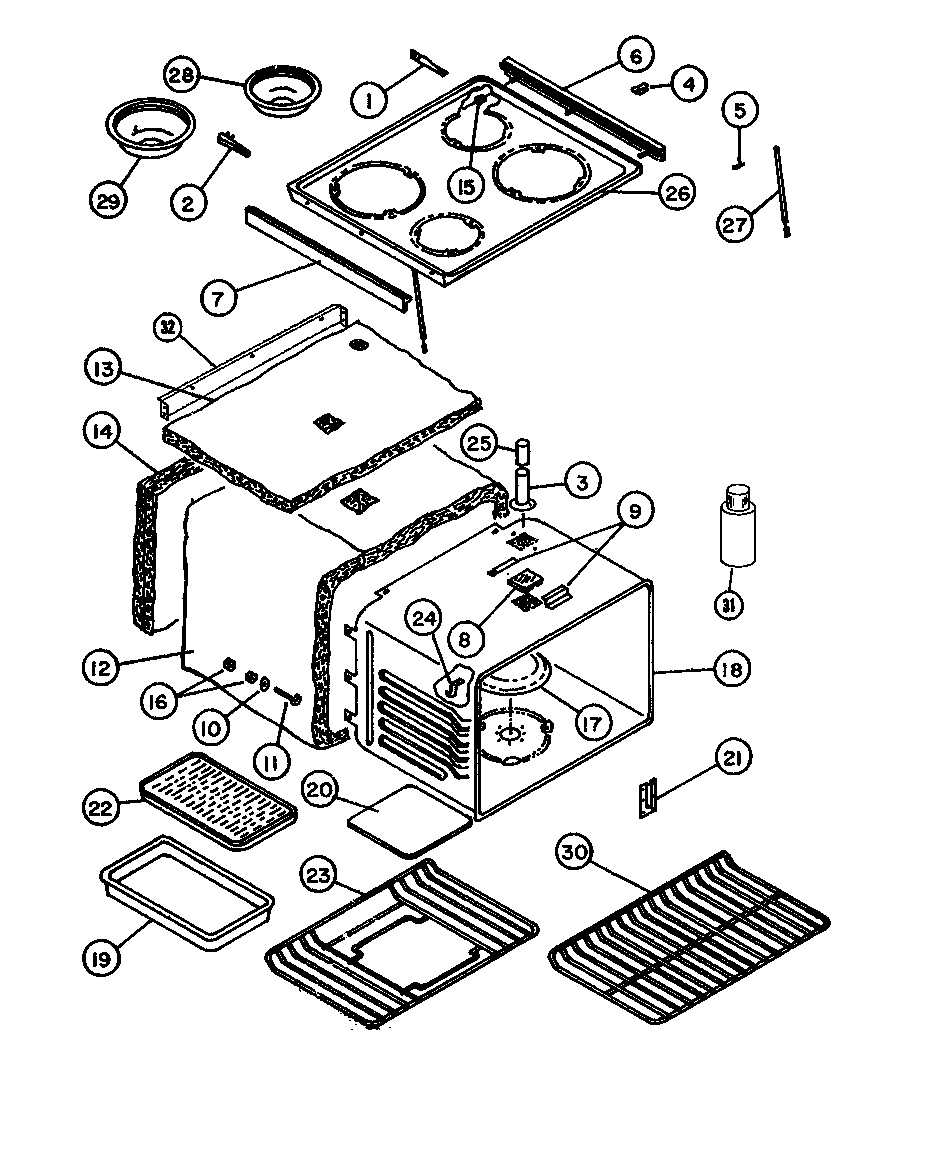

Page 1 diagram

Oven rack

Part #R0180040

The manufacturer no longer makes this part, and there's no substitute part

Door Latch Plate R0178835
#8

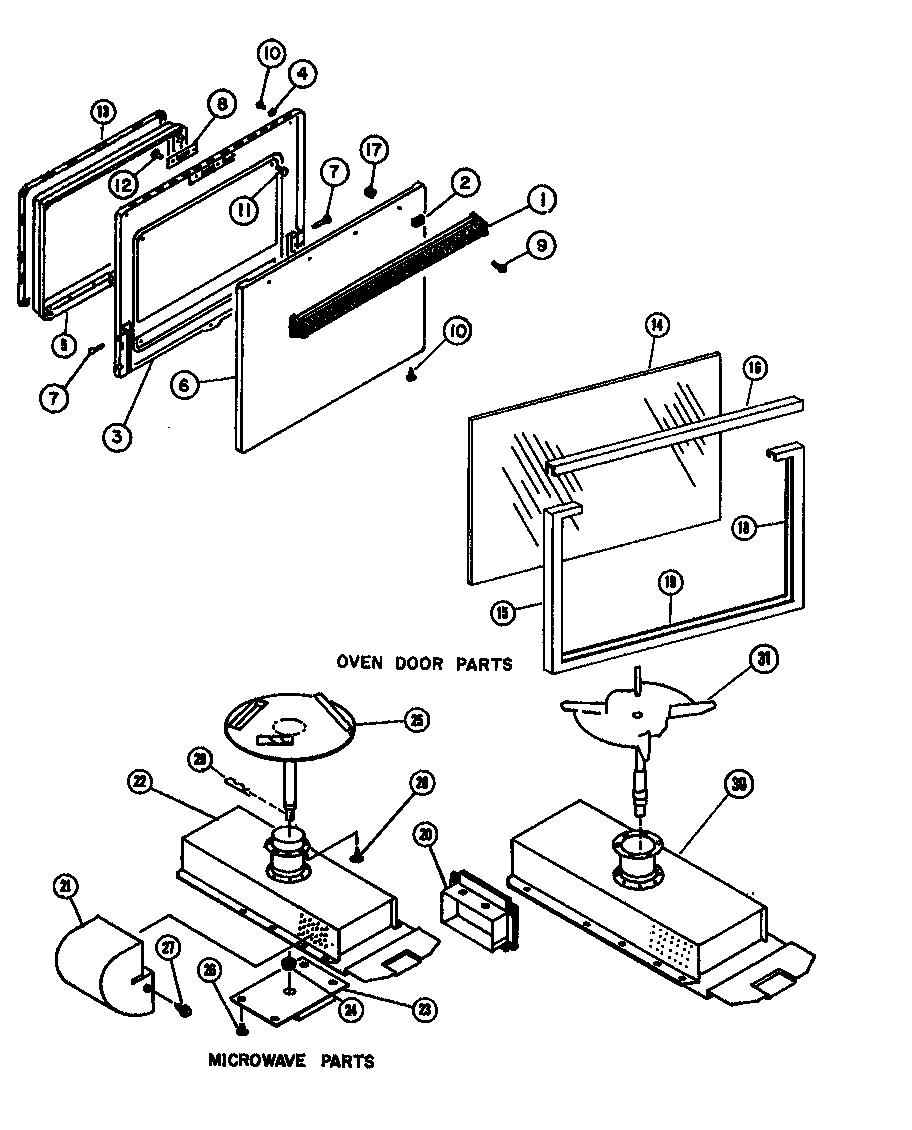

Page 3 diagram

Door latch plate

Part #R0178835

The manufacturer no longer makes this part, and there's no substitute part

Knob, Latch - Black R0181085
#38

Page 2 diagram

Knob, latch - black

Part #R0181085

The manufacturer no longer makes this part, and there's no substitute part

Panel, Power Supply R0178983
#4

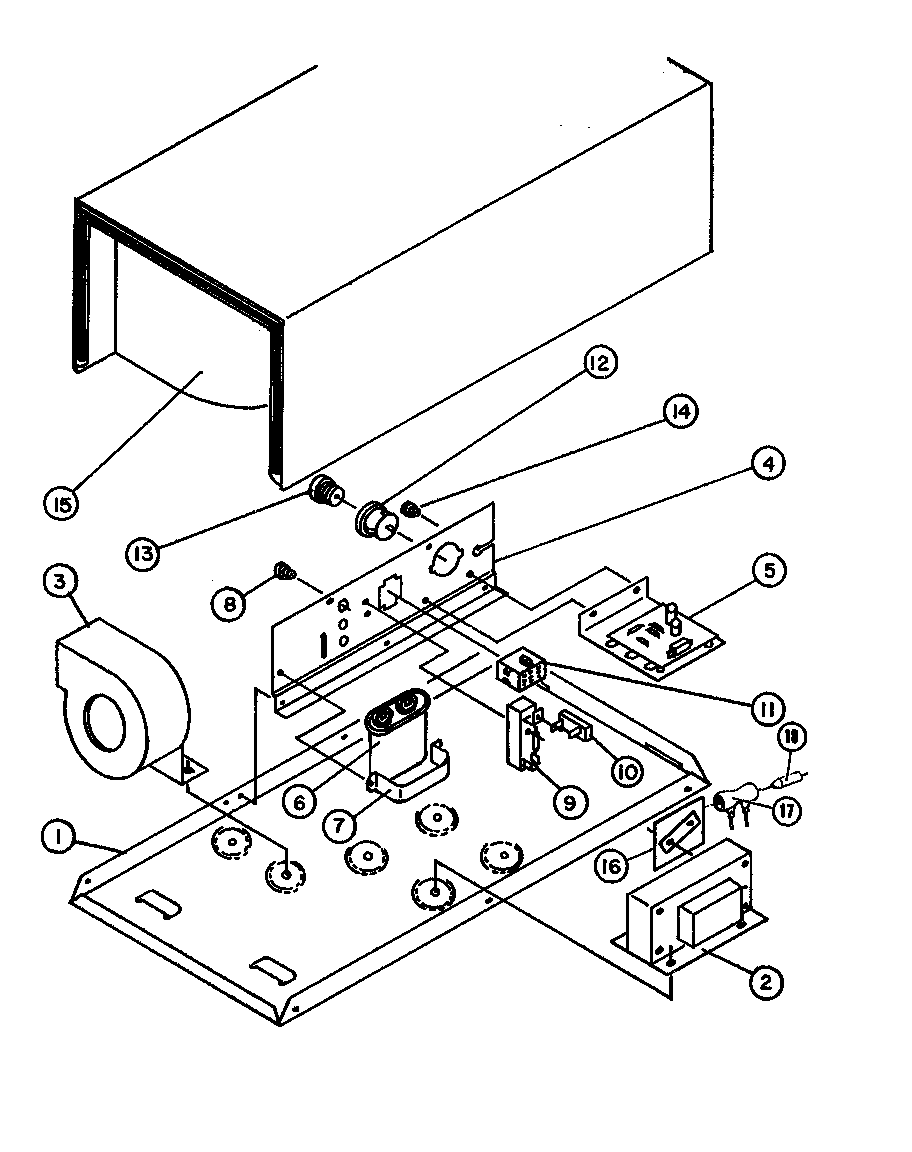

Page 5 diagram

Panel, power supply

Part #R0178983

The manufacturer no longer makes this part, and there's no substitute part

Kit, Door Hinge(rh-ss) R0179054
#13

Page 2 diagram

Kit, door hinge(rh-ss)

Part #R0179054

The manufacturer no longer makes this part, and there's no substitute part

Drip Baffle G R0194012
#10B

Page 2 diagram

Drip baffle g

Part #R0194012

The manufacturer no longer makes this part, and there's no substitute part
