Power Sander

Model # 315115041 Official Craftsman sander

Here are the diagrams and repair parts for Official Craftsman 315115041 sander, as well as links to manuals and error code tables, if available.

By Schematic

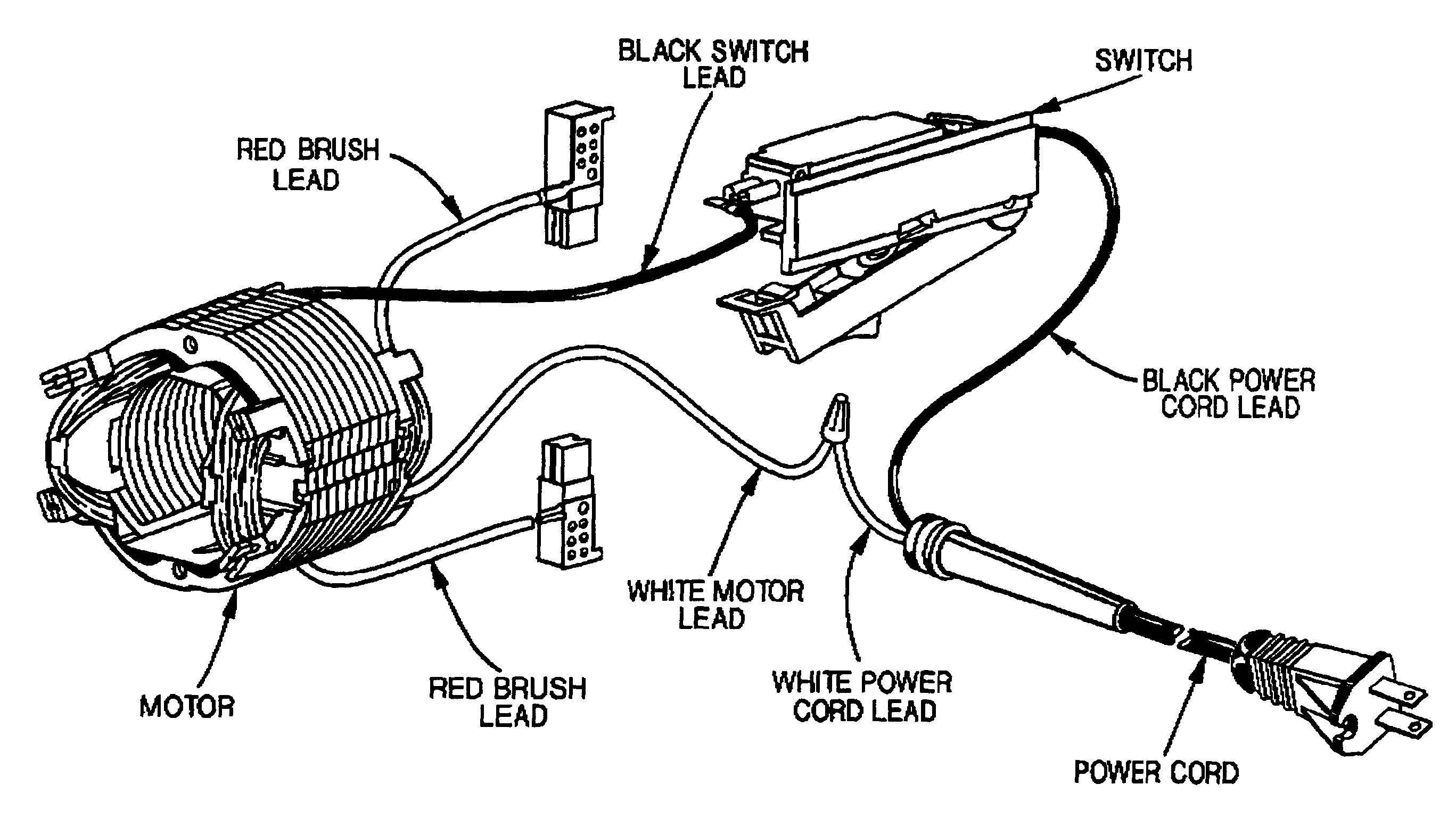

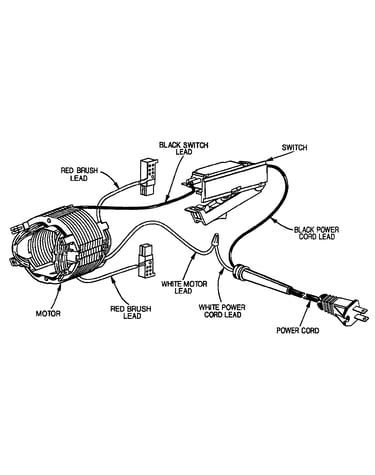

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
315115041 Power Tools
Screw 617966-007
#36

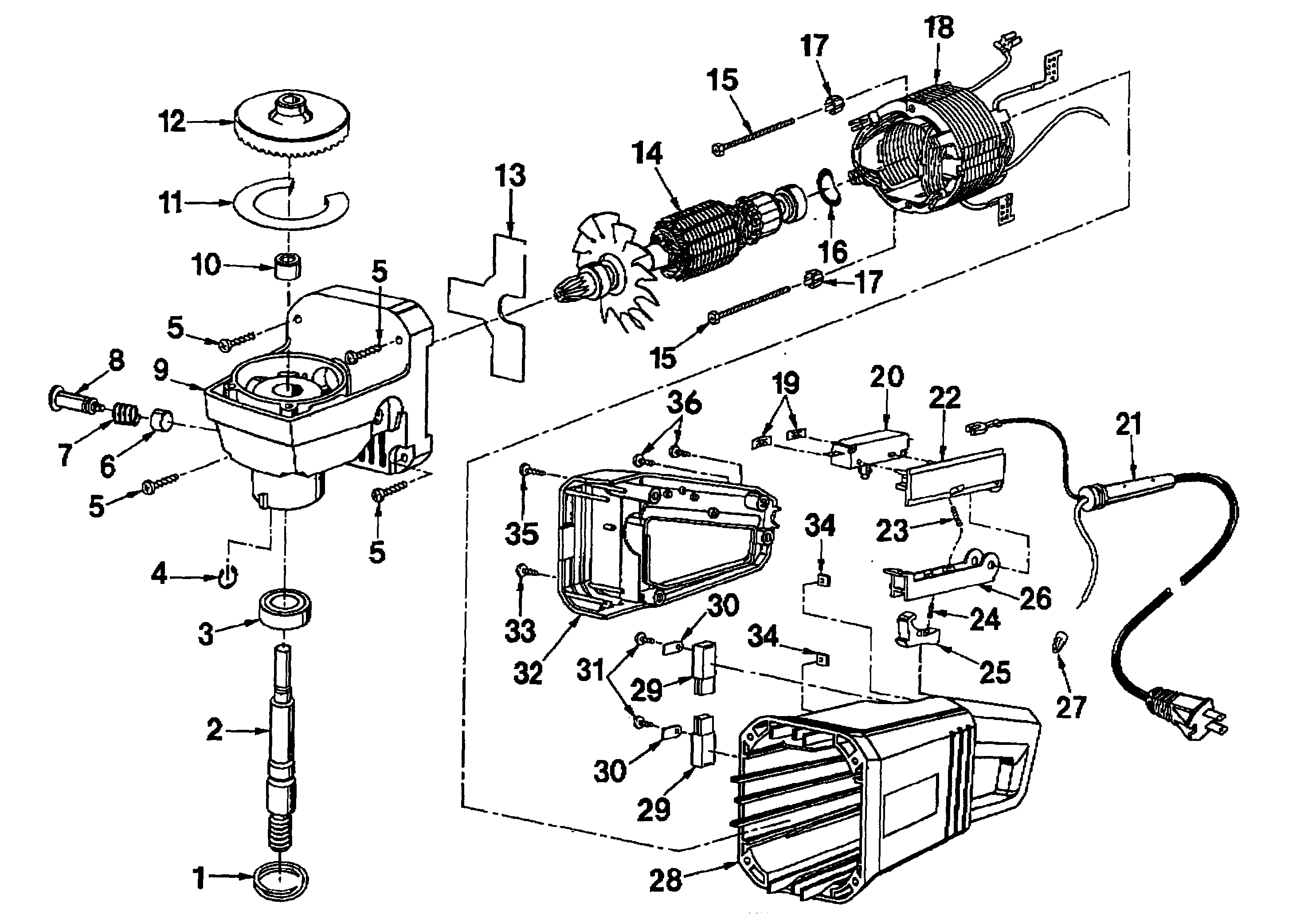

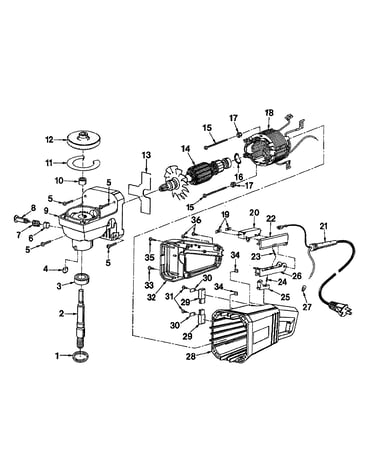

Unit parts diagram

Screw

Part #617966-007

The manufacturer no longer makes this part, and there's no substitute part

Washer 703776-035
#15

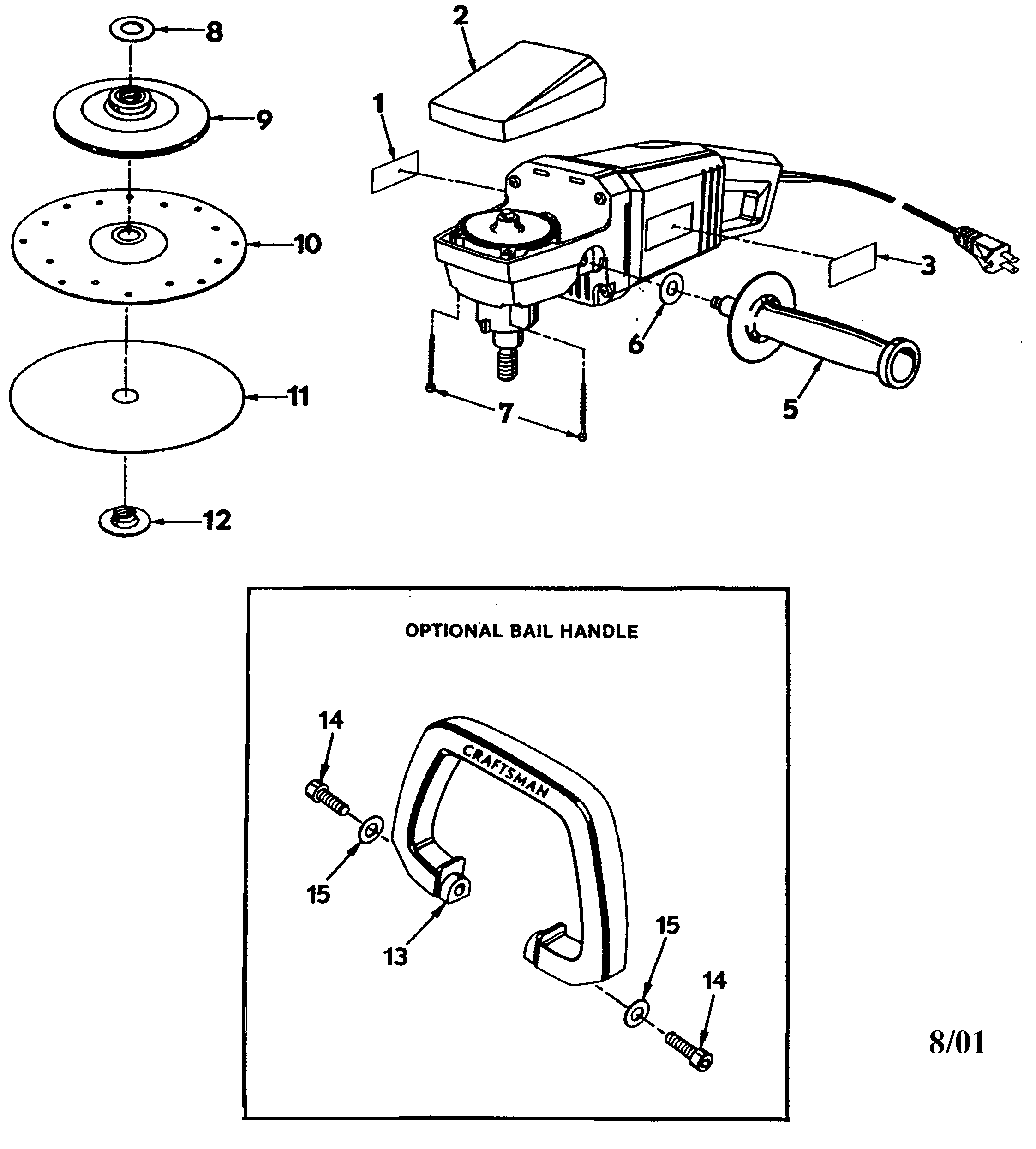

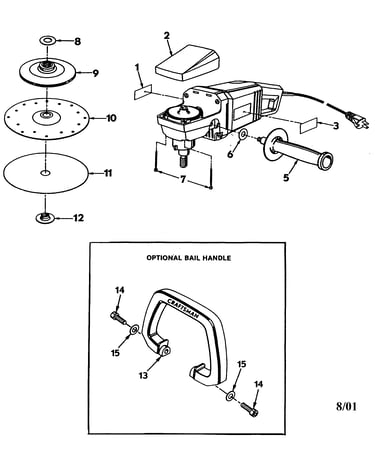

Sanding disc assy/handles diagram

Washer

Part #703776-035

The manufacturer no longer makes this part, and there's no substitute part

E Ret Ring 623111-009
#4

Unit parts diagram

E ret ring

Part #623111-009

The manufacturer no longer makes this part, and there's no substitute part

Retain Ring 617096-002
#1

Unit parts diagram

Retain ring

Part #617096-002

The manufacturer no longer makes this part, and there's no substitute part

Power Tool Motor Brush 998457-002
#29

Unit parts diagram

Power tool motor brush

Part #998457-002

The manufacturer no longer makes this part, and there's no substitute part

Logo Plate 998182-001
#3

Sanding disc assy/handles diagram

Logo plate

Part #998182-001

The manufacturer no longer makes this part, and there's no substitute part

Router Trigger Spring 998196-001
#23

Unit parts diagram

Router trigger spring

Part #998196-001

The manufacturer no longer makes this part, and there's no substitute part

Square Nut 709863-804
#34

Unit parts diagram

Square nut

Part #709863-804

The manufacturer no longer makes this part, and there's no substitute part

Cap Screw 967656-002
#14

Sanding disc assy/handles diagram

Cap screw

Part #967656-002

The manufacturer no longer makes this part, and there's no substitute part

Washer 621721-002
#6

Sanding disc assy/handles diagram

Washer

Part #621721-002

The manufacturer no longer makes this part, and there's no substitute part
