Model # DSC-W510B Official Sony digital camera

Here are the diagrams and repair parts for Official Sony DSC-W510B digital camera, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

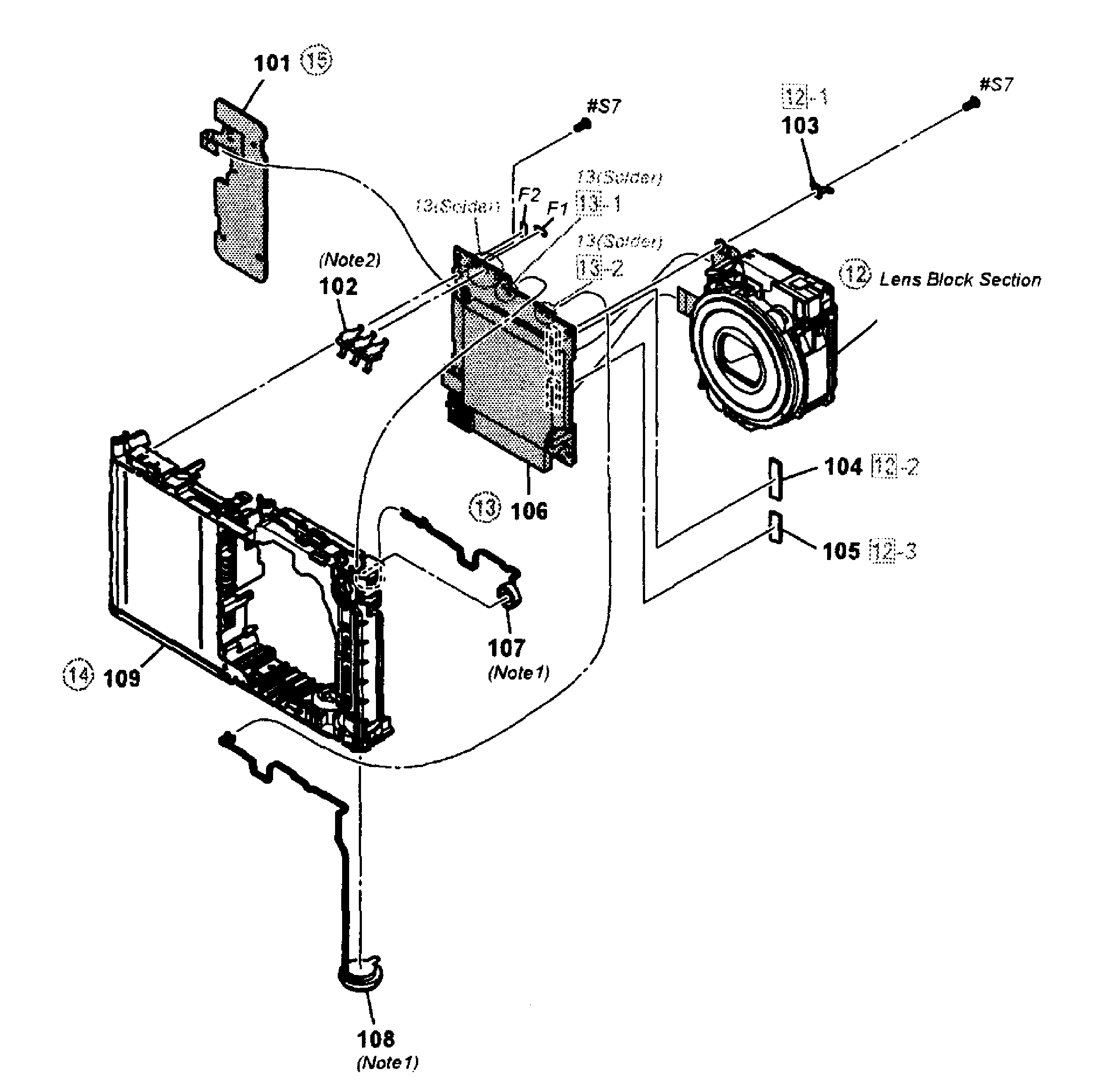

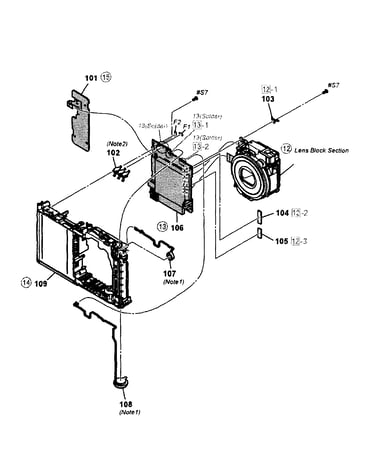

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 47 parts  |
Screw 394750431
#S9

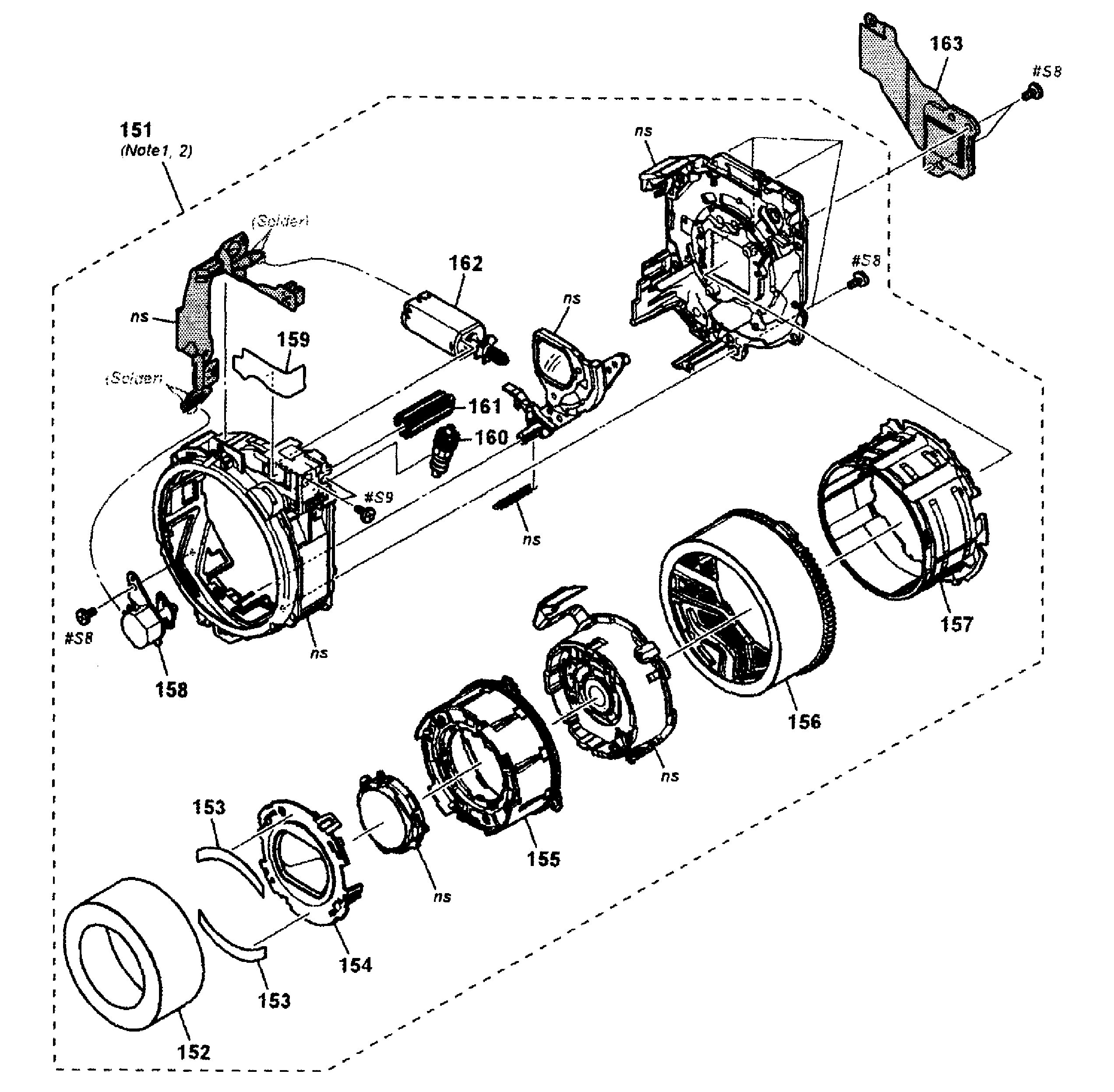

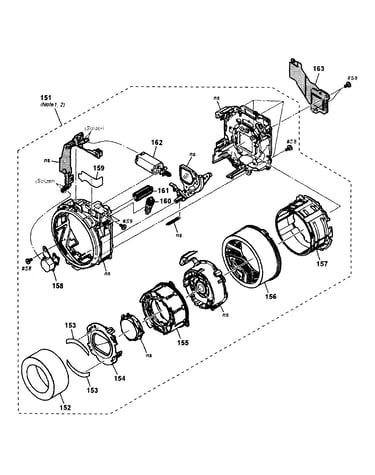

Lens assy diagram

Screw

Part #394750431

$13.24
In Stock
Barrier Bl A1799286A
#154

Lens assy diagram

Barrier bl

Part #A1799286A

$31.13
In Stock
Sony Cover Assembly Top (black) X25807191
#3

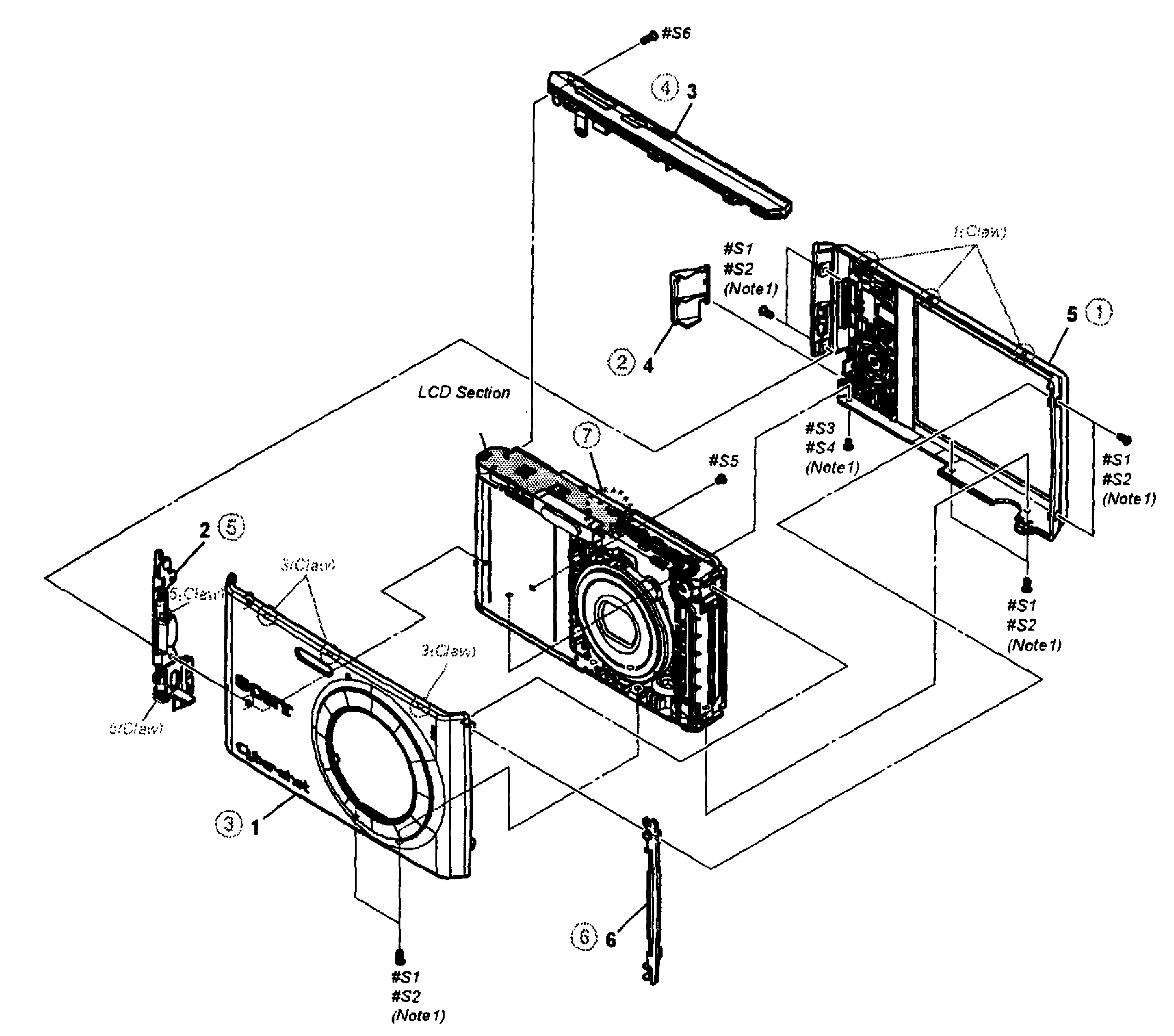

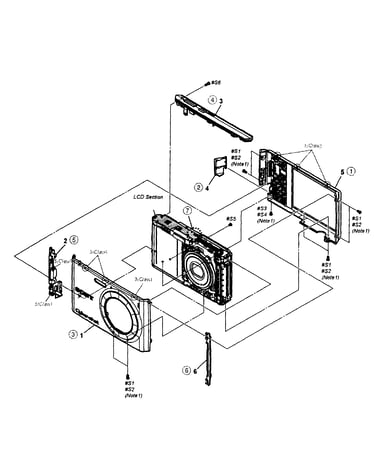

Cabinet parts diagram

Sony cover assembly top (black)

Part #X25807191

$31.00
In Stock
Lcd Module 180298411
#53

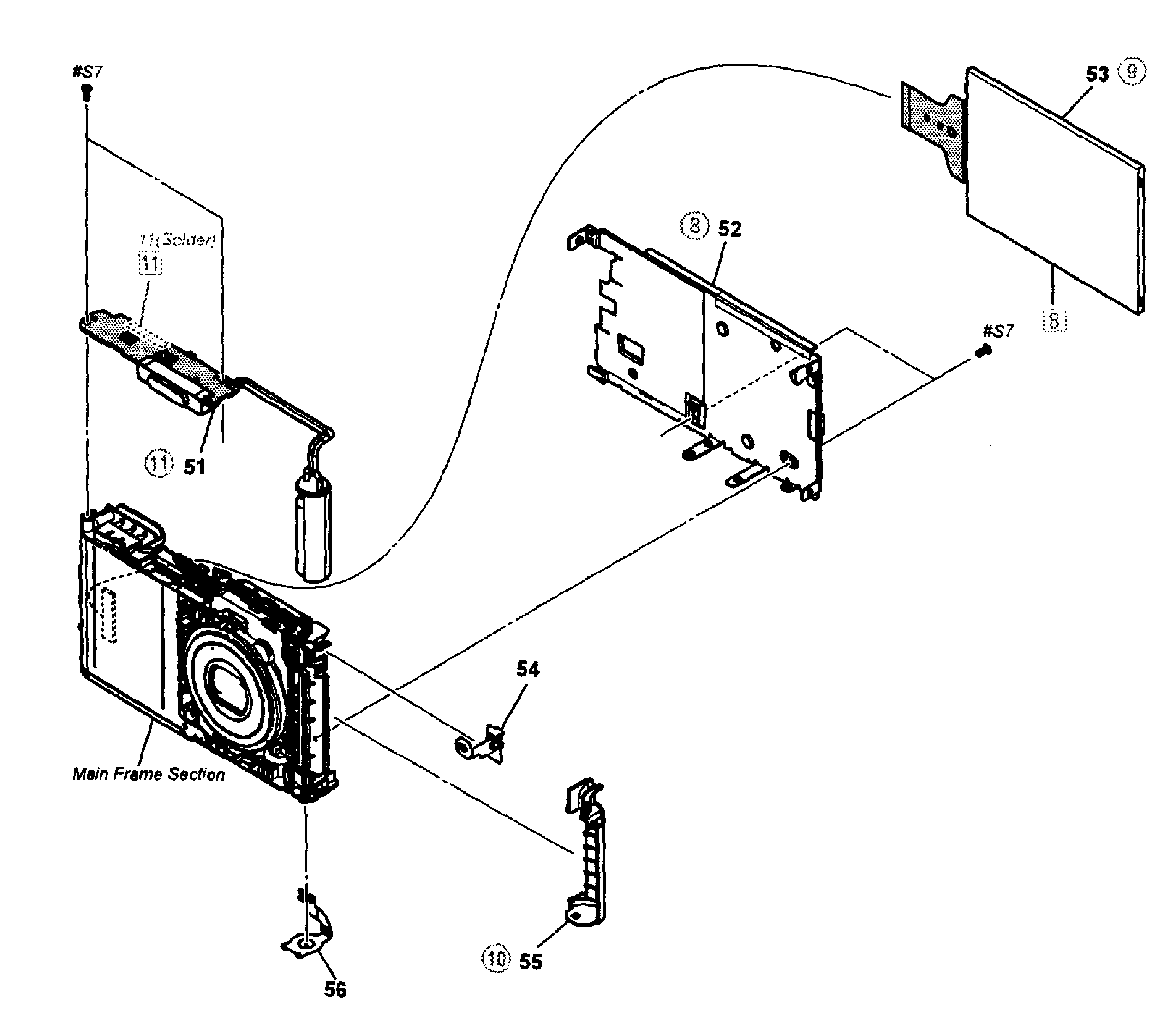

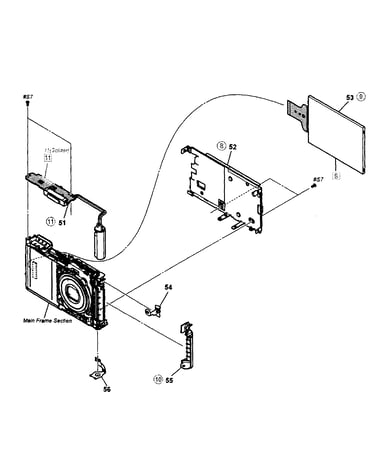

Lcd assy diagram

Lcd module

Part #180298411

$54.79
In Stock
Screw 427359301
#S5

Cabinet parts diagram

Screw

Part #427359301

This item is not returnable
$2.16
In Stock
Sony Belt Black 427359511
#6

Cabinet parts diagram

Sony belt black

Part #427359511

$8.03
In Stock
Screw 427357701
#S3

Cabinet parts diagram

Screw

Part #427357701

This item is not returnable
$2.16
In Stock
Plate Assembly X25807241
#56

Lcd assy diagram

Plate assembly

Part #X25807241

This item is not returnable
$4.41
In Stock
Bracket Assembly X25807221
#52

Lcd assy diagram

Bracket assembly

Part #X25807221

$62.91
In Stock
Sony Cover Assembly X25807101
#5

Cabinet parts diagram

Sony cover assembly

Part #X25807101

$33.00
In Stock
