Haier
Dishwasher

Model # DWL3025SBSS Official Haier dishwasher

Here are the diagrams and repair parts for Official Haier DWL3025SBSS dishwasher, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 103 parts  |
Screw DW-6150-26
#30

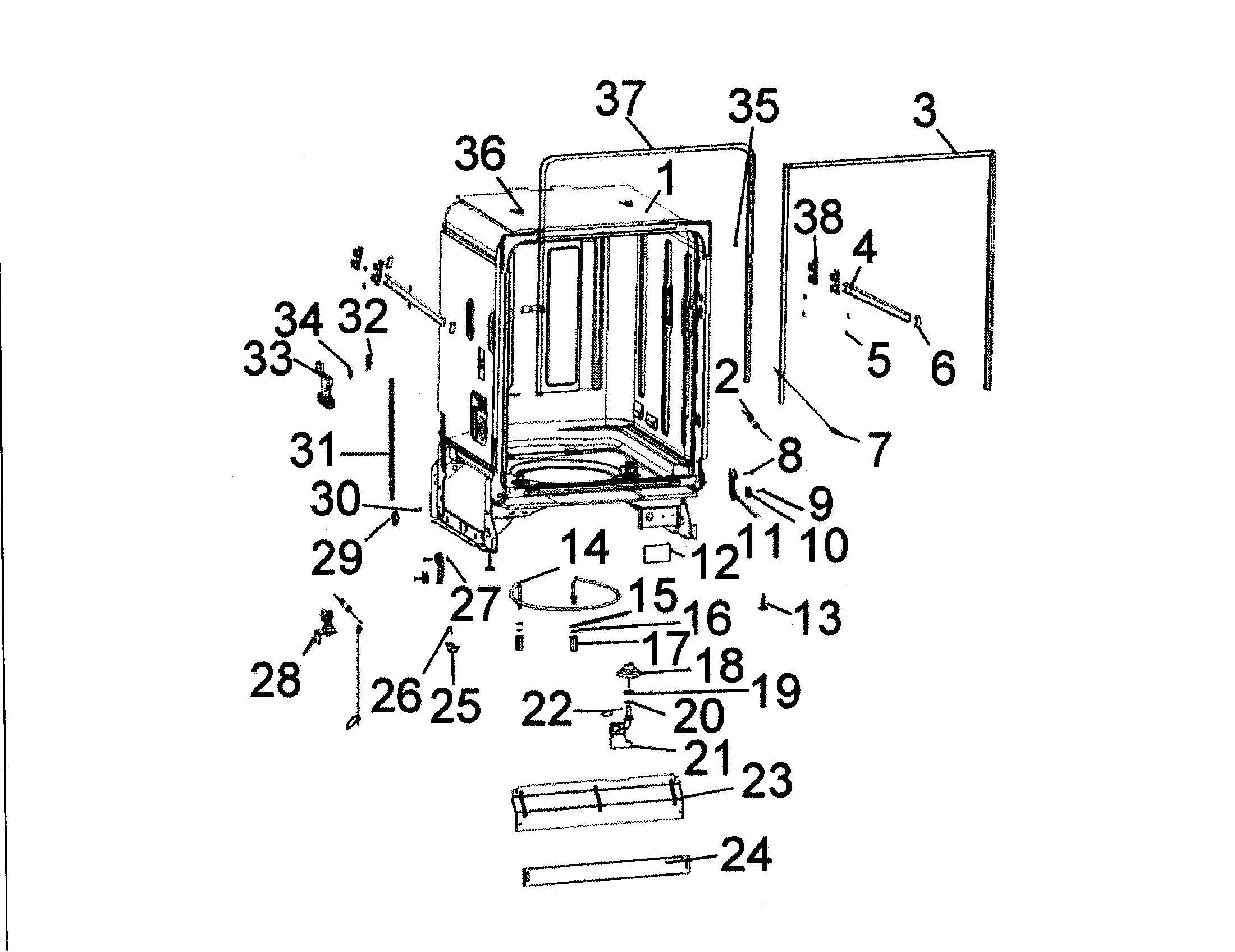

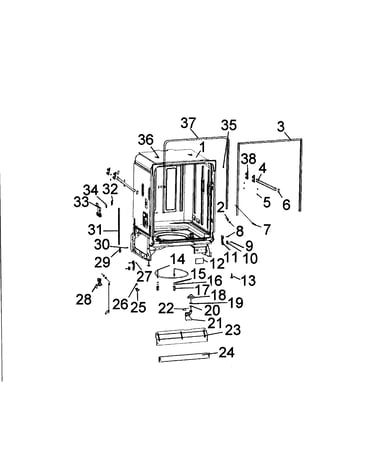

Cabinet assy diagram

Screw

Part #DW-6150-26

This item is not returnable
$2.99
In Stock
Nut DW-4720-11
#45

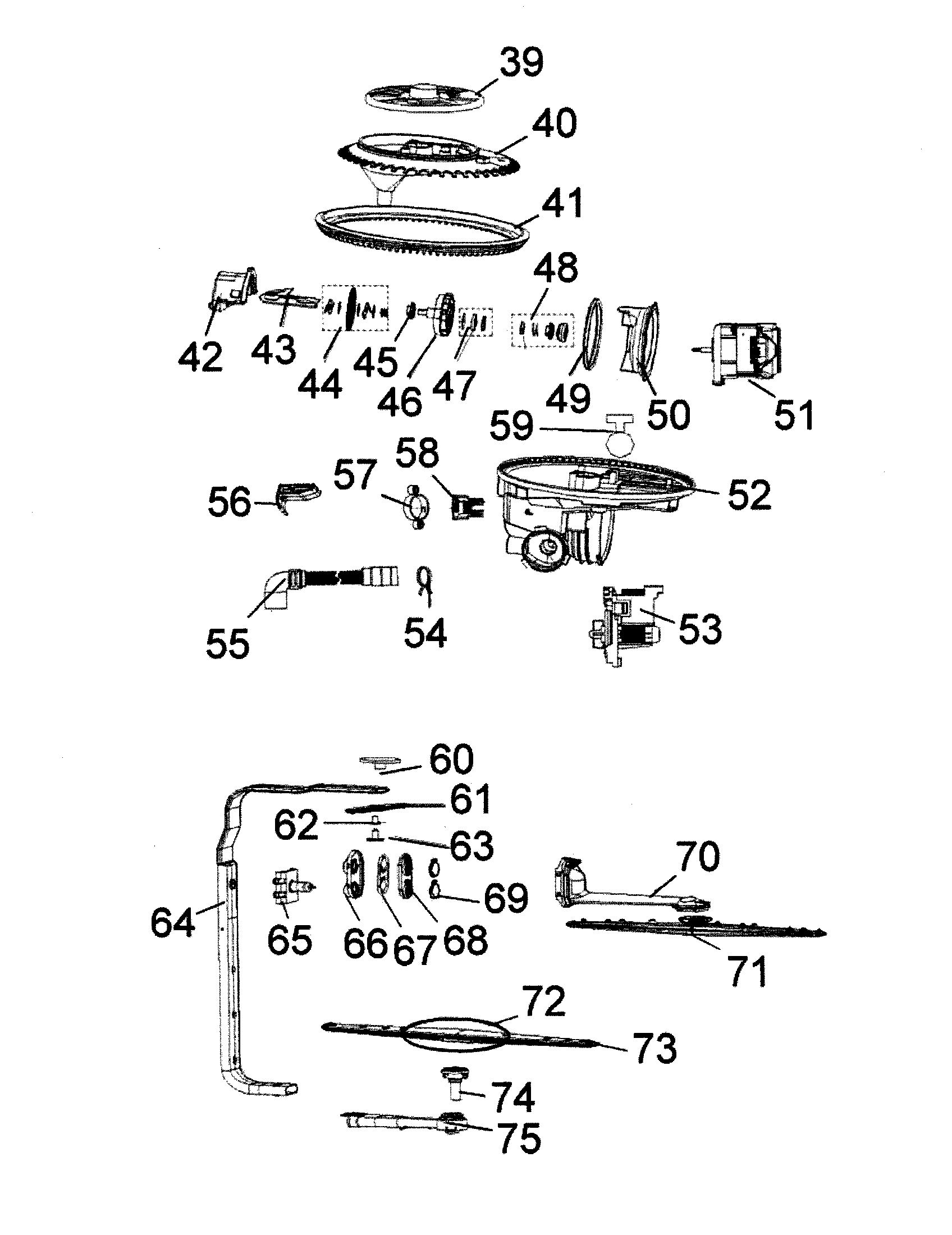

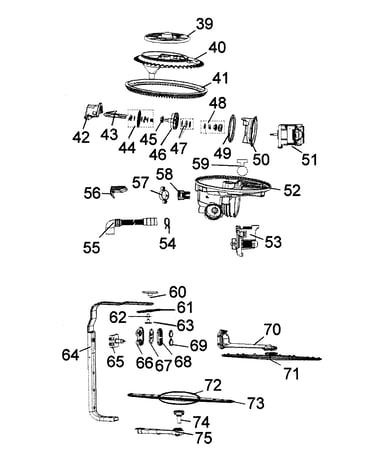

Pump assy diagram

Nut

Part #DW-4720-11

This item is not returnable
$2.49
In Stock
Dishwasher Upper Dishrack Roller DW-8000-05
#77

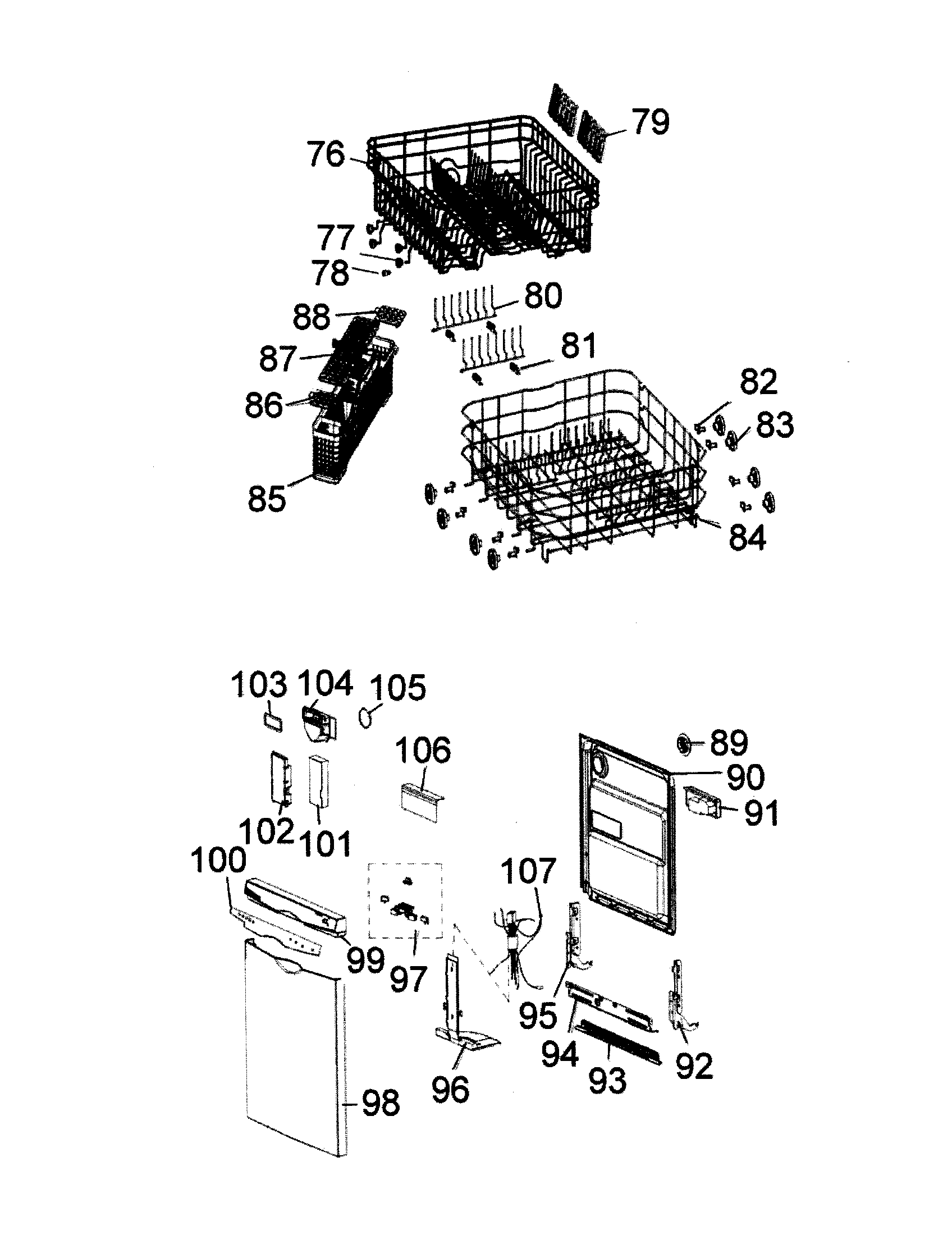

Rack-door diagram

Dishwasher upper dishrack roller

Part #DW-8000-05

This item is not returnable
$3.50
In Stock
Dishwasher Door Cable DW-1302-11
#7

Cabinet assy diagram

Dishwasher door cable

Part #DW-1302-11

$8.99
In Stock
Switch Housing DW-3600-09
#21

Cabinet assy diagram

Switch housing

Part #DW-3600-09

$8.99
In Stock
Dishwasher Door Wire Harness DW-8071-01
#107

Rack-door diagram

Dishwasher door wire harness

Part #DW-8071-01

$69.99
In Stock
Gasket DW-3100-16
#20

Cabinet assy diagram

Gasket

Part #DW-3100-16

This item is not returnable
$2.49
In Stock
Plate DW-5300-21
#66

Pump assy diagram

Plate

Part #DW-5300-21

This item is not returnable
$4.99
In Stock
Dishwasher Thermostat DW-7350-02
#26

Cabinet assy diagram

Dishwasher thermostat

Part #DW-7350-02

$8.99
In Stock
Tub Plug DW-5310-01
#35

Cabinet assy diagram

Tub plug

Part #DW-5310-01

This item is not returnable
$2.99
In Stock
