Model # SB160PEEB1 Official Whirlpool 24" gas built-in oven

Here are the diagrams and repair parts for Official Whirlpool SB160PEEB1 24" gas built-in oven, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 154 parts  |
Light Bulb 4371303
#33

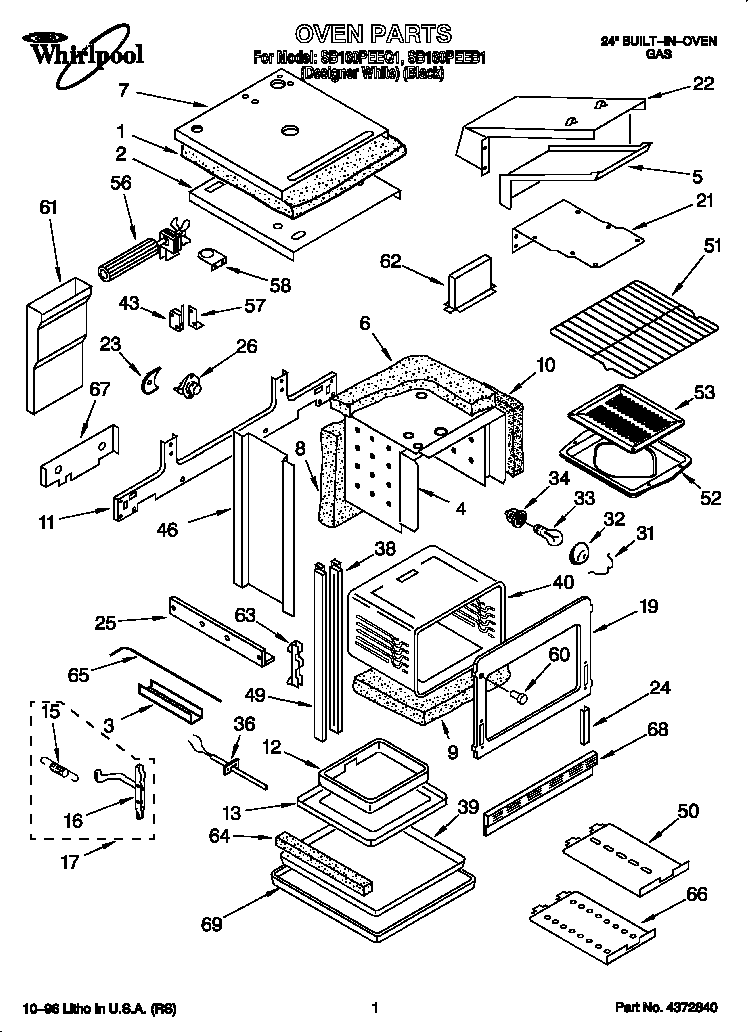

Oven diagram

Light bulb

Part #4371303

Replaced by #40A15

?
Manufacturer substitution
This part replaces 4371303. Substitute parts can look different from the original.
BEST SELLER
$15.16 |
12% OFF Phone Price : $17.16
In Stock
Range Screw 308685
Range screw

Part #308685

Replaced by #WP308685

?
Manufacturer substitution
This part replaces 308685. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
Screw 313638
#22A

Oven diagram

Screw

Part #313638

Replaced by #WP488729

?
Manufacturer substitution
This part replaces 313638. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Nut 816872
Nut

Part #816872

Replaced by #W10080180

?
Manufacturer substitution
This part replaces 816872. Substitute parts can look different from the original.
$16.79 |
11% OFF Phone Price : $18.79
In Stock
Door Glass 4372557
#10A

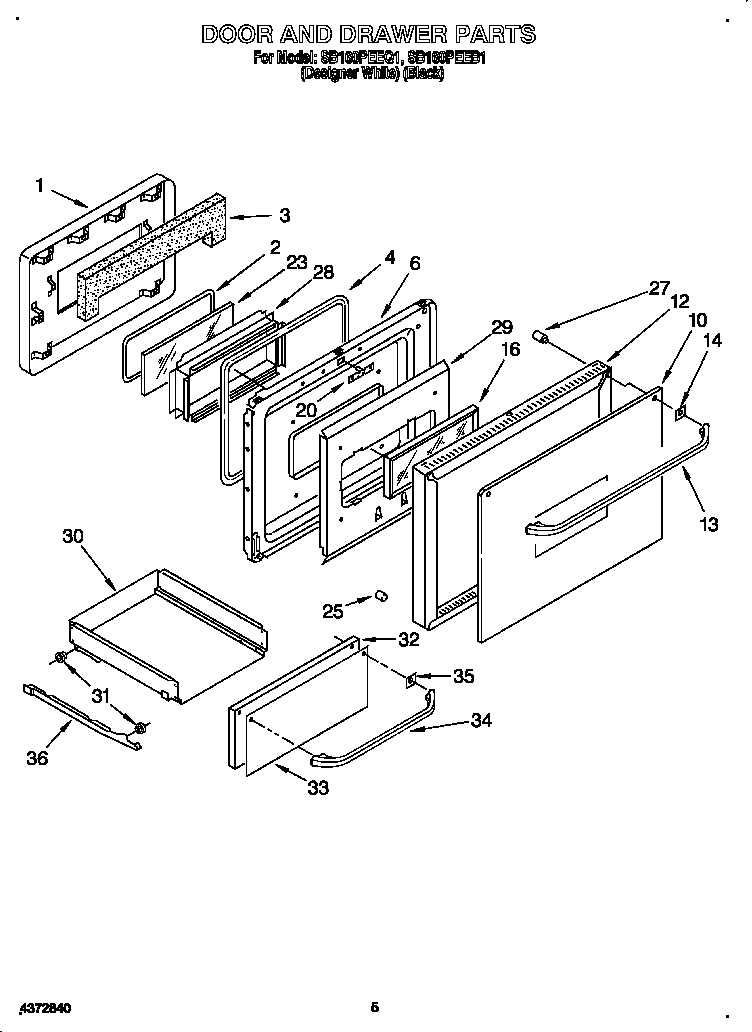

Door and drawer diagram

Door glass

Part #4372557

The manufacturer no longer makes this part, and there's no substitute part

Support 816869

#NI

All parts diagram

Support

Part #816869

The manufacturer no longer makes this part, and there's no substitute part

Insulation 816867
#8

Oven diagram

Insulation

Part #816867

The manufacturer no longer makes this part, and there's no substitute part

Deflector 4372789
#38

Burner diagram

Deflector

Part #4372789

The manufacturer no longer makes this part, and there's no substitute part

Latch Cam 4371167
#27

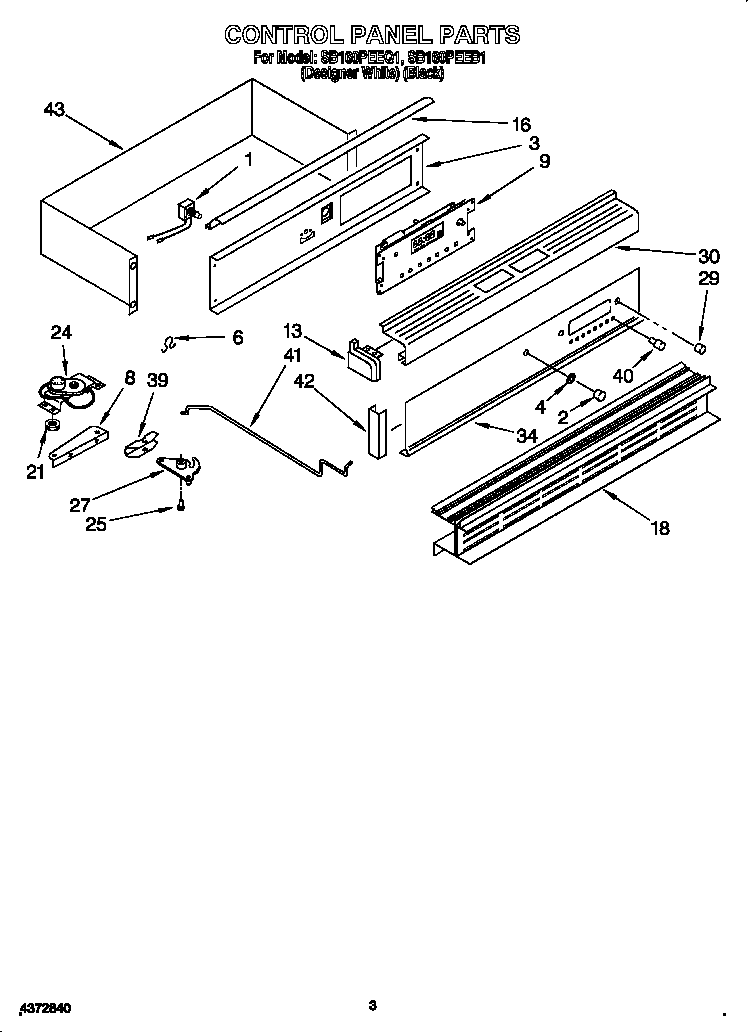

Control panel diagram

Latch cam

Part #4371167

The manufacturer no longer makes this part, and there's no substitute part

Gas Tubing 816902
#10

Burner diagram

Gas tubing

Part #816902

The manufacturer no longer makes this part, and there's no substitute part
