Hotpoint
Upright Freezer

Model # FV19CLB Official Hotpoint upright freezer

Here are the diagrams and repair parts for Official Hotpoint FV19CLB upright freezer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 49 parts  |
Dryer Assembly WR86X86

#740

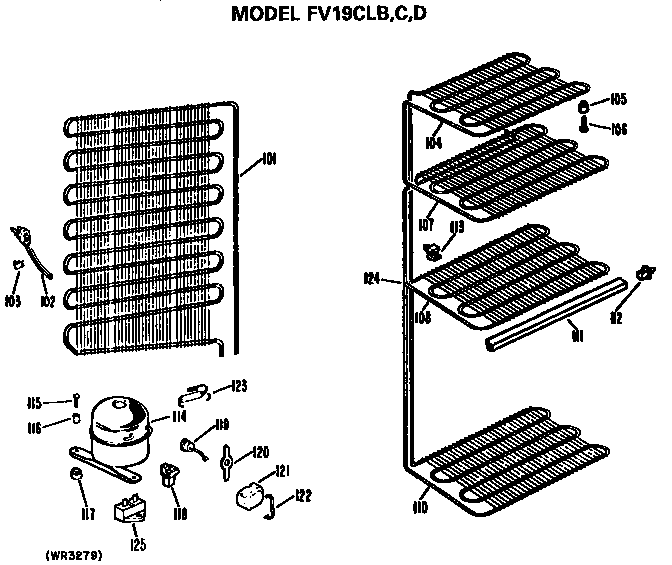

All parts diagram

Dryer assembly

Part #WR86X86

Replaced by #WR86X25269

?
Manufacturer substitution
This part replaces WR86X86. Substitute parts can look different from the original.
BEST SELLER
$79.18 |
7% OFF Phone Price : $85.18
In Stock
Refrigerator Water Tubing Clip WR1X5278

#626

All parts diagram

Refrigerator water tubing clip

Part #WR1X5278

$7.57 |
12% OFF Phone Price : $8.57
In Stock
Condenser WR84X5007

#101

All parts diagram

Condenser

Part #WR84X5007

$279.53
In Stock
Refrigerator Screw WR1X5450

#68

All parts diagram

Refrigerator screw

Part #WR1X5450

Replaced by #WR02X13481

?
Manufacturer substitution
This part replaces WR1X5450. Substitute parts can look different from the original.
This item is not returnable
$6.29
In Stock
Power Cord WR23X108

#626

All parts diagram

Power cord

Part #WR23X108

Replaced by #WR23X10300

?
Manufacturer substitution
This part replaces WR23X108. Substitute parts can look different from the original.
$22.68 |
21% OFF Phone Price : $28.68
In Stock
52839 WR1X1530

#4

All parts diagram

52839

Part #WR1X1530

The manufacturer no longer makes this part, and there's no substitute part

Key WR5X5050

#42

All parts diagram

Key

Part #WR5X5050

The manufacturer no longer makes this part, and there's no substitute part

59211 WR1X5060

#115

All parts diagram

59211

Part #WR1X5060

The manufacturer no longer makes this part, and there's no substitute part

F59555 WR1X5134

#117

All parts diagram

F59555

Part #WR1X5134

The manufacturer no longer makes this part, and there's no substitute part

Tubular Fastener WR2X3757

#3

All parts diagram

Tubular fastener

Part #WR2X3757

The manufacturer no longer makes this part, and there's no substitute part
