Kenmore
Space Heater

Model # 8676664 Official Kenmore oil-fired horizontal furnace

Here are the diagrams and repair parts for Official Kenmore 8676664 oil-fired horizontal furnace, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 142 parts  |
Blower Wheel 72411

#NI

All parts diagram

Blower wheel

Part #72411

Replaced by #601210

?
Manufacturer substitution
This part replaces 72411. Substitute parts can look different from the original.
$194.16
In Stock
Blower Wheel 72400
#10B

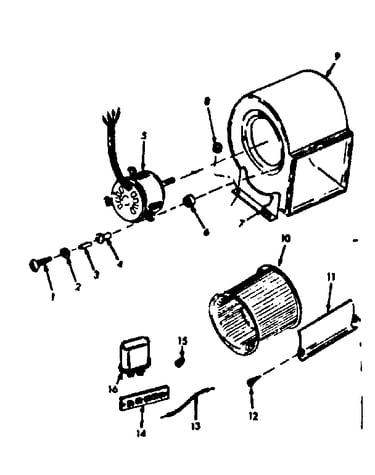

H-q blower assembly diagram

Blower wheel

Part #72400

Replaced by #601210

?
Manufacturer substitution
This part replaces 72400. Substitute parts can look different from the original.
$194.16
In Stock
Fan Wheel 72978
#10A

H-q blower assembly diagram

Fan wheel

Part #72978

Replaced by #600587

?
Manufacturer substitution
This part replaces 72978. Substitute parts can look different from the original.
$130.20 |
8% OFF Phone Price : $142.20
In Stock
Screw 448445
#10

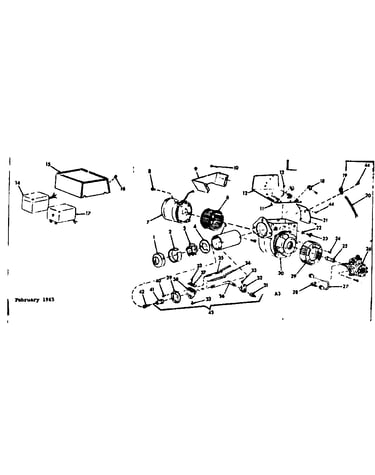

Oil burner assembly diagram

Screw

Part #448445

The manufacturer no longer makes this part, and there's no substitute part

Control 9214
#55

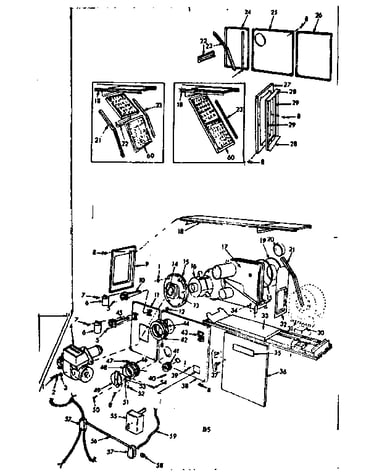

Furnace assemblies diagram

Control

Part #9214

The manufacturer no longer makes this part, and there's no substitute part

Air Filter 65596
#60B

Furnace assemblies diagram

Air filter

Part #65596

The manufacturer no longer makes this part, and there's no substitute part

Oil Pipe 68072
#27

Oil burner assembly diagram

Oil pipe

Part #68072

The manufacturer no longer makes this part, and there's no substitute part

Air Filter 64488
#60A

Furnace assemblies diagram

Air filter

Part #64488

The manufacturer no longer makes this part, and there's no substitute part

Twist-on Wire Connector 64383
#15

H-q blower assembly diagram

Twist-on wire connector

Part #64383

The manufacturer no longer makes this part, and there's no substitute part

Nozzle 64605
#42A

Oil burner assembly diagram

Nozzle

Part #64605

The manufacturer no longer makes this part, and there's no substitute part
