Model # SBP26CB5-P1142178NL Official Amana gas range

Here are the diagrams and repair parts for Official Amana SBP26CB5-P1142178NL gas range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 144 parts  |
Nut M0282009
#11

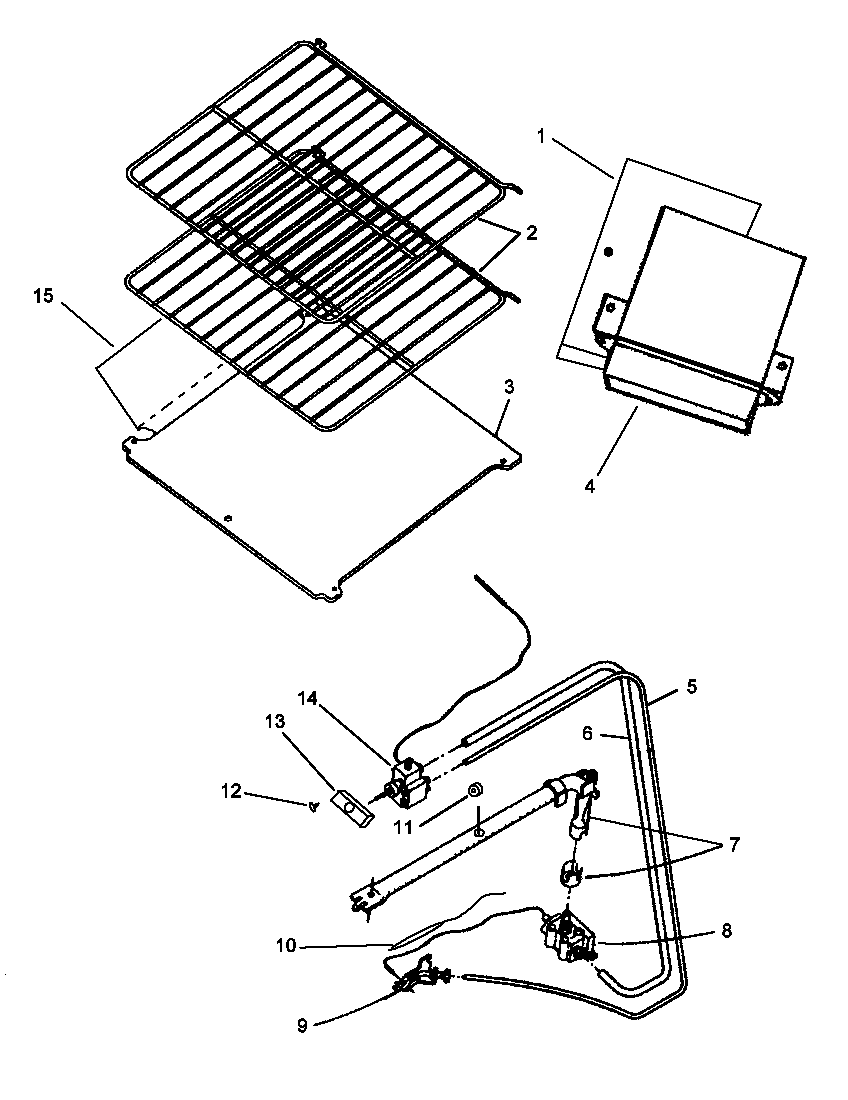

Oven components diagram

Nut

Part #M0282009

$12.49
In Stock
Oven Bottom, Gas 06554404E
#3

Oven components diagram

Oven bottom, gas

Part #06554404E

The manufacturer no longer makes this part, and there's no substitute part

Filter, Pilot 0311054

#NI

All parts diagram

Filter, pilot

Part #0311054

The manufacturer no longer makes this part, and there's no substitute part

Leveler, Leg Screw 01084001
#11

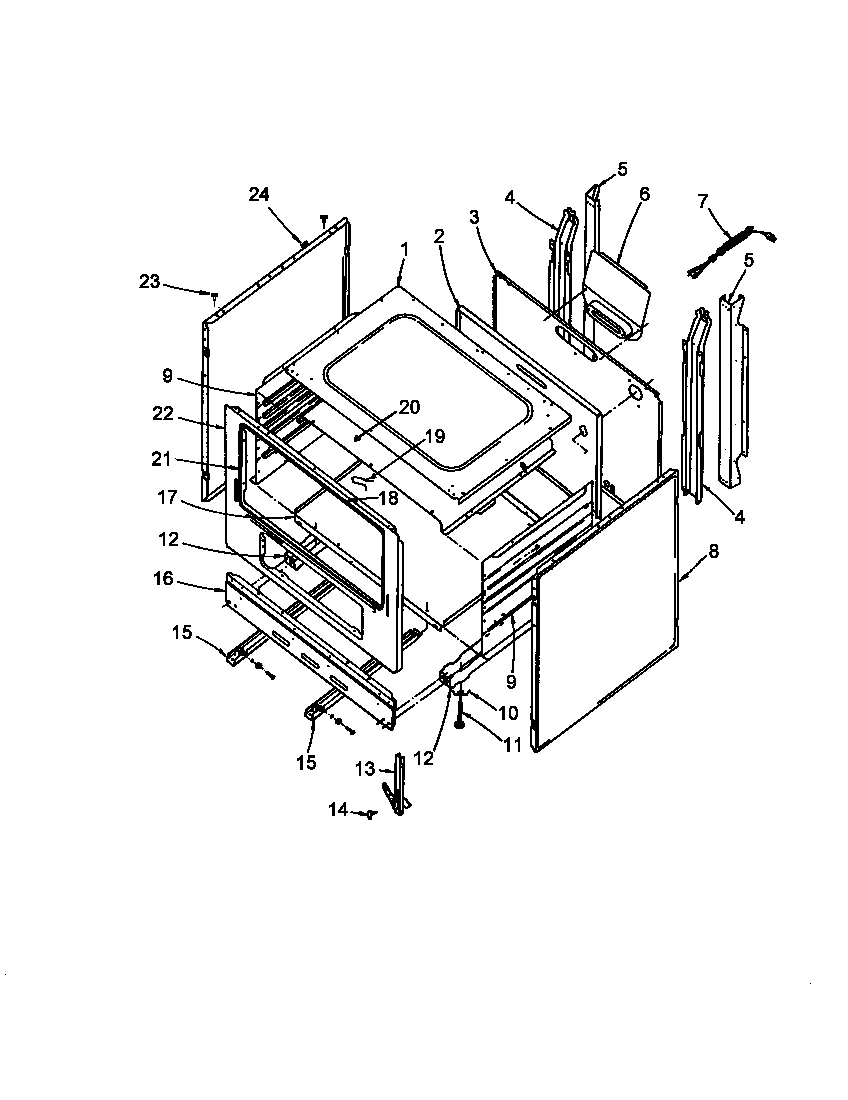

Cabinet assembly diagram

Leveler, leg screw

Part #01084001

The manufacturer no longer makes this part, and there's no substitute part

Bolt, Gas Valve Mount 0056115
#11

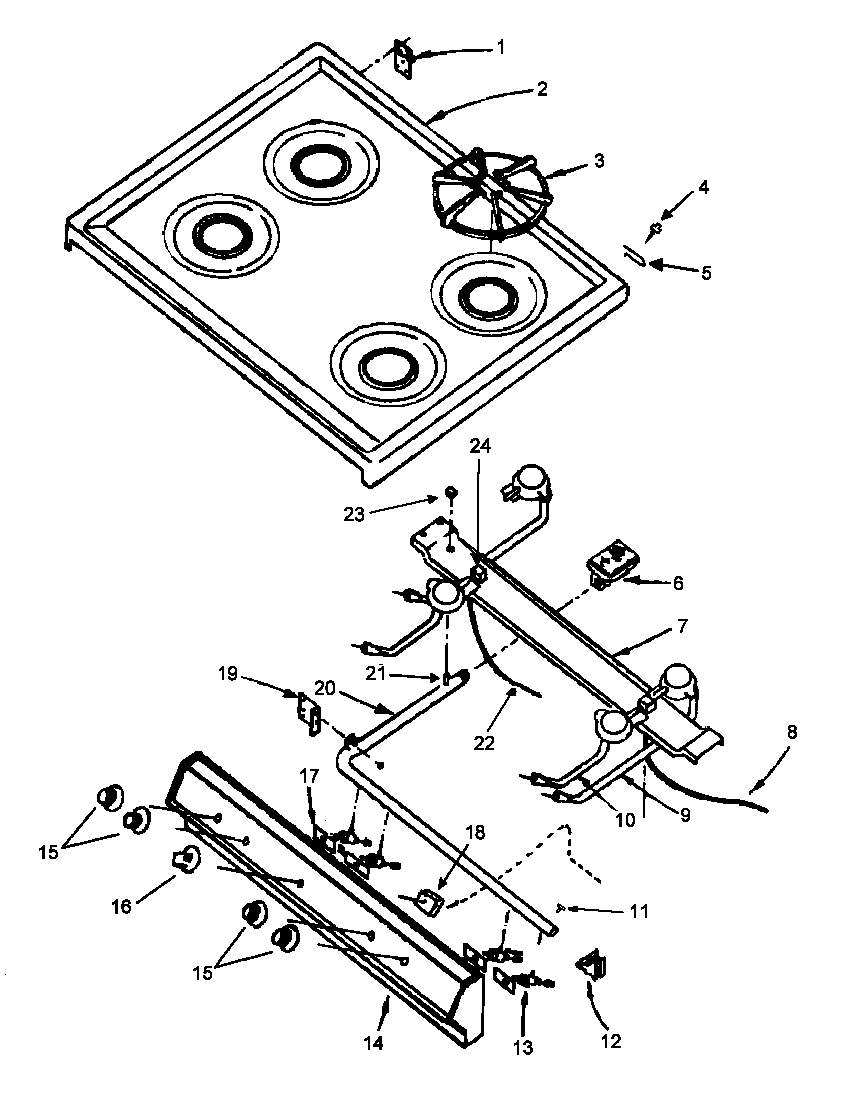

Main top assembly diagram

Bolt, gas valve mount

Part #0056115

The manufacturer no longer makes this part, and there's no substitute part

Pilot Tip 0057313
#24

Main top assembly diagram

Pilot tip

Part #0057313

The manufacturer no longer makes this part, and there's no substitute part

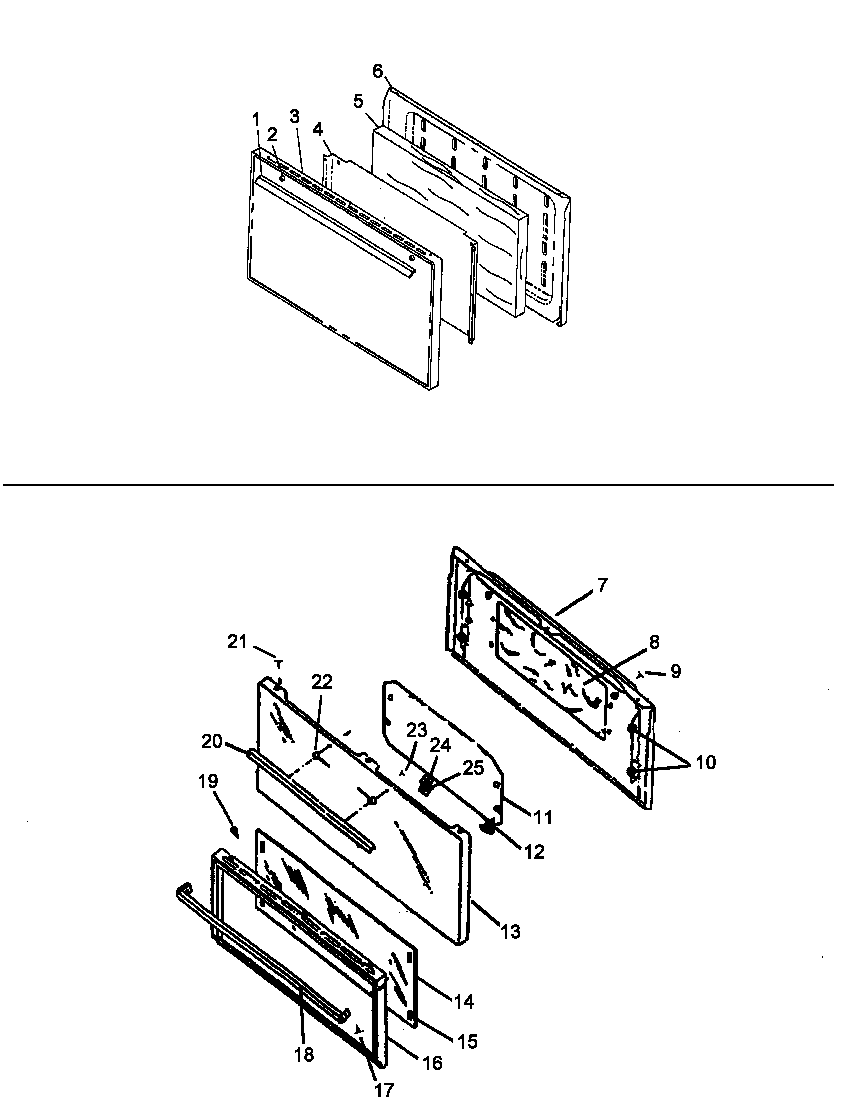

Door Handle Mounting Screw 0311884
Door handle mounting screw

Part #0311884

The manufacturer no longer makes this part, and there's no substitute part

Gas Valve (rls340, 348, 343) 0089062
#8

Oven components diagram

Gas valve (rls340, 348, 343)

Part #0089062

The manufacturer no longer makes this part, and there's no substitute part

Top Burner Support 06451813
#7

Main top assembly diagram

Top burner support

Part #06451813

The manufacturer no longer makes this part, and there's no substitute part

Bolt With Gasket 0056114
#12

Oven components diagram

Bolt with gasket

Part #0056114

The manufacturer no longer makes this part, and there's no substitute part
