Model # GSG22KBPHFWW Official GE refrigerator - p series
Here are the diagrams and repair parts for Official GE GSG22KBPHFWW refrigerator - p series, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
By Part
SELECT DIAGRAM
Browse Parts forGSG22KBPHFWW Refrigerators
- #242

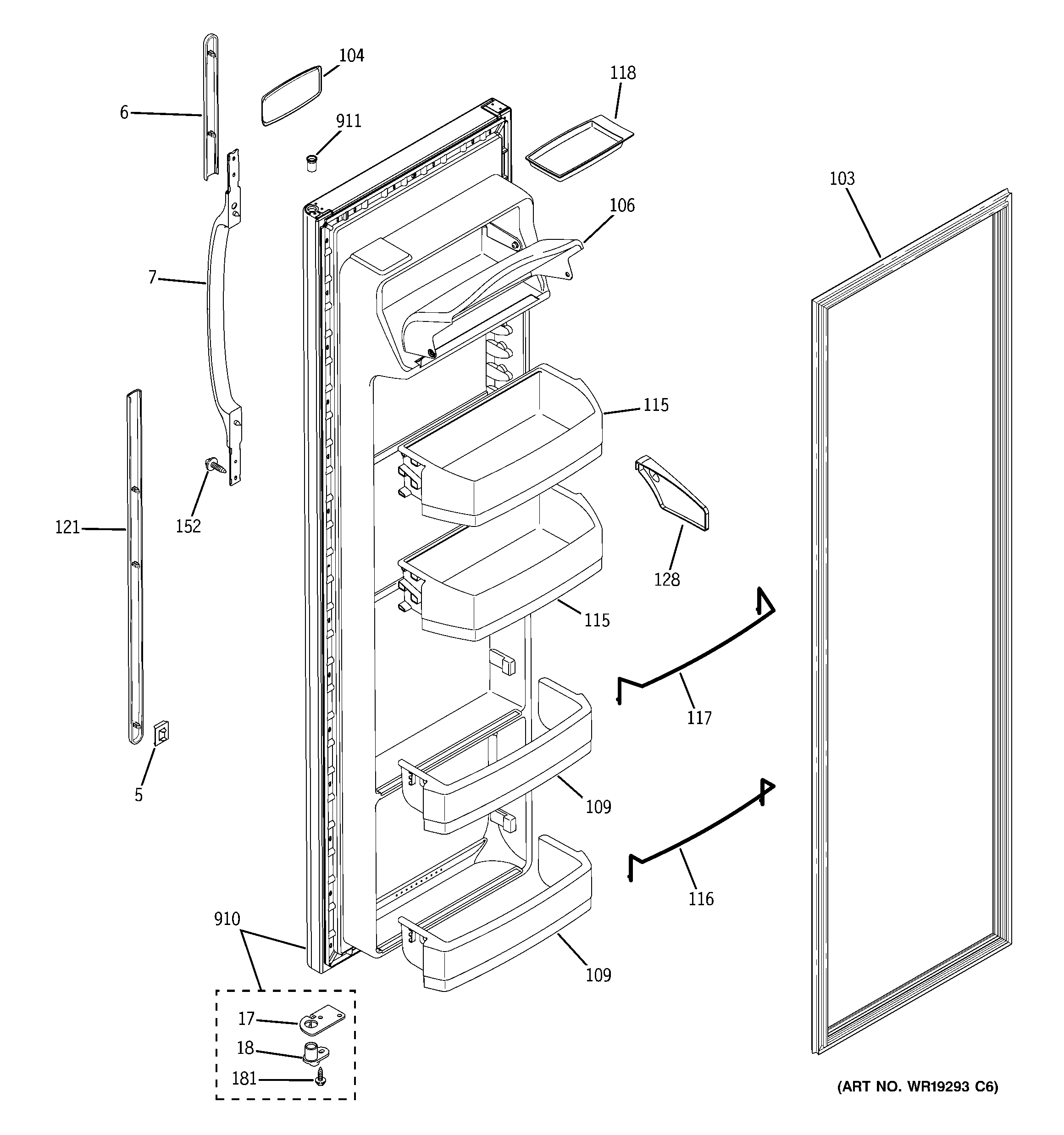

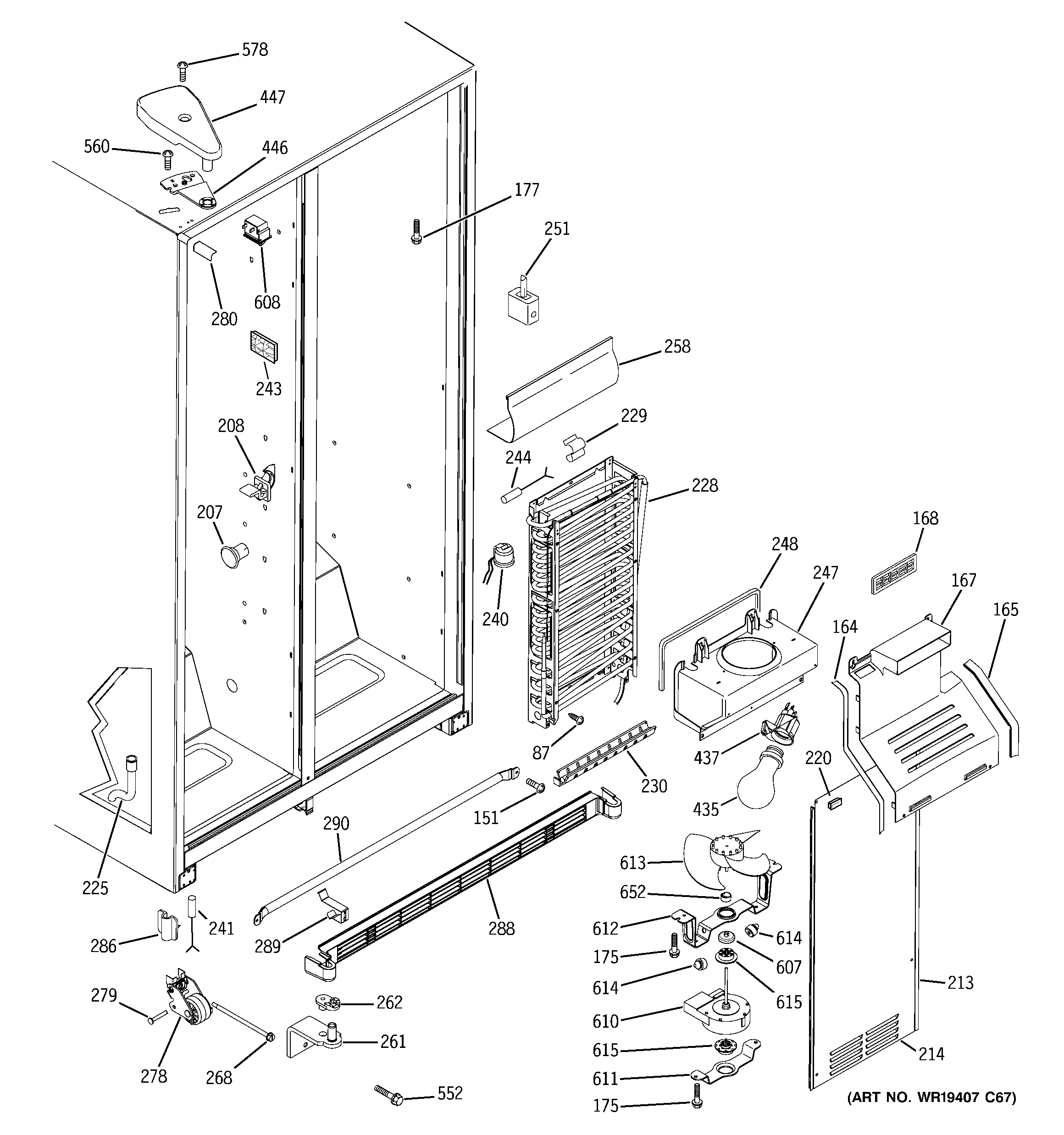

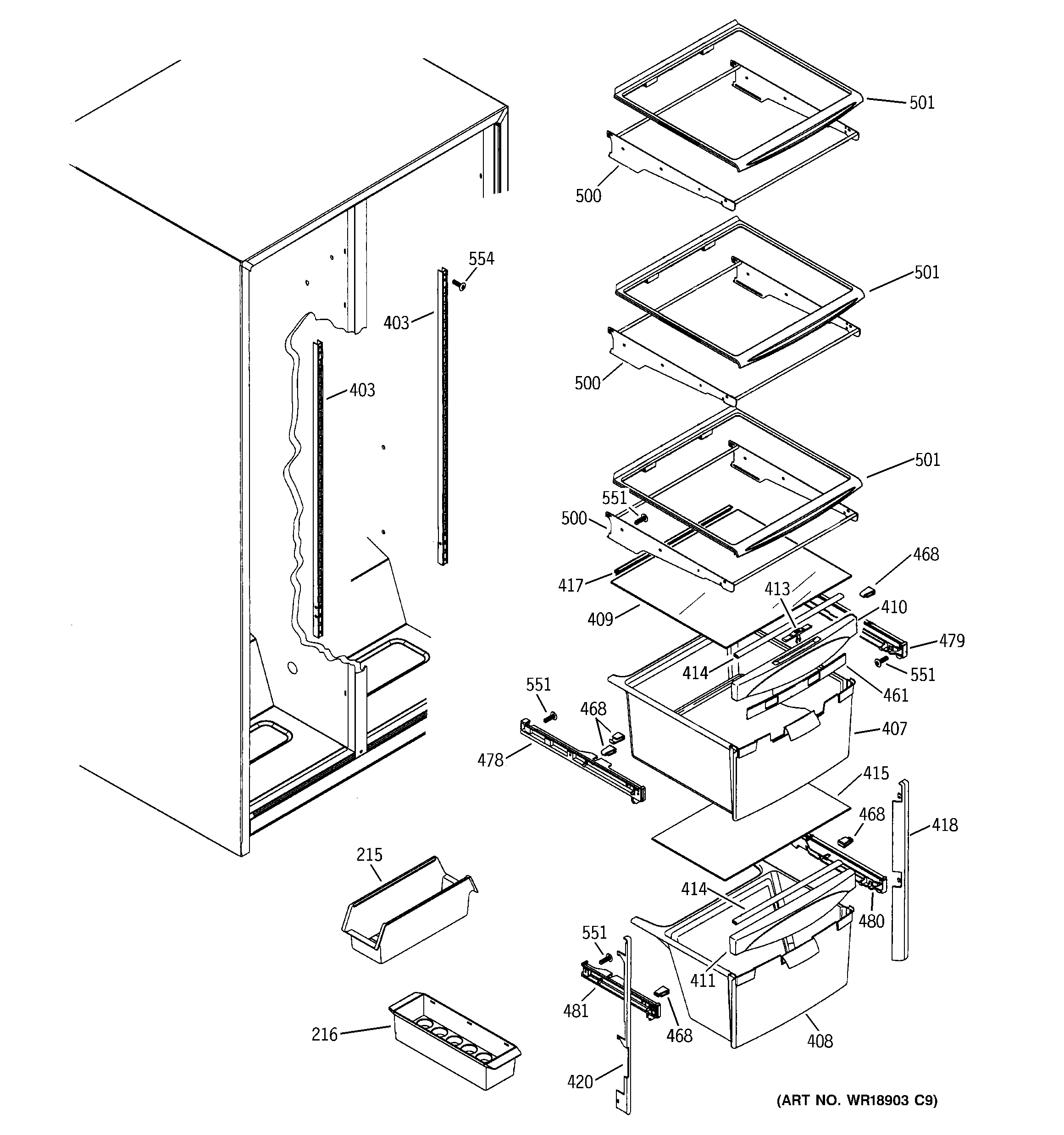

Fresh food section diagram
Refrigerator temperature sensorPart #WR50X10034
Replaced by #WR55X10025
?Manufacturer substitutionThis part replaces WR50X10034. Substitute parts can look different from the original.$18.93 |10% OFF Phone Price : $20.93In Stock - #241

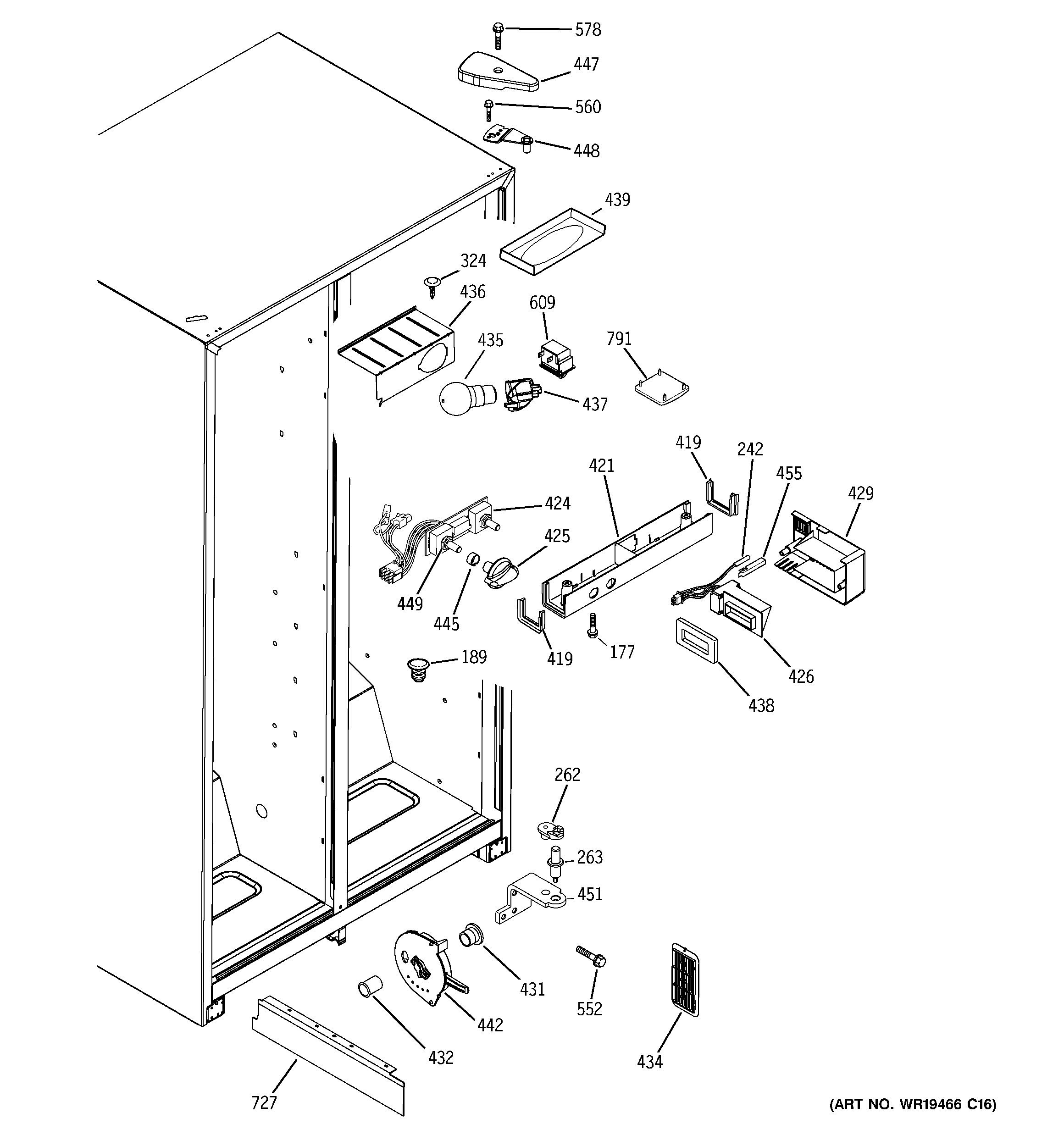

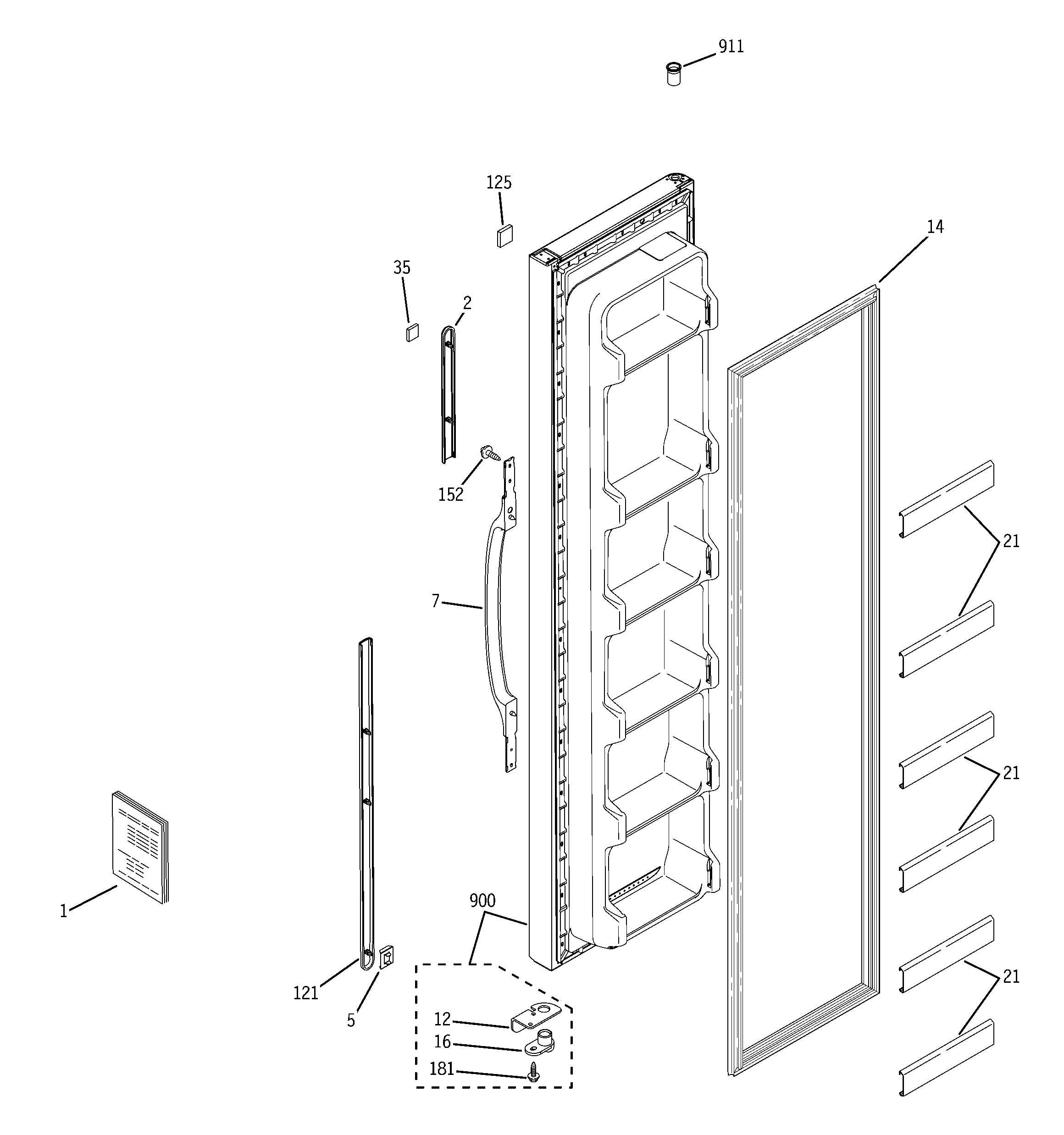

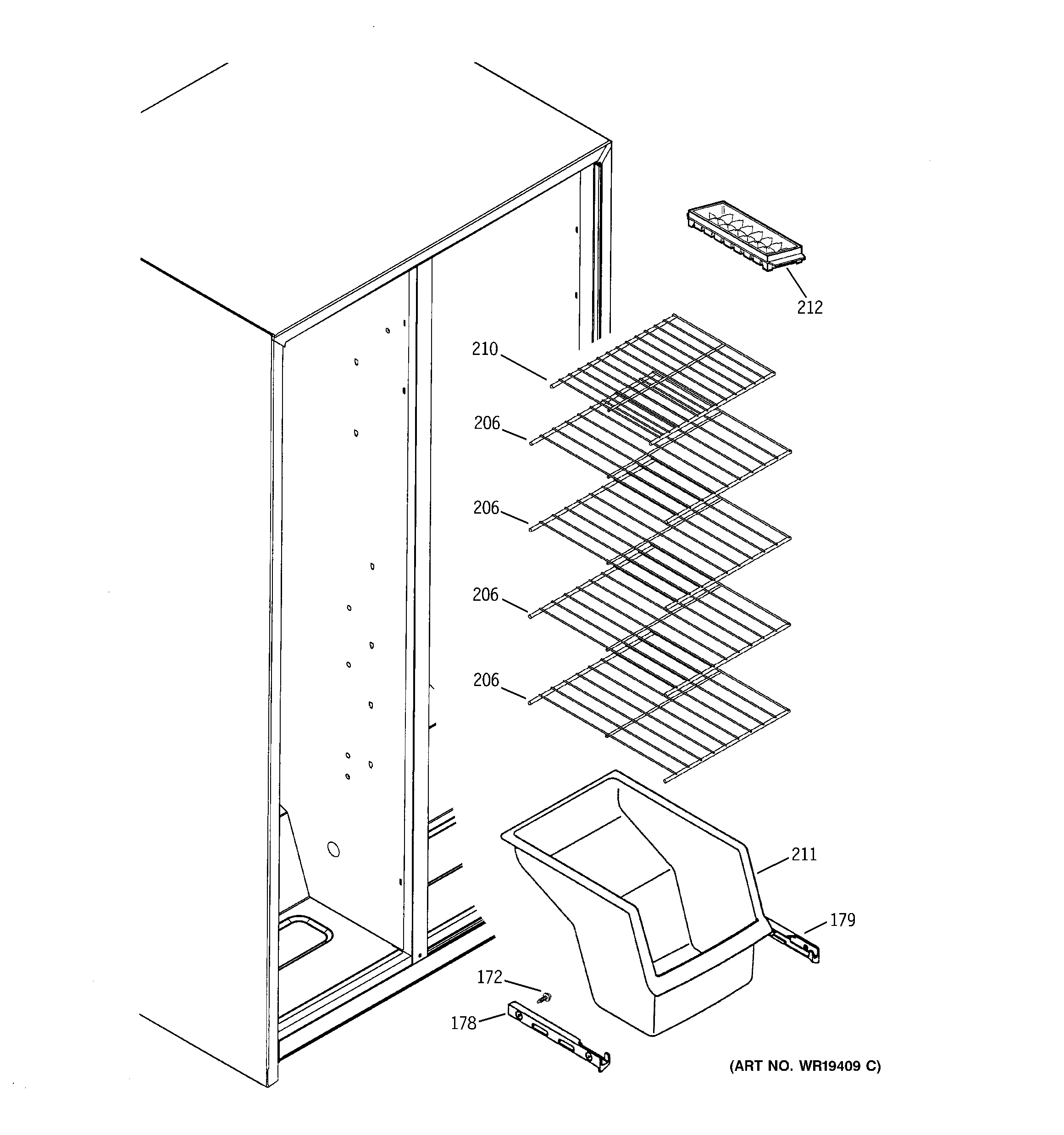

Freezer section diagram
Refrigerator temperature sensorPart #WR50X10027
Replaced by #WR55X10025
?Manufacturer substitutionThis part replaces WR50X10027. Substitute parts can look different from the original.$18.93 |10% OFF Phone Price : $20.93In Stock - #244
Freezer section diagram
Refrigerator temperature sensorPart #WR55X10380
Replaced by #WR55X10025
?Manufacturer substitutionThis part replaces WR55X10380. Substitute parts can look different from the original.$18.93 |10% OFF Phone Price : $20.93In Stock - #740

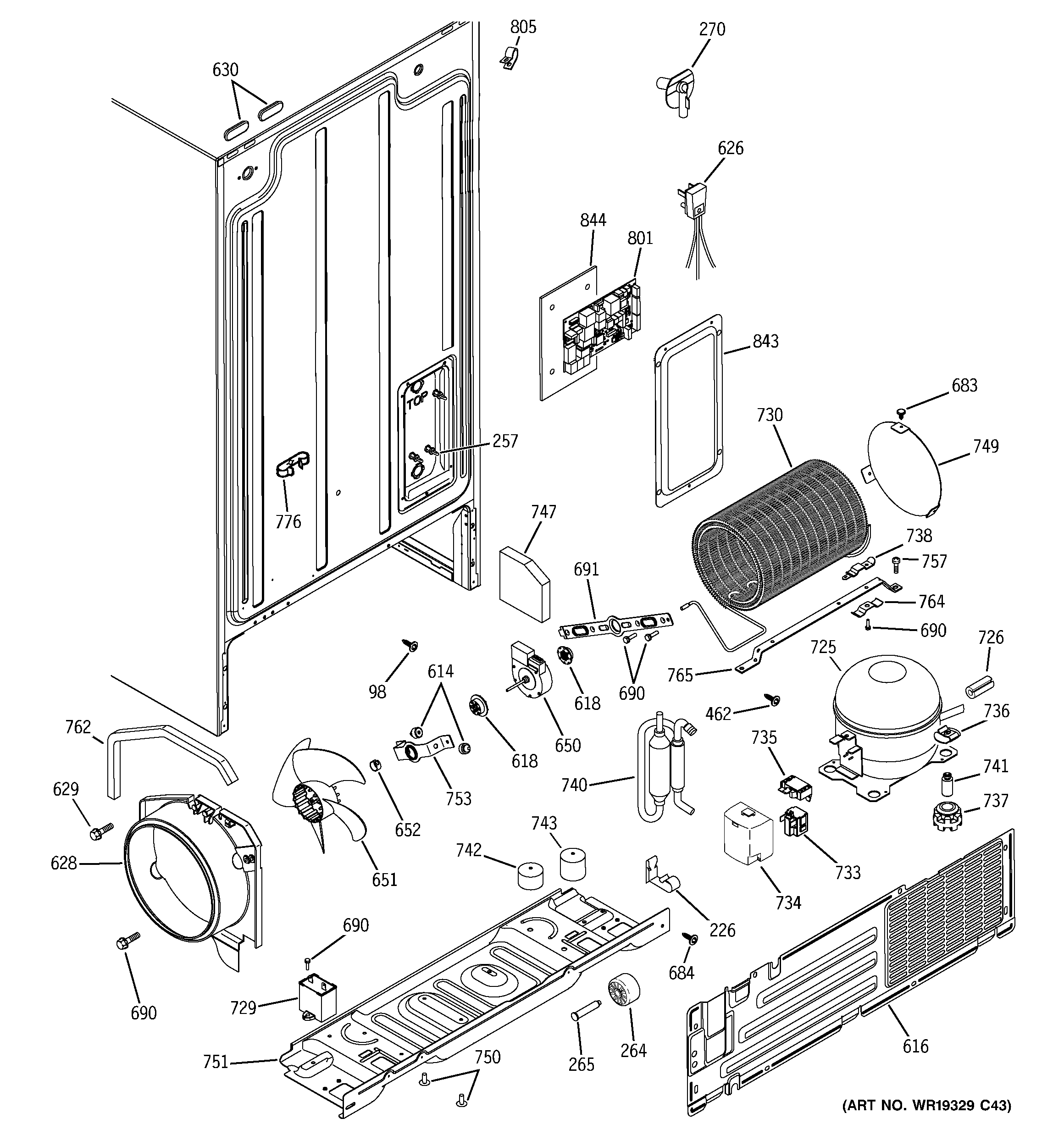

Sealed system & mother board diagram
Refrigerator filter dryerPart #WR86X96
Replaced by #WR86X25269
?Manufacturer substitutionThis part replaces WR86X96. Substitute parts can look different from the original.$74.11 |7% OFF Phone Price : $80.11In Stock - #240
Freezer section diagram
Refrigerator defrost thermostatPart #WR50X10054
Replaced by #WR50X10068
?Manufacturer substitutionThis part replaces WR50X10054. Substitute parts can look different from the original.$22.27 |21% OFF Phone Price : $28.27In Stock - #650
Sealed system & mother board diagram
Motor dc conPart #WR60X10080
Replaced by #WR60X10209
?Manufacturer substitutionThis part replaces WR60X10080. Substitute parts can look different from the original.$61.98 |9% OFF Phone Price : $67.98In Stock - #651
Sealed system & mother board diagram
Condenser fan bladePart #WR60X10049
Replaced by #WR60X24484
?Manufacturer substitutionThis part replaces WR60X10049. Substitute parts can look different from the original.This item is not returnable$29.22 |17% OFF Phone Price : $35.22In Stock - #608
Freezer section diagram
Refrigerator light switchPart #WR23X10161
Replaced by #WR23X21444
?Manufacturer substitutionThis part replaces WR23X10161. Substitute parts can look different from the original.This item is not returnable$10.39 |16% OFF Phone Price : $12.39In Stock - #730
Sealed system & mother board diagram
Ge profile refrigerator condenser coilPart #WR84X10022
$411.61 |$12.00 OFF Phone Price : $423.61In Stock - #426
Fresh food section diagram
Damper & thePart #WR60X10159
Replaced by #WR09X10050
?Manufacturer substitutionThis part replaces WR60X10159. Substitute parts can look different from the original.$120.78 |9% OFF Phone Price : $132.78In Stock
