Craftsman
Garage Door Opener

Model # 139663900 Official Craftsman garage door opener

Here are the diagrams and repair parts for Official Craftsman 139663900 garage door opener, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 102 parts  |
Screw 171A183
#1

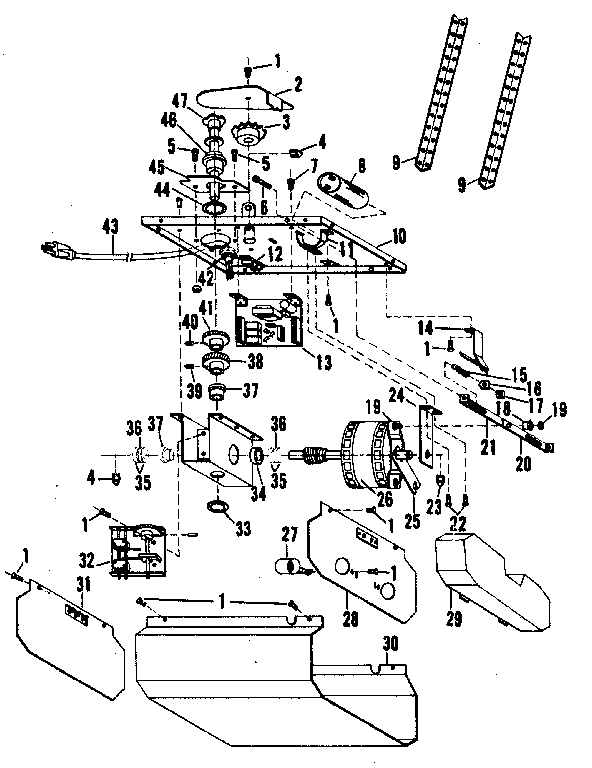

Chassis assembly diagram

Screw

Part #171A183

The manufacturer no longer makes this part, and there's no substitute part

Screw 171A184
#22

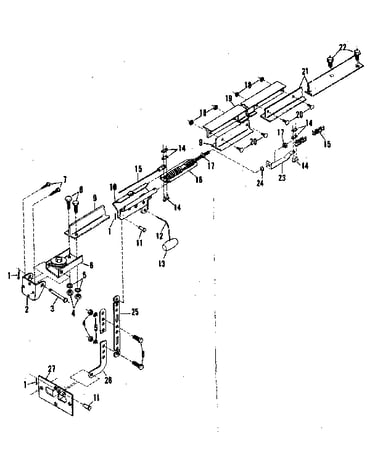

Rail assembly diagram

Screw

Part #171A184

The manufacturer no longer makes this part, and there's no substitute part

Chassis Assembly 4A1258
#10

Chassis assembly diagram

Chassis assembly

Part #4A1258

The manufacturer no longer makes this part, and there's no substitute part

Screw 171A254
#22

Chassis assembly diagram

Screw

Part #171A254

The manufacturer no longer makes this part, and there's no substitute part

Bracket 12A303
#11

Chassis assembly diagram

Bracket

Part #12A303

The manufacturer no longer makes this part, and there's no substitute part

Lt Socket 4A1228
#27

Chassis assembly diagram

Lt socket

Part #4A1228

The manufacturer no longer makes this part, and there's no substitute part

Logic Board 4A1226
#13

Chassis assembly diagram

Logic board

Part #4A1226

The manufacturer no longer makes this part, and there's no substitute part

Gear 81B26
#41

Chassis assembly diagram

Gear

Part #81B26

The manufacturer no longer makes this part, and there's no substitute part

Hex Nut 133A29
#4

Rail assembly diagram

Hex nut

Part #133A29

The manufacturer no longer makes this part, and there's no substitute part

Board Switch 4A1204
#6

Radio controls diagram

Board switch

Part #4A1204

The manufacturer no longer makes this part, and there's no substitute part
