Craftsman
Power Drill

Model # 31511170 Official Craftsman 3/8" electric drill with speed torque control

Here are the diagrams and repair parts for Official Craftsman 31511170 3/8" electric drill with speed torque control, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 44 parts  |
Screw 1-930993-01
#25

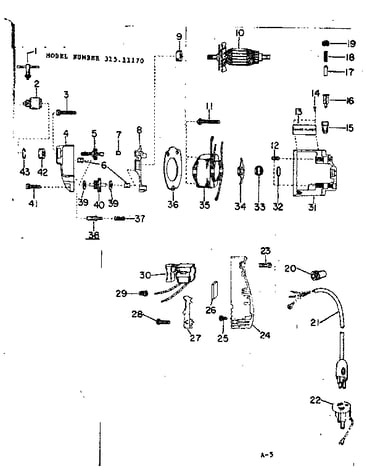

Unit parts diagram

Screw

Part #1-930993-01

The manufacturer no longer makes this part, and there's no substitute part

Retainer 1-195541-00
#34

Unit parts diagram

Retainer

Part #1-195541-00

The manufacturer no longer makes this part, and there's no substitute part

Brush 1-966169-00
#17

Unit parts diagram

Brush

Part #1-966169-00

The manufacturer no longer makes this part, and there's no substitute part

Ball Bearing 1-740943-01
#9

Unit parts diagram

Ball bearing

Part #1-740943-01

The manufacturer no longer makes this part, and there's no substitute part

Bend Relief 2-622824-01
#20

Unit parts diagram

Bend relief

Part #2-622824-01

The manufacturer no longer makes this part, and there's no substitute part

Retain Ring 1-829994-00
#43

Unit parts diagram

Retain ring

Part #1-829994-00

The manufacturer no longer makes this part, and there's no substitute part

Spring 1-717971-00
#37

Unit parts diagram

Spring

Part #1-717971-00

The manufacturer no longer makes this part, and there's no substitute part

Brush Cap 1-886001-01
#19

Unit parts diagram

Brush cap

Part #1-886001-01

The manufacturer no longer makes this part, and there's no substitute part

Cord Comp 2-622897-01
#21

Unit parts diagram

Cord comp

Part #2-622897-01

The manufacturer no longer makes this part, and there's no substitute part

Nameplate 1-624821-00
#13

Unit parts diagram

Nameplate

Part #1-624821-00

The manufacturer no longer makes this part, and there's no substitute part
