Craftsman
Gas Snowblower

Model # 536884232 Official Craftsman snow thrower

Here are the diagrams and repair parts for Official Craftsman 536884232 snow thrower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

  View engine

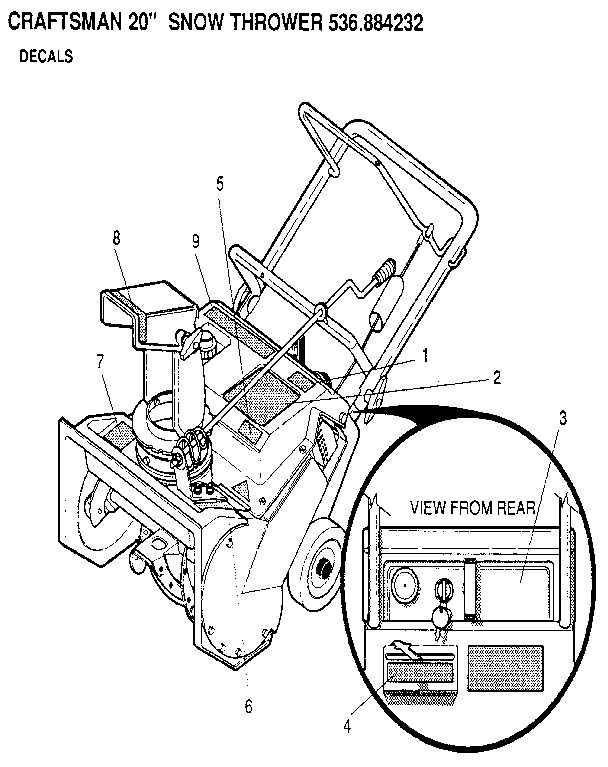

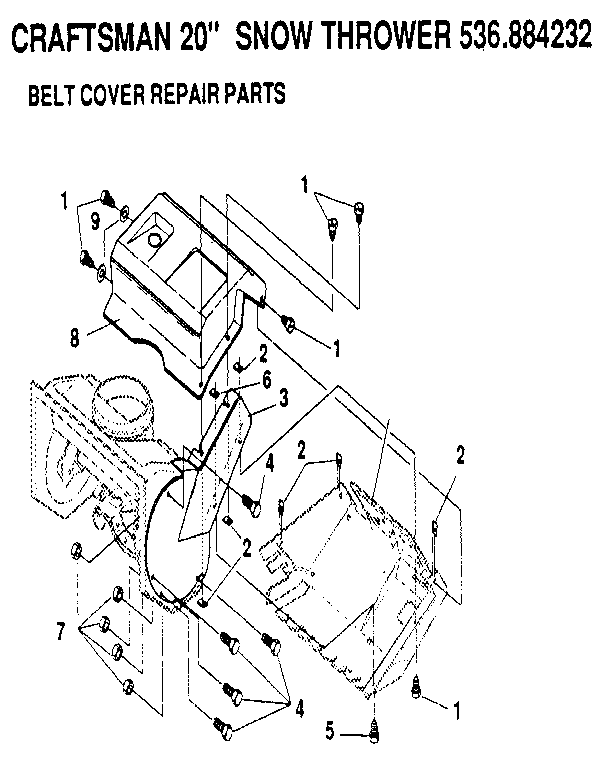

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 224 parts  |
Starter Rope 1258
#2

Frame components diagram

Starter rope

Part #1258

Replaced by #590535

?
Manufacturer substitution
This part replaces 1258. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
Boot Spring 308146
#4

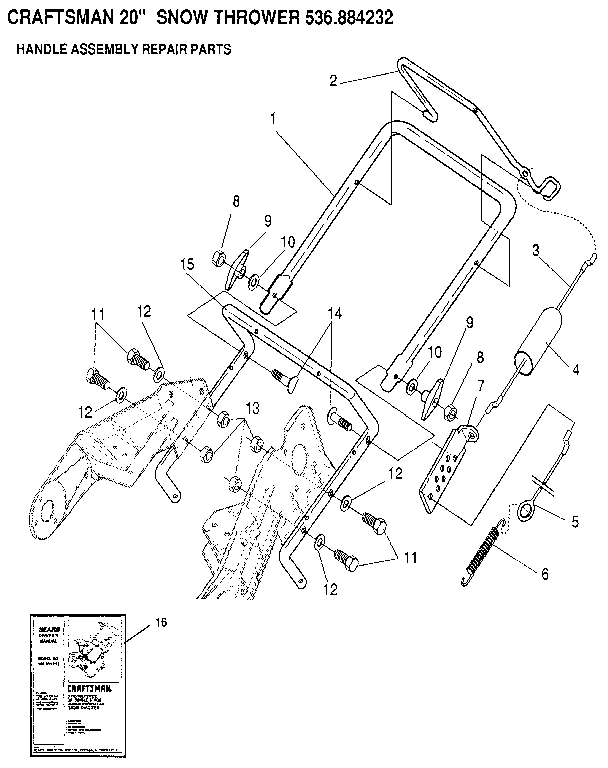

Handle assembly diagram

Boot spring

Part #308146

Replaced by #308146MA

?
Manufacturer substitution
This part replaces 308146. Substitute parts can look different from the original.
$10.97 |
15% OFF Phone Price : $12.97
In Stock
Bearing Assembly 54837
#14

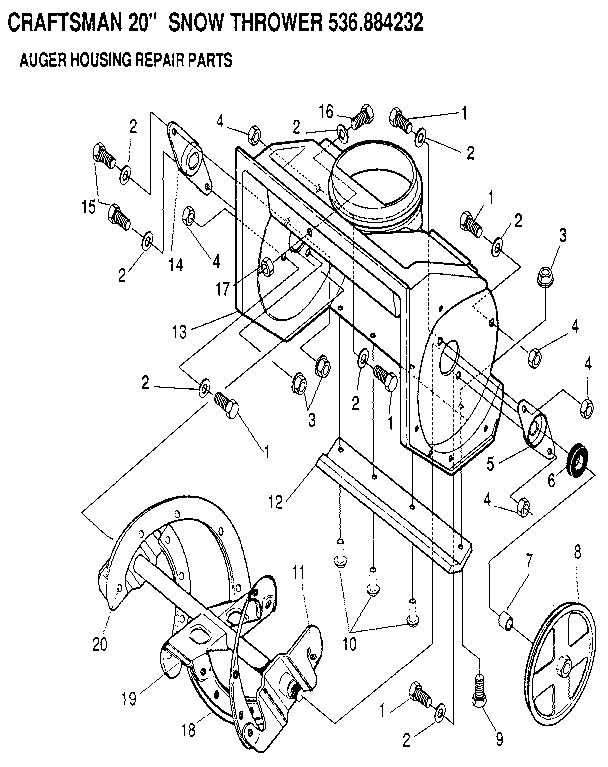

Auger housing diagram

Bearing assembly

Part #54837

Replaced by #577023MA

?
Manufacturer substitution
This part replaces 54837. Substitute parts can look different from the original.
$9.59 |
9% OFF Phone Price : $10.59
In Stock
Scraper 55323
#12

Auger housing diagram

Scraper

Part #55323

Replaced by #55323MA

?
Manufacturer substitution
This part replaces 55323. Substitute parts can look different from the original.

Get free shipping with Automatic Reorder

$47.89 |
11% OFF Phone Price : $53.89
In Stock
V-belt 48922
#7

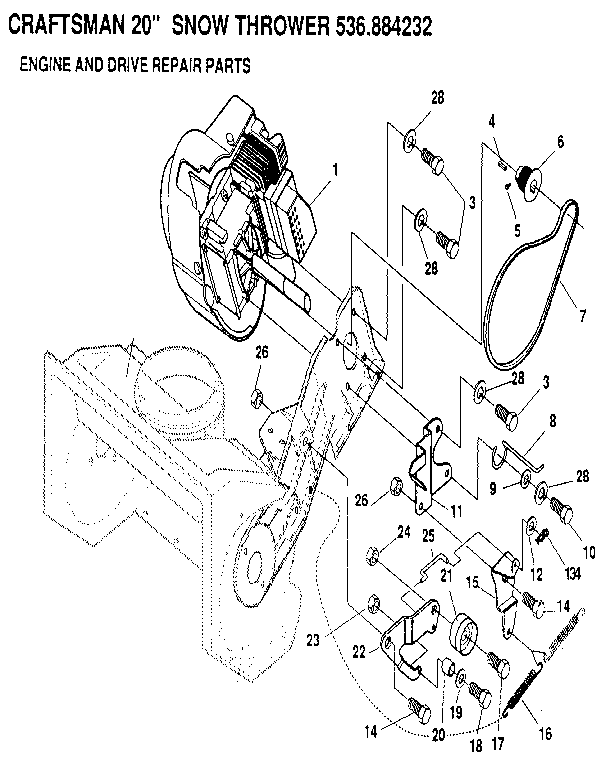

Engine and drive diagram

V-belt

Part #48922

Replaced by #319596MA

?
Manufacturer substitution
This part replaces 48922. Substitute parts can look different from the original.

Get free shipping with Automatic Reorder

$31.01 |
16% OFF Phone Price : $37.01
In Stock
Snowblower Formed Washer 311936
#10

Handle assembly diagram

Snowblower formed washer

Part #311936

Replaced by #311936MA

?
Manufacturer substitution
This part replaces 311936. Substitute parts can look different from the original.
This item is not returnable
$12.71 |
14% OFF Phone Price : $14.71
In Stock
Blade 302565
#18

Auger housing diagram

Blade

Part #302565

Replaced by #302565MA

?
Manufacturer substitution
This part replaces 302565. Substitute parts can look different from the original.

Get free shipping with Automatic Reorder

$30.58 |
16% OFF Phone Price : $36.58
In Stock
Nut 302635
Nut

Part #302635

Replaced by #15X143MA

?
Manufacturer substitution
This part replaces 302635. Substitute parts can look different from the original.
This item is not returnable
$8.49 |
11% OFF Phone Price : $9.49
In Stock
Screw 12345
#9

Discharge chute diagram

Screw

Part #12345

Replaced by #578088MA

?
Manufacturer substitution
This part replaces 12345. Substitute parts can look different from the original.
This item is not returnable
$8.69
In Stock
Lock Washer 71060
#9

Chute control rod diagram

Lock washer

Part #71060

Replaced by #703116

?
Manufacturer substitution
This part replaces 71060. Substitute parts can look different from the original.
This item is not returnable
$5.79 |
15% OFF Phone Price : $6.79
In Stock
