Model # CSP2760TQ1 Official Whirlpool commercial dryer

Here are the diagrams and repair parts for Official Whirlpool CSP2760TQ1 commercial dryer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 168 parts  |
Dryer Thermal Fuse 3392519
#39

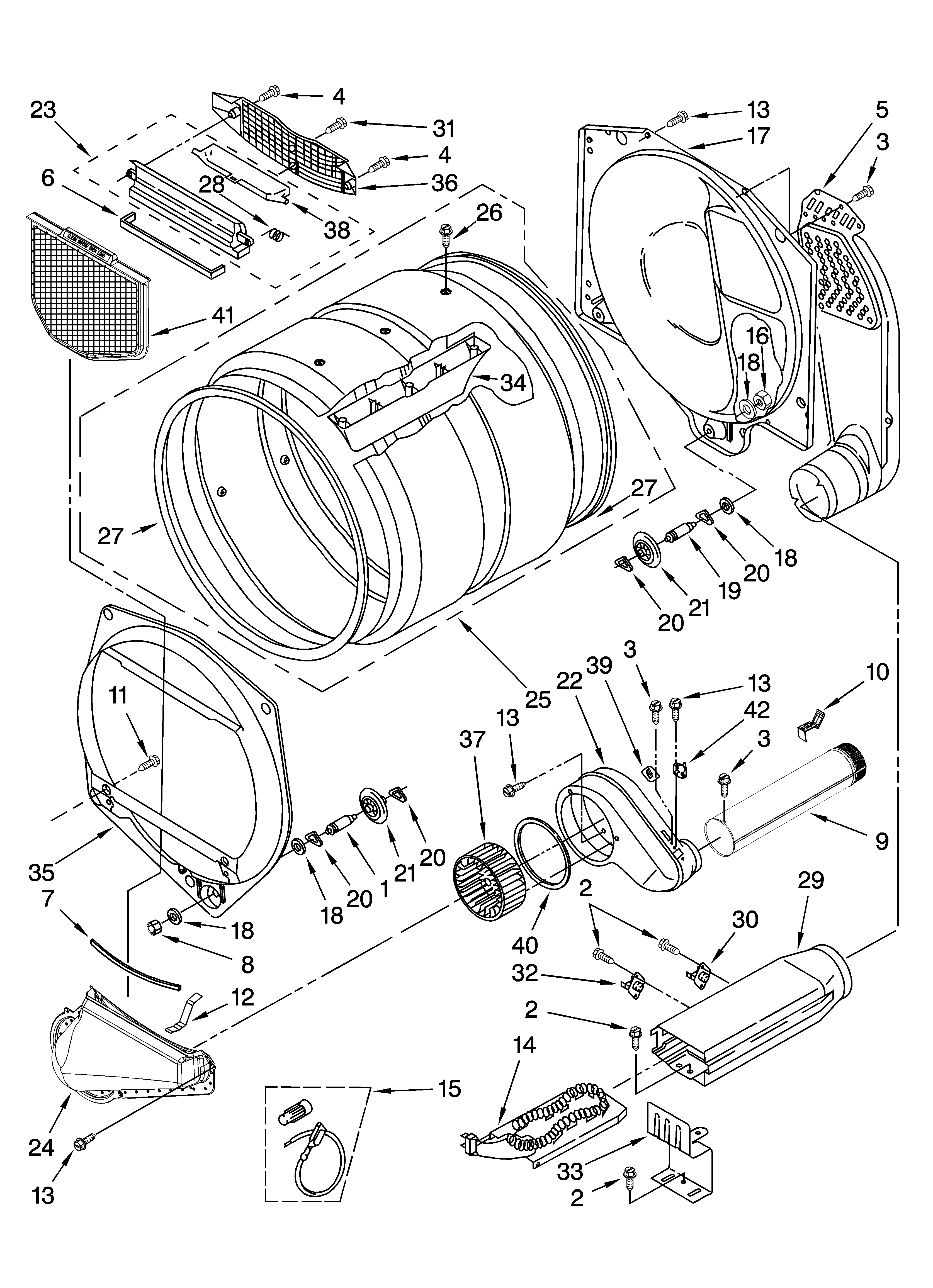

Upper and lower bulkhead parts, optional parts (not in diagram

Dryer thermal fuse

Part #3392519

Replaced by #WP3392519

?
Manufacturer substitution
This part replaces 3392519. Substitute parts can look different from the original.
BEST SELLER
$19.12 |
9% OFF Phone Price : $21.12
In Stock
Dryer Idler Pulley 3388672
Dryer idler pulley

Part #3388672

Replaced by #279640

?
Manufacturer substitution
This part replaces 3388672. Substitute parts can look different from the original.
BEST SELLER
$26.87 |
18% OFF Phone Price : $32.87
In Stock
Support 8536973
#21

Upper and lower bulkhead parts, optional parts (not in diagram

Support

Part #8536973

Replaced by #WPW10314173

?
Manufacturer substitution
This part replaces 8536973. Substitute parts can look different from the original.
BEST SELLER
$16.24 |
11% OFF Phone Price : $18.24
In Stock
Bracket 3388674
Bracket

Part #3388674

Replaced by #W10837240

?
Manufacturer substitution
This part replaces 3388674. Substitute parts can look different from the original.
BEST SELLER
$21.25 |
22% OFF Phone Price : $27.25
In Stock
Dryer Drive Belt 3387610
Dryer drive belt

Part #3387610

Replaced by #661570V

?
Manufacturer substitution
This part replaces 3387610. Substitute parts can look different from the original.
BEST SELLER
$19.35 |
9% OFF Phone Price : $21.35
In Stock
Whirlpool Dryer Repair Kit (4392067) (replaces 2015, 80047) - Dryer Maintenance Kit By Whirlpool 4392067
#NI

Upper and lower bulkhead parts, optional parts (not in diagram

Whirlpool dryer repair kit (4392067) (replaces 2015, 80047) - dryer maintenance kit by whirlpool

Part #4392067

BEST SELLER
$49.32 |
11% OFF Phone Price : $55.32
In Stock
Dryer Thermal Cut-off Fuse Kit 8318314
#30

Upper and lower bulkhead parts, optional parts (not in diagram

Dryer thermal cut-off fuse kit

Part #8318314

Replaced by #279973

?
Manufacturer substitution
This part replaces 8318314. Substitute parts can look different from the original.
BEST SELLER
$39.11 |
13% OFF Phone Price : $45.11
In Stock
Dryer Motor Pulley 8066184
Dryer motor pulley

Part #8066184

Replaced by #WP8066184

?
Manufacturer substitution
This part replaces 8066184. Substitute parts can look different from the original.
BEST SELLER
$34.26 |
15% OFF Phone Price : $40.26
In Stock
Dryer Tri-ring Retainer 690997
Dryer tri-ring retainer

Part #690997

Replaced by #WPW10512946

?
Manufacturer substitution
This part replaces 690997. Substitute parts can look different from the original.
BEST SELLER
$6.73 |
13% OFF Phone Price : $7.73
In Stock
Dryer Heating Element Wire Kit 279457
#15

Upper and lower bulkhead parts, optional parts (not in diagram

Dryer heating element wire kit

Part #279457

BEST SELLER
$9.14 |
10% OFF Phone Price : $10.14
In Stock

RECOMMENDED MAINTENANCE PARTS AND ACCESSORIES
