Model # 1106808911 Official Kenmore electric dryer
Here are the diagrams and repair parts for Official Kenmore 1106808911 electric dryer, as well as links to manuals and error code tables, if available.
By Schematic
By Part
SELECT DIAGRAM
Browse Parts for
1106808911 Electric Dryer
#32

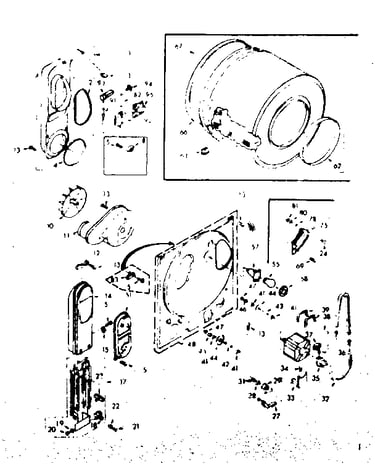

Bulkhead assembly diagram
Whirlpool dryer drum belt (replaces 2008, 31531589, 349533, 53-1512, 8210, w10127457, w10131364)
Part #341241
$12.15 |
14% OFF Phone Price : $14.15
In Stock
#31
Bulkhead assembly diagram
Shaft pulley
Part #337407
Replaced by #WP691366
?
Manufacturer substitution
This part replaces 337407. Substitute parts can look different from the original.
$17.63 |
10% OFF Phone Price : $19.63
In Stock
#27
Bulkhead assembly diagram
Bracket
Part #337510
Replaced by #WP691366
?
Manufacturer substitution
This part replaces 337510. Substitute parts can look different from the original.
$17.63 |
10% OFF Phone Price : $19.63
In Stock
#29
Bulkhead assembly diagram
Pulley
Part #337116
Replaced by #WP691366
?
Manufacturer substitution
This part replaces 337116. Substitute parts can look different from the original.
$17.63 |
10% OFF Phone Price : $19.63
In Stock
#38
Bulkhead assembly diagram
Drive motor
Part #299992
Replaced by #279827
?
Manufacturer substitution
This part replaces 299992. Substitute parts can look different from the original.
$81.32 |
7% OFF Phone Price : $87.32
In Stock
#37
Bulkhead assembly diagram
Switch
Part #337351
Replaced by #279827
?
Manufacturer substitution
This part replaces 337351. Substitute parts can look different from the original.
$81.32 |
7% OFF Phone Price : $87.32
In Stock
#10
Bulkhead assembly diagram
Dryer blower wheel
Part #299678
Replaced by #WP694089
?
Manufacturer substitution
This part replaces 299678. Substitute parts can look different from the original.
$25.56 |
19% OFF Phone Price : $31.56
In Stock
#99

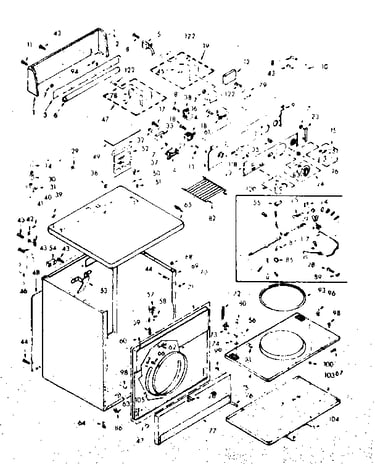

Machine sub-assembly diagram
Door strike
Part #236876
Replaced by #279570
?
Manufacturer substitution
This part replaces 236876. Substitute parts can look different from the original.
This item is not returnable
$3.92 |
20% OFF Phone Price : $4.92
In Stock
#67
Machine sub-assembly diagram
Catch
Part #236877
Replaced by #279570
?
Manufacturer substitution
This part replaces 236877. Substitute parts can look different from the original.
This item is not returnable
$3.92 |
20% OFF Phone Price : $4.92
In Stock
#55
Bulkhead assembly diagram
Bulb
Part #233056
Replaced by #40A15
?
Manufacturer substitution
This part replaces 233056. Substitute parts can look different from the original.
$17.23 |
10% OFF Phone Price : $19.23
In Stock
