Model # 75874180 Official Kenmore console home humidifier
Here are the diagrams and repair parts for Official Kenmore 75874180 console home humidifier, as well as links to manuals and error code tables, if available.
By Schematic
SELECT DIAGRAM
Browse Parts for
75874180 Console Home Humidifier
#4

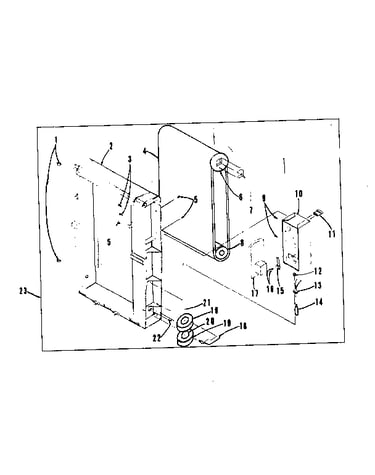

Pad frame assembly diagram
Evaporatng p
Part #758.7278
The manufacturer no longer makes this part, and there's no substitute part
#16

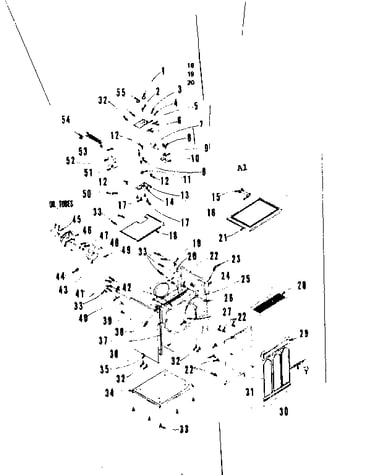

Replacement parts diagram
Hinge
Part #14112
The manufacturer no longer makes this part, and there's no substitute part
#18
Replacement parts diagram
Top panel
Part #17535
The manufacturer no longer makes this part, and there's no substitute part
#52
Replacement parts diagram
Bracket
Part #13332
The manufacturer no longer makes this part, and there's no substitute part
#17
Pad frame assembly diagram
Pad mtr kit
Part #15480
The manufacturer no longer makes this part, and there's no substitute part
#36
Replacement parts diagram
Tank
Part #14085
The manufacturer no longer makes this part, and there's no substitute part
#43
Replacement parts diagram
Fan blade
Part #11581-14
The manufacturer no longer makes this part, and there's no substitute part
#21
Pad frame assembly diagram
Float rod
Part #11552
The manufacturer no longer makes this part, and there's no substitute part
#37
Replacement parts diagram
Hose clamp
Part #14076
The manufacturer no longer makes this part, and there's no substitute part
#1
Replacement parts diagram
Knob
Part #13800
The manufacturer no longer makes this part, and there's no substitute part
