Whirlpool
Gas Wall Oven

Model # SB130PEDB0 Official Whirlpool 24" gas built-in continuous-cleaning oven

Here are the diagrams and repair parts for Official Whirlpool SB130PEDB0 24" gas built-in continuous-cleaning oven, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 96 parts  |
Light Bulb 4371303
#27

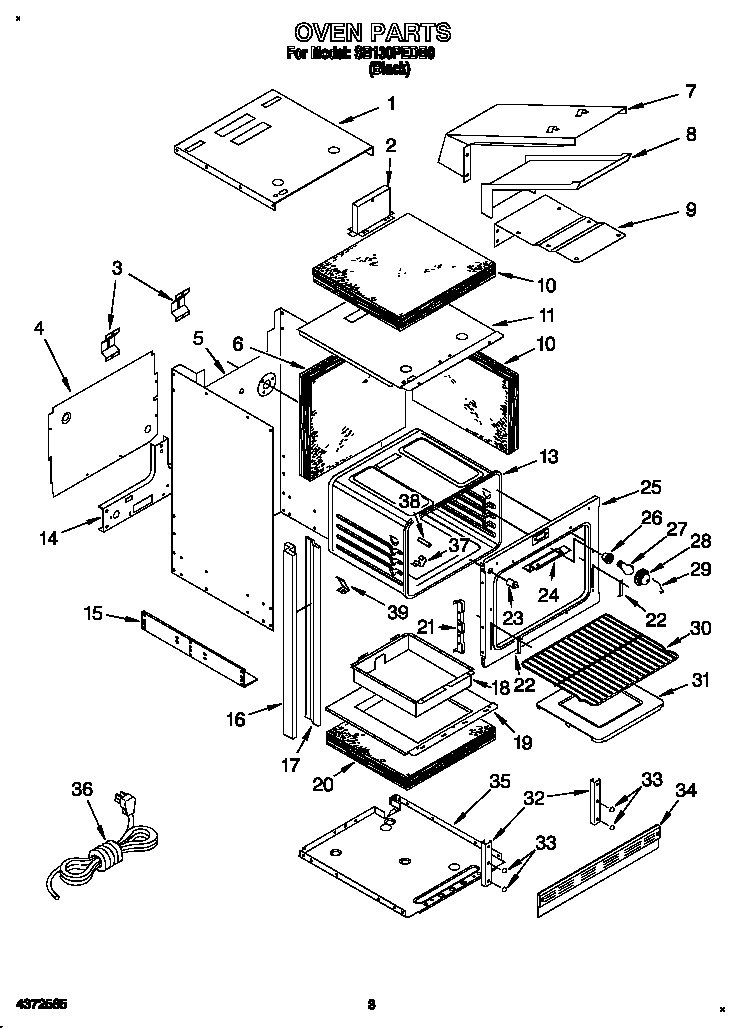

Oven diagram

Light bulb

Part #4371303

Replaced by #40A15

?
Manufacturer substitution
This part replaces 4371303. Substitute parts can look different from the original.
BEST SELLER
$15.16 |
12% OFF Phone Price : $17.16
In Stock
Oven Igniter 4372474
#4

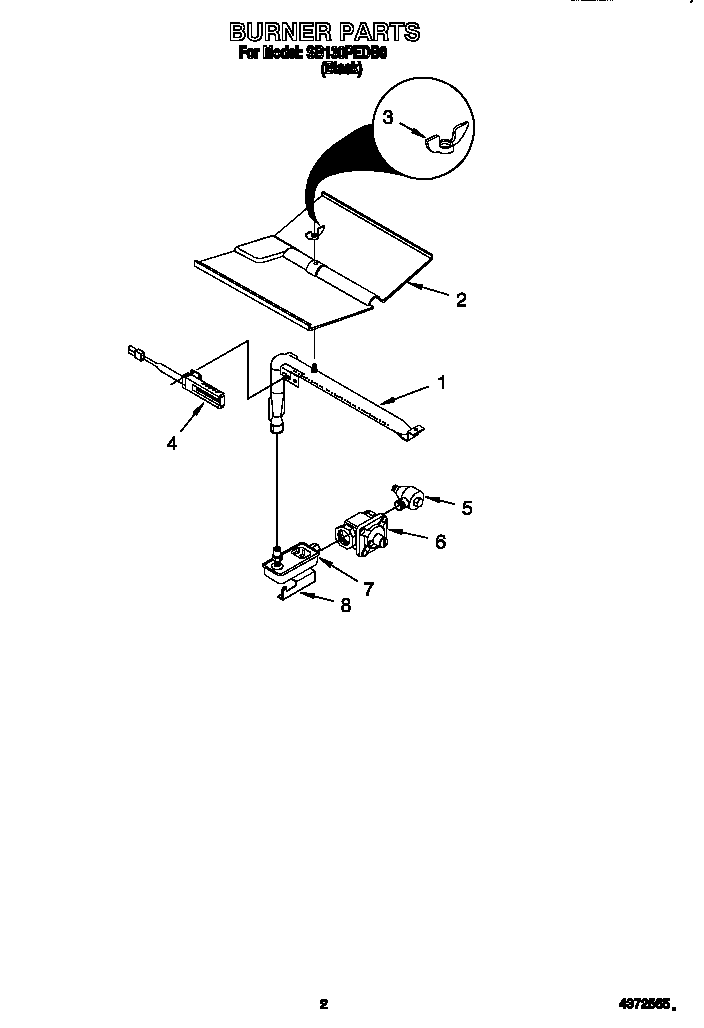

Burner diagram

Oven igniter

Part #4372474

Replaced by #814269

?
Manufacturer substitution
This part replaces 4372474. Substitute parts can look different from the original.
$98.19 |
11% OFF Phone Price : $110.19
In Stock
Grid Pan 816947
#12

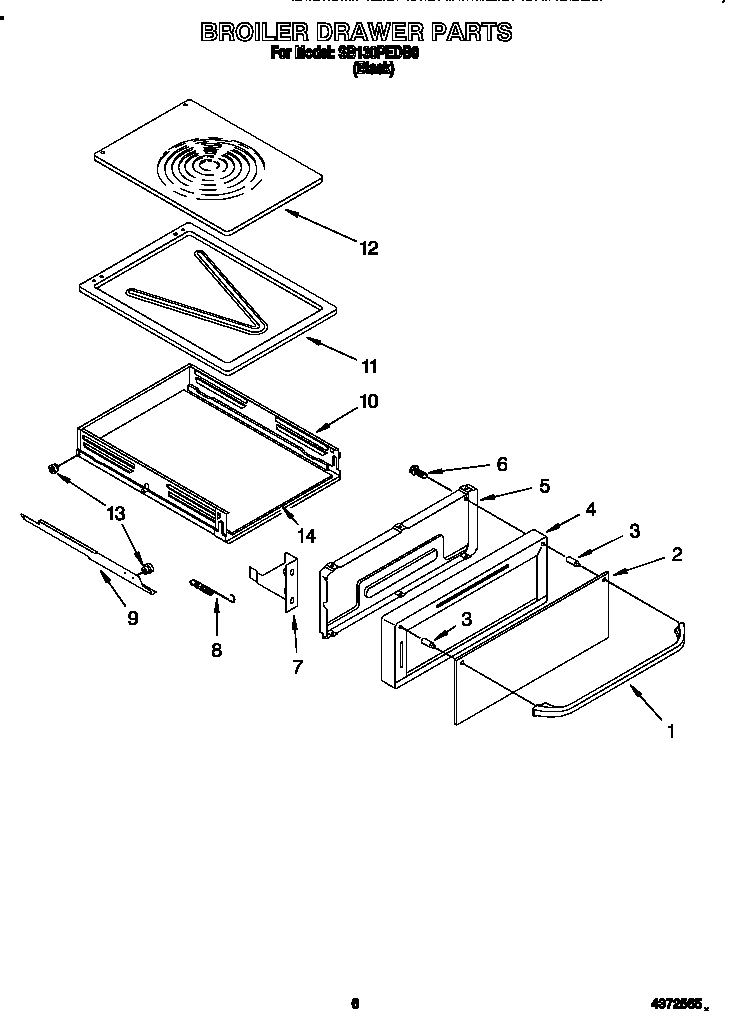

Broiler drawer diagram

Grid pan

Part #816947

The manufacturer no longer makes this part, and there's no substitute part

Oven Broiler Pan 4372487
#11

Broiler drawer diagram

Oven broiler pan

Part #4372487

The manufacturer no longer makes this part, and there's no substitute part

End Cap Panel 816830
#4A

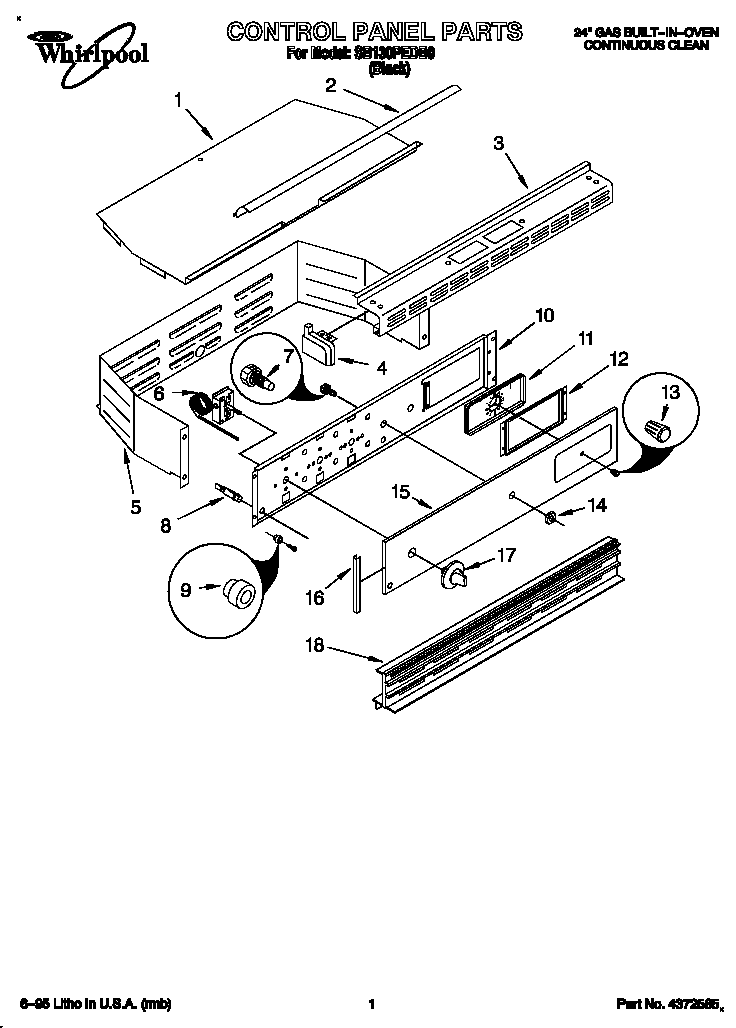

Control panel diagram

End cap panel

Part #816830

The manufacturer no longer makes this part, and there's no substitute part

Support 816893
#32

Oven diagram

Support

Part #816893

The manufacturer no longer makes this part, and there's no substitute part

Oven Main 4372510
#13

Oven diagram

Oven main

Part #4372510

The manufacturer no longer makes this part, and there's no substitute part

Installation Instructions LIT4372426

#NI

All parts diagram

Installation instructions

Part #LIT4372426

The manufacturer no longer makes this part, and there's no substitute part

Retainer 816379
#22

Oven diagram

Retainer

Part #816379

The manufacturer no longer makes this part, and there's no substitute part

Oven Trim 816840
#3

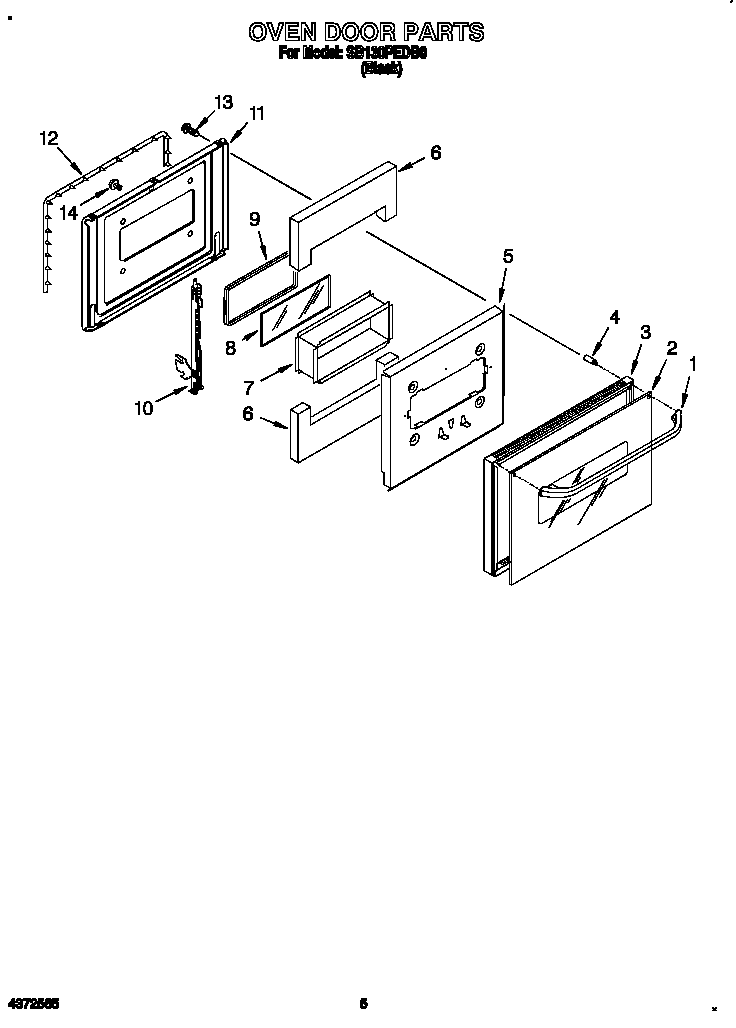

Oven door diagram

Oven trim

Part #816840

The manufacturer no longer makes this part, and there's no substitute part
