Whirlpool
Electric Cooktop

Model # RC8200XKW0 Official Whirlpool electric built-in cooktop

Here are the diagrams and repair parts for Official Whirlpool RC8200XKW0 electric built-in cooktop, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 43 parts  |
Receptacle Element 258858
#5

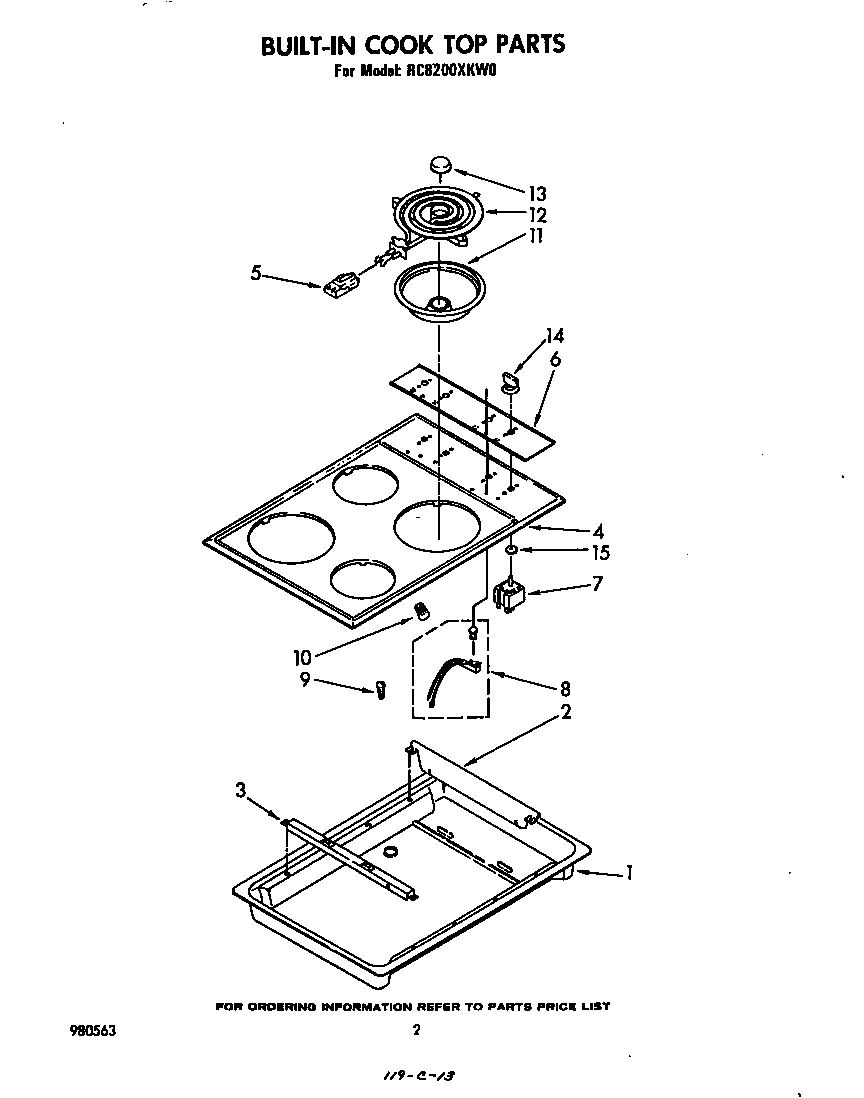

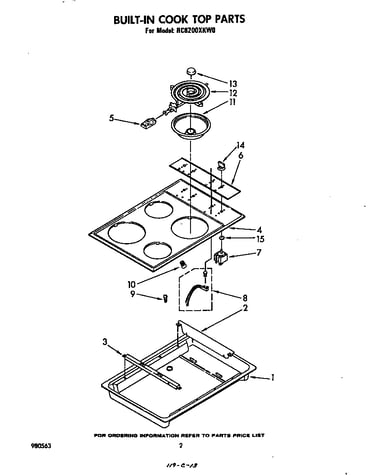

Replacement parts diagram

Receptacle element

Part #258858

Replaced by #330031

?
Manufacturer substitution
This part replaces 258858. Substitute parts can look different from the original.
BEST SELLER
$10.32 |
16% OFF Phone Price : $12.32
In Stock
Pan 308539
#11A

Replacement parts diagram

Pan

Part #308539

Replaced by #W10196406RW

?
Manufacturer substitution
This part replaces 308539. Substitute parts can look different from the original.
$12.95 |
13% OFF Phone Price : $14.95
In Stock
Pan 308540
#11B

Replacement parts diagram

Pan

Part #308540

Replaced by #W10196405RW

?
Manufacturer substitution
This part replaces 308540. Substitute parts can look different from the original.
This item is not returnable
$10.52 |
16% OFF Phone Price : $12.52
In Stock
Cooking Appliance 14-gauge Splicing Wire, 200-degree C (red) 242831

#NI

All parts diagram

Cooking appliance 14-gauge splicing wire, 200-degree c (red)

Part #242831

$318.95
In Stock
Switch 311207
#7B

Replacement parts diagram

Switch

Part #311207

Replaced by #WP3149401

?
Manufacturer substitution
This part replaces 311207. Substitute parts can look different from the original.
$68.59 |
8% OFF Phone Price : $74.59
In Stock
Screw 246119
#5A

Replacement parts diagram

Screw

Part #246119

Replaced by #WP486754

?
Manufacturer substitution
This part replaces 246119. Substitute parts can look different from the original.
This item is not returnable
$4.33
In Stock
Switch 311208
#7A

Replacement parts diagram

Switch

Part #311208

Replaced by #W10900107

?
Manufacturer substitution
This part replaces 311208. Substitute parts can look different from the original.
$39.99 |
13% OFF Phone Price : $45.99
In Stock
Control Knob 329404
#14

Replacement parts diagram

Control knob

Part #329404

Replaced by #WP330190

?
Manufacturer substitution
This part replaces 329404. Substitute parts can look different from the original.
$24.98 |
19% OFF Phone Price : $30.98
In Stock
Screw 246406
#7C

Replacement parts diagram

Screw

Part #246406

Replaced by #155028

?
Manufacturer substitution
This part replaces 246406. Substitute parts can look different from the original.
This item is not returnable
$3.29
In Stock
Wire (green) 242823

#NI

All parts diagram

Wire (green)

Part #242823

The manufacturer no longer makes this part, and there's no substitute part
