Front-Engine Lawn Tractor

Model # 917255260 Official Craftsman 36" 8-hp riding lawn tractor with electric start

Here are the diagrams and repair parts for Official Craftsman 917255260 36" 8-hp riding lawn tractor with electric start, as well as links to manuals and error code tables, if available.

By Schematic
By Part

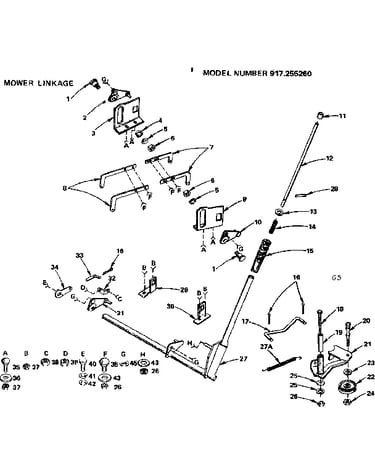

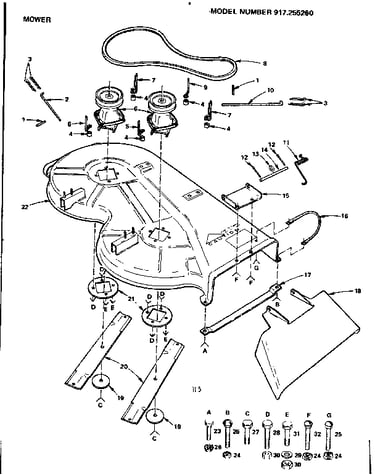

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
917255260 Riding Mowers & Tractors
Hood Latch 8889R
#4

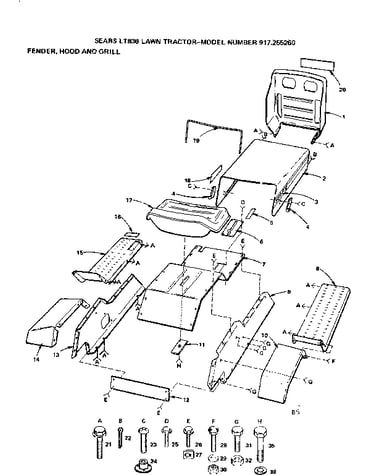

Fender, hood and grill diagram

Hood latch

Part #8889R

Replaced by #532109808

?
Manufacturer substitution
This part replaces 8889R. Substitute parts can look different from the original.
BEST SELLER
$8.90
10% OFF Phone Price : $9.90
In Stock
Tire 494J
#20

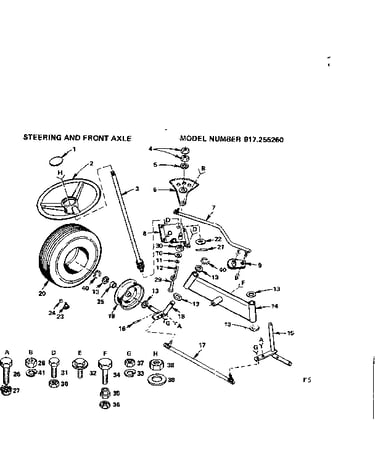

Steering and front axle diagram

Tire

Part #494J

Replaced by #532122073

?
Manufacturer substitution
This part replaces 494J. Substitute parts can look different from the original.
BEST SELLER
$59.98
9% OFF Phone Price : $65.98
In Stock
Hardened Race Thrust Bearing 6266H
#5

Steering and front axle diagram

Hardened race thrust bearing

Part #6266H

Replaced by #532006266

?
Manufacturer substitution
This part replaces 6266H. Substitute parts can look different from the original.
BEST SELLER
$9.16
10% OFF Phone Price : $10.16
In Stock
Keps Nut STD541431
Keps nut

Part #STD541431

Replaced by #596040501

?
Manufacturer substitution
This part replaces STD541431. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
In Stock
E-ring 5000P
#17

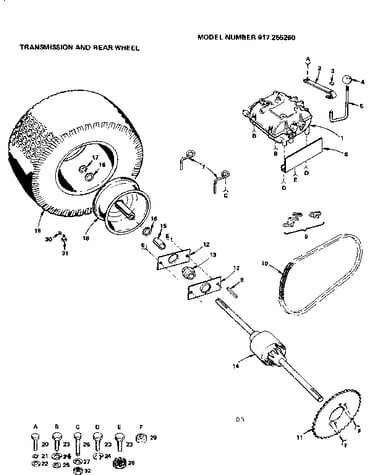

Transmission and rear wheel diagram

E-ring

Part #5000P

Replaced by #812000029

?
Manufacturer substitution
This part replaces 5000P. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.51
18% OFF Phone Price : $5.51
In Stock
Gripco Nut 7810H
Gripco nut

Part #7810H

Replaced by #596322601

?
Manufacturer substitution
This part replaces 7810H. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
In Stock
Washer 67725
#46

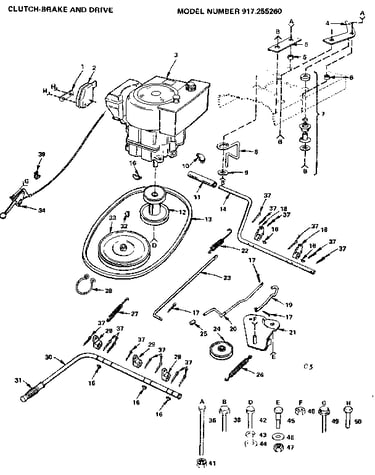

Clutch-brake and drive diagram

Washer

Part #67725

Replaced by #532067725

?
Manufacturer substitution
This part replaces 67725. Substitute parts can look different from the original.
BEST SELLER
$7.98
11% OFF Phone Price : $8.98
In Stock
Bushing 1554J
#4

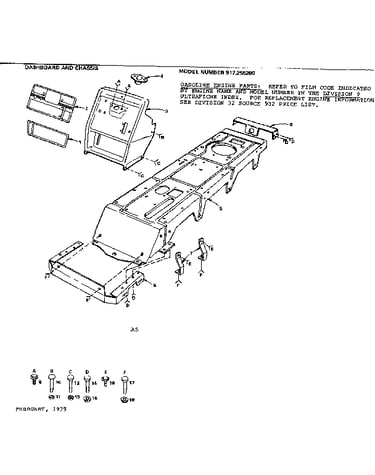

Dashboard and chassis diagram

Bushing

Part #1554J

Replaced by #532155108

?
Manufacturer substitution
This part replaces 1554J. Substitute parts can look different from the original.
This item is not returnable
$10.09
17% OFF Phone Price : $12.09
In Stock
Starter Switch 4406R
#23

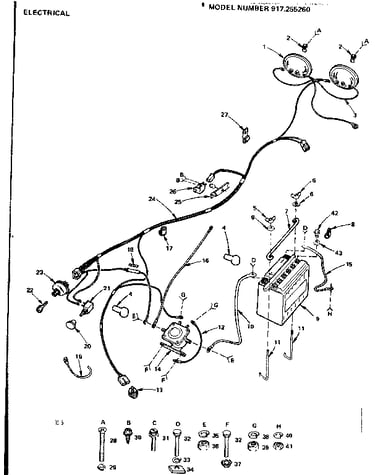

Electrical diagram

Starter switch

Part #4406R

Replaced by #532365402

?
Manufacturer substitution
This part replaces 4406R. Substitute parts can look different from the original.
$31.23
16% OFF Phone Price : $37.23
In Stock
Solenoid 7754R
#14

Electrical diagram

Solenoid

Part #7754R

Replaced by #532146154

?
Manufacturer substitution
This part replaces 7754R. Substitute parts can look different from the original.
$29.18
17% OFF Phone Price : $35.18
In Stock
