GE
Electric Wall Oven

Model # PT7050DF5WW Official GE electric oven

Here are the diagrams and repair parts for Official GE PT7050DF5WW electric oven, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 105 parts  |
Wall Oven Cooling Fan Sensor Board WB27T11463
#599

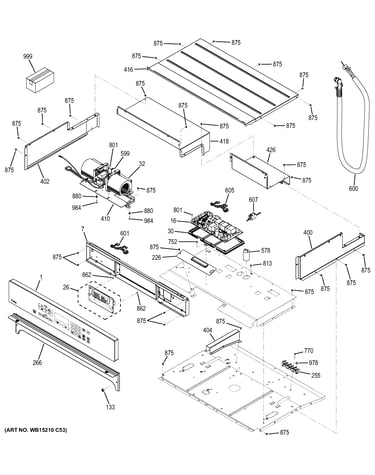

Control panel diagram

Wall oven cooling fan sensor board

Part #WB27T11463

BEST SELLER
This item is not returnable
$52.93 |
10% OFF Phone Price : $58.93
In Stock
Wall Oven Cooling Fan Assembly WB26X24020
#32

Control panel diagram

Wall oven cooling fan assembly

Part #WB26X24020

BEST SELLER
$115.17 |
9% OFF Phone Price : $127.17
In Stock
Cooking Appliance Oven Rack Lubricant WB02T10303
#999

Control panel diagram

Cooking appliance oven rack lubricant

Part #WB02T10303

BEST SELLER
$37.44 |
14% OFF Phone Price : $43.44
In Stock
Wall Oven Control Board (replaces Wb27x20540, Wb27x20542, Wb27x23833) WB27X25554
#16

Control panel diagram

Wall oven control board (replaces wb27x20540, wb27x20542, wb27x23833)

Part #WB27X25554

BEST SELLER
This item is not returnable
$221.40 |
5% OFF Phone Price : $233.40
In Stock
Wall Oven Light Bulb WB25T10102
#257

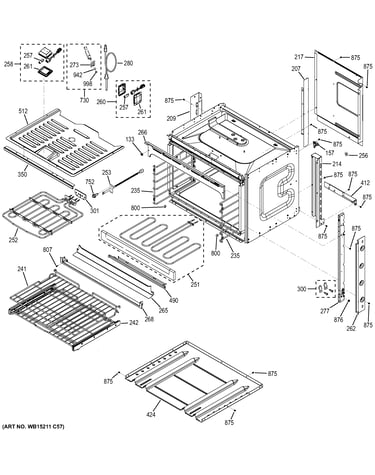

Body parts diagram

Wall oven light bulb

Part #WB25T10102

This item is not returnable
$15.03 |
12% OFF Phone Price : $17.03
In Stock
Wall Oven Door Seal WB04T10091
#132

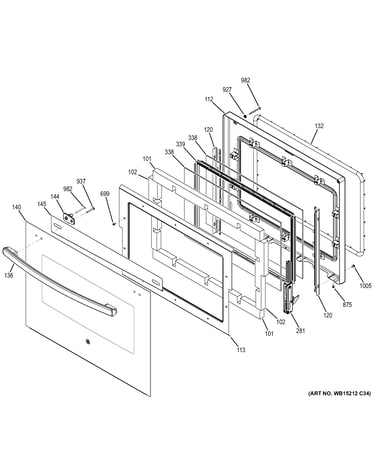

Door diagram

Wall oven door seal

Part #WB04T10091

Replaced by #WB35X32825

?
Manufacturer substitution
This part replaces WB04T10091. Substitute parts can look different from the original.
$40.78 |
13% OFF Phone Price : $46.78
In Stock
Halogen Lamp WB25X23730
#258

Body parts diagram

Halogen lamp

Part #WB25X23730

Replaced by #WB25X31221

?
Manufacturer substitution
This part replaces WB25X23730. Substitute parts can look different from the original.
$40.78 |
13% OFF Phone Price : $46.78
In Stock
Wall Oven Light Lens WB34T10145
#261

Body parts diagram

Wall oven light lens

Part #WB34T10145

$29.18 |
17% OFF Phone Price : $35.18
In Stock
Range Oven Rack Assembly WB48X23857
#241

Body parts diagram

Range oven rack assembly

Part #WB48X23857

$90.14 |
6% OFF Phone Price : $96.14
In Stock
Conversion Gasket WB04T10071
#515

Convection fan diagram

Conversion gasket

Part #WB04T10071

Replaced by #WB01T10079

?
Manufacturer substitution
This part replaces WB04T10071. Substitute parts can look different from the original.
$38.49
In Stock
