Whirlpool
Range Hood

Model # UXW6530BSS0 Official Whirlpool range hood

Here are the diagrams and repair parts for Official Whirlpool UXW6530BSS0 range hood, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 18 parts  |
Range Hood Light Bulb 8190806
#5

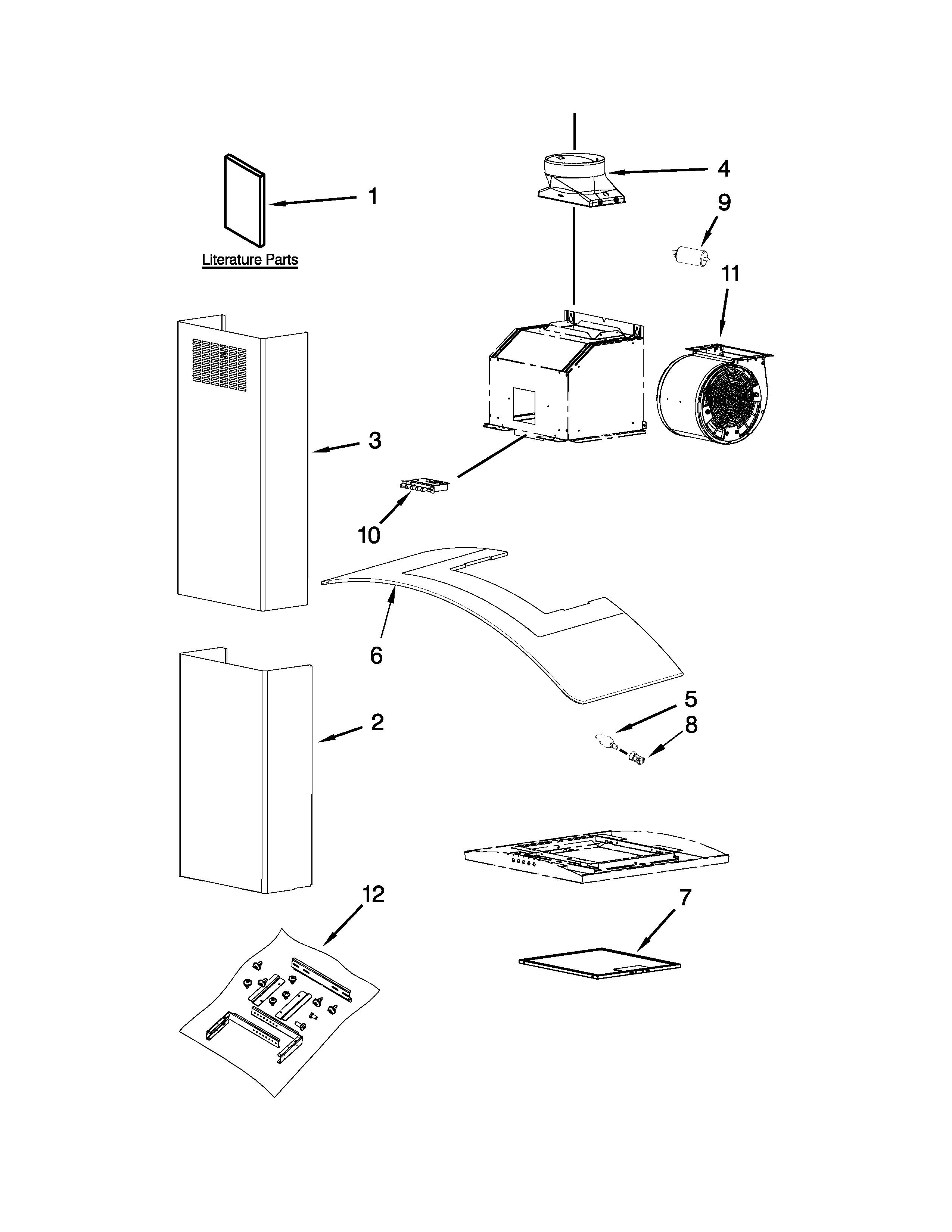

Hood parts diagram

Range hood light bulb

Part #8190806

Replaced by #WP8190806

?
Manufacturer substitution
This part replaces 8190806. Substitute parts can look different from the original.
$32.51 |
16% OFF Phone Price : $38.51
In Stock
Range Hood Damper W10313841
#4

Hood parts diagram

Range hood damper

Part #W10313841

Replaced by #WPW10313841

?
Manufacturer substitution
This part replaces W10313841. Substitute parts can look different from the original.
$75.99 |
7% OFF Phone Price : $81.99
In Stock
Range Hood Duct Cover W10294735
#NI

Hood parts diagram

Range hood duct cover

Part #W10294735

$481.47
In Stock
Range Hood Charcoal Filter Kit, 3-pack (replaces W10294730) W10412939
#NI

Hood parts diagram

Range hood charcoal filter kit, 3-pack (replaces w10294730)

Part #W10412939

$56.06 |
10% OFF Phone Price : $62.06
In Stock
Range Hood Vent Damper W10446915
#NI

Hood parts diagram

Range hood vent damper

Part #W10446915

$486.56
In Stock
Range Hood Light Socket 8190797
#8

Hood parts diagram

Range hood light socket

Part #8190797

$29.89
In Stock
Range Hood Blower Motor Capacitor W10256657
#9

Hood parts diagram

Range hood blower motor capacitor

Part #W10256657

$55.58
In Stock
Range Hood Glass, 30-in W10313843
#6

Hood parts diagram

Range hood glass, 30-in

Part #W10313843

Replaced by #WPW10313843

?
Manufacturer substitution
This part replaces W10313843. Substitute parts can look different from the original.
$229.71 |
5% OFF Phone Price : $241.71
In Stock
Range Hood Installation Kit W10576677
#12

Hood parts diagram

Range hood installation kit

Part #W10576677

Replaced by #WPW10576677

?
Manufacturer substitution
This part replaces W10576677. Substitute parts can look different from the original.
$95.27
In Stock
Control Motor W10313838
#10

Hood parts diagram

Control motor

Part #W10313838

Replaced by #WPW10313838

?
Manufacturer substitution
This part replaces W10313838. Substitute parts can look different from the original.
$126.44 |
9% OFF Phone Price : $138.44
In Stock
