GE
Electric Cooktop

Model # ZHU36RBM1BB Official GE electric cooktop

Here are the diagrams and repair parts for Official GE ZHU36RBM1BB electric cooktop, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 36 parts  |
Cooktop Electronic Filter Board WB27X10996
#2

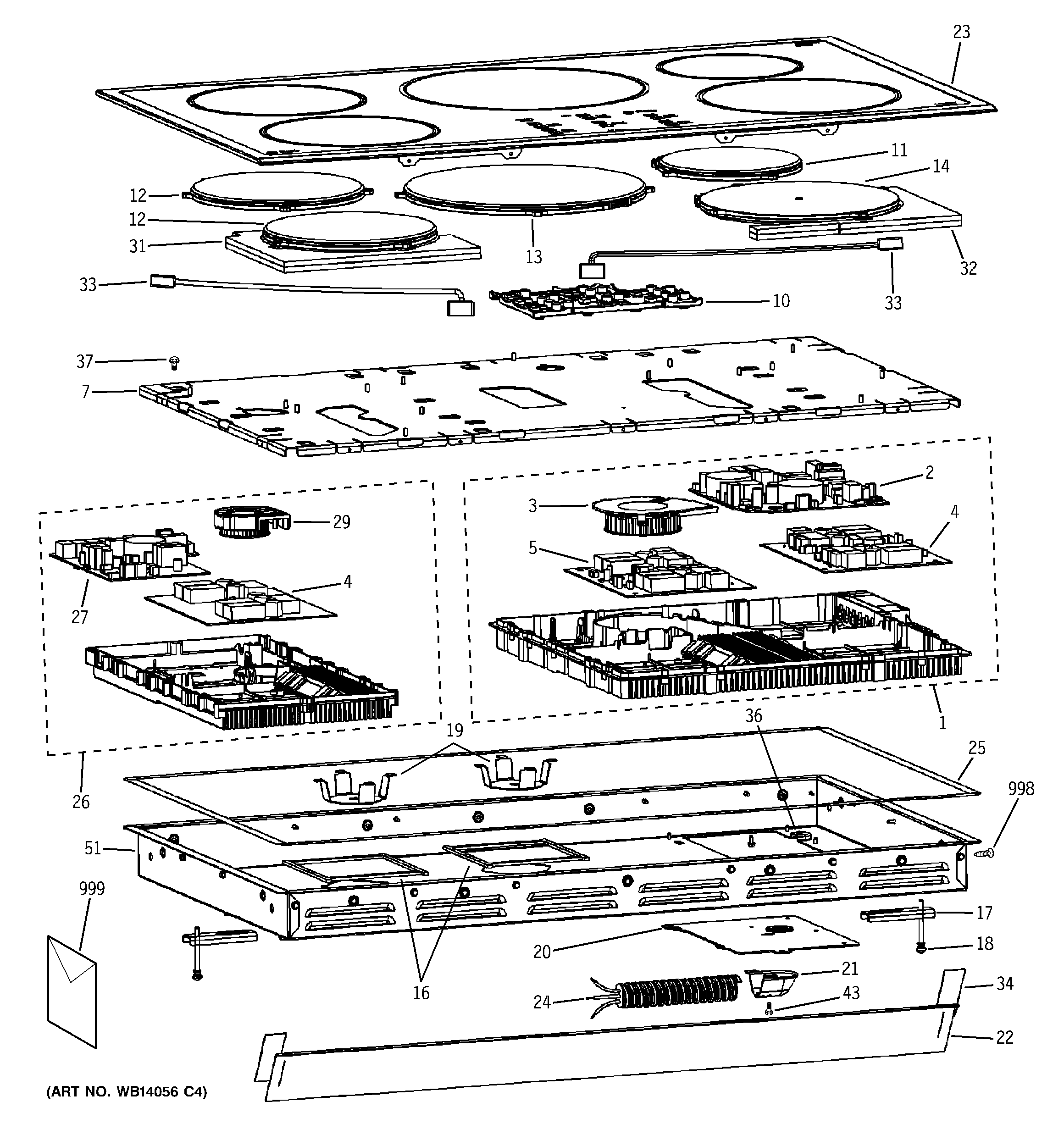

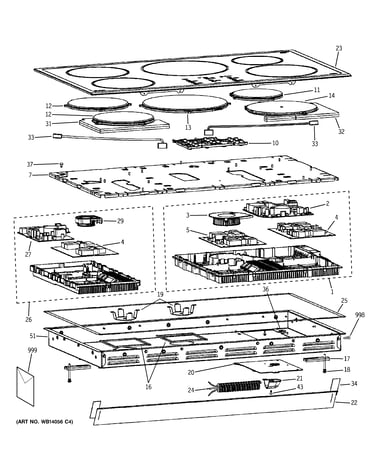

Control panel & cooktop diagram

Cooktop electronic filter board

Part #WB27X10996

This item is not returnable
$772.89 |
$12.00 OFF Phone Price : $784.89
In Stock
Cooktop Induction Power Supply Board, Center WB27X11001
#5

Control panel & cooktop diagram

Cooktop induction power supply board, center

Part #WB27X11001

$685.63 |
$12.00 OFF Phone Price : $697.63
In Stock
Cooktop Induction Element, 10-in WB30X10030
#13

Control panel & cooktop diagram

Cooktop induction element, 10-in

Part #WB30X10030

$379.36 |
$12.00 OFF Phone Price : $391.36
In Stock
Conduit Clamp WB02X11337
#21

Control panel & cooktop diagram

Conduit clamp

Part #WB02X11337

$9.62
In Stock
Wiring Acces WB02T10523
#20

Control panel & cooktop diagram

Wiring acces

Part #WB02T10523

This item is not returnable
$5.00
In Stock
Burner WB02T10521
#51

Control panel & cooktop diagram

Burner

Part #WB02T10521

$79.68
In Stock
Screw WB01X10078
#43

Control panel & cooktop diagram

Screw

Part #WB01X10078

$8.11
In Stock
Fan Main WB26X10215
#3

Control panel & cooktop diagram

Fan main

Part #WB26X10215

$354.25
In Stock
Element WB30X10028
#11

Control panel & cooktop diagram

Element

Part #WB30X10028

$308.14
In Stock
Fan Cover WB02X11334
#19

Control panel & cooktop diagram

Fan cover

Part #WB02X11334

This item is not returnable
$6.32
In Stock
