Model # DCR-DVD608 Official Sony digital camcorder

Here are the diagrams and repair parts for Official Sony DCR-DVD608 digital camcorder, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

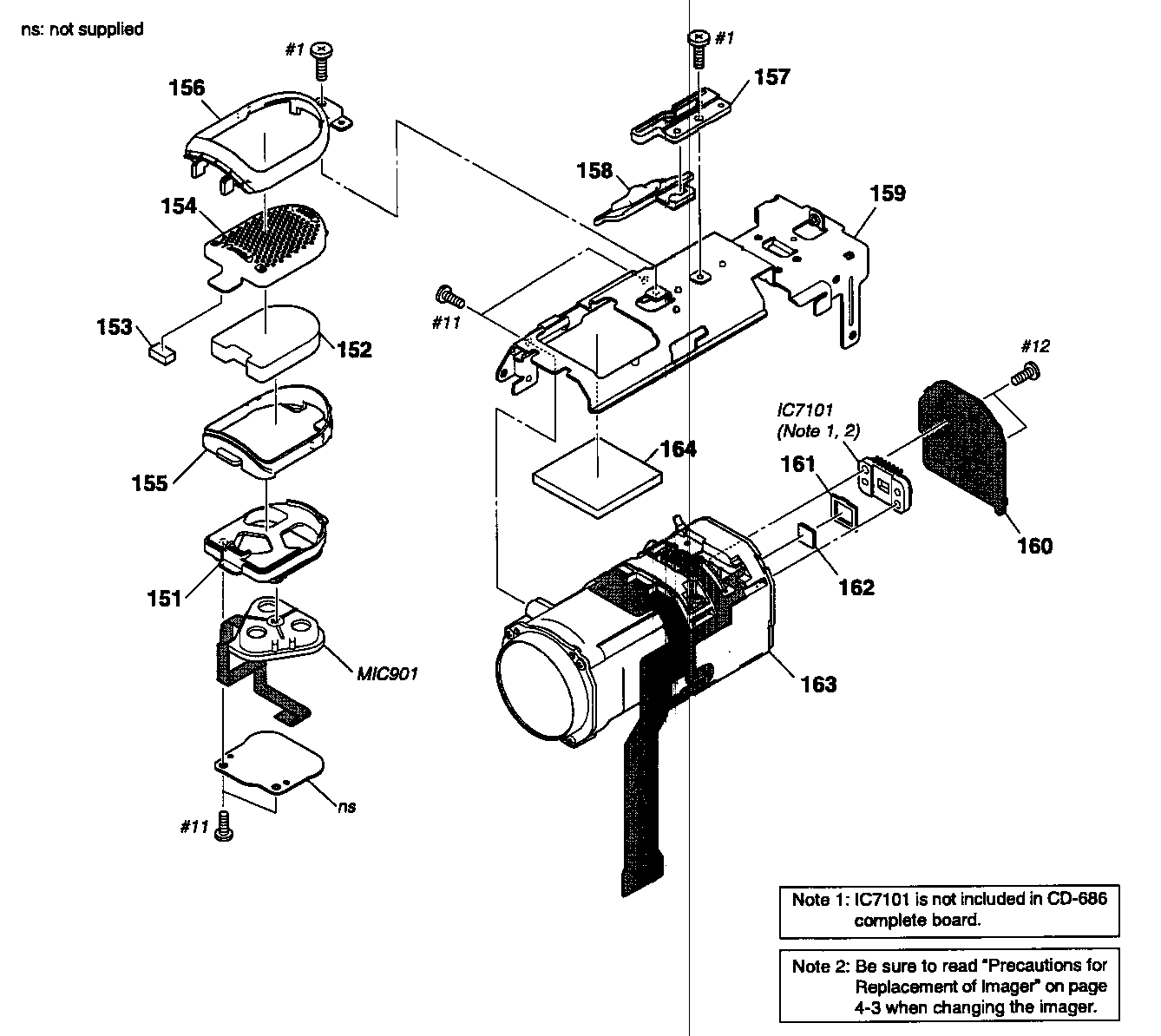

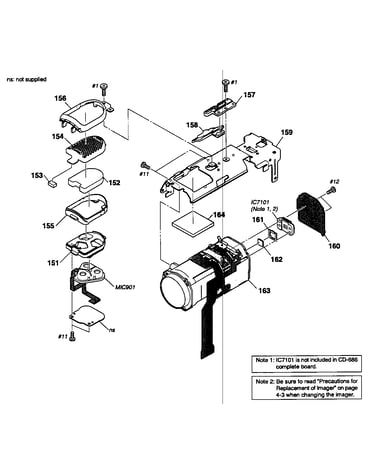

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 74 parts  |
Foot 258937601
#252

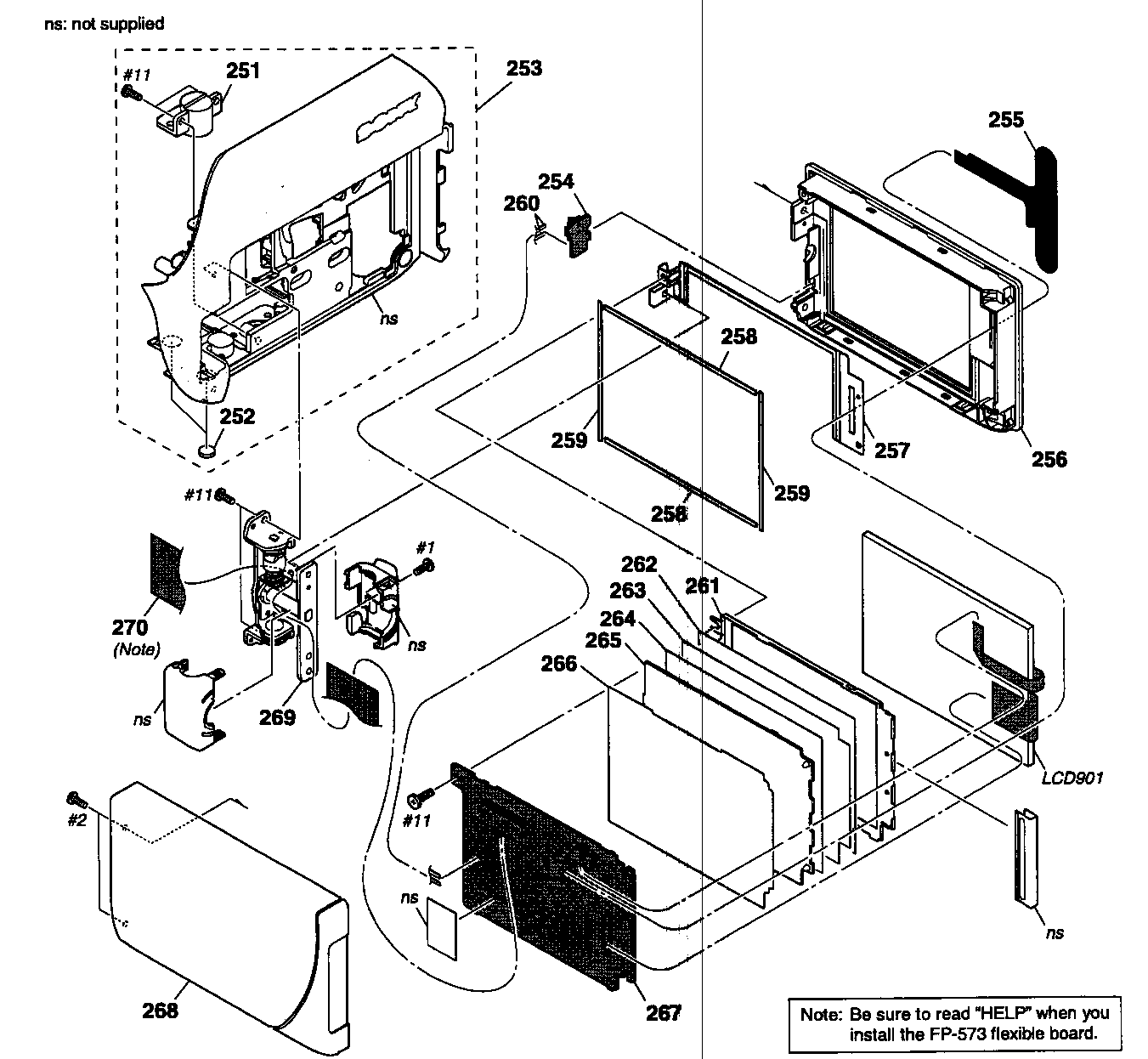

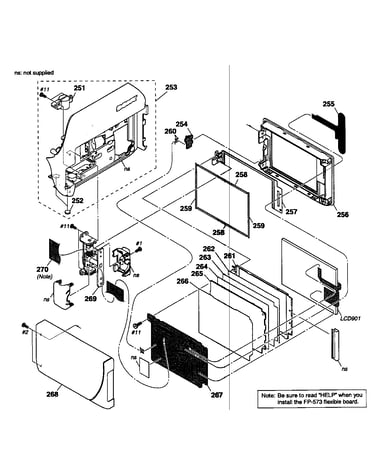

Lcd block diagram

Foot

Part #258937601

The manufacturer no longer makes this part, and there's no substitute part

Cabinet L A1204638A
#53

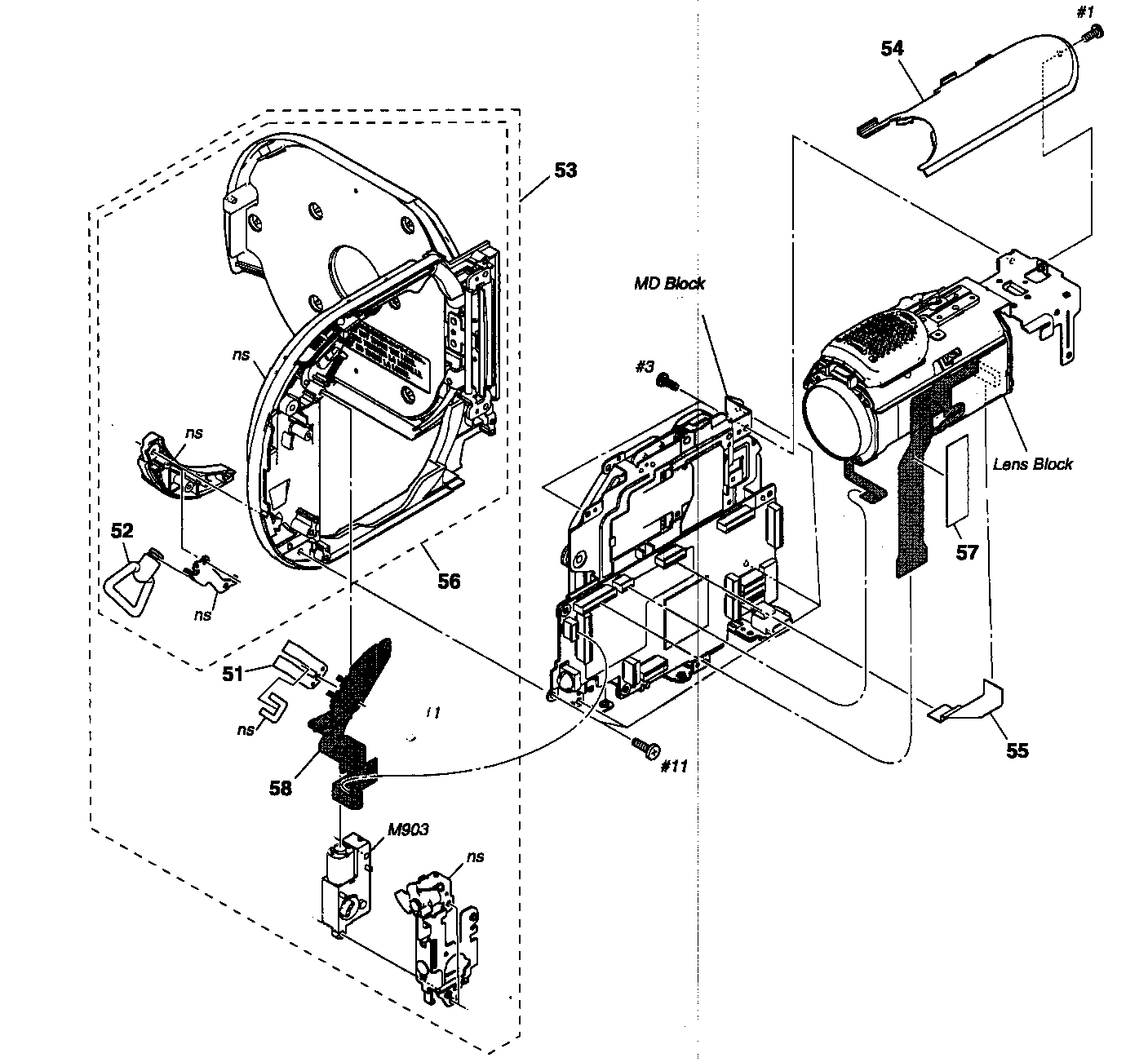

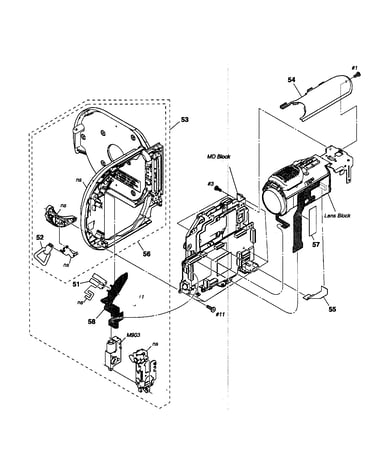

Cabinet parts 2 diagram

Cabinet l

Part #A1204638A

The manufacturer no longer makes this part, and there's no substitute part

Eye Cup Assembly X21492081
#307

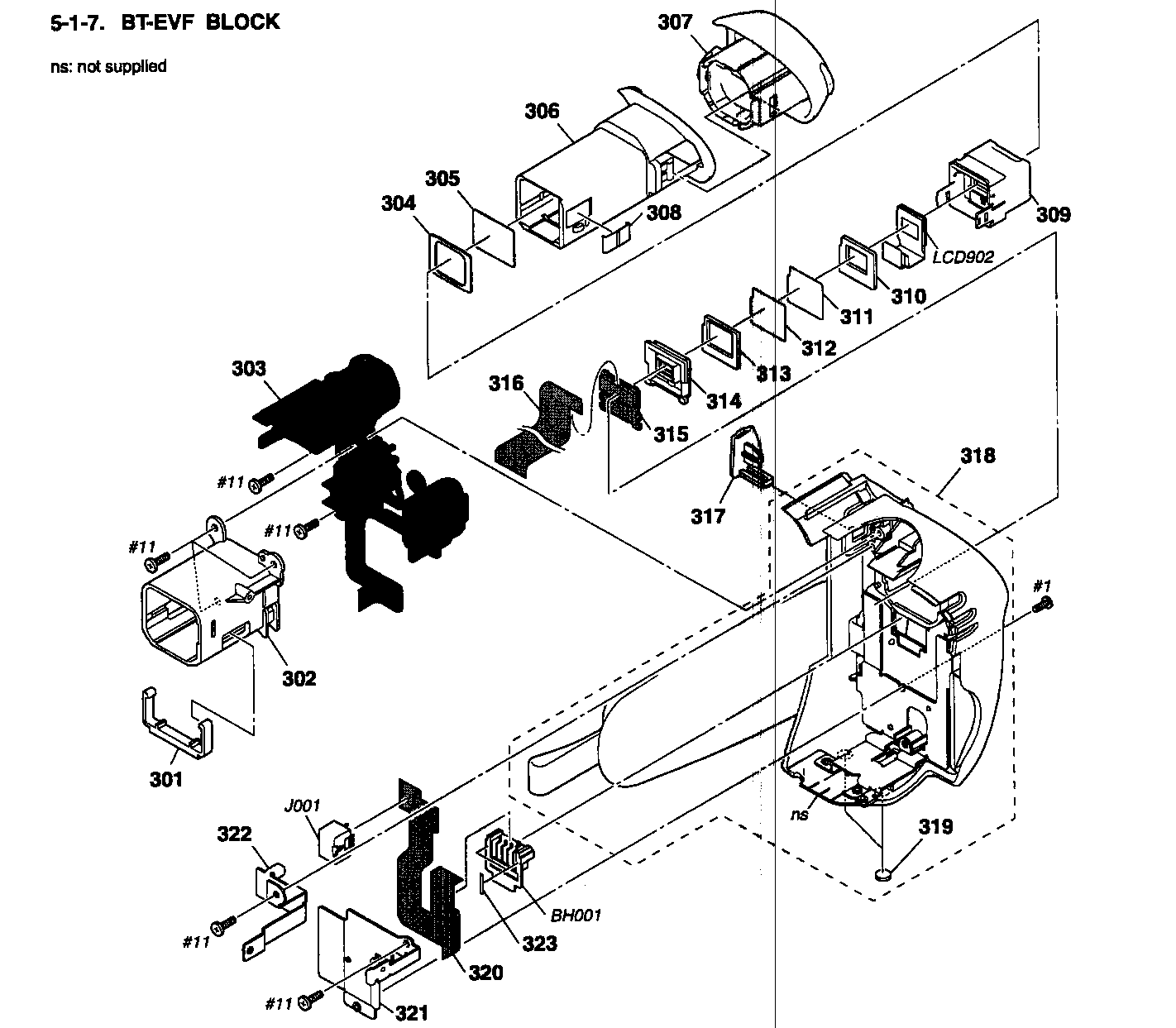

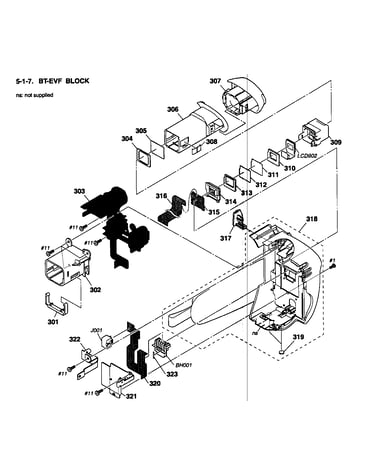

Bt-evf block diagram

Eye cup assembly

Part #X21492081

The manufacturer no longer makes this part, and there's no substitute part

Flexible Pcb 187128811
#108

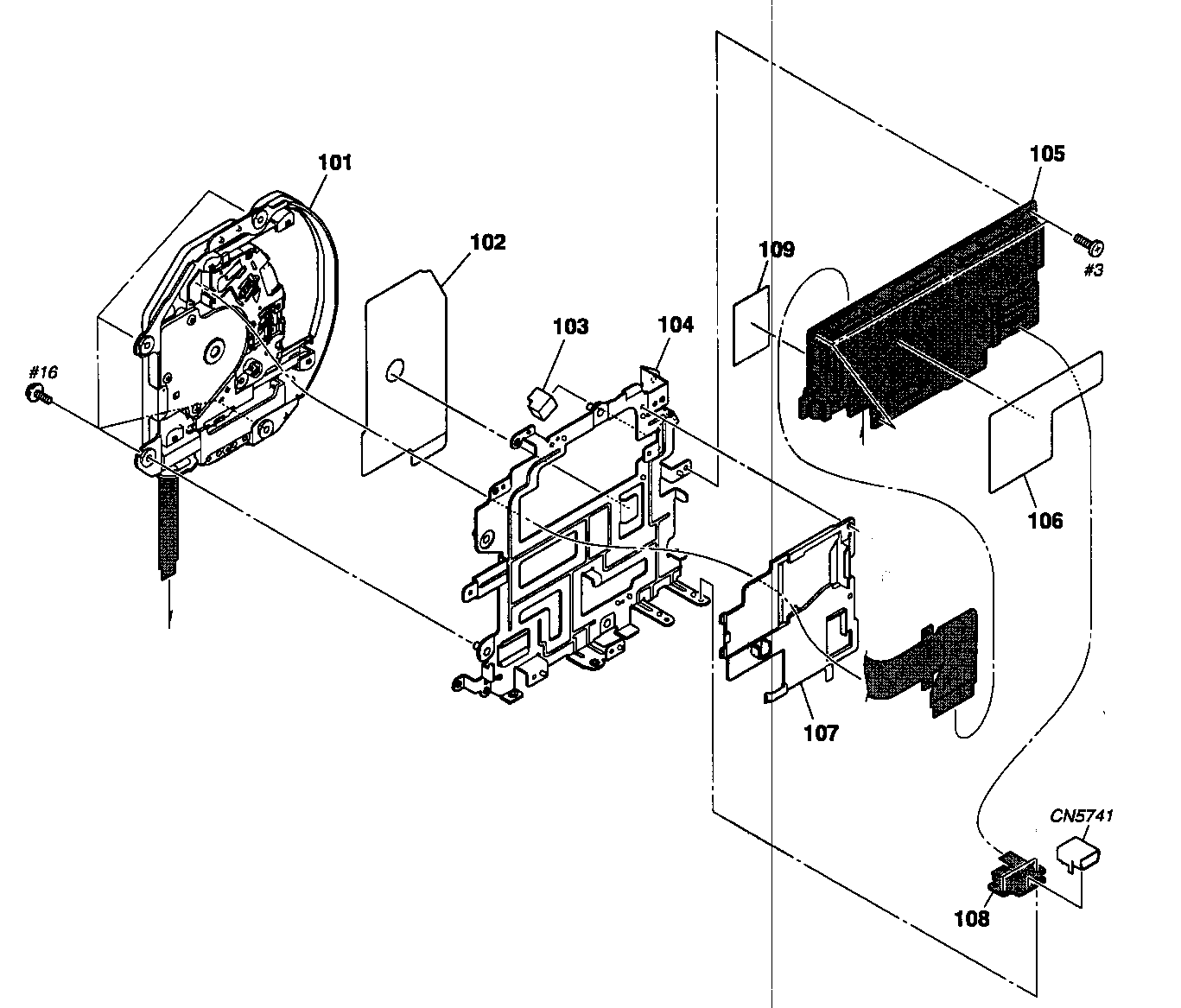

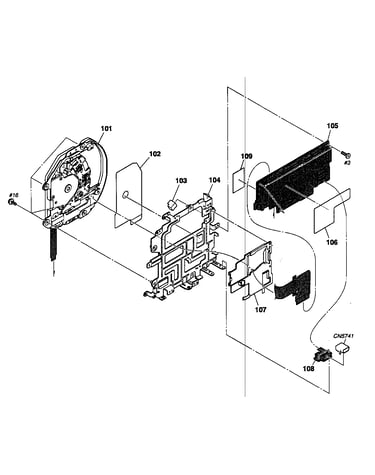

Md block diagram

Flexible pcb

Part #187128811

The manufacturer no longer makes this part, and there's no substitute part

Bl-006 Pcb A1228495A
#315

Bt-evf block diagram

Bl-006 pcb

Part #A1228495A

The manufacturer no longer makes this part, and there's no substitute part

Termnl Brd 178006421
#NI

Bt-evf block diagram

Termnl brd

Part #178006421

The manufacturer no longer makes this part, and there's no substitute part

Loud Speaker 182526041
#NI

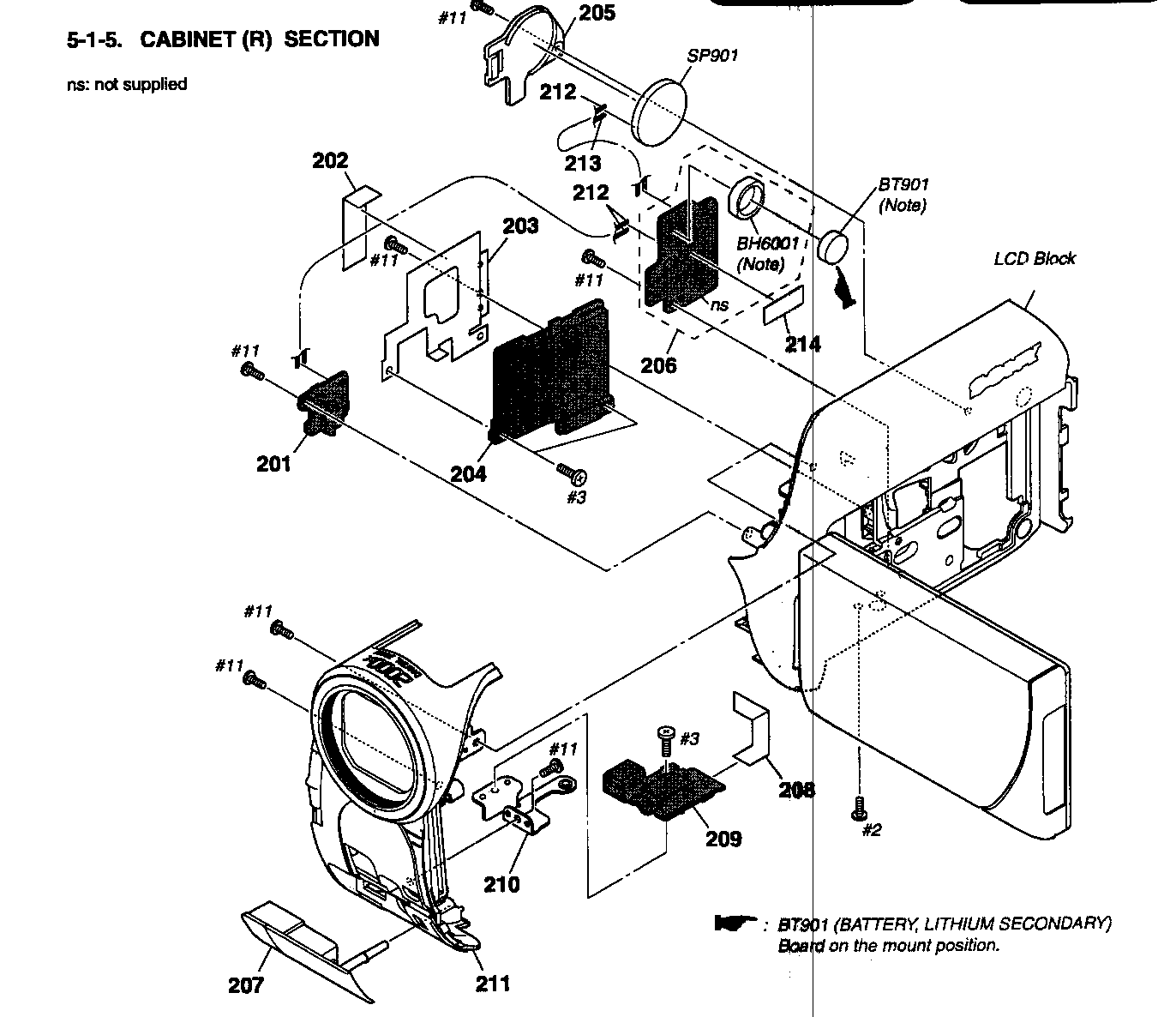

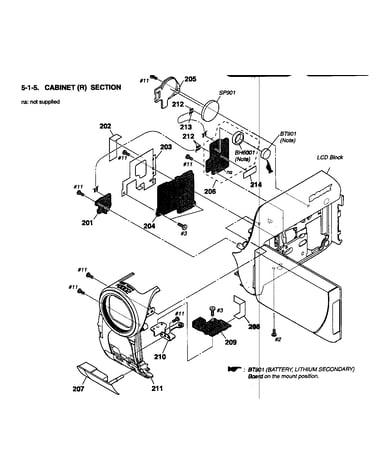

Cabinet parts 3 diagram

Loud speaker

Part #182526041

The manufacturer no longer makes this part, and there's no substitute part

Control Switch 147992611
#255

Lcd block diagram

Control switch

Part #147992611

The manufacturer no longer makes this part, and there's no substitute part

Rv-001 Pcb A1228491A
#254

Lcd block diagram

Rv-001 pcb

Part #A1228491A

The manufacturer no longer makes this part, and there's no substitute part

A/v Connec 183155311
#NI

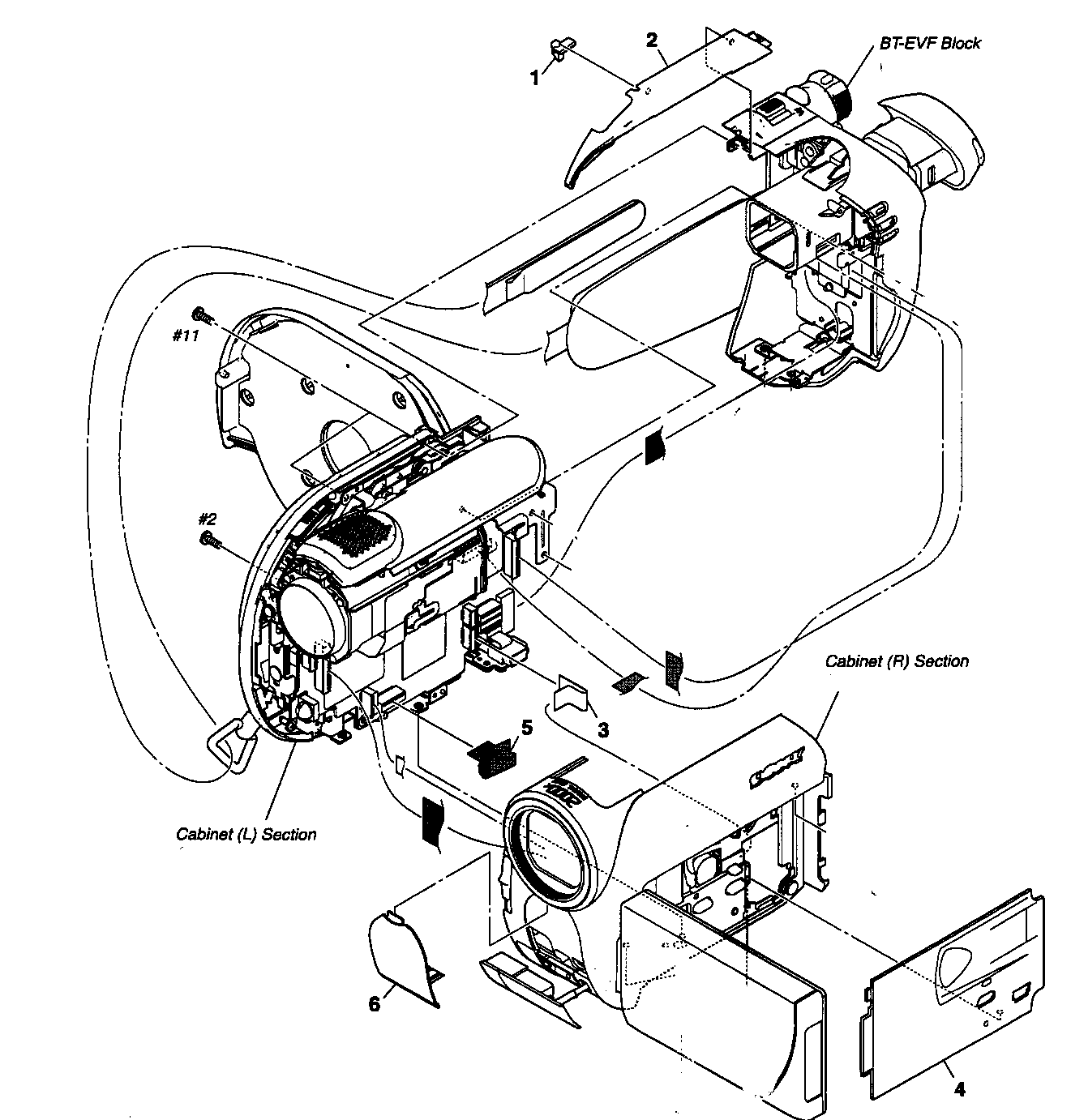

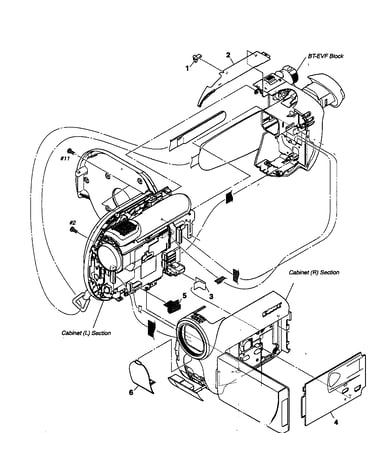

Cabinet parts 1 diagram

A/v connec

Part #183155311

The manufacturer no longer makes this part, and there's no substitute part
