Model # 2442168 Official Craftsman timing light

Here are the diagrams and repair parts for Official Craftsman 2442168 timing light, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 8 of 8 parts  |
Wire Assembly PC7162A
#2

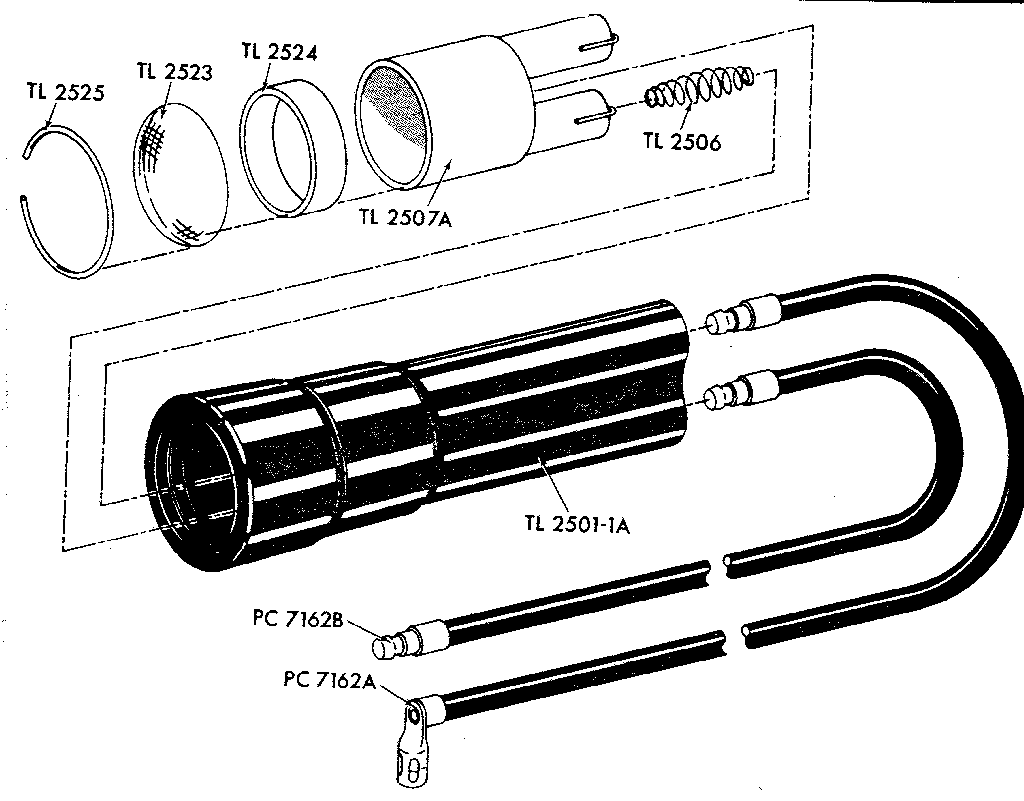

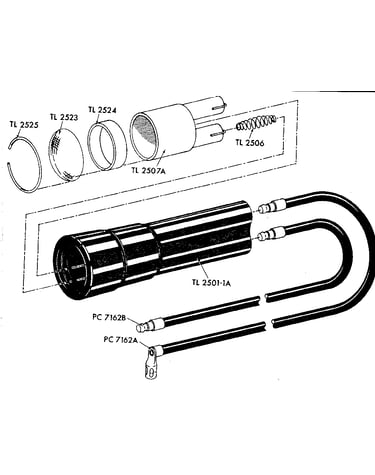

Unit diagram

Wire assembly

Part #PC7162A

The manufacturer no longer makes this part, and there's no substitute part

Tube TL2524
#7

Unit diagram

Tube

Part #TL2524

The manufacturer no longer makes this part, and there's no substitute part

Housing Assembly TL2501-1A
#4

Unit diagram

Housing assembly

Part #TL2501-1A

The manufacturer no longer makes this part, and there's no substitute part

Assembly TL2507A
#8

Unit diagram

Assembly

Part #TL2507A

The manufacturer no longer makes this part, and there's no substitute part

Wire Assembly PC7162B
#3

Unit diagram

Wire assembly

Part #PC7162B

The manufacturer no longer makes this part, and there's no substitute part

Lens TL2523
#6

Unit diagram

Lens

Part #TL2523

The manufacturer no longer makes this part, and there's no substitute part

Ring TL2525
#5

Unit diagram

Ring

Part #TL2525

The manufacturer no longer makes this part, and there's no substitute part

Spring TL2506
#1

Unit diagram

Spring

Part #TL2506

The manufacturer no longer makes this part, and there's no substitute part
