Model # CGX655VW0 Official Roper gas cooktop

Here are the diagrams and repair parts for Official Roper CGX655VW0 gas cooktop, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 59 parts  |

Burner (left Rear) 4157494
#23

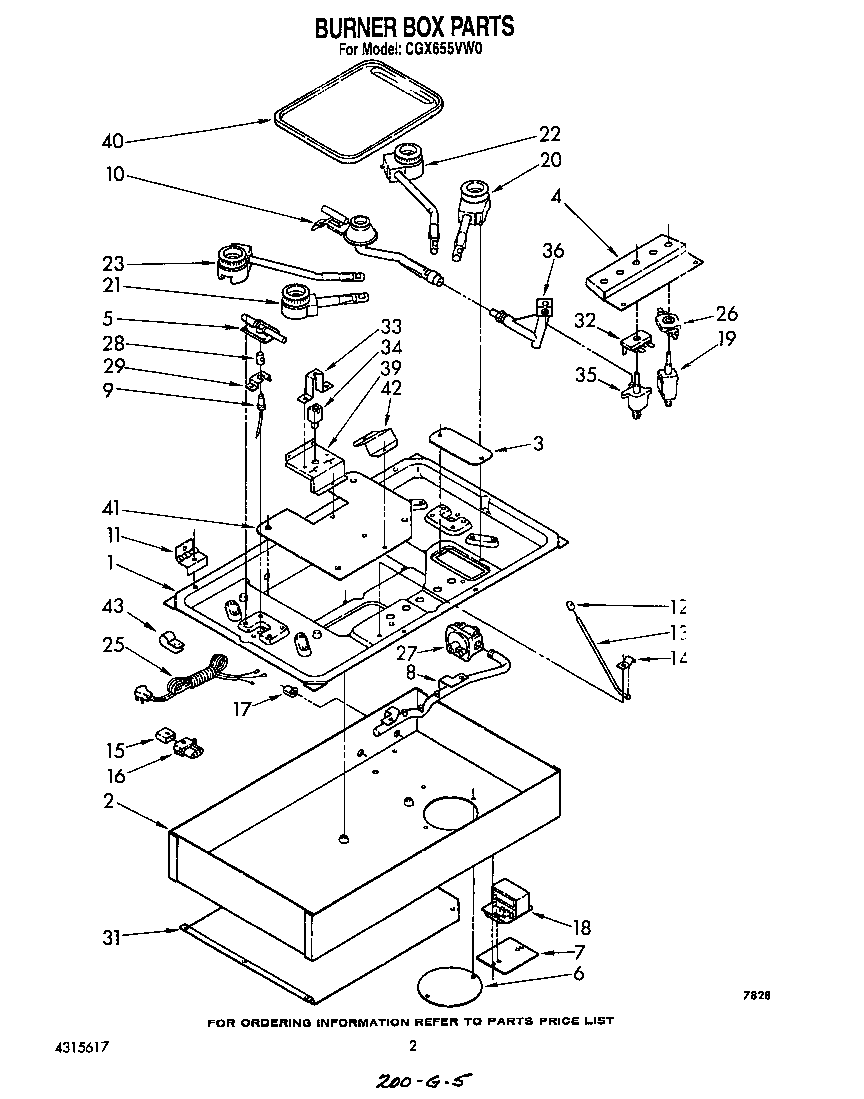

Burner box parts diagram

Burner (left rear)

Part #4157494

The manufacturer no longer makes this part, and there's no substitute part

Support, Griddle 4157618
#6

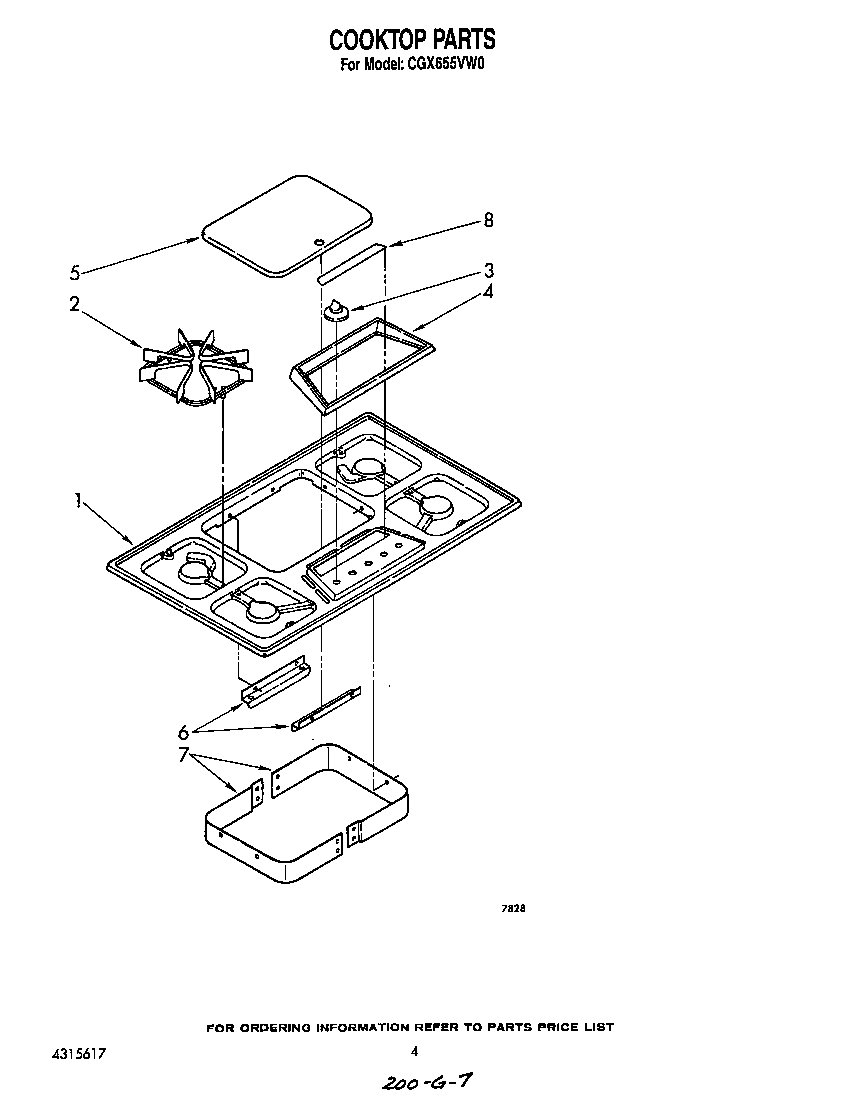

Cooktop parts diagram

Support, griddle

Part #4157618

The manufacturer no longer makes this part, and there's no substitute part

Screw, 10-16 X 1/2 4157317
Screw, 10-16 x 1/2

Part #4157317

The manufacturer no longer makes this part, and there's no substitute part

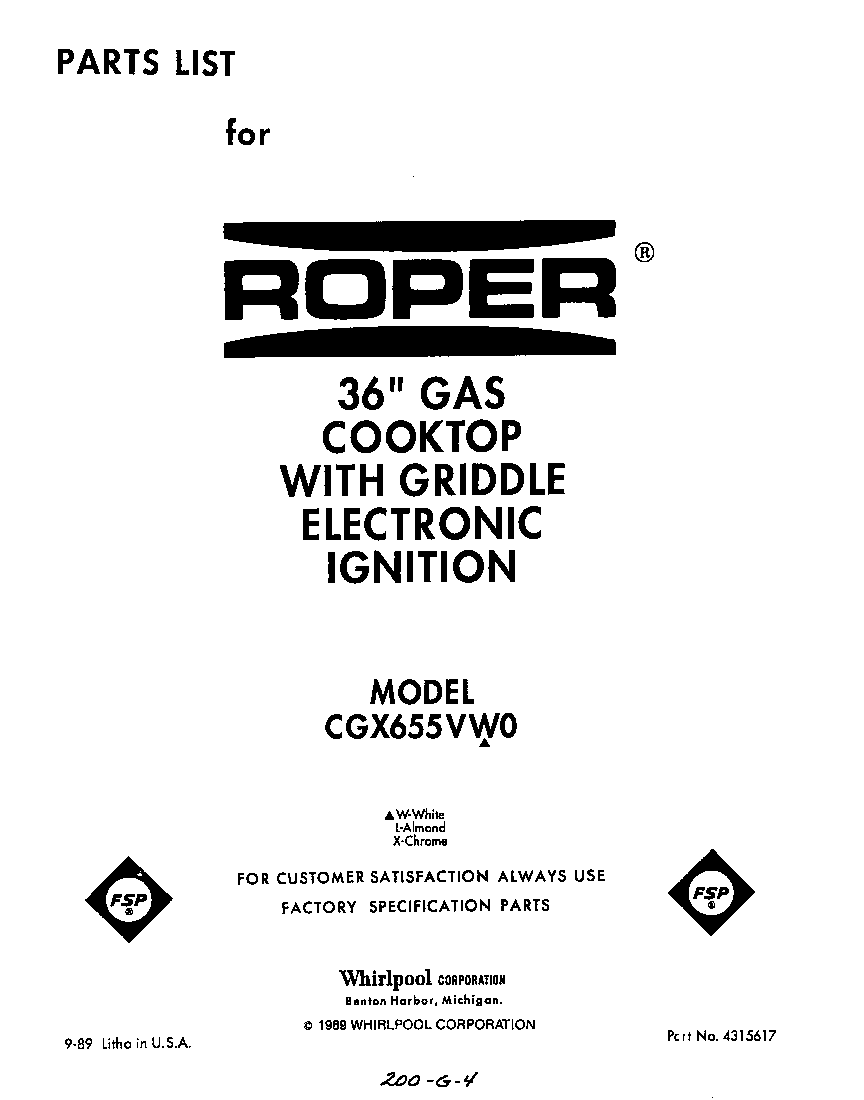

Repair Parts List LIT4315617

#NI

All parts diagram

Repair parts list

Part #LIT4315617

The manufacturer no longer makes this part, and there's no substitute part

Burner Baffle 4157624
#41

Burner box parts diagram

Burner baffle

Part #4157624

The manufacturer no longer makes this part, and there's no substitute part

Cap 4157536
#28

Burner box parts diagram

Cap

Part #4157536

The manufacturer no longer makes this part, and there's no substitute part

Brush Chrome 4157571
#1C

Cooktop parts diagram

Brush chrome

Part #4157571

The manufacturer no longer makes this part, and there's no substitute part

Igniter Switch 786130
#26

Burner box parts diagram

Igniter switch

Part #786130

The manufacturer no longer makes this part, and there's no substitute part

Ground Strap 4157442
#33

Burner box parts diagram

Ground strap

Part #4157442

The manufacturer no longer makes this part, and there's no substitute part

Valve 4157490
#19

Burner box parts diagram

Valve

Part #4157490

The manufacturer no longer makes this part, and there's no substitute part
