Model # 390252201 Official Craftsman pump
Here are the diagrams and repair parts for Official Craftsman 390252201 pump, as well as links to manuals and error code tables, if available.
Installation guide
Owner’s manualBy Schematic
SELECT DIAGRAM
Browse Parts for
390252201 Pump
#1

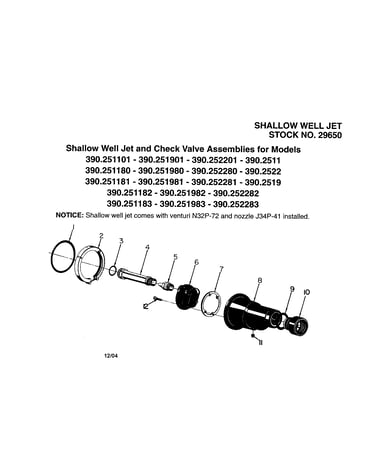

Shallow well set and check valve assemblies diagram
Pump o-ring, 4-1/4 x 4 x 1/8-in
Part #U9-202
This item is not returnable
$30.49 |
16% OFF Phone Price : $36.49
In Stock
#22
Motor assembly diagram
Draincock
Part #U212-68T
The manufacturer no longer makes this part, and there's no substitute part
#12
Motor assembly diagram
Clamp
Part #J19-5
Replaced by #C19-54SS
?
Manufacturer substitution
This part replaces J19-5. Substitute parts can look different from the original.
$231.69 |
5% OFF Phone Price : $243.69
In Stock
#9
Shallow well set and check valve assemblies diagram
0-ring
Part #U9-226
The manufacturer no longer makes this part, and there's no substitute part
#10B
Motor assembly diagram
Pump diffuser
Part #J1-40P
The manufacturer no longer makes this part, and there's no substitute part
#9A
Motor assembly diagram
Pump impeller
Part #J105-42PT
The manufacturer no longer makes this part, and there's no substitute part
#9
Check valve and venturi diagram
Coupling
Part #U11-1
The manufacturer no longer makes this part, and there's no substitute part
#8A

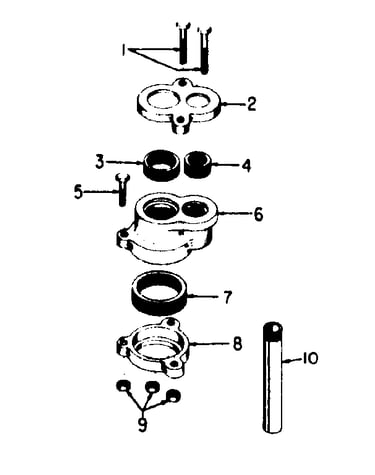

Lower flange diagram
Flange
Part #J16-20
The manufacturer no longer makes this part, and there's no substitute part
#7A
Check valve and venturi diagram
Check valve
Part #P122-10B
The manufacturer no longer makes this part, and there's no substitute part
#10
Lower flange diagram
Kenmore nipple
Part #U37-116GP
The manufacturer no longer makes this part, and there's no substitute part
