Model # JY5502A39 Official Western Auto 12" boys' bmx bicycle

Here are the diagrams and repair parts for Official Western Auto JY5502A39 12" boys' bmx bicycle, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 34 parts  |
Rr Rim JB302610
#10

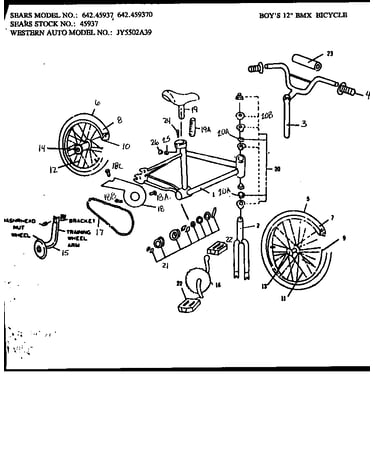

Boy's 12" bmx bicycle diagram

Rr rim

Part #JB302610

The manufacturer no longer makes this part, and there's no substitute part

Decal JB302633

#NI

All parts diagram

Decal

Part #JB302633

The manufacturer no longer makes this part, and there's no substitute part

Front Rim JB302609
#9

Boy's 12" bmx bicycle diagram

Front rim

Part #JB302609

The manufacturer no longer makes this part, and there's no substitute part

Seat Post JB302622
#19

Boy's 12" bmx bicycle diagram

Seat post

Part #JB302622

The manufacturer no longer makes this part, and there's no substitute part

Screw JB302630
#24

Boy's 12" bmx bicycle diagram

Screw

Part #JB302630

The manufacturer no longer makes this part, and there's no substitute part

Handlebar JB302603
#3

Boy's 12" bmx bicycle diagram

Handlebar

Part #JB302603

The manufacturer no longer makes this part, and there's no substitute part

Rr Coaster JB302614
#14

Boy's 12" bmx bicycle diagram

Rr coaster

Part #JB302614

The manufacturer no longer makes this part, and there's no substitute part

Front Wheel JB302605
#5

Boy's 12" bmx bicycle diagram

Front wheel

Part #JB302605

The manufacturer no longer makes this part, and there's no substitute part

Hndlebar Pad JB302629
#23

Boy's 12" bmx bicycle diagram

Hndlebar pad

Part #JB302629

The manufacturer no longer makes this part, and there's no substitute part

Ball Retainr JB302625
#20A

Boy's 12" bmx bicycle diagram

Ball retainr

Part #JB302625

The manufacturer no longer makes this part, and there's no substitute part
