Model # TITAN 620 11-600167-00 Official McCulloch chainsaw

Here are the diagrams and repair parts for Official McCulloch TITAN-620-11-600167-00 chainsaw, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

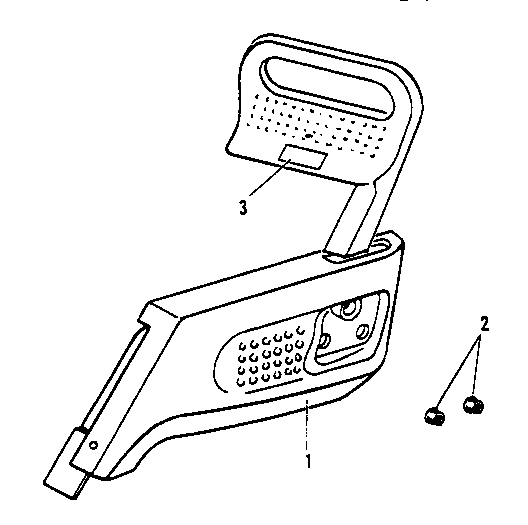

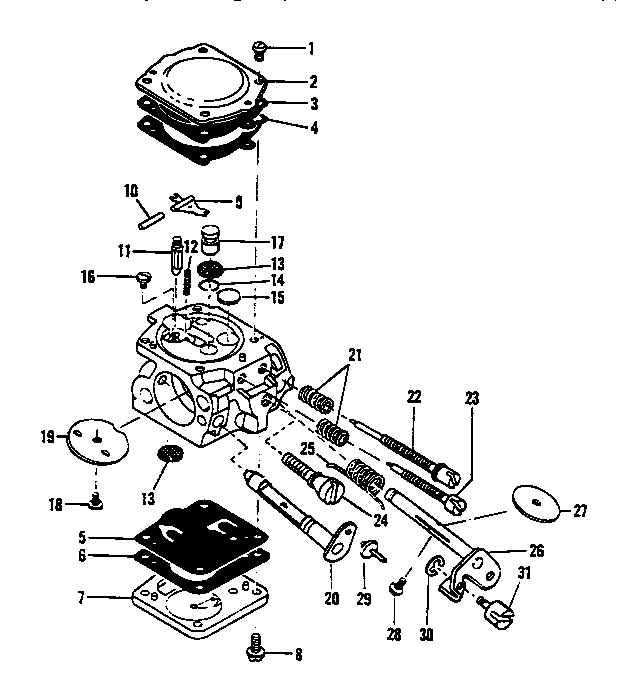

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 142 parts  |
Bar Plate 227369
#36

Powerhead assembly diagram

Bar plate

Part #227369

The manufacturer no longer makes this part, and there's no substitute part

Kit, 54cc Pi 227510
#124

Powerhead assembly diagram

Kit, 54cc pi

Part #227510

The manufacturer no longer makes this part, and there's no substitute part

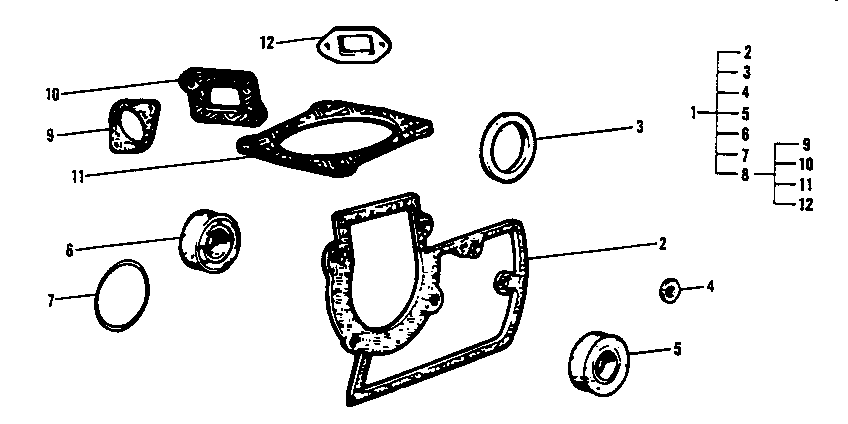

Muffler Gasket 227483
Muffler gasket

Part #227483

The manufacturer no longer makes this part, and there's no substitute part

Clutch Rotor 227358
#6

Powerhead assembly diagram

Clutch rotor

Part #227358

The manufacturer no longer makes this part, and there's no substitute part

Cylinder Kit 227515
#122A

Powerhead assembly diagram

Cylinder kit

Part #227515

The manufacturer no longer makes this part, and there's no substitute part

Grey Rear Ha 246004
#1

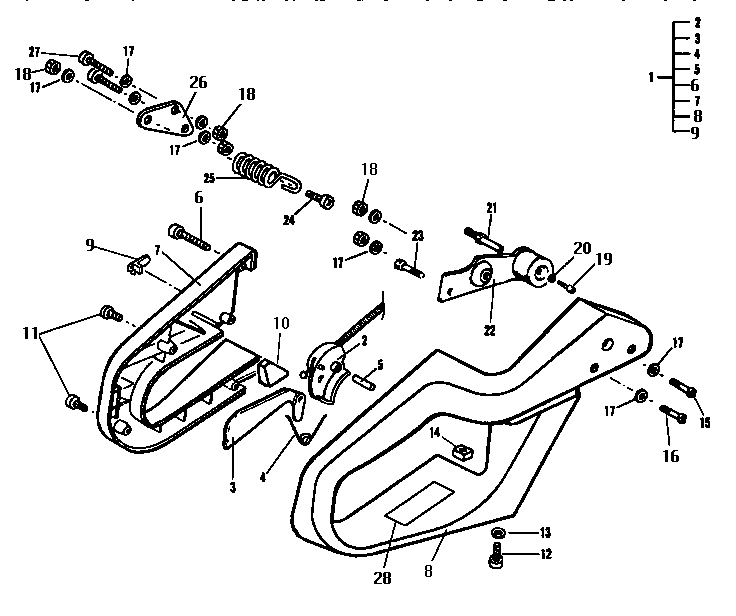

Rear handle assembly diagram

Grey rear ha

Part #246004

The manufacturer no longer makes this part, and there's no substitute part

Cylinder Kit 227514
#122

Powerhead assembly diagram

Cylinder kit

Part #227514

The manufacturer no longer makes this part, and there's no substitute part

Grommet 227415
#50

Powerhead assembly diagram

Grommet

Part #227415

The manufacturer no longer makes this part, and there's no substitute part

Crankshaft 227330
#130

Powerhead assembly diagram

Crankshaft

Part #227330

The manufacturer no longer makes this part, and there's no substitute part

Pin 236728
#61

Powerhead assembly diagram

Pin

Part #236728

The manufacturer no longer makes this part, and there's no substitute part
