Model # JGBS21HED1WW Official GE gas range
Here are the diagrams and repair parts for Official GE JGBS21HED1WW gas range, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
By Part
SELECT DIAGRAM
Browse Parts for
JGBS21HED1WW Ranges
#218

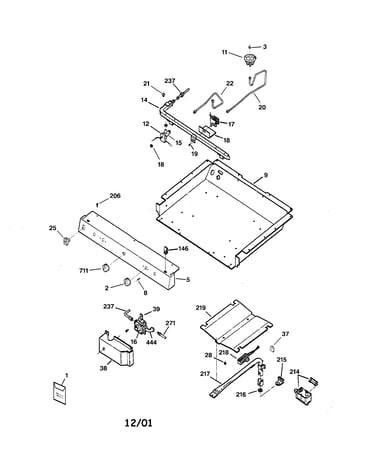

Gas & burner parts diagram
Bake burner ignition
Part #WB13K0021
Replaced by #WB13K21
?
Manufacturer substitution
This part replaces WB13K0021. Substitute parts can look different from the original.
$62.58 |
9% OFF Phone Price : $68.58
In Stock
#235

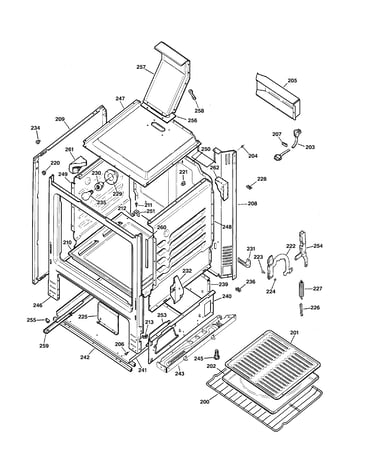

Body parts diagram
40a15bulb
Part #STD372401
Replaced by #40A15
?
Manufacturer substitution
This part replaces STD372401. Substitute parts can look different from the original.
$16.73 |
11% OFF Phone Price : $18.73
In Stock
#230
Body parts diagram
Pushin receptacle
Part #WB08K0002
Replaced by #WB08T10026
?
Manufacturer substitution
This part replaces WB08K0002. Substitute parts can look different from the original.
This item is not returnable
$8.37 |
11% OFF Phone Price : $9.37
In Stock
#28
Gas & burner parts diagram
Hex washer head screw
Part #WB01K0050
Replaced by #WB1X1293
?
Manufacturer substitution
This part replaces WB01K0050. Substitute parts can look different from the original.
This item is not returnable
$9.16 |
10% OFF Phone Price : $10.16
In Stock
#3
Gas & burner parts diagram
Range surface burner orifice
Part #WB28K10023
This item is not returnable
$12.77 |
14% OFF Phone Price : $14.77
In Stock
#318

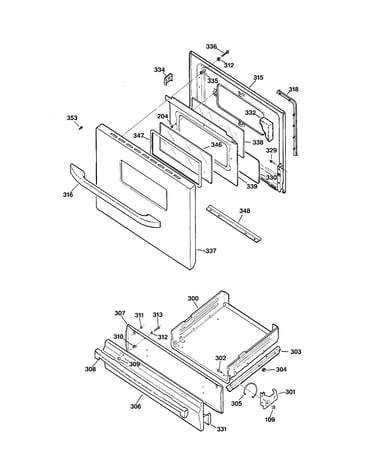

Door & drawer parts diagram
Door gasket
Part #WB32K0003
Replaced by #WB35X29720
?
Manufacturer substitution
This part replaces WB32K0003. Substitute parts can look different from the original.
$23.08 |
21% OFF Phone Price : $29.08
In Stock
#22
Gas & burner parts diagram
Range surface burner supply tube
Part #WB28K10025
$30.91 |
16% OFF Phone Price : $36.91
In Stock
#200
Body parts diagram
Oven rack
Part #WB48K0004
Replaced by #WB48T10095
?
Manufacturer substitution
This part replaces WB48K0004. Substitute parts can look different from the original.
$60.32 |
9% OFF Phone Price : $66.32
In Stock
#22
Gas & burner parts diagram
Range surface burner supply tube
Part #WB28K10024
$38.30 |
14% OFF Phone Price : $44.30
In Stock
#105

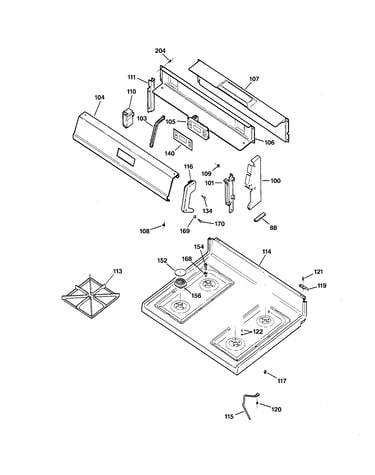

Control panel & cooktop diagram
Timer tod (
Part #WB11K10016
Replaced by #WB27T10469
?
Manufacturer substitution
This part replaces WB11K10016. Substitute parts can look different from the original.
$105.13 |
10% OFF Phone Price : $117.13
In Stock
