Countertop Microwave

Model # FMS135T1B1 Official Frigidaire 1.3 cubic foot microwave

Here are the diagrams and repair parts for Official Frigidaire FMS135T1B1 1.3 cubic foot microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 71 parts  |
Paint 5303203124

#NI

All parts diagram

Paint

Part #5303203124

Replaced by #5303321319

?
Manufacturer substitution
This part replaces 5303203124. Substitute parts can look different from the original.
This item is not returnable
$15.09 |
12% OFF Phone Price : $17.09
In Stock
Microwave Shield 317011204
#25

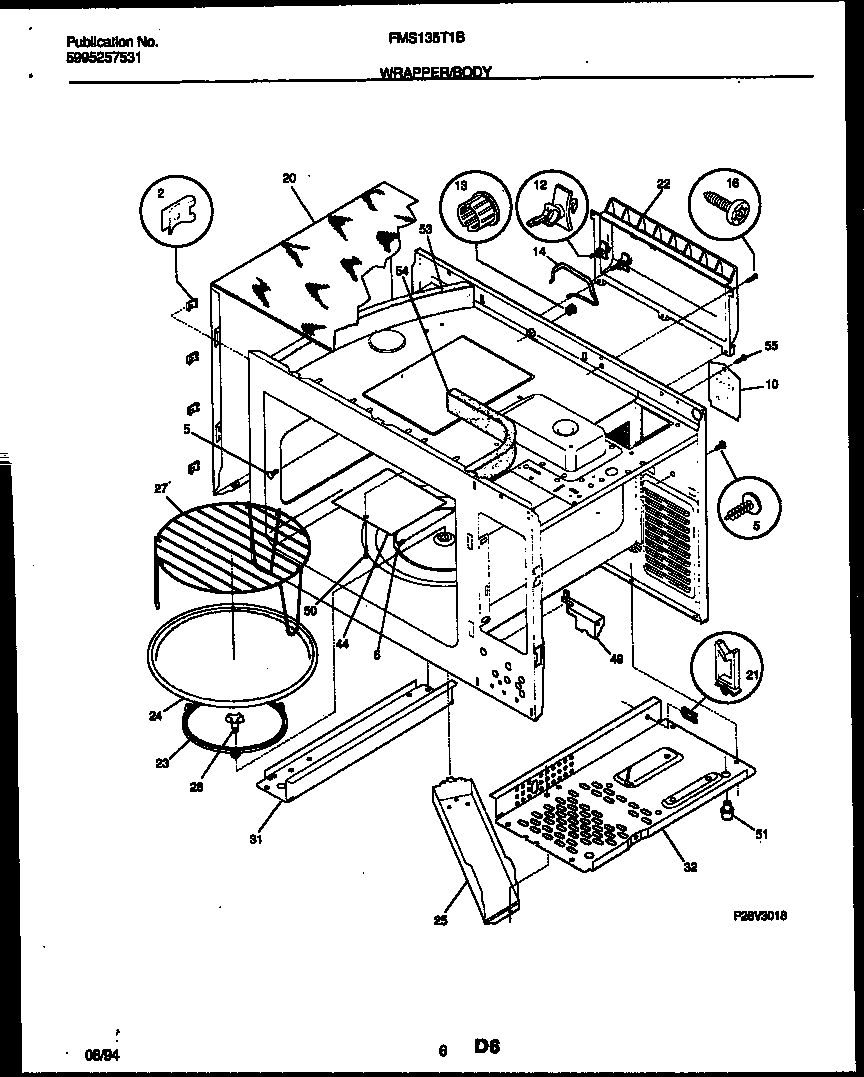

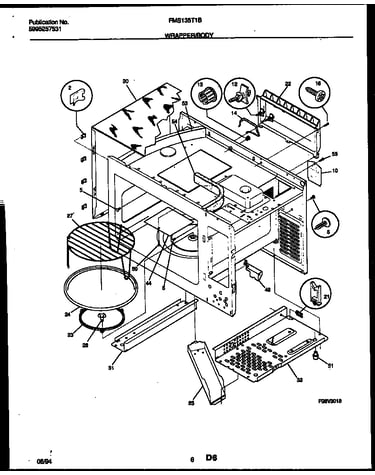

Wrapper and body parts diagram

Microwave shield

Part #317011204

$12.88
In Stock
Button Spring 396114300
#11

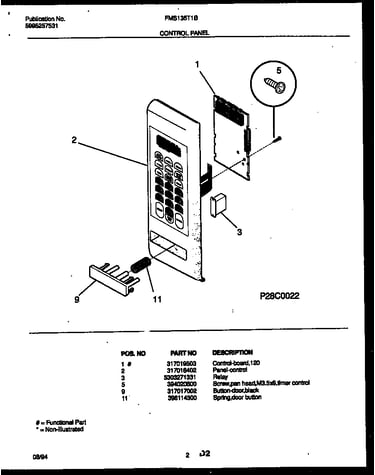

Control panel diagram

Button spring

Part #396114300

This item is not returnable
$3.62
In Stock
Door Switch 317005121
#52

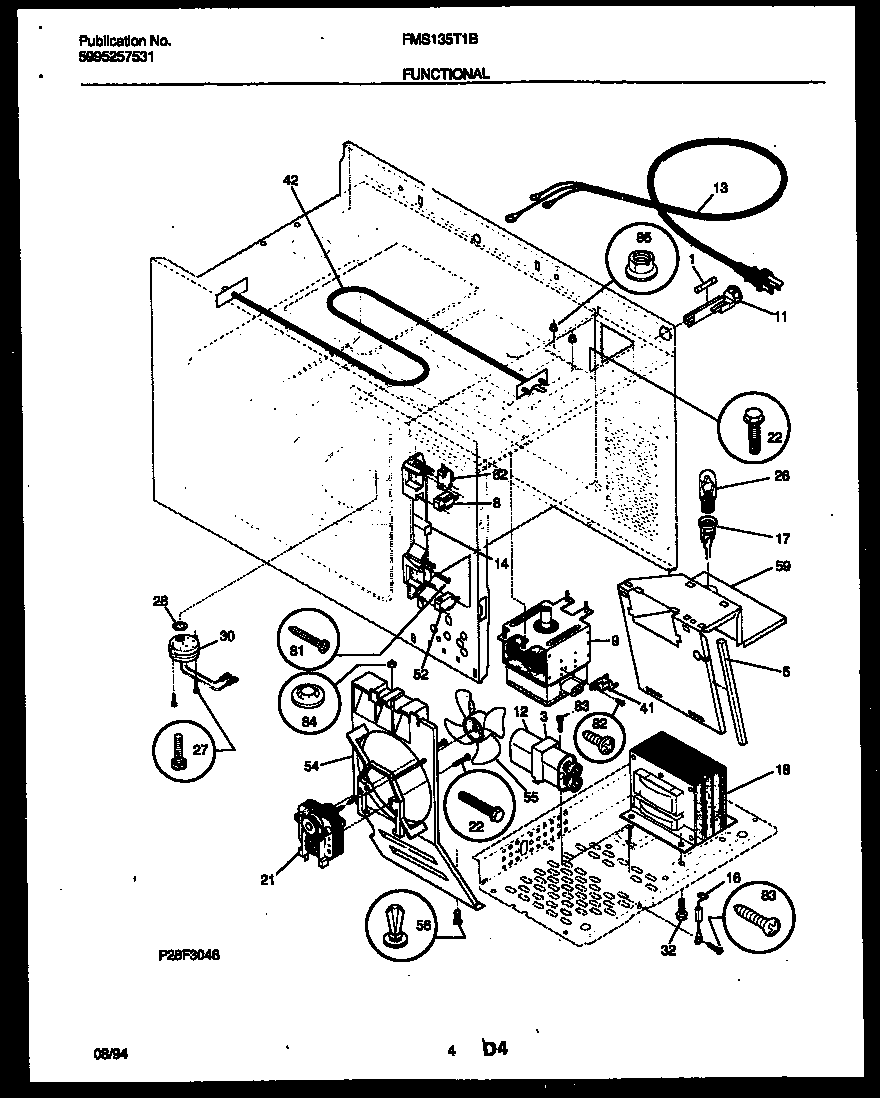

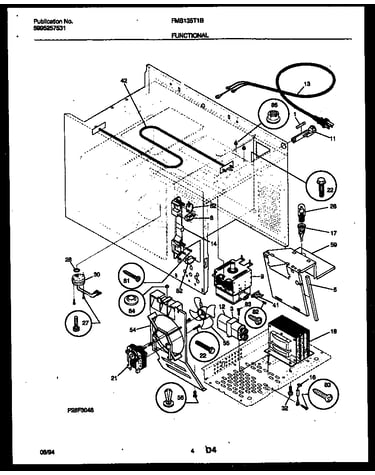

Functional parts diagram

Door switch

Part #317005121

$27.98
In Stock
Wiring Harness 317000410

#NI

All parts diagram

Wiring harness

Part #317000410

$32.99
In Stock
Light Socket 317018001
#17

Functional parts diagram

Light socket

Part #317018001

This item is not returnable
$3.65
In Stock
Spring 317013501
#18

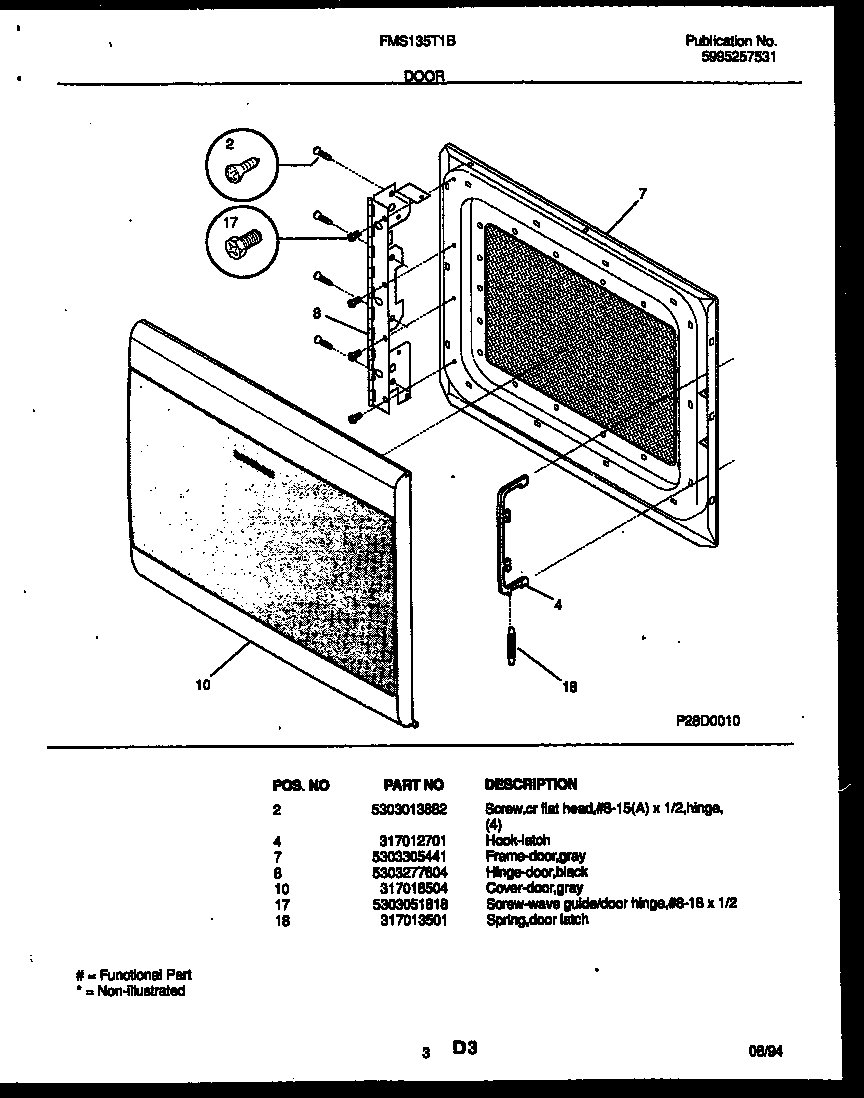

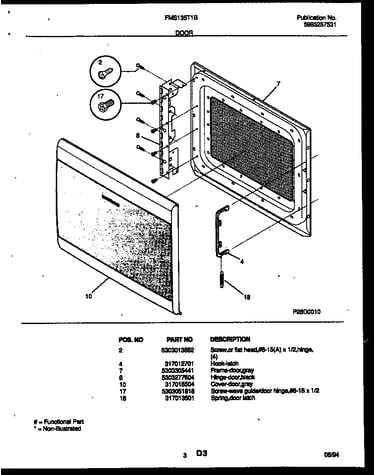

Door parts diagram

Spring

Part #317013501

This item is not returnable
$2.34
In Stock
Foam Air Floor 317009903
#54

Wrapper and body parts diagram

Foam air floor

Part #317009903

This item is not returnable
$2.99
In Stock
Control Board 317019504
#1

Control panel diagram

Control board

Part #317019504

$214.48
In Stock
Screw 5303273263
Screw

Part #5303273263

This item is not returnable
$2.16
In Stock
