Model # CH5530QKA2 Official ICP heat pump outdoor section

Here are the diagrams and repair parts for Official ICP CH5530QKA2 heat pump outdoor section, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 46 parts  |
Contactor 1050699
#8

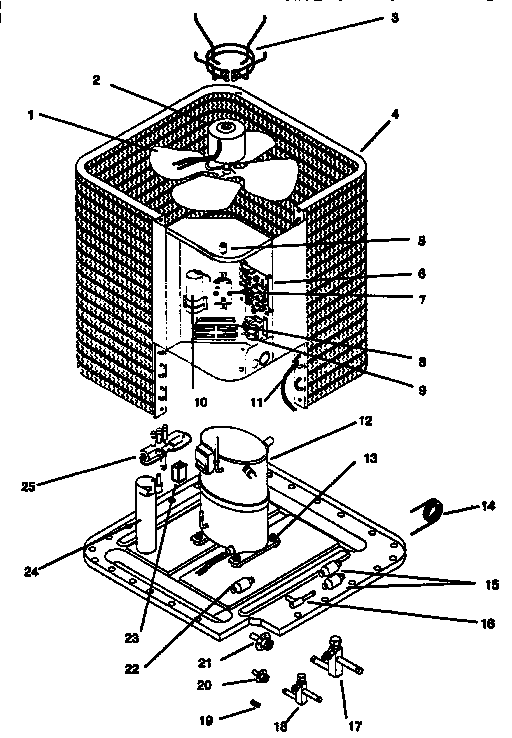

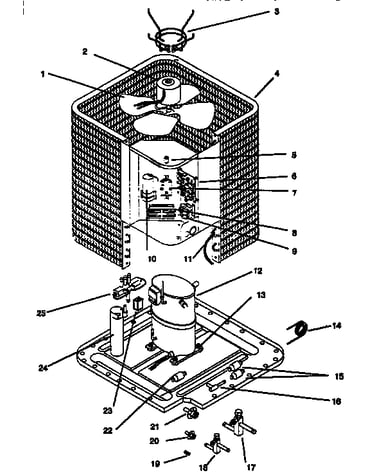

Functional parts diagram

Contactor

Part #1050699

Replaced by #94-388

?
Manufacturer substitution
This part replaces 1050699. Substitute parts can look different from the original.
$33.20 |
15% OFF Phone Price : $39.20
In Stock
Cap Rnrdv+ 1094978
#10

Functional parts diagram

Cap rnrdv+

Part #1094978

Replaced by #12972

?
Manufacturer substitution
This part replaces 1094978. Substitute parts can look different from the original.
$16.96 |
11% OFF Phone Price : $18.96
In Stock
Central Air Conditioner Condenser Fan Motor 1050892
#2

Functional parts diagram

Central air conditioner condenser fan motor

Part #1050892

$415.12
In Stock
Sensor Def C 1092372
#11

Functional parts diagram

Sensor def c

Part #1092372

Replaced by #1172766

?
Manufacturer substitution
This part replaces 1092372. Substitute parts can look different from the original.
$28.80 |
17% OFF Phone Price : $34.80
In Stock
Dpdt Relay 96467
#7

Functional parts diagram

Dpdt relay

Part #96467

The manufacturer no longer makes this part, and there's no substitute part

Central Air Conditioner Condenser Fan Motor Mount 1051460
#3

Functional parts diagram

Central air conditioner condenser fan motor mount

Part #1051460

$310.20
In Stock
Check Valve 1052910
#16

Functional parts diagram

Check valve

Part #1052910

$84.67
In Stock
Raceway 1051322
#14B

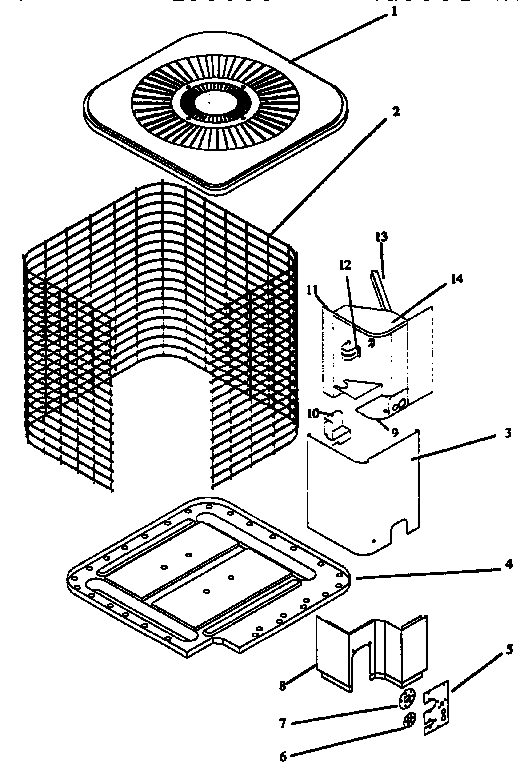

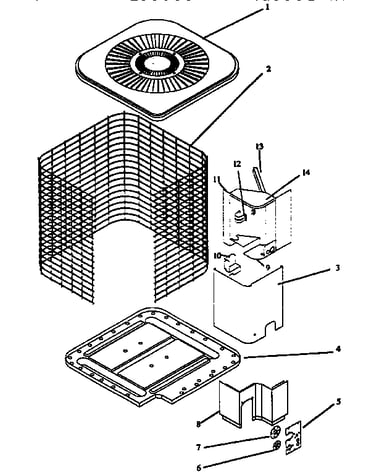

Non-functional parts diagram

Raceway

Part #1051322

$10.20
In Stock
Cont Lo Pres 1064449

#NI

All parts diagram

Cont lo pres

Part #1064449

Replaced by #1071713

?
Manufacturer substitution
This part replaces 1064449. Substitute parts can look different from the original.
$57.87
In Stock
Start Device 704415
#5

Functional parts diagram

Start device

Part #704415

The manufacturer no longer makes this part, and there's no substitute part
