Model # CSE4000ADW Official Maytag electric range

Here are the diagrams and repair parts for Official Maytag CSE4000ADW electric range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 28 parts  |
Drip Bowl 74001213
#3

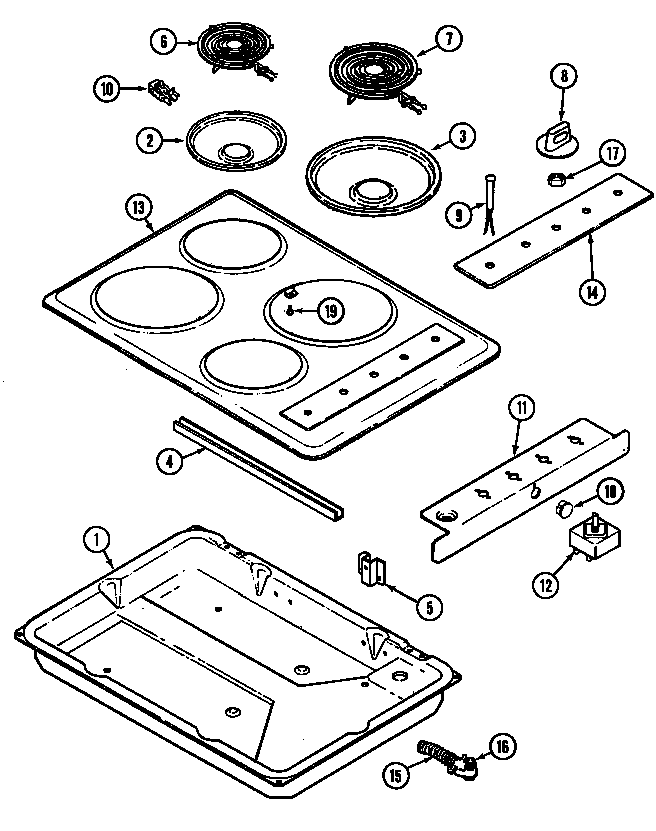

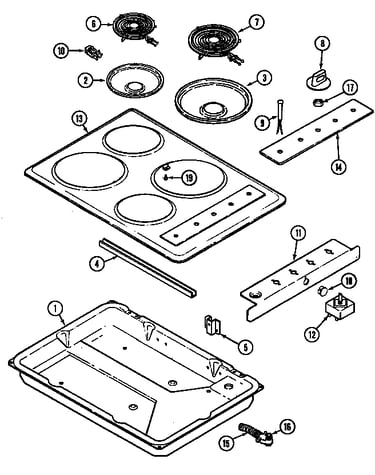

Top assembly diagram

Drip bowl

Part #74001213

Replaced by #WPW10196405

?
Manufacturer substitution
This part replaces 74001213. Substitute parts can look different from the original.
BEST SELLER
$8.52 |
11% OFF Phone Price : $9.52
In Stock
Element, 6-in 7406P054-60
#6

Top assembly diagram

Element, 6-in

Part #7406P054-60

Replaced by #WP660532

?
Manufacturer substitution
This part replaces 7406P054-60. Substitute parts can look different from the original.
BEST SELLER
$30.06 |
17% OFF Phone Price : $36.06
In Stock
Drip Bowl 74001212
#2

Top assembly diagram

Drip bowl

Part #74001212

Replaced by #W10196406RW

?
Manufacturer substitution
This part replaces 74001212. Substitute parts can look different from the original.
$12.95 |
13% OFF Phone Price : $14.95
In Stock
Screw 7118P004-60
#5B

Top assembly diagram

Screw

Part #7118P004-60

Replaced by #WP4159193

?
Manufacturer substitution
This part replaces 7118P004-60. Substitute parts can look different from the original.
This item is not returnable
$5.06 |
17% OFF Phone Price : $6.06
In Stock
Element (8") 7406P055-60
#7

Top assembly diagram

Element (8")

Part #7406P055-60

Replaced by #WP3191454

?
Manufacturer substitution
This part replaces 7406P055-60. Substitute parts can look different from the original.
$88.82 |
6% OFF Phone Price : $94.82
In Stock
Infinite Switch 7403P027-60
#12

Top assembly diagram

Infinite switch

Part #7403P027-60

Replaced by #W10900107

?
Manufacturer substitution
This part replaces 7403P027-60. Substitute parts can look different from the original.
$39.99 |
13% OFF Phone Price : $45.99
In Stock
Receptacle 1430306K
#10

Top assembly diagram

Receptacle

Part #1430306K

Replaced by #12001676

?
Manufacturer substitution
This part replaces 1430306K. Substitute parts can look different from the original.
$10.73 |
16% OFF Phone Price : $12.73
In Stock
Wiring Harness 74001593
#21A

Top assembly diagram

Wiring harness

Part #74001593

The manufacturer no longer makes this part, and there's no substitute part

Manual, Use & Care (frch - Series 10 74002583
#21C

Top assembly diagram

Manual, use & care (frch - series 10

Part #74002583

The manufacturer no longer makes this part, and there's no substitute part

Control Trim 7720P124-60
#20

Top assembly diagram

Control trim

Part #7720P124-60

The manufacturer no longer makes this part, and there's no substitute part
