Model # GHWN5250D0WS Official GE washer

Here are the diagrams and repair parts for Official GE GHWN5250D0WS washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

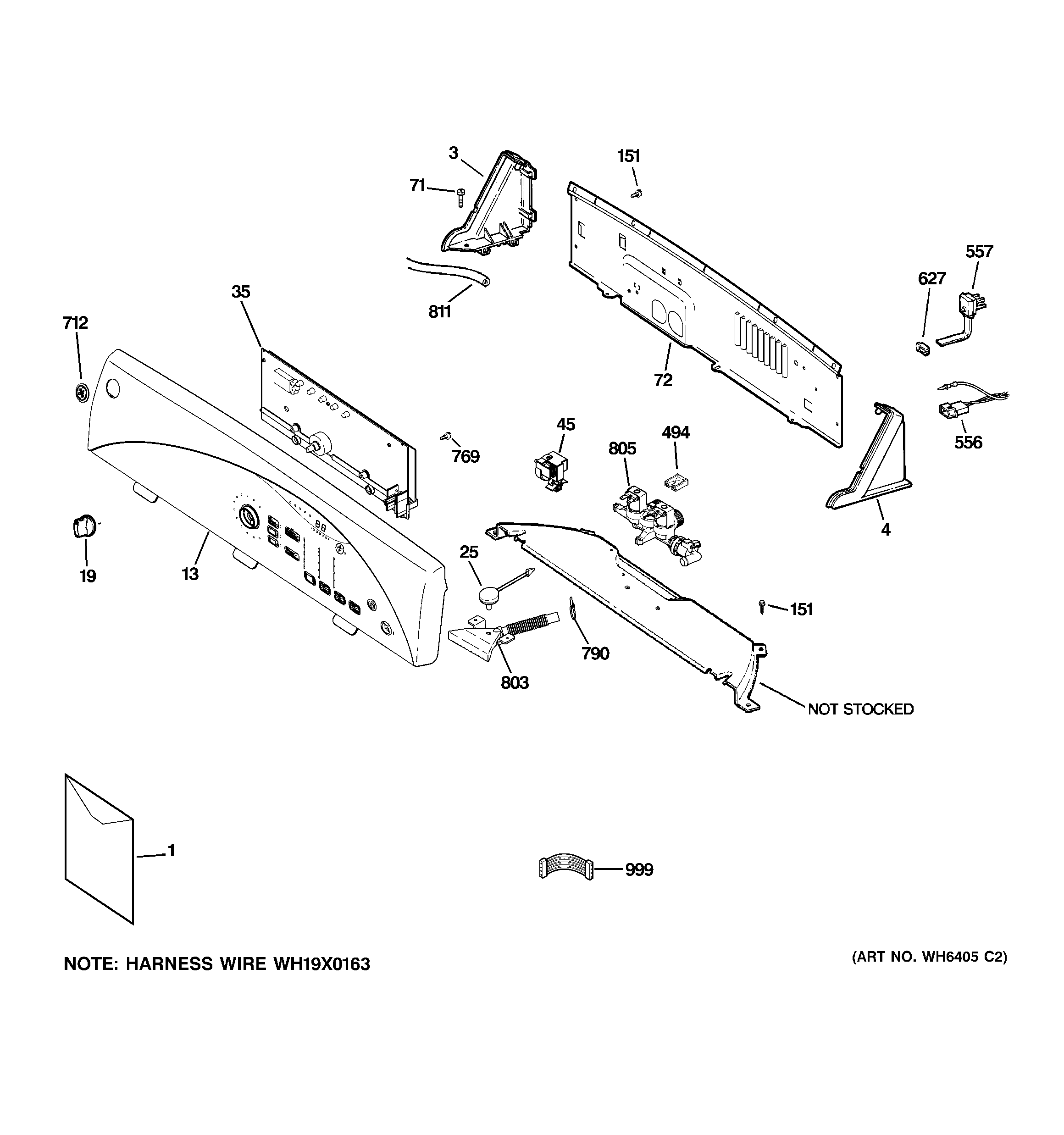

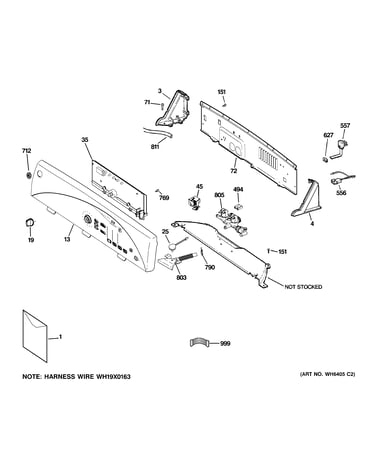

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 101 parts  |
Hub Nut WH02X1193
#325

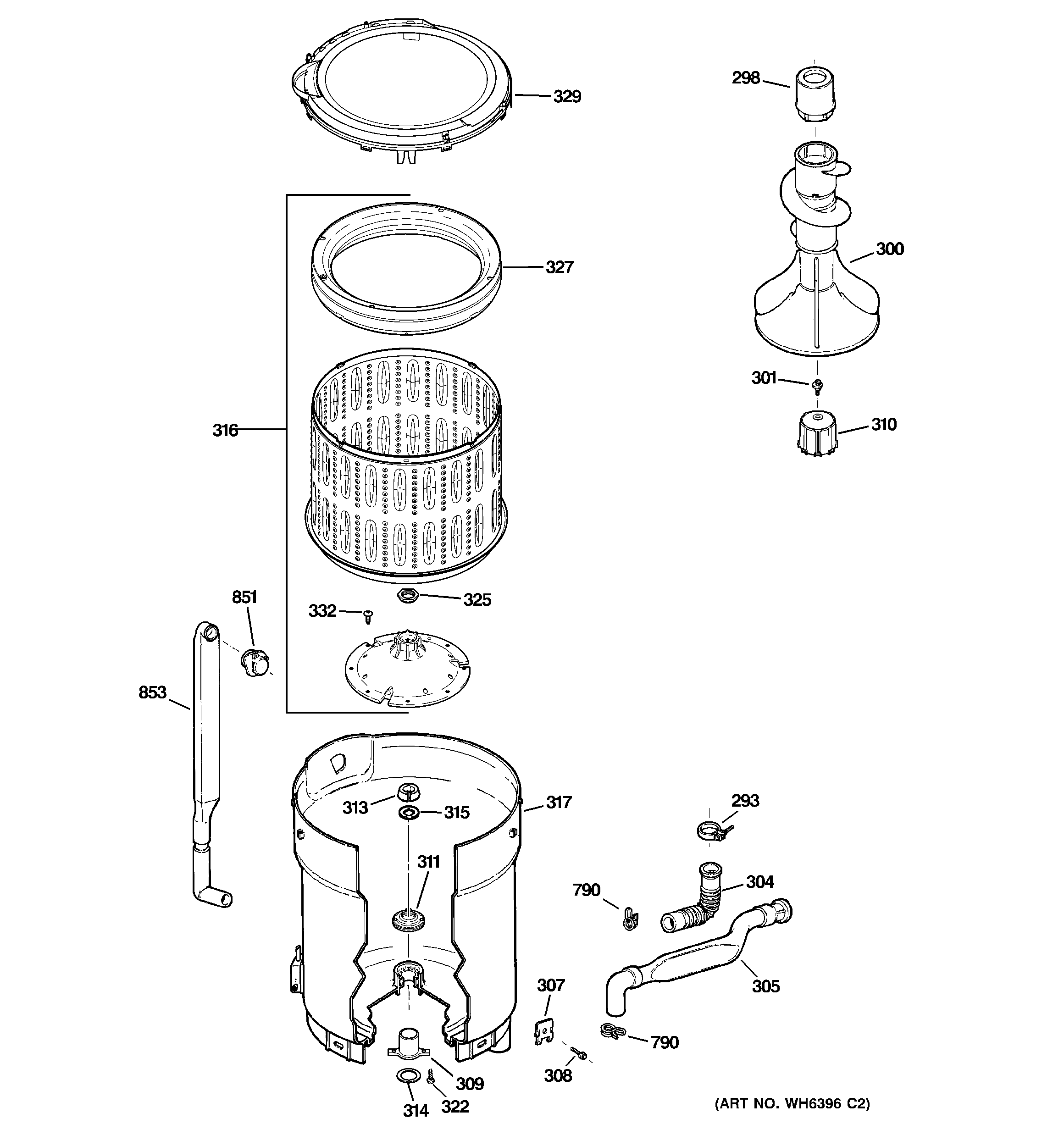

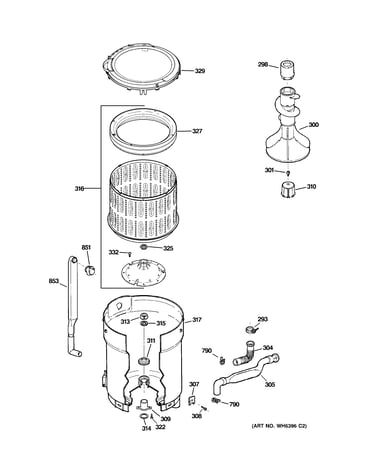

Tub, basket & agitator diagram

Hub nut

Part #WH02X1193

Replaced by #WH2X1193

?
Manufacturer substitution
This part replaces WH02X1193. Substitute parts can look different from the original.
BEST SELLER
$8.64 |
10% OFF Phone Price : $9.64
In Stock
Washer Tub Seal WH02X10032
#311

Tub, basket & agitator diagram

Washer tub seal

Part #WH02X10032

Replaced by #WH02X10383

?
Manufacturer substitution
This part replaces WH02X10032. Substitute parts can look different from the original.
BEST SELLER
$10.51 |
16% OFF Phone Price : $12.51
In Stock
Washer Suspension Rod And Spring Assembly WH16X10158
#414

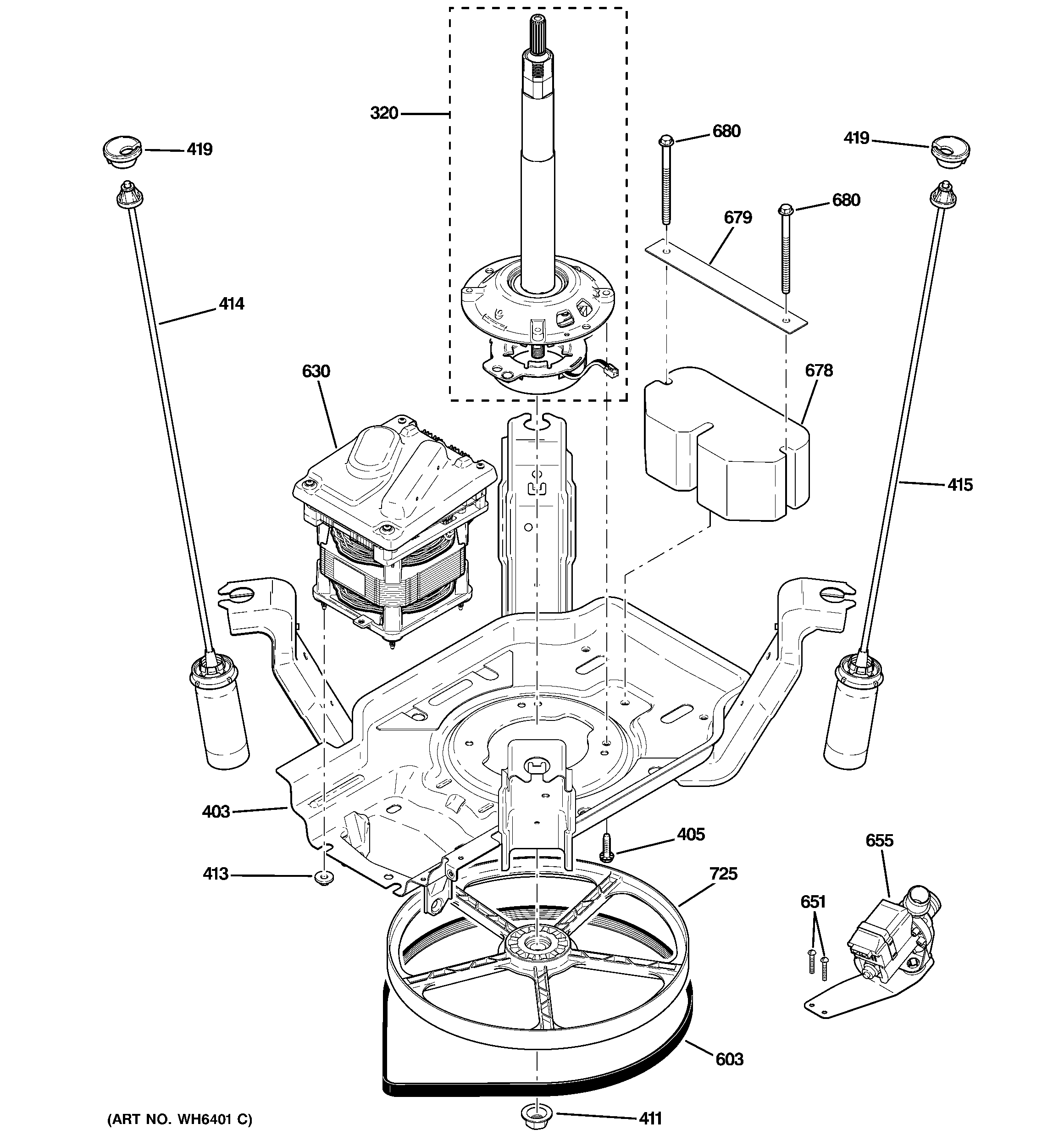

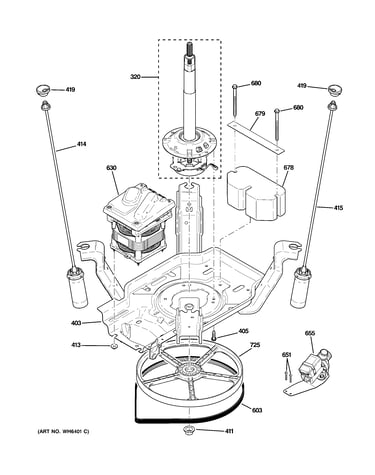

Suspension, pump & drive components diagram

Washer suspension rod and spring assembly

Part #WH16X10158

BEST SELLER
$32.20 |
16% OFF Phone Price : $38.20
In Stock
Washer Drive Shaft And Shifter Assembly WH38X10019
#320

Suspension, pump & drive components diagram

Washer drive shaft and shifter assembly

Part #WH38X10019

BEST SELLER
$213.37 |
5% OFF Phone Price : $225.37
In Stock
Hub Washer WH02X1199
#315

Tub, basket & agitator diagram

Hub washer

Part #WH02X1199

Replaced by #WH2X1199

?
Manufacturer substitution
This part replaces WH02X1199. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.31 |
14% OFF Phone Price : $7.31
In Stock
Washer Suspension Rod, Rear WH16X10159
#415

Suspension, pump & drive components diagram

Washer suspension rod, rear

Part #WH16X10159

BEST SELLER
$102.97 |
10% OFF Phone Price : $114.97
In Stock
Tub Assembly WH45X10111
#317

Tub, basket & agitator diagram

Tub assembly

Part #WH45X10111

Replaced by #WH45X20473

?
Manufacturer substitution
This part replaces WH45X10111. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$100.87 |
11% OFF Phone Price : $112.87
In Stock
Washer Agitator Coupler WH43X10032
#310

Tub, basket & agitator diagram

Washer agitator coupler

Part #WH43X10032

BEST SELLER
$24.86 |
19% OFF Phone Price : $30.86
In Stock
Washer Top WH44X10027
#391

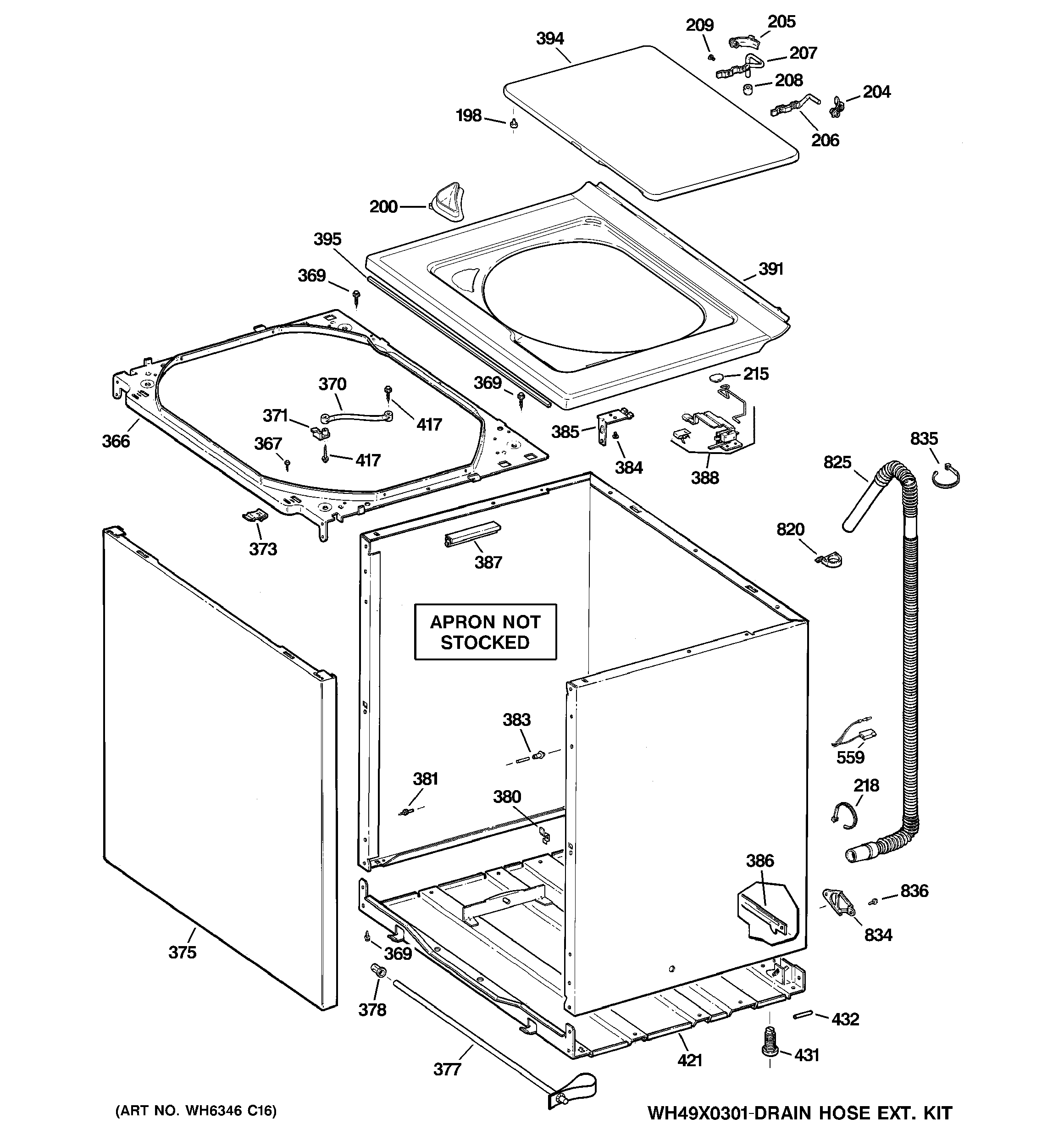

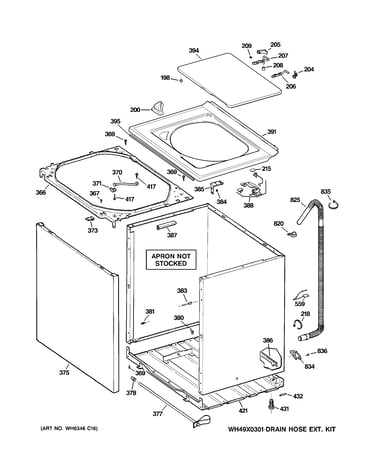

Cabinet, cover & front panel diagram

Washer top

Part #WH44X10027

Replaced by #WH44X21834

?
Manufacturer substitution
This part replaces WH44X10027. Substitute parts can look different from the original.
BEST SELLER
$62.35 |
9% OFF Phone Price : $68.35
In Stock
Washer External Drain Hose (replaces Wh41x367) WH41X10096
#825

Cabinet, cover & front panel diagram

Washer external drain hose (replaces wh41x367)

Part #WH41X10096

BEST SELLER
$22.74 |
21% OFF Phone Price : $28.74
In Stock
