Model # NVL333EB0CC Official Hotpoint electric dryer
Here are the diagrams and repair parts for Official Hotpoint NVL333EB0CC electric dryer, as well as links to manuals and error code tables, if available.
By Schematic
By Part
SELECT DIAGRAM
Browse Parts forNVL333EB0CC Electric Dryer
- #1232

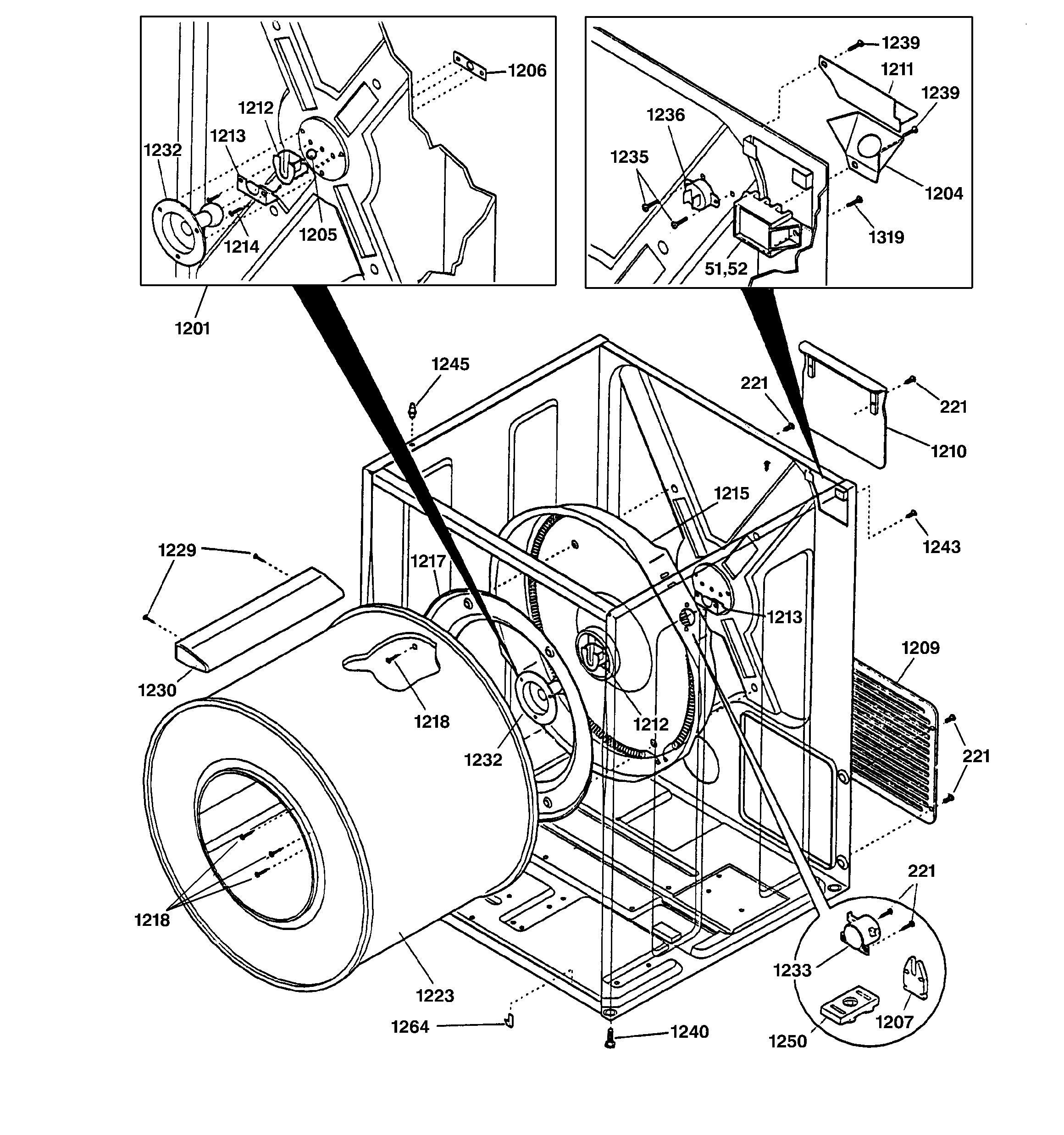

Cabinet & drum diagram
Dryer drum ball hitchPart #WE13X10011
$100.50 |11% OFF Phone Price : $112.50In Stock - #1213

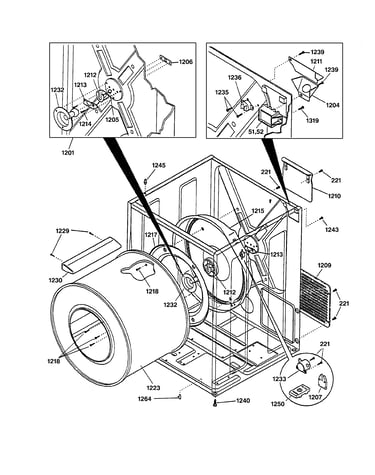

Cabinet & drum diagram
Dryer drum bearing bracketPart #WE13X10009
Replaced by #WE13X28680
?Manufacturer substitutionThis part replaces WE13X10009. Substitute parts can look different from the original.$54.23In Stock - #1328

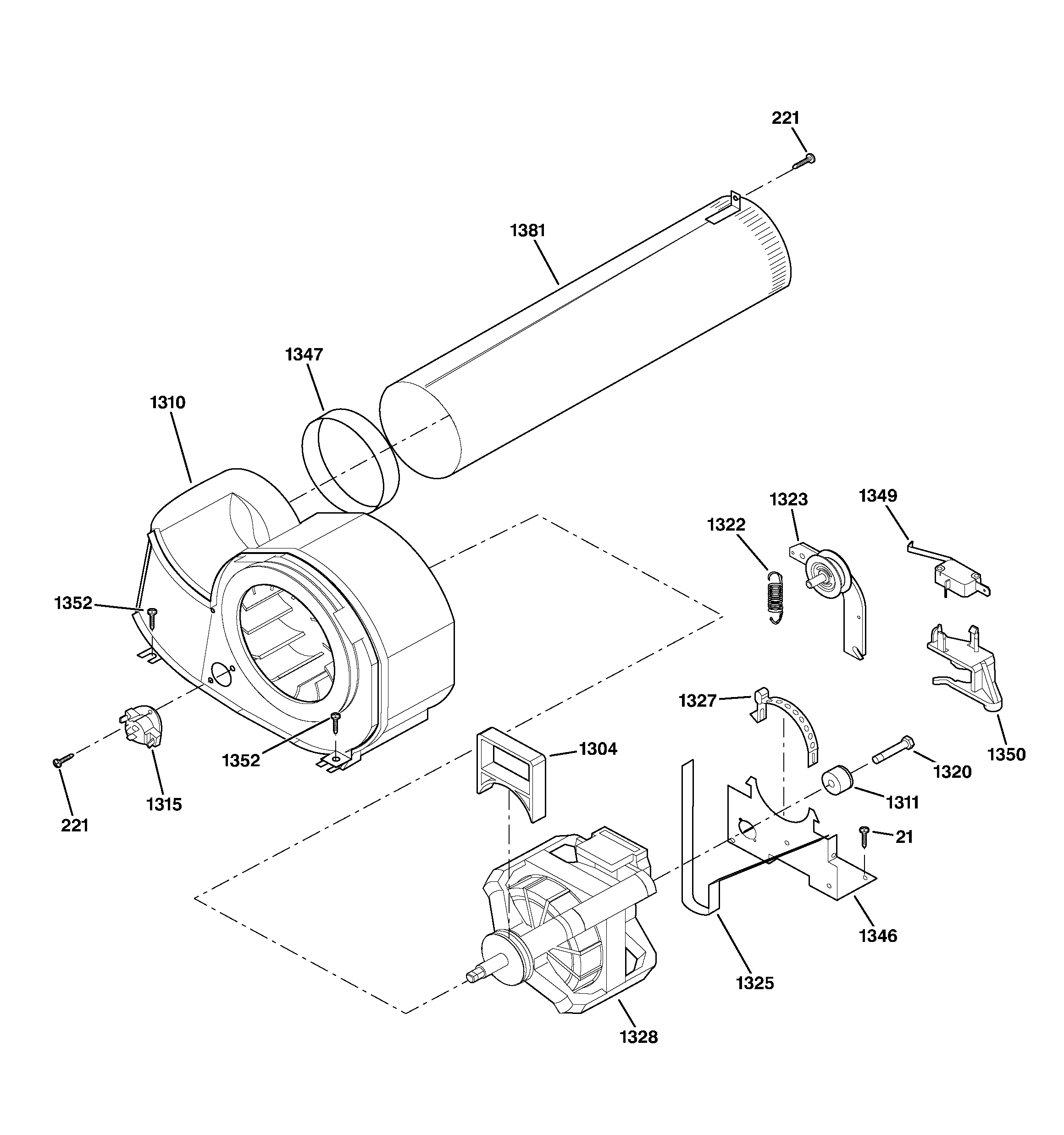

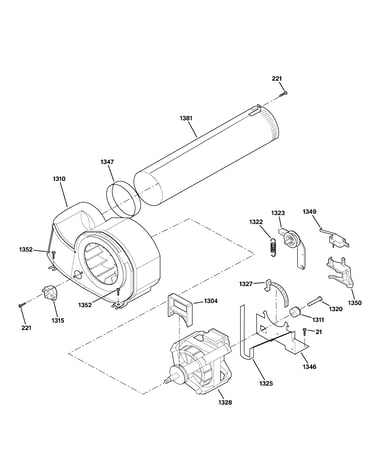

Motor diagram
Dryer drive motorPart #WE17X10002
Replaced by #WE17X23466
?Manufacturer substitutionThis part replaces WE17X10002. Substitute parts can look different from the original.$243.37In Stock - #1239
Cabinet & drum diagram
ScrewPart #WE02X10011
$20.09In Stock - #100

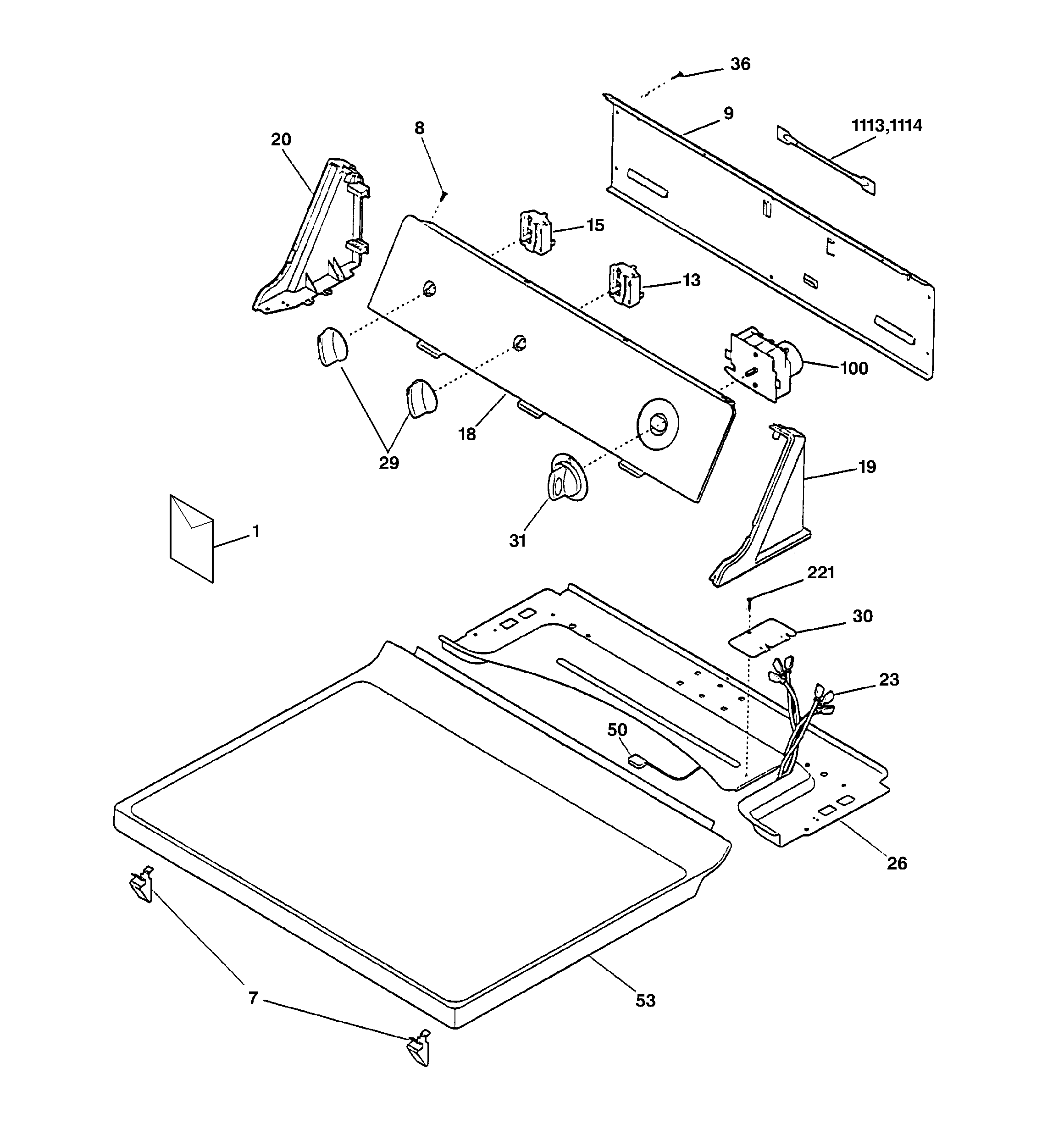

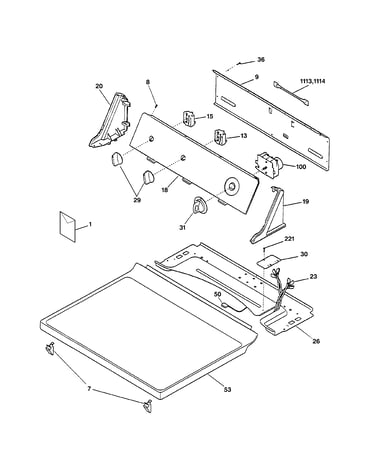

Controls & top panel diagram
Dryer timerPart #WE04X10042
$200.09 |6% OFF Phone Price : $212.09In Stock - #477

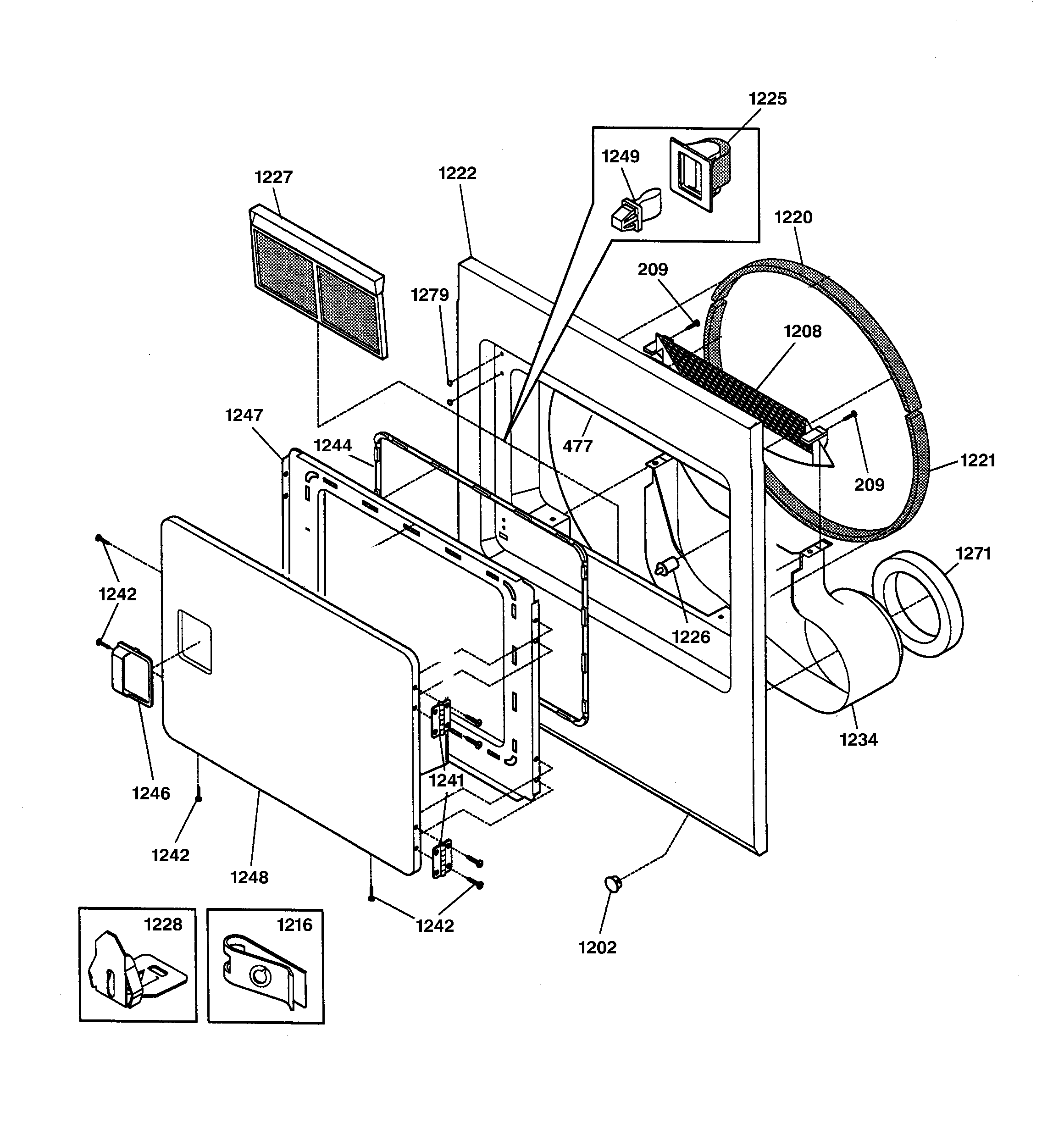

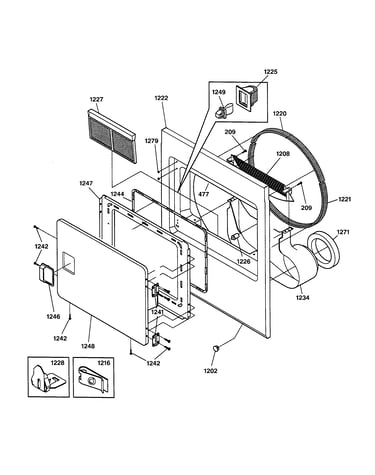

Front panel & lint filter diagram
Dryer cabinet hole plugPart #WE01X10137
$41.90 |13% OFF Phone Price : $47.90In Stock - #1201
Cabinet & drum diagram
Dryer rear bearing kitPart #WE25X10001
$106.09 |10% OFF Phone Price : $118.09In Stock - #1
Controls & top panel diagram
Dvl223 - njlPart #49-9996
$8.16 |11% OFF Phone Price : $9.16In Stock - #1264
Cabinet & drum diagram
Cabinet clipPart #WE02X10013
$25.14In Stock - #1315
Motor diagram
Dryer operating thermostatPart #WE04X10028
$47.40 |11% OFF Phone Price : $53.40In Stock
