Model # FES370VW1 Official Roper electric range

Here are the diagrams and repair parts for Official Roper FES370VW1 electric range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

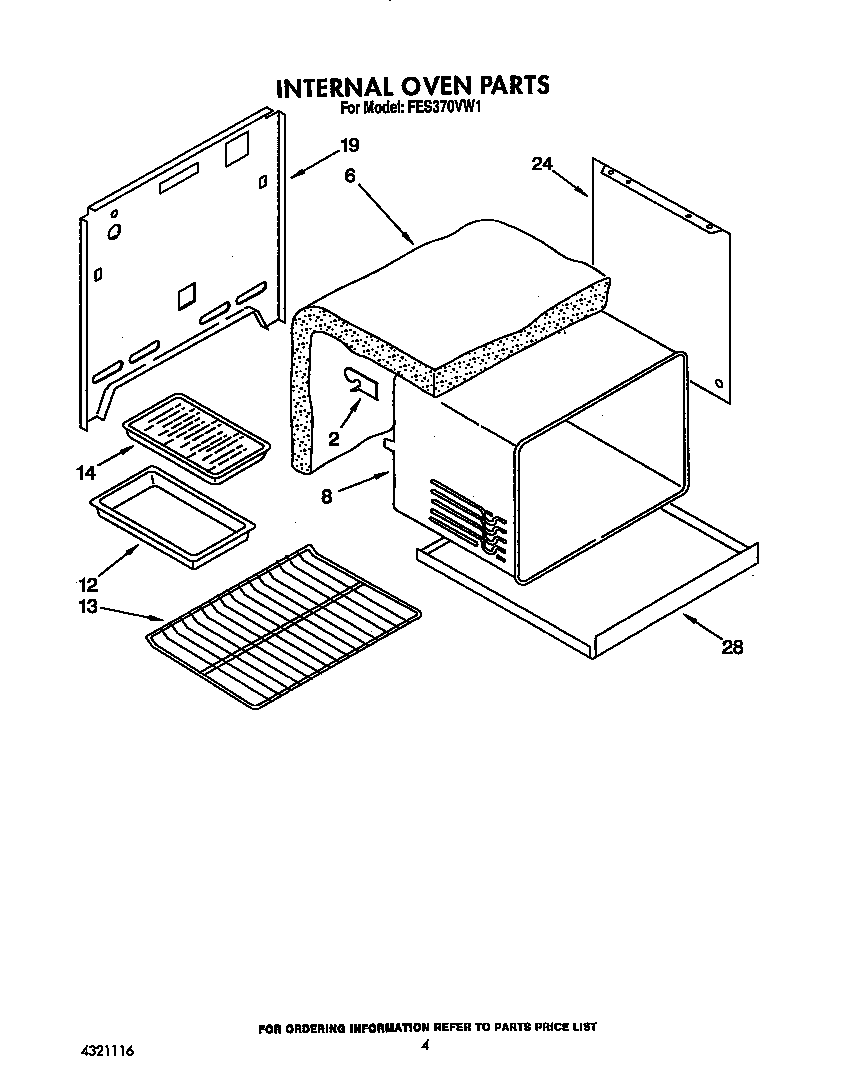

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 93 parts  |
Oven Door Liner 4320300
#2

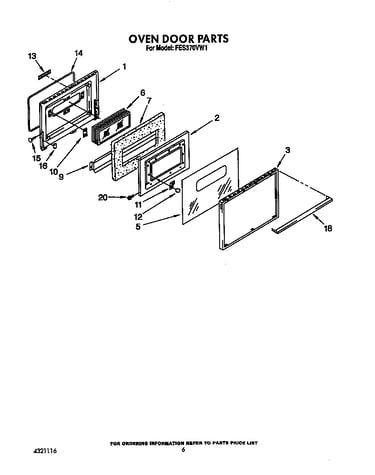

Oven door diagram

Oven door liner

Part #4320300

The manufacturer no longer makes this part, and there's no substitute part

High-limit Switch 4320967
#12

Oven electrical diagram

High-limit switch

Part #4320967

The manufacturer no longer makes this part, and there's no substitute part

Brace, Bottom, R.h. 4315781
#18A

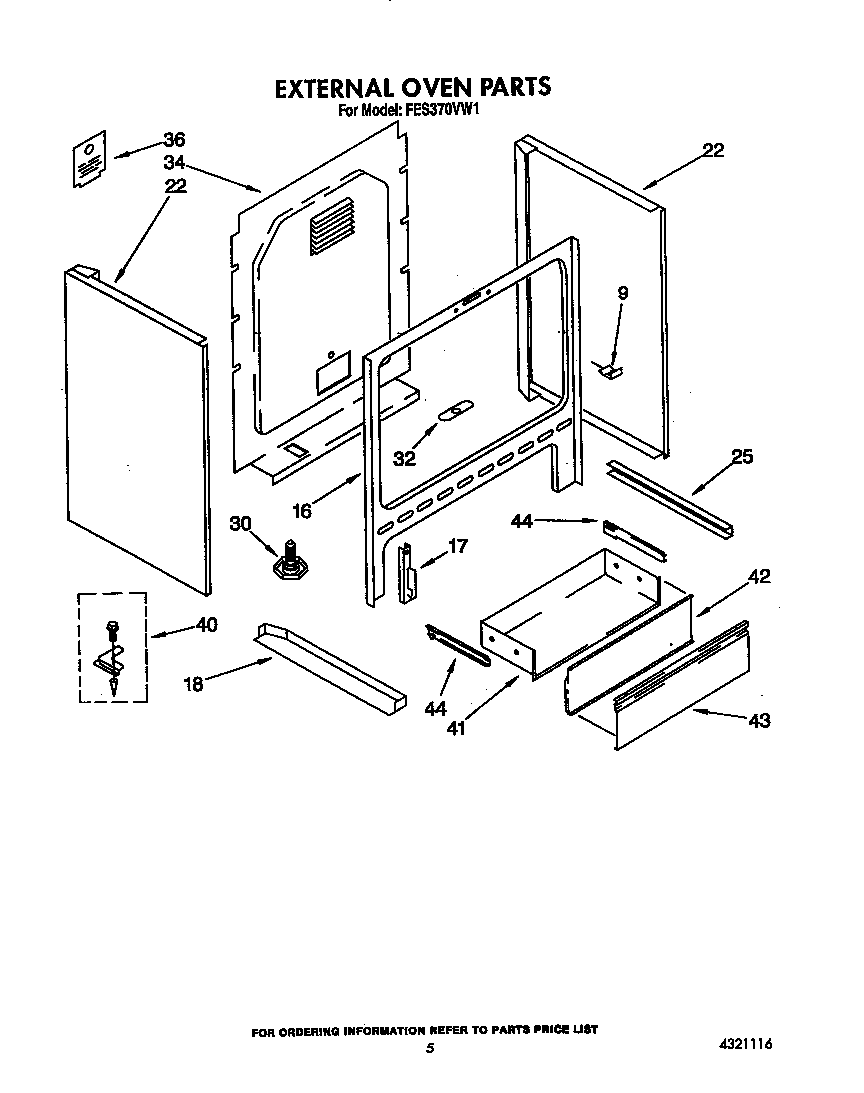

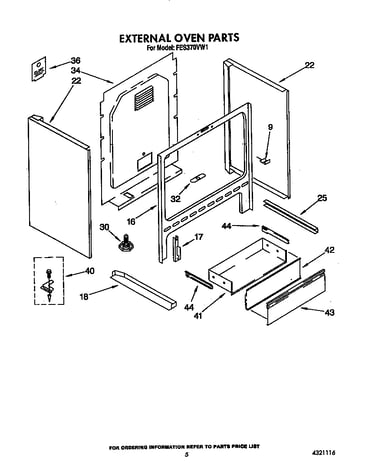

External oven diagram

Brace, bottom, r.h.

Part #4315781

The manufacturer no longer makes this part, and there's no substitute part

Element, 6" Lt Front-rt Rear 4321128
#2

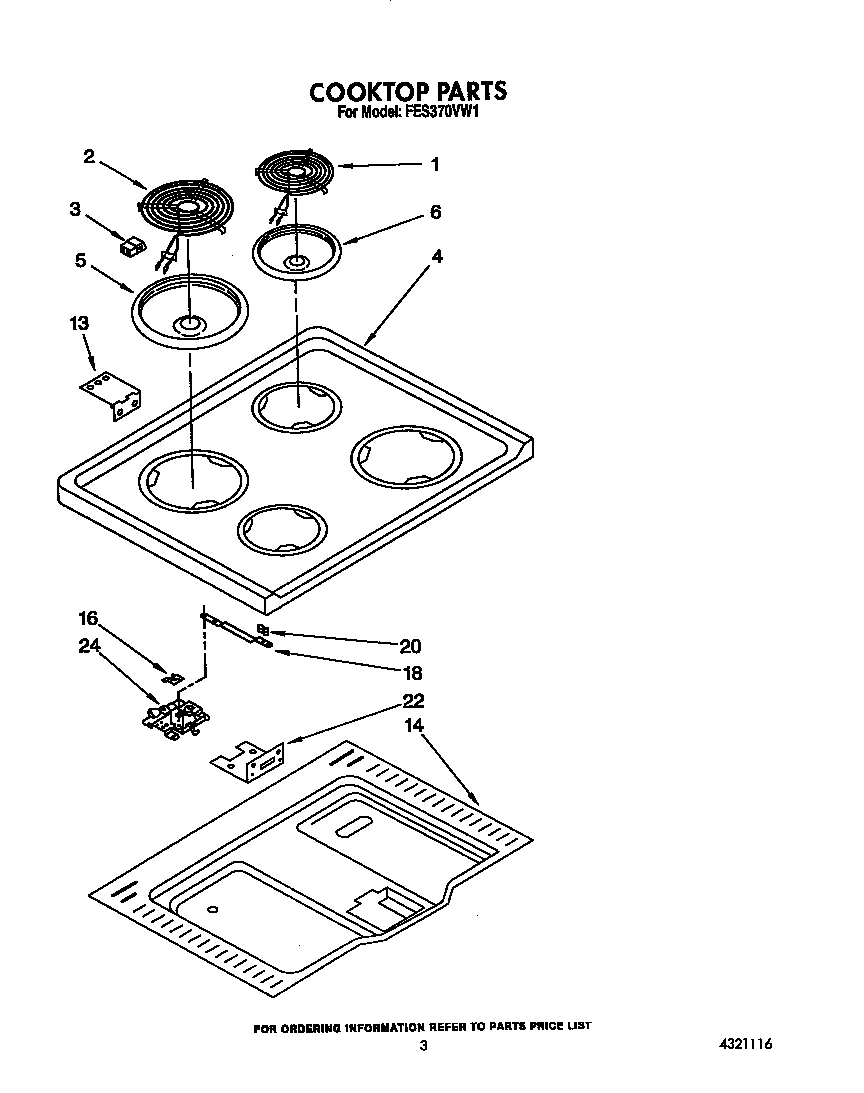

Cooktop diagram

Element, 6" lt front-rt rear

Part #4321128

The manufacturer no longer makes this part, and there's no substitute part

Handle 4320802
#18

Oven door diagram

Handle

Part #4320802

The manufacturer no longer makes this part, and there's no substitute part

Anti-tip Kit 4315756
#40

External oven diagram

Anti-tip kit

Part #4315756

The manufacturer no longer makes this part, and there's no substitute part

Indicator Light 786306
#9

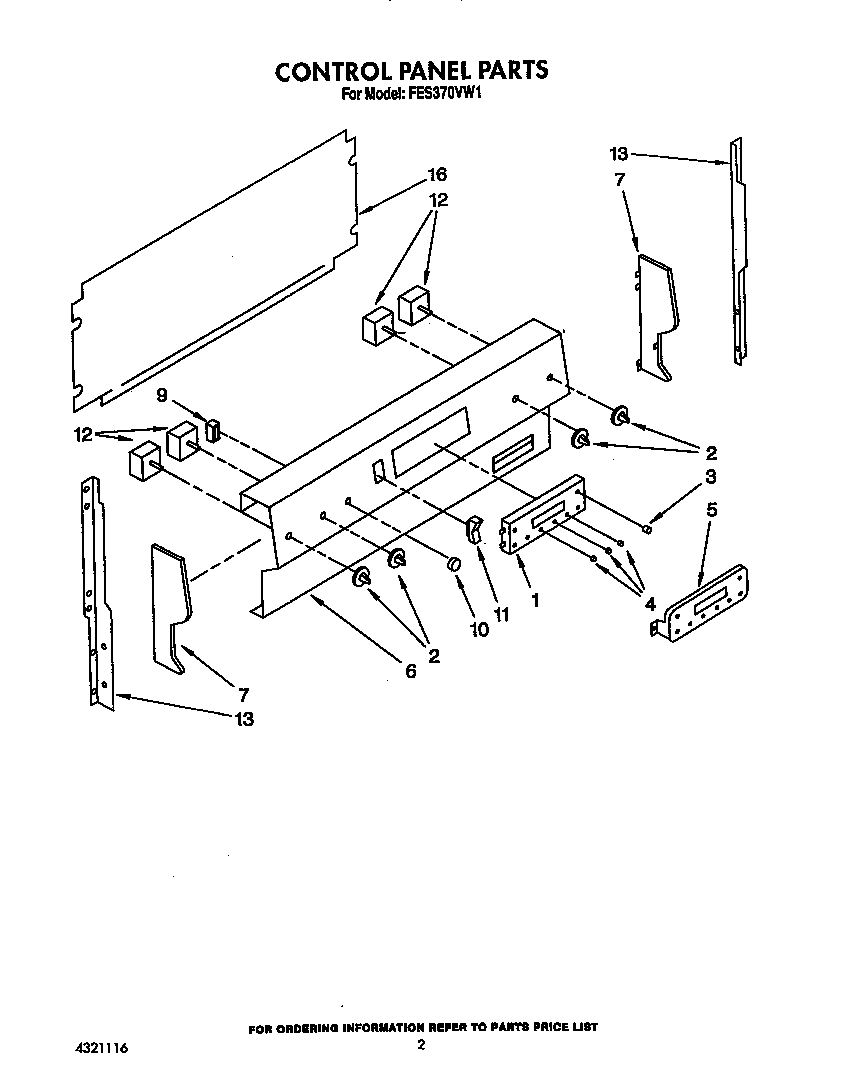

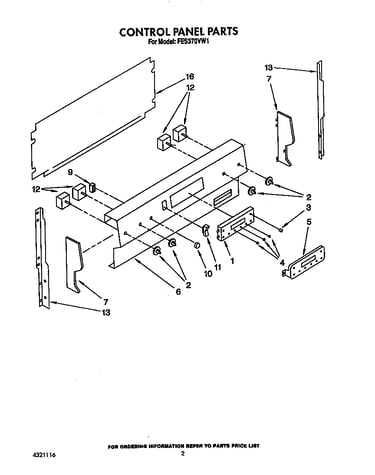

Control panel diagram

Indicator light

Part #786306

The manufacturer no longer makes this part, and there's no substitute part

R.h 4315768
#25A

External oven diagram

R.h

Part #4315768

The manufacturer no longer makes this part, and there's no substitute part

8" (1) 786182
#6

Cooktop diagram

8" (1)

Part #786182

The manufacturer no longer makes this part, and there's no substitute part

Frame 4320818
#3

Oven door diagram

Frame

Part #4320818

The manufacturer no longer makes this part, and there's no substitute part
