Model # 917252620 Official Craftsman custom tractor snow thrower attachment

Here are the diagrams and repair parts for Official Craftsman 917252620 custom tractor snow thrower attachment, as well as links to manuals and error code tables, if available.

By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
917252620 Riding Mowers & Tractors
Hardened Race Thrust Bearing 6266H
#37

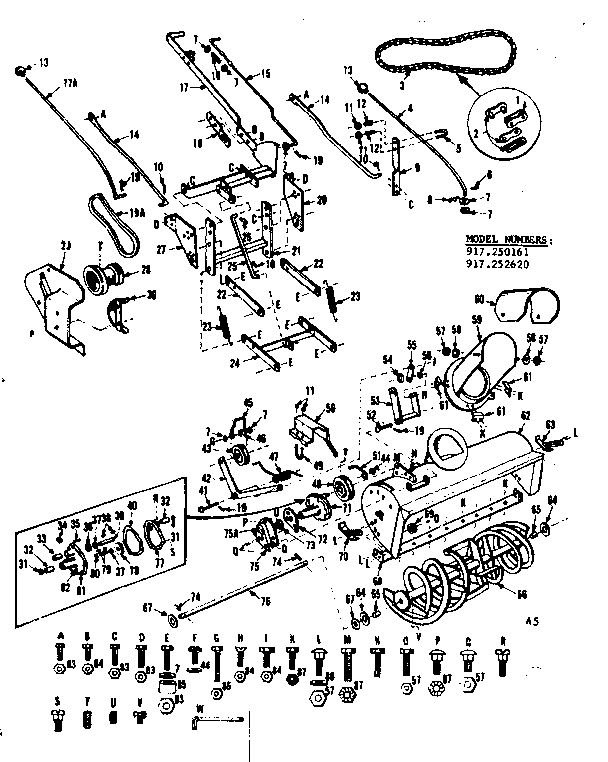

Replacement parts diagram

Hardened race thrust bearing

Part #6266H

Replaced by #532006266

?
Manufacturer substitution
This part replaces 6266H. Substitute parts can look different from the original.
BEST SELLER
$9.43
10% OFF Phone Price : $10.43
In Stock
Washer 17/64 19091216
#56

Replacement parts diagram

Washer 17/64

Part #19091216

Replaced by #596204201

?
Manufacturer substitution
This part replaces 19091216. Substitute parts can look different from the original.
This item is not returnable
In Stock
Spring Retainer 4921H
#8

Replacement parts diagram

Spring retainer

Part #4921H

Replaced by #532004921

?
Manufacturer substitution
This part replaces 4921H. Substitute parts can look different from the original.
In Stock
Bolt 126216
#90L

Replacement parts diagram

Bolt

Part #126216

The manufacturer no longer makes this part, and there's no substitute part

Bolt 9411799
#90Q

Replacement parts diagram

Bolt

Part #9411799

The manufacturer no longer makes this part, and there's no substitute part

Lawn & Garden Equipment Roll Pin 7836M
#74

Replacement parts diagram

Lawn & garden equipment roll pin

Part #7836M

Replaced by #532001572

?
Manufacturer substitution
This part replaces 7836M. Substitute parts can look different from the original.
This item is not returnable
In Stock
Screw 15690405
#90V

Replacement parts diagram

Screw

Part #15690405

The manufacturer no longer makes this part, and there's no substitute part

Machine Screw 14670416
#90S

Replacement parts diagram

Machine screw

Part #14670416

The manufacturer no longer makes this part, and there's no substitute part

Machine Screw 14670412
#90R

Replacement parts diagram

Machine screw

Part #14670412

The manufacturer no longer makes this part, and there's no substitute part

Roll Pin 172H
#6

Replacement parts diagram

Roll pin

Part #172H

The manufacturer no longer makes this part, and there's no substitute part
