Model # WA24P2WVFA Official Gibson top-loading washer - lg31288010

Here are the diagrams and repair parts for Official Gibson WA24P2WVFA top-loading washer - lg31288010, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

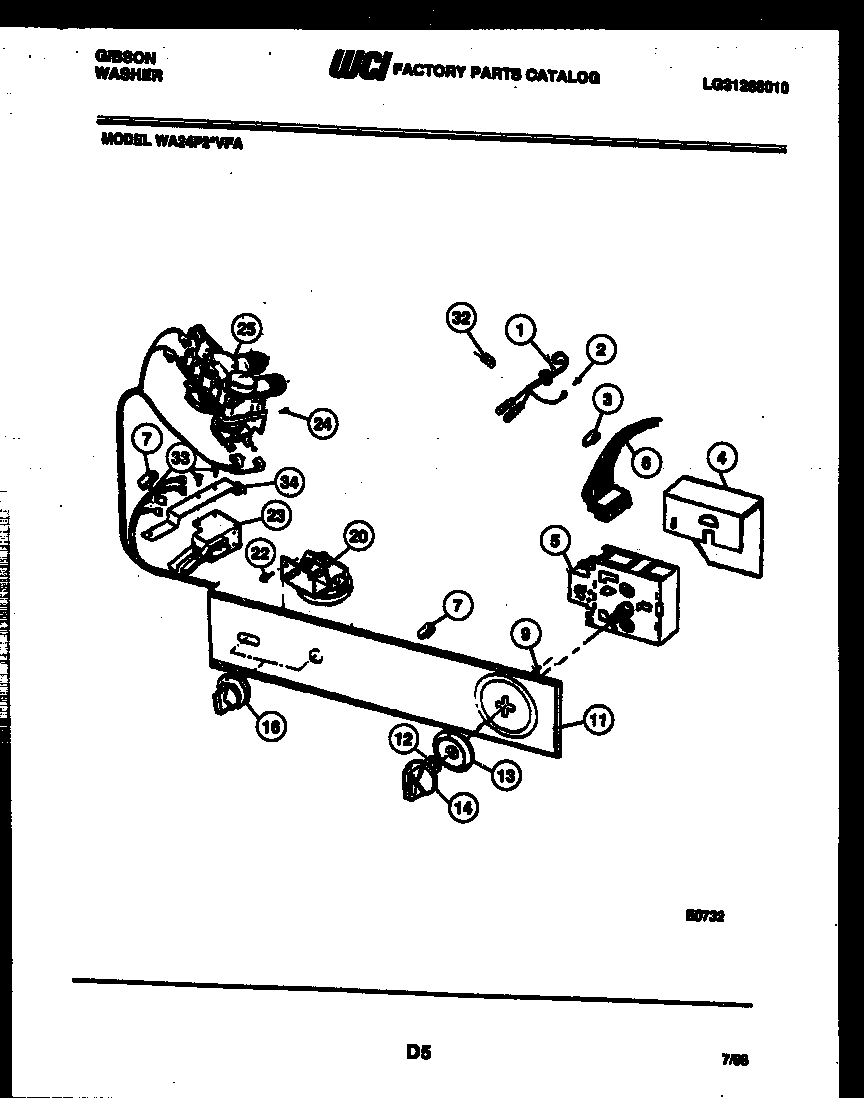

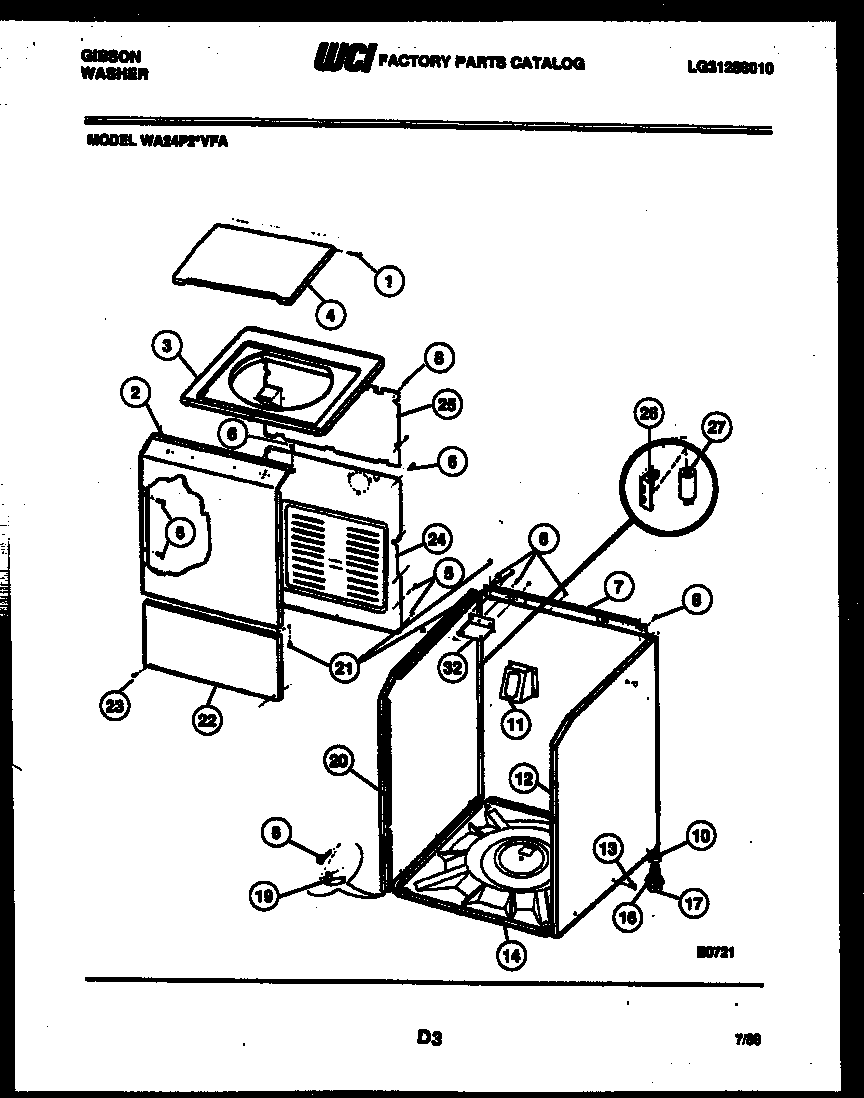

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 176 parts  |
Seal F077062-000
#52

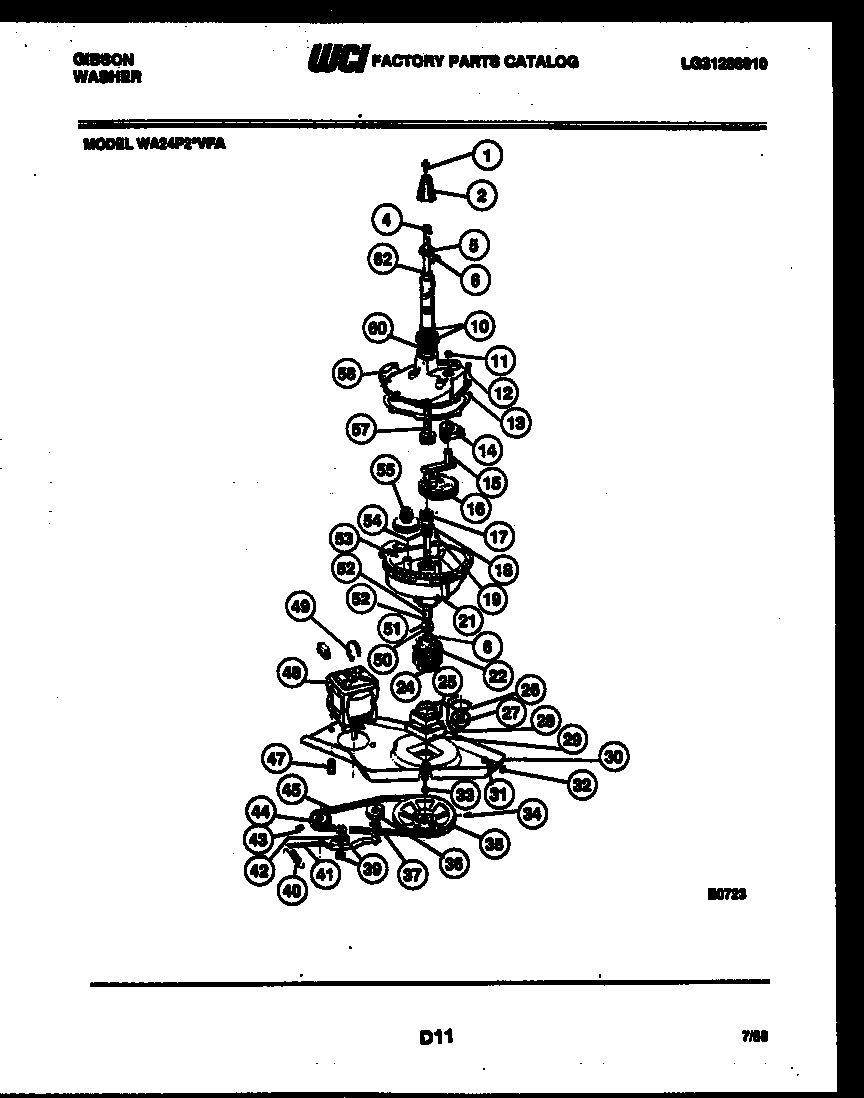

Transmission parts diagram

Seal

Part #F077062-000

Replaced by #5303161173

?
Manufacturer substitution
This part replaces F077062-000. Substitute parts can look different from the original.
$10.80
In Stock
Set Screw F141729-000
#34

Transmission parts diagram

Set screw

Part #F141729-000

Replaced by #5303270023

?
Manufacturer substitution
This part replaces F141729-000. Substitute parts can look different from the original.
$22.84
In Stock
Seal-upper L F130866-000
#5

Transmission parts diagram

Seal-upper l

Part #F130866-000

Replaced by #5303161307

?
Manufacturer substitution
This part replaces F130866-000. Substitute parts can look different from the original.
$19.44 |
9% OFF Phone Price : $21.44
In Stock
Pulley F130879-000
#36

Transmission parts diagram

Pulley

Part #F130879-000

Replaced by #5303912533

?
Manufacturer substitution
This part replaces F130879-000. Substitute parts can look different from the original.
$57.71
In Stock
Pump Gasket F077354-000
#3

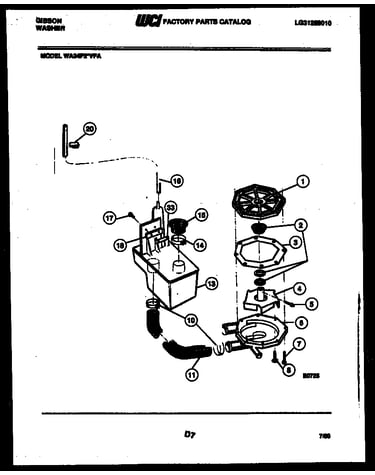

Drain, recirculate parts diagram

Pump gasket

Part #F077354-000

Replaced by #5304401792

?
Manufacturer substitution
This part replaces F077354-000. Substitute parts can look different from the original.
$20.83
In Stock
Washer F132835-000
#37

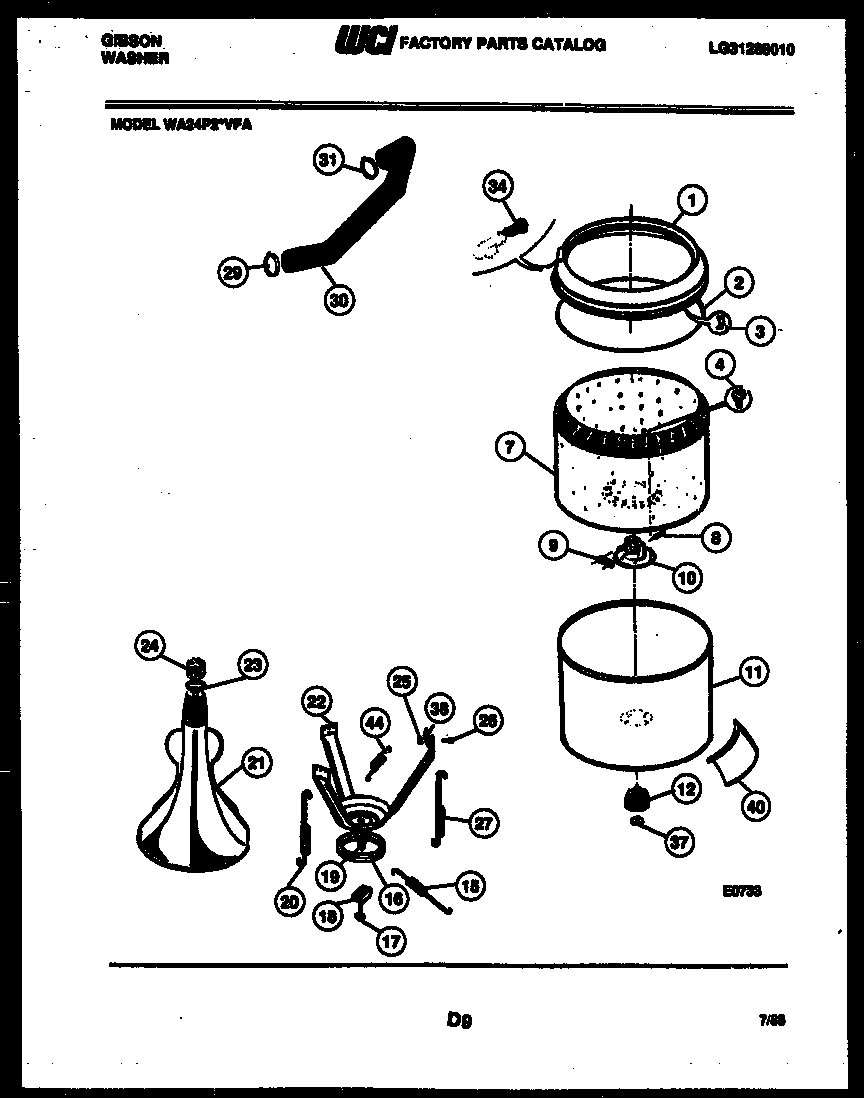

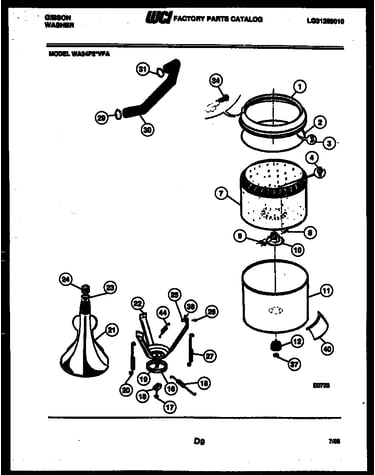

Tub and water inlet diagram

Washer

Part #F132835-000

Replaced by #5308002401

?
Manufacturer substitution
This part replaces F132835-000. Substitute parts can look different from the original.
$20.89 |
22% OFF Phone Price : $26.89
In Stock
Screw 3015671
Screw

Part #3015671

Replaced by #5303015671

?
Manufacturer substitution
This part replaces 3015671. Substitute parts can look different from the original.
This item is not returnable
$3.20
In Stock
Strap F130495-100
#49

Transmission parts diagram

Strap

Part #F130495-100

Replaced by #5303161300

?
Manufacturer substitution
This part replaces F130495-100. Substitute parts can look different from the original.
This item is not returnable
$3.49
In Stock
Catch F141071-000
#5

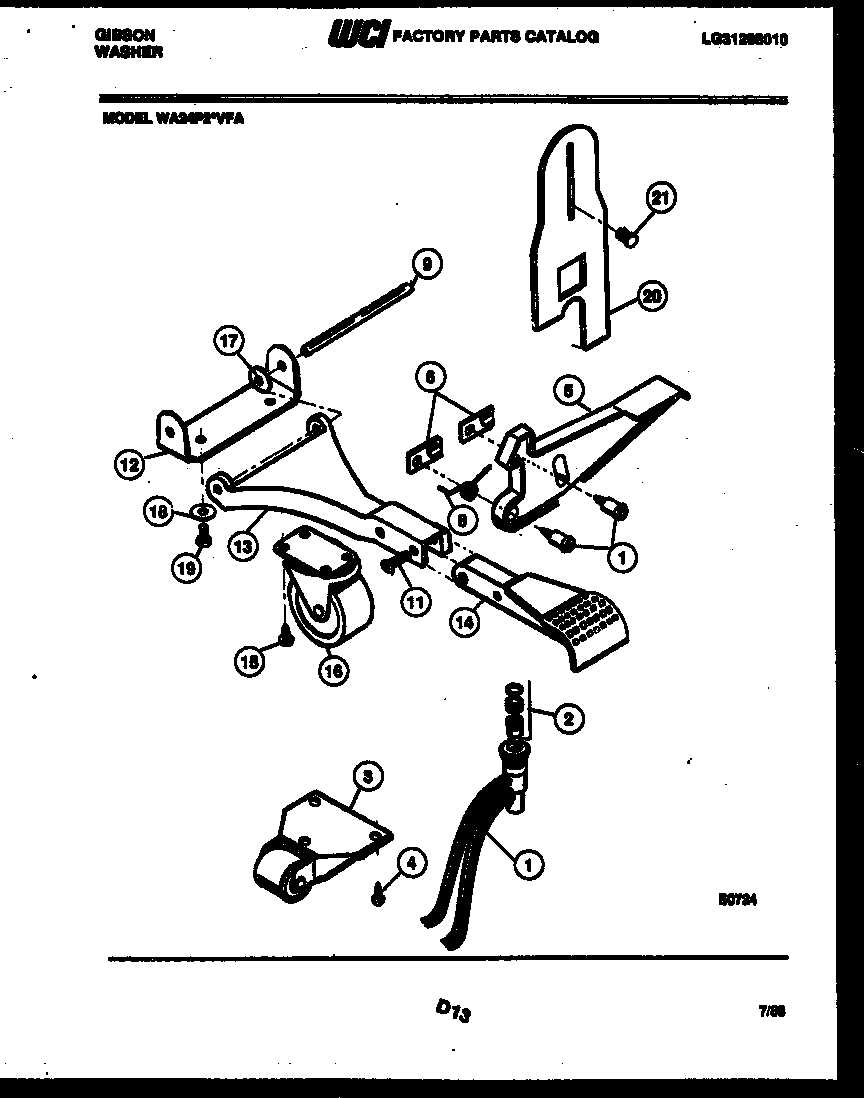

Portable washer components diagram

Catch

Part #F141071-000

Replaced by #08027587

?
Manufacturer substitution
This part replaces F141071-000. Substitute parts can look different from the original.
$12.99
In Stock
Screw F130439-000
Screw

Part #F130439-000

Replaced by #08004660

?
Manufacturer substitution
This part replaces F130439-000. Substitute parts can look different from the original.
This item is not returnable
$2.16
In Stock
