Model # 917974152 Official Craftsman 22" power-propelled lawn mower with rear bagger
Here are the diagrams and repair parts for Official Craftsman 917974152 22" power-propelled lawn mower with rear bagger, as well as links to manuals and error code tables, if available.
By Schematic
By Part
SELECT DIAGRAM
Browse Parts for
917974152 Walk-Behind Mowers
Selector knob
Part #77865
Replaced by #532701037
?
Manufacturer substitution
This part replaces 77865. Substitute parts can look different from the original.
This item is not returnable
$6.64 |
13% OFF Phone Price : $7.64
In Stock
#38

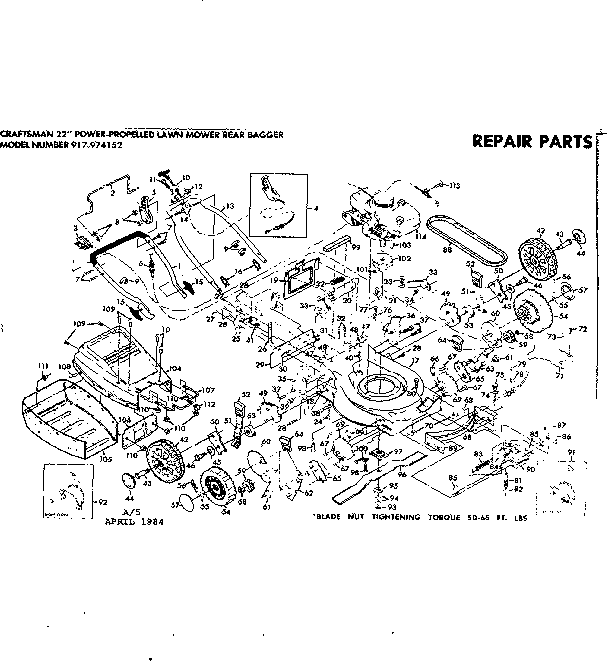

Replacement parts diagram
Carriage bolt, 5/16-18 x 3/4-in
Part #STD533107
The manufacturer no longer makes this part, and there's no substitute part
#51
Replacement parts diagram
Selctr sprng
Part #84888
Replaced by #532401621
?
Manufacturer substitution
This part replaces 84888. Substitute parts can look different from the original.
$9.26
In Stock
#1
Gear case assembly diagram
Shifter assembly
Part #83488
Replaced by #582944501
?
Manufacturer substitution
This part replaces 83488. Substitute parts can look different from the original.
This item is not returnable
$6.83
In Stock
#55
Replacement parts diagram
Washer
Part #52160
Replaced by #596040101
?
Manufacturer substitution
This part replaces 52160. Substitute parts can look different from the original.
This item is not returnable
$5.54
In Stock
#81
Replacement parts diagram
Spring
Part #83632
Replaced by #532137090
?
Manufacturer substitution
This part replaces 83632. Substitute parts can look different from the original.
$9.26
In Stock
#102
Replacement parts diagram
Engine pulley
Part #83121
Replaced by #532084596
?
Manufacturer substitution
This part replaces 83121. Substitute parts can look different from the original.
$30.32 |
17% OFF Phone Price : $36.32
In Stock
#112
Replacement parts diagram
Clamp
Part #83553
Replaced by #582027401
?
Manufacturer substitution
This part replaces 83553. Substitute parts can look different from the original.
This item is not returnable
$5.11
In Stock
#6
Gear case assembly diagram
Lawn tractor transaxle wheel axle oil seal
Part #57072
Replaced by #532057072
?
Manufacturer substitution
This part replaces 57072. Substitute parts can look different from the original.
$9.26
In Stock
#16
Replacement parts diagram
Hairpin
Part #51793
Replaced by #532051793
?
Manufacturer substitution
This part replaces 51793. Substitute parts can look different from the original.
This item is not returnable
$8.64 |
10% OFF Phone Price : $9.64
In Stock
Symptoms for gas walk-behind mowers
Choose a symptom to see related walk-behind mower repairs.
Main causes: drive control cable failure, worn or broken drive belt, bad transmission, broken drive wheel…
Main causes: engine needs tune up, dirty or clogged carburetor, damaged flywheel key…
Main causes: dirty carburetor, bad spark plug, clogged air filter, engine choke problems, clogged gas cap vent…
Main causes: damaged cutting blade, loose cutting blade, damaged flywheel key, engine needs tune up…
Main causes: stale gas, engine needs tune up, bad spark plug, dead battery, bad recoil starter, faulty safety switch, ba…
Main causes: uneven wheel height settings, damaged wheel, dull or damaged cutting blade…
