Kenmore
Gas Range

Model # 1037146314 Official Kenmore gas range

Here are the diagrams and repair parts for Official Kenmore 1037146314 gas range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

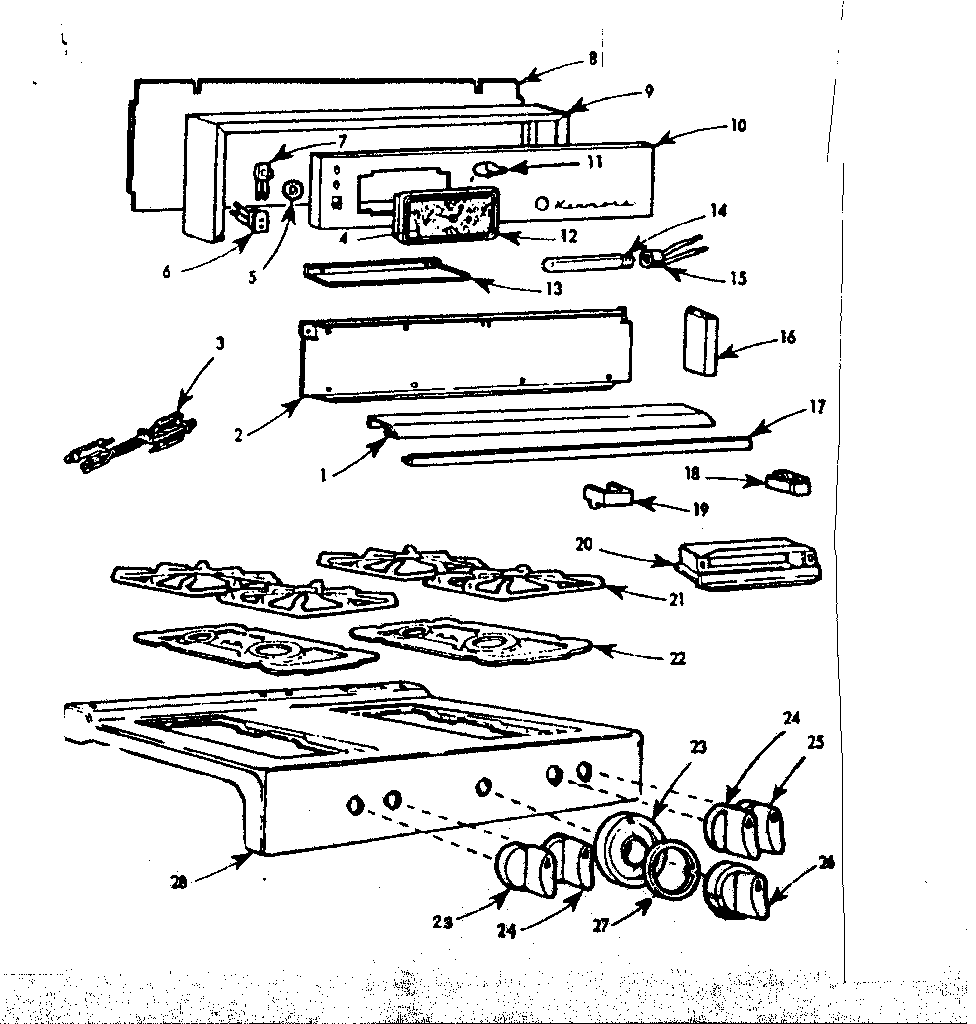

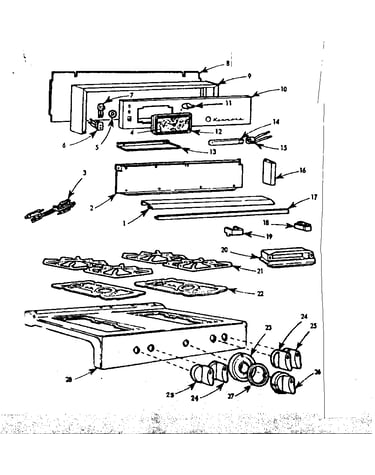

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 144 parts  |
Lamp Bulb 65973
#123A

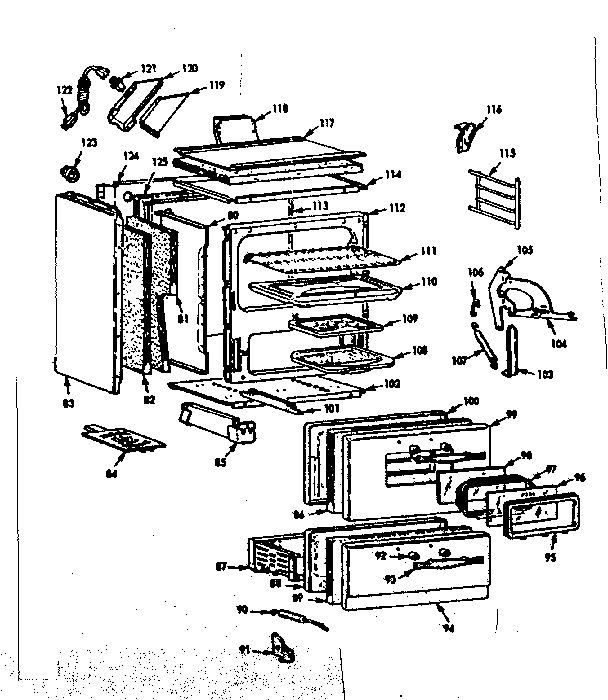

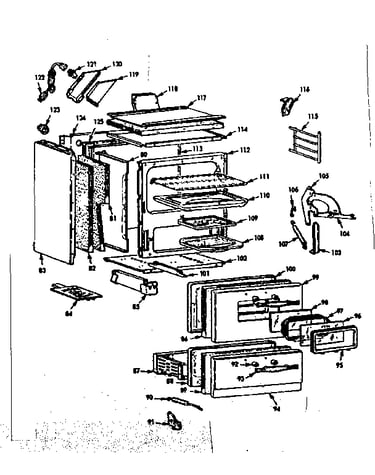

Body section diagram

Lamp bulb

Part #65973

Replaced by #40A15

?
Manufacturer substitution
This part replaces 65973. Substitute parts can look different from the original.
BEST SELLER
$14.40 |
12% OFF Phone Price : $16.40
In Stock
Drawer Guide 97820
#101A

Body section diagram

Drawer guide

Part #97820

This item is not returnable
$3.99
In Stock
Door Arm 97758
#104

Body section diagram

Door arm

Part #97758

Replaced by #230872

?
Manufacturer substitution
This part replaces 97758. Substitute parts can look different from the original.
This item is not returnable
$6.99
In Stock
Retainer 98117
#116A

Body section diagram

Retainer

Part #98117

The manufacturer no longer makes this part, and there's no substitute part

Box Cover 96212
#120

Body section diagram

Box cover

Part #96212

The manufacturer no longer makes this part, and there's no substitute part

Door Lining 100734
#88

Body section diagram

Door lining

Part #100734

The manufacturer no longer makes this part, and there's no substitute part

Burner Body 104086
#35

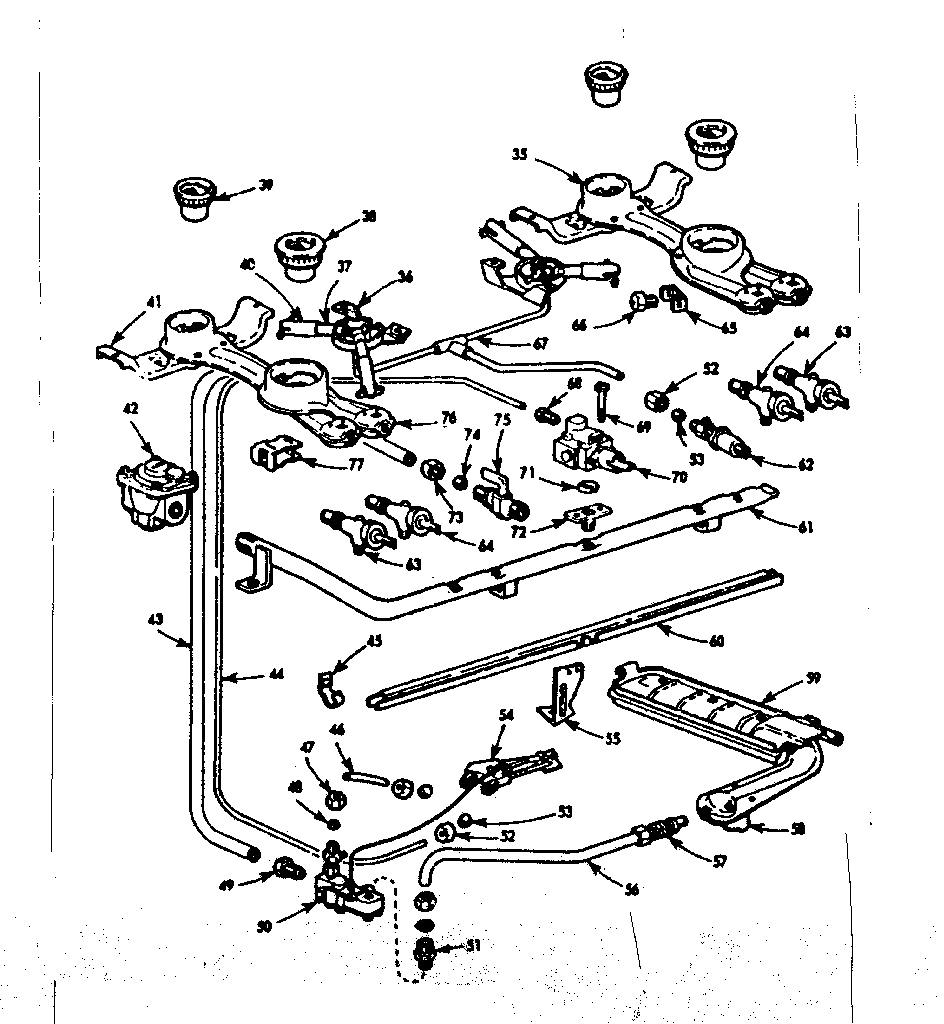

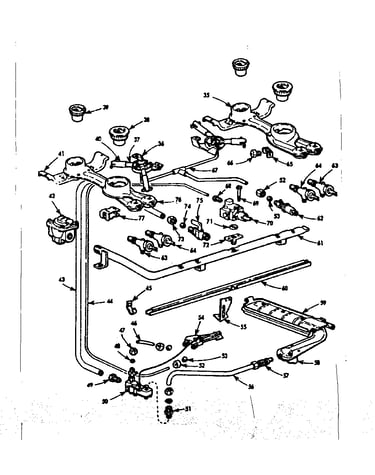

Burner section diagram

Burner body

Part #104086

The manufacturer no longer makes this part, and there's no substitute part

Gas Valve 101220
#64A

Burner section diagram

Gas valve

Part #101220

The manufacturer no longer makes this part, and there's no substitute part

Gas Valve 101219
#63A

Burner section diagram

Gas valve

Part #101219

The manufacturer no longer makes this part, and there's no substitute part

Motor Box 100523
#141

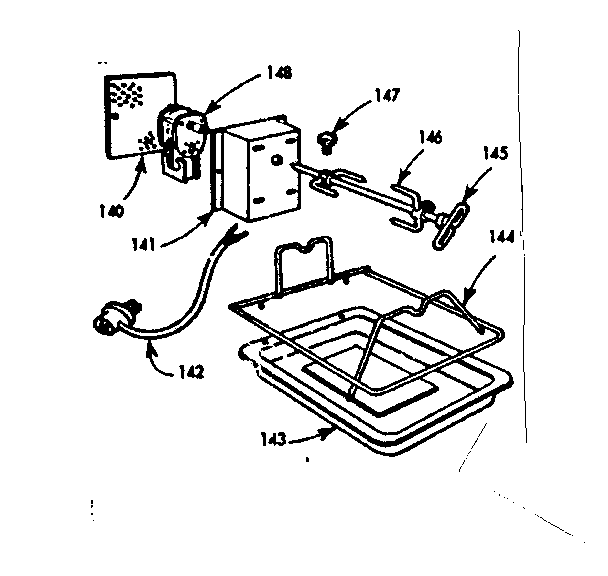

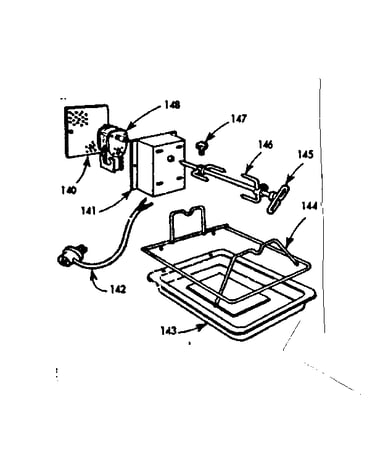

Optional equipment diagram

Motor box

Part #100523

The manufacturer no longer makes this part, and there's no substitute part
