Craftsman
Router

Model # 315275051 Official Craftsman router

Here are the diagrams and repair parts for Official Craftsman 315275051 router, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 108 parts  |
Adapter 972160-001
#71

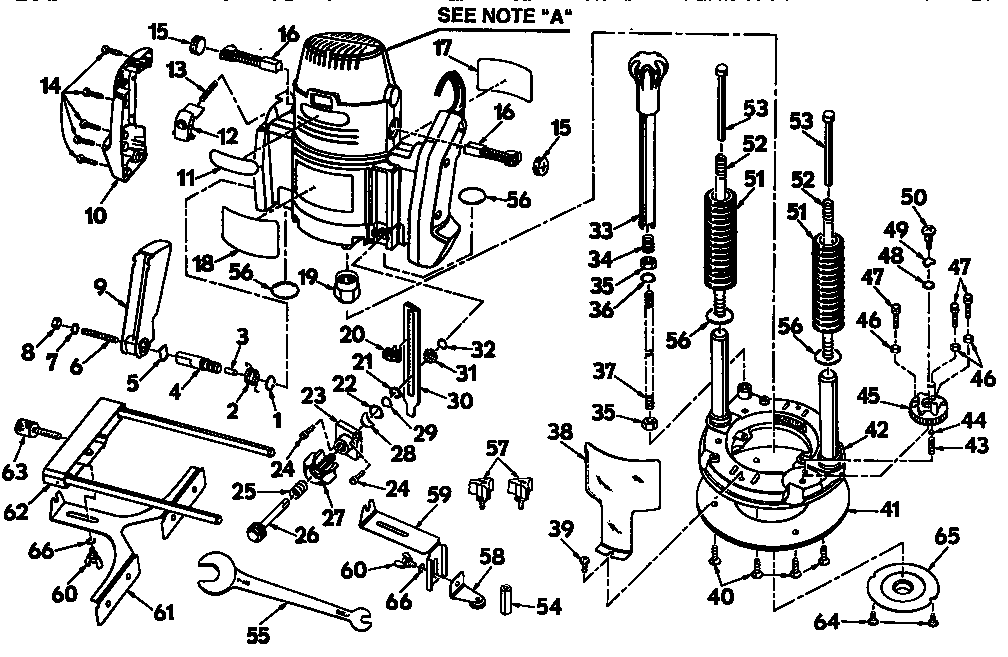

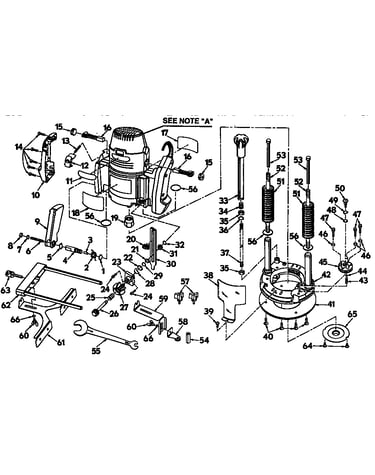

Base assembly diagram

Adapter

Part #972160-001

The manufacturer no longer makes this part, and there's no substitute part

Guide Pin 970723-001
#53

Base assembly diagram

Guide pin

Part #970723-001

The manufacturer no longer makes this part, and there's no substitute part

Screw 967439-002
#32

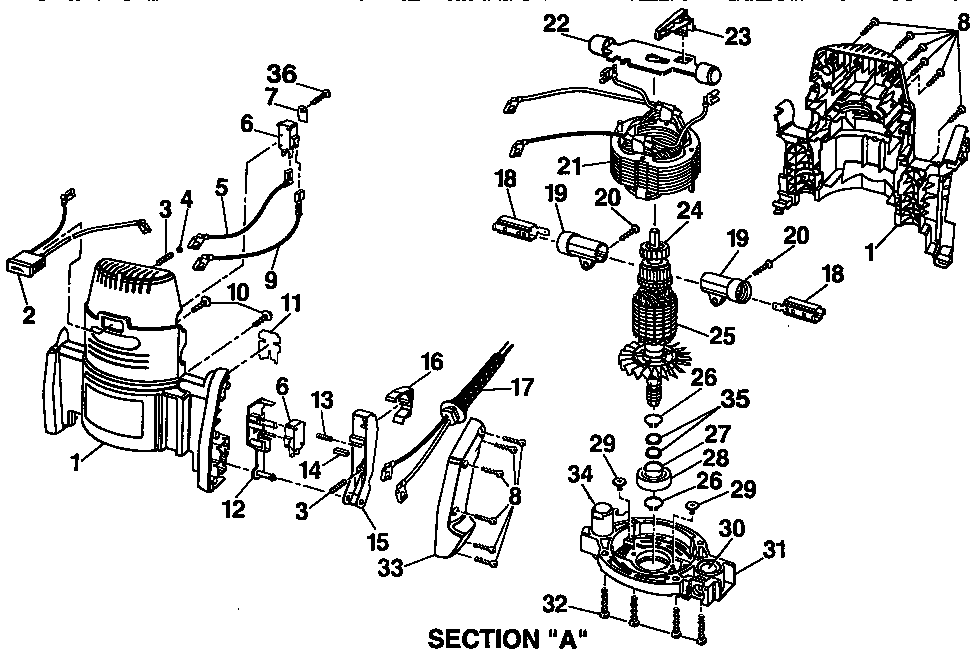

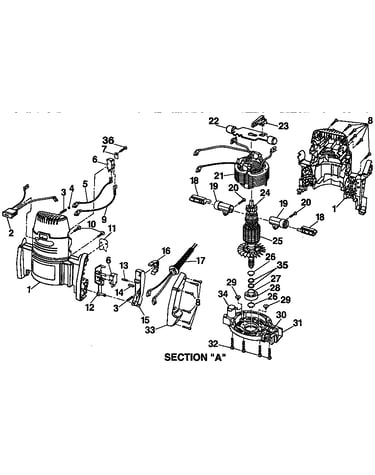

Armature and housing assembly diagram

Screw

Part #967439-002

The manufacturer no longer makes this part, and there's no substitute part

Hdle. Cover 970757-001
#33

Armature and housing assembly diagram

Hdle. cover

Part #970757-001

The manufacturer no longer makes this part, and there's no substitute part

Screw 616968-003
#36

Armature and housing assembly diagram

Screw

Part #616968-003

The manufacturer no longer makes this part, and there's no substitute part

Wrench 971121-001
#55

Base assembly diagram

Wrench

Part #971121-001

The manufacturer no longer makes this part, and there's no substitute part

Retaining Ring 622167-028
#1

Base assembly diagram

Retaining ring

Part #622167-028

The manufacturer no longer makes this part, and there's no substitute part

Ht Sink W/b 970721-003
#24

Armature and housing assembly diagram

Ht sink w/b

Part #970721-003

The manufacturer no longer makes this part, and there's no substitute part

Comp. Spring 971137-001
#34

Base assembly diagram

Comp. spring

Part #971137-001

The manufacturer no longer makes this part, and there's no substitute part

Actuator 970762-001
#12

Base assembly diagram

Actuator

Part #970762-001

The manufacturer no longer makes this part, and there's no substitute part
