Kenmore
Range Hood

Model # 1559320 Official Kenmore ductless range hood

Here are the diagrams and repair parts for Official Kenmore 1559320 ductless range hood, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 50 parts  |
Grille 3385-K11699
#21

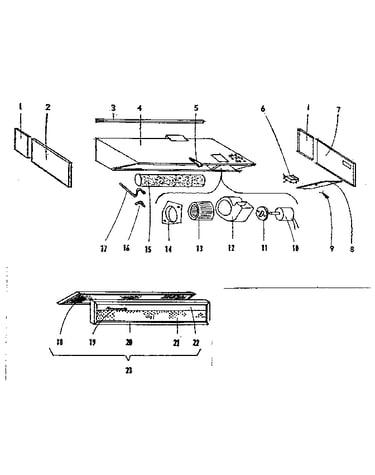

Range hood assembly diagram

Grille

Part #3385-K11699

The manufacturer no longer makes this part, and there's no substitute part

Emblem 3278-K11041
#19

Range hood assembly diagram

Emblem

Part #3278-K11041

The manufacturer no longer makes this part, and there's no substitute part

Pilot Light 3438-511812
#9

Range hood assembly diagram

Pilot light

Part #3438-511812

The manufacturer no longer makes this part, and there's no substitute part

Gasket 3400-K10421
#11

Range hood assembly diagram

Gasket

Part #3400-K10421

The manufacturer no longer makes this part, and there's no substitute part

Side Left 3429-Y9589-4
#2D

Range hood assembly diagram

Side left

Part #3429-Y9589-4

The manufacturer no longer makes this part, and there's no substitute part

Owner's Manual 3451-F1737

#NI

All parts diagram

Owner's manual

Part #3451-F1737

The manufacturer no longer makes this part, and there's no substitute part

Switch 3433-K11810
#6

Range hood assembly diagram

Switch

Part #3433-K11810

The manufacturer no longer makes this part, and there's no substitute part

Side Panel Extension 3424-T13164-2
#1B

Range hood assembly diagram

Side panel extension

Part #3424-T13164-2

The manufacturer no longer makes this part, and there's no substitute part

Body 3431-Y10138
#4A

Range hood assembly diagram

Body

Part #3431-Y10138

The manufacturer no longer makes this part, and there's no substitute part

Filter 3289-K11342
#18B

Range hood assembly diagram

Filter

Part #3289-K11342

The manufacturer no longer makes this part, and there's no substitute part
