Model # H4H348GHE100 Official ICP split-system air conditioner

Here are the diagrams and repair parts for Official ICP H4H348GHE100 split-system air conditioner, as well as links to manuals and error code tables, if available.

By Schematic
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts forH4H348GHE100 Split-System Air Conditioner

  • Central Air Conditioner Heat Pump Defrost Control 1173637
    #22

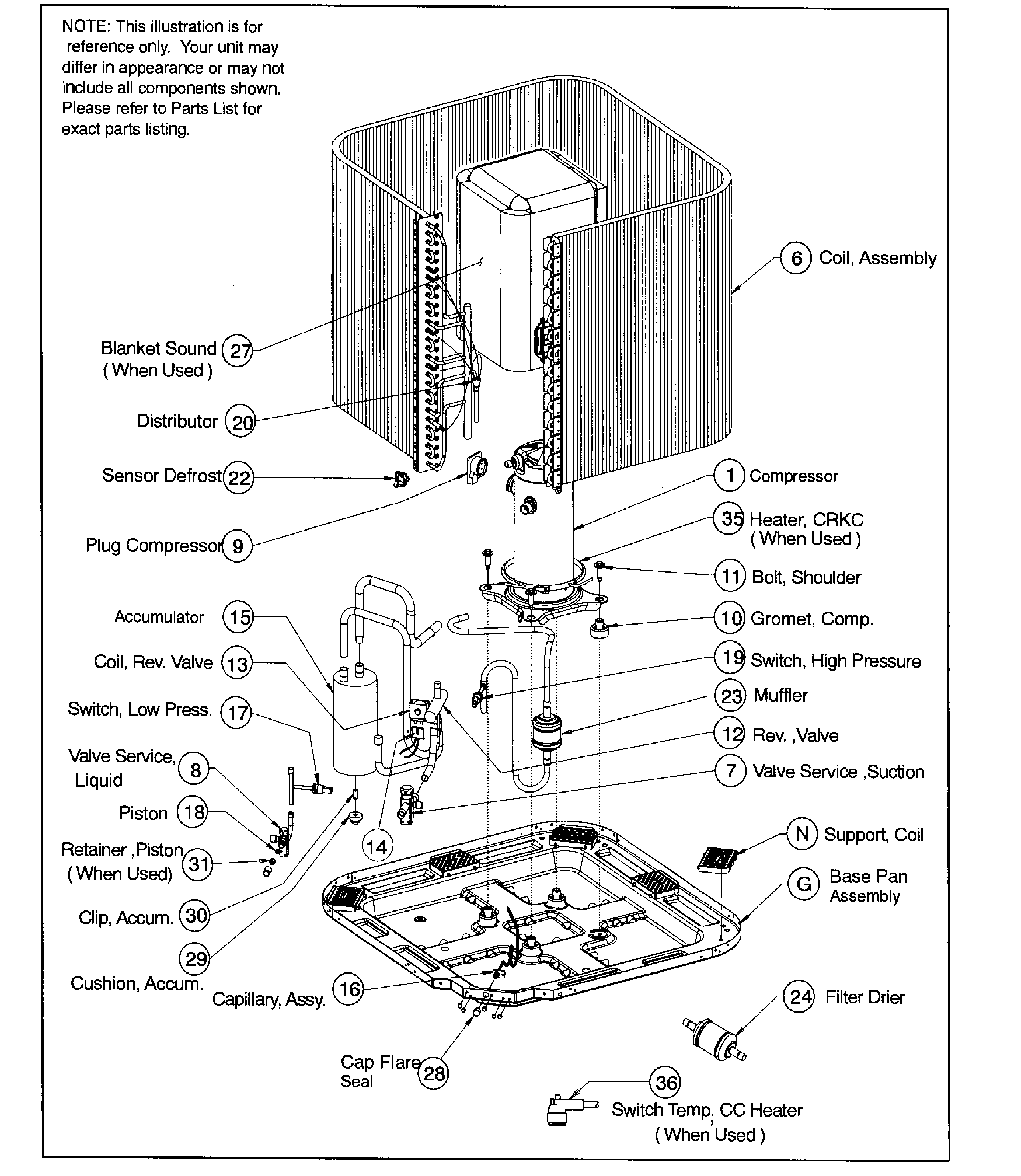

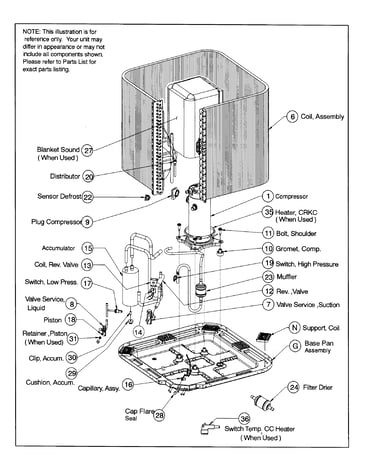

    Inner asy diagram

    Central air conditioner heat pump defrost control

    Part #1173637

    $1133.91
    In Stock
  • Raceway 1175919
    #32

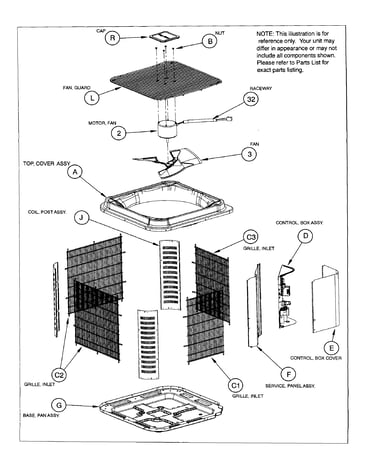

    Outer asy diagram

    Raceway

    Part #1175919

    $52.67
    In Stock
  • Carrier Switch 1173669
    #36

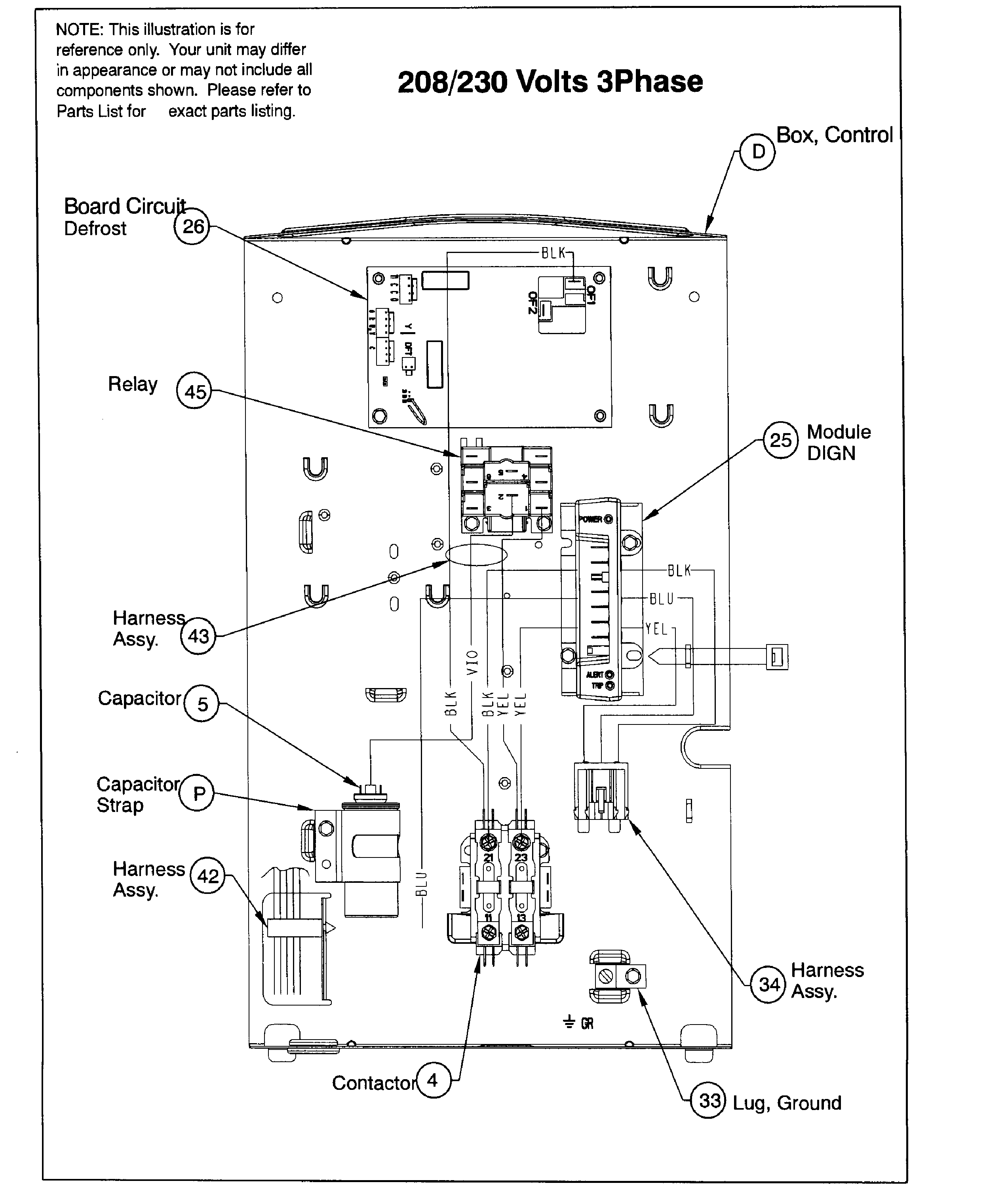

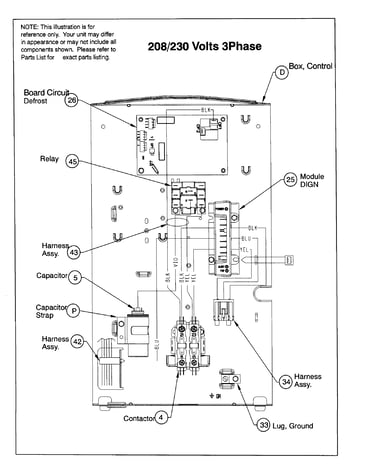

    Control panel diagram

    Carrier switch

    Part #1173669

    $24.29
    In Stock
  • Central Air Conditioner Filter Dryer 1172311
    #NI

    Outer asy diagram

    Central air conditioner filter dryer

    Part #1172311

    $110.91
    In Stock
  • Carrier Grommet 1171270
    #10

    Inner asy diagram

    Carrier grommet

    Part #1171270

    This item is not returnable
    $4.31
    In Stock
  • Plug Compr 1174687
    #9

    Inner asy diagram

    Plug compr

    Part #1174687

    $46.27
    In Stock
  • Capillary 1174096
    #16

    Inner asy diagram

    Capillary

    Part #1174096

    $146.78
    In Stock
  • Corn Post 1178313
    #J

    Outer asy diagram

    Corn post

    Part #1178313

    $50.16
    In Stock
  • Grommet 1172806
    #29

    Inner asy diagram

    Grommet

    Part #1172806

    This item is not returnable
    $2.17
    In Stock
  • Support 1174068
    #N

    Inner asy diagram

    Support

    Part #1174068

    $23.14
    In Stock
