Hotpoint
Washer

Model # HTWP1000M1WW Official Hotpoint washer

Here are the diagrams and repair parts for Official Hotpoint HTWP1000M1WW washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 110 parts  |
Hub Nut WH02X1193
#325

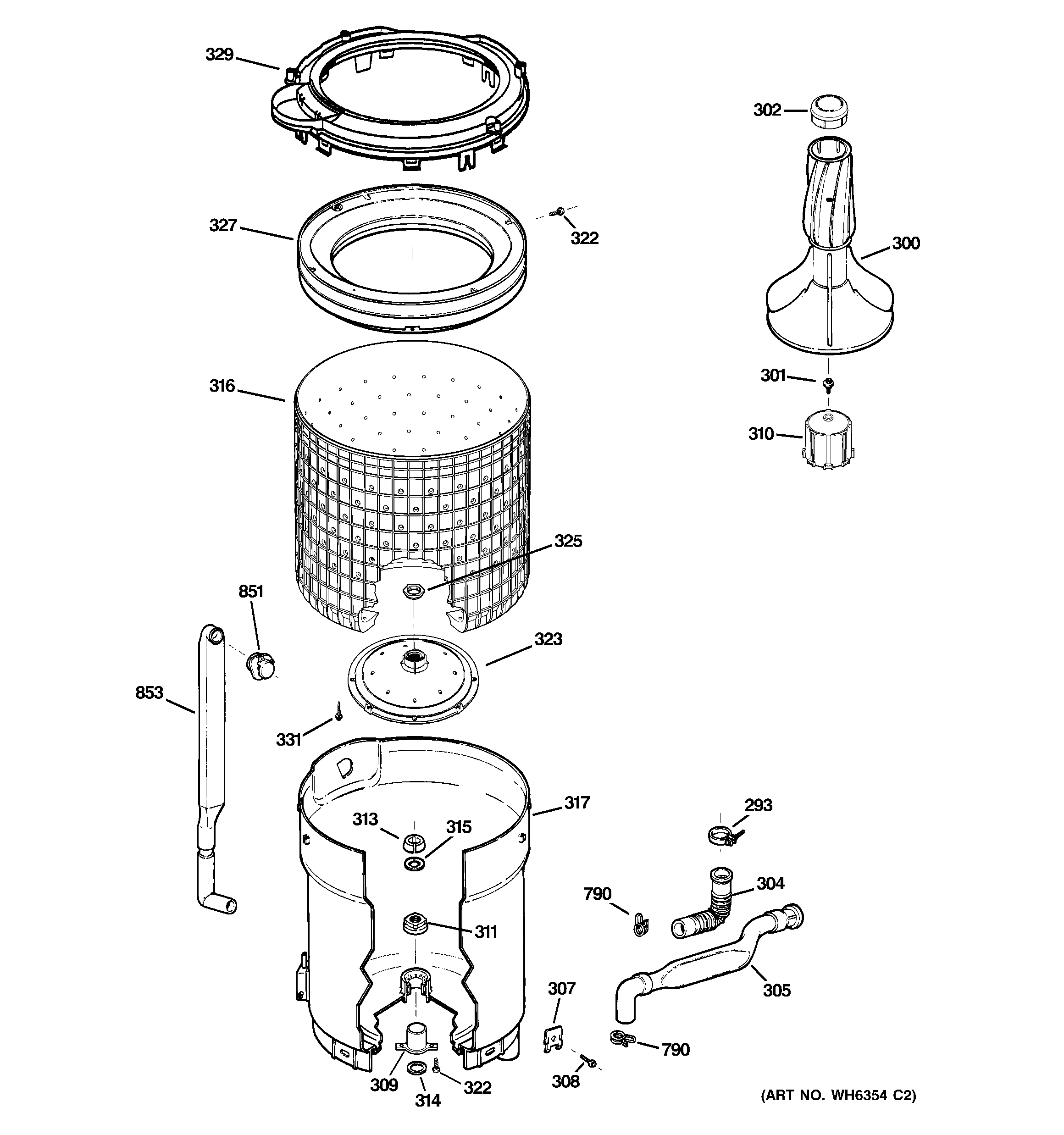

Tub, basket & agitator diagram

Hub nut

Part #WH02X1193

Replaced by #WH2X1193

?
Manufacturer substitution
This part replaces WH02X1193. Substitute parts can look different from the original.
BEST SELLER
$8.64 |
10% OFF Phone Price : $9.64
In Stock
Tub Bearing WH02X1198
#309

Tub, basket & agitator diagram

Tub bearing

Part #WH02X1198

Replaced by #WH2X1198

?
Manufacturer substitution
This part replaces WH02X1198. Substitute parts can look different from the original.
BEST SELLER
$29.01 |
17% OFF Phone Price : $35.01
In Stock
Tub Bearing WH02X1197
#314

Tub, basket & agitator diagram

Tub bearing

Part #WH02X1197

Replaced by #WH2X1197

?
Manufacturer substitution
This part replaces WH02X1197. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.31 |
14% OFF Phone Price : $7.31
In Stock
Strap Dampng WH01X10046
#370

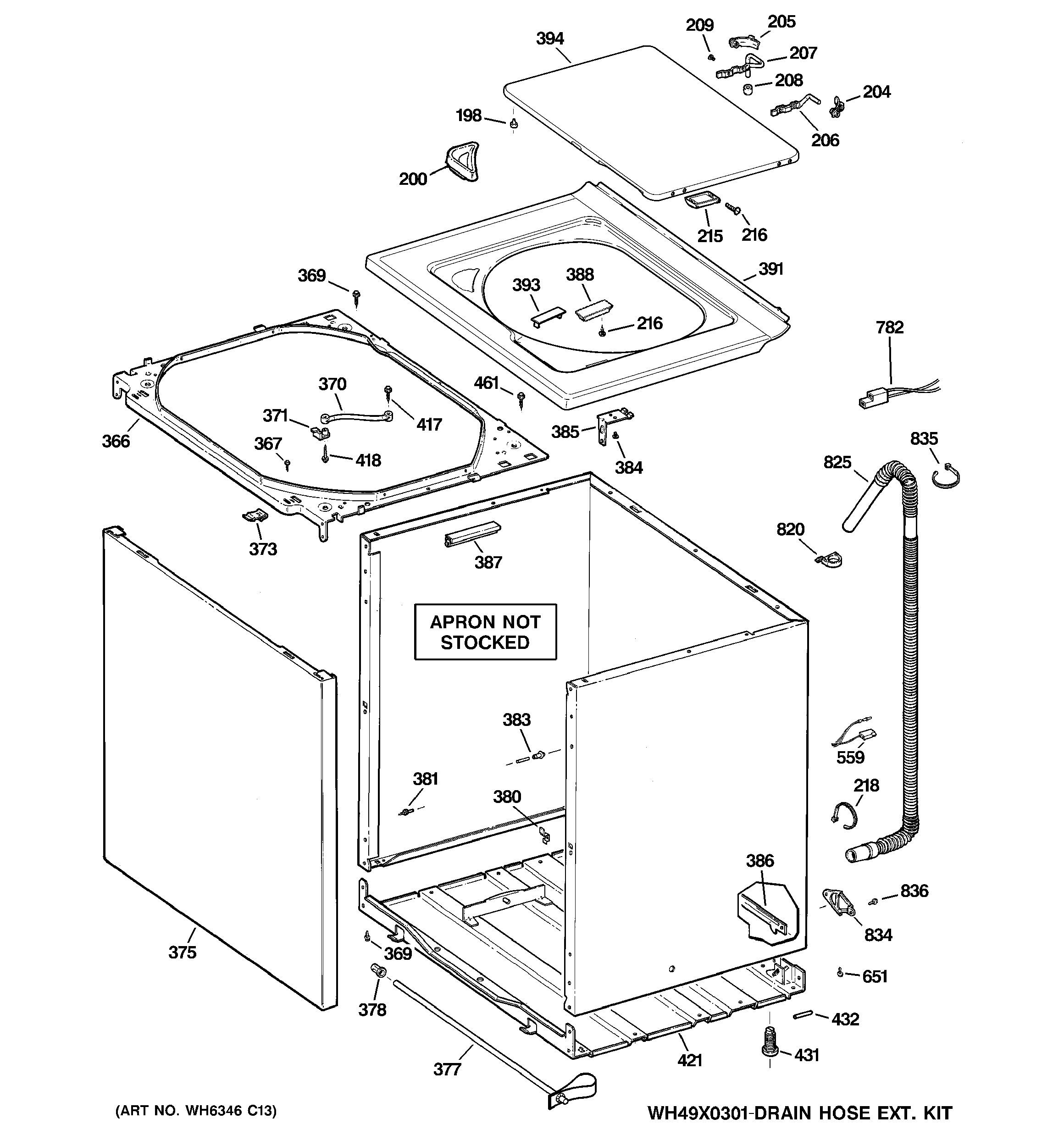

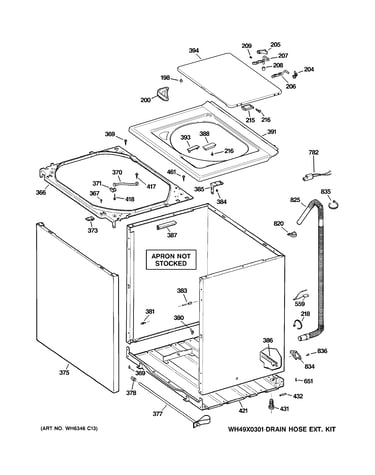

Cabinet, cover & top panel diagram

Strap dampng

Part #WH01X10046

Replaced by #WH1X2727

?
Manufacturer substitution
This part replaces WH01X10046. Substitute parts can look different from the original.
BEST SELLER
$10.16 |
16% OFF Phone Price : $12.16
In Stock
Washer Screw WH02X10237
#301

Tub, basket & agitator diagram

Washer screw

Part #WH02X10237

BEST SELLER
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Rod/sprg Blk WH16X0544
#415

Suspension, pump & drive compenents diagram

Rod/sprg blk

Part #WH16X0544

Replaced by #WH16X544

?
Manufacturer substitution
This part replaces WH16X0544. Substitute parts can look different from the original.
BEST SELLER
$35.27 |
15% OFF Phone Price : $41.27
In Stock
Washer Water Inlet Valve WH13X10048
#805

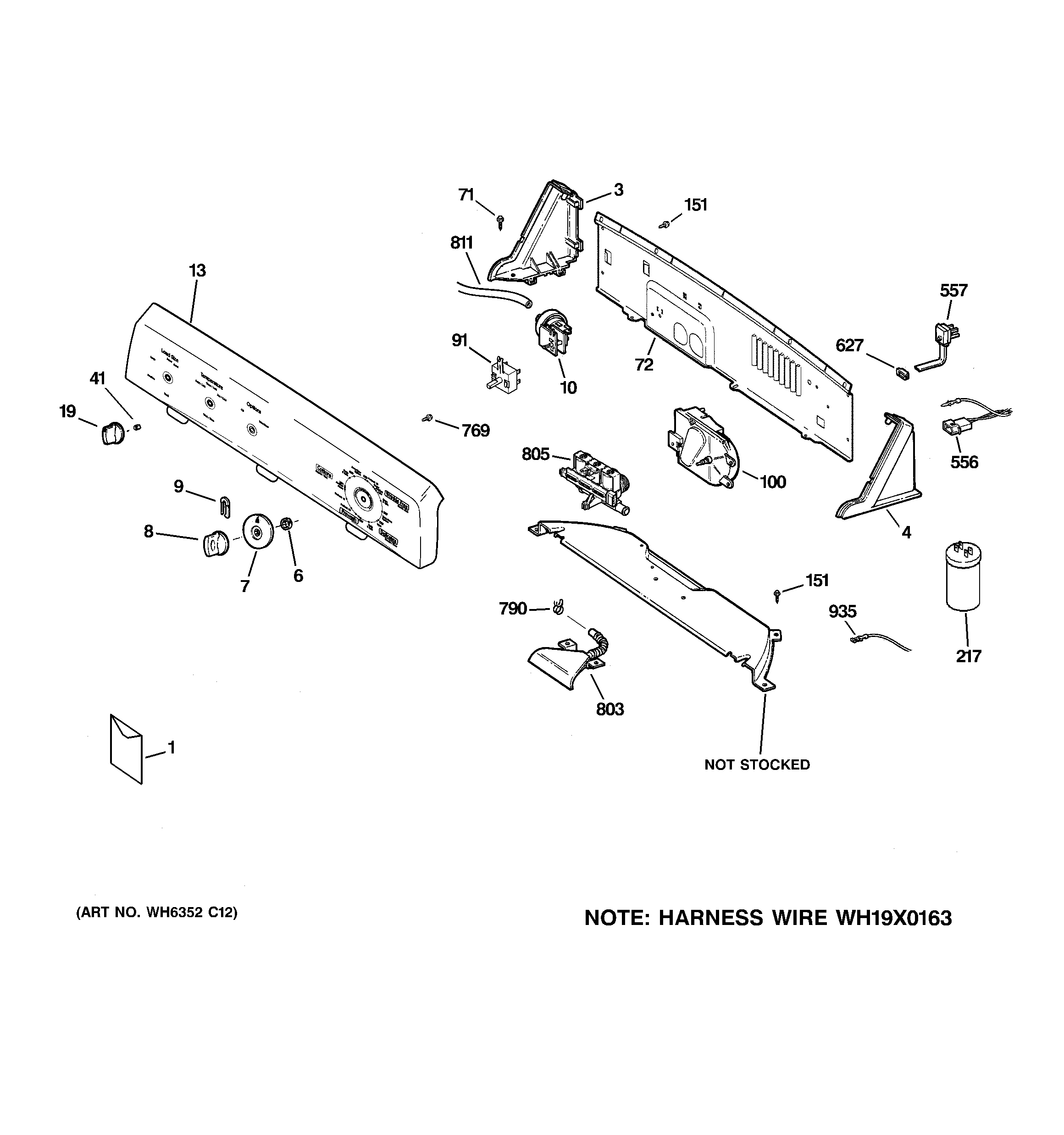

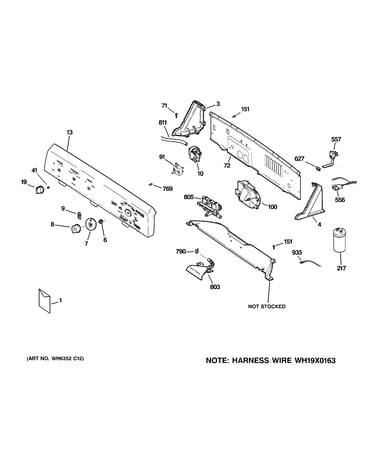

Controls & backsplash diagram

Washer water inlet valve

Part #WH13X10048

Replaced by #WH13X23974

?
Manufacturer substitution
This part replaces WH13X10048. Substitute parts can look different from the original.
BEST SELLER
$44.09 |
12% OFF Phone Price : $50.09
In Stock
Rod/spr Yllw WH16X0543
#414

Suspension, pump & drive compenents diagram

Rod/spr yllw

Part #WH16X0543

Replaced by #WH16X543

?
Manufacturer substitution
This part replaces WH16X0543. Substitute parts can look different from the original.
BEST SELLER
$33.98 |
15% OFF Phone Price : $39.98
In Stock
Belt WH01X2026
#603

Suspension, pump & drive compenents diagram

Belt

Part #WH01X2026

Replaced by #WH1X2026

?
Manufacturer substitution
This part replaces WH01X2026. Substitute parts can look different from the original.
BEST SELLER
$7.73 |
11% OFF Phone Price : $8.73
In Stock
Pulley Nut WH02X1203
#411

Suspension, pump & drive compenents diagram

Pulley nut

Part #WH02X1203

Replaced by #WH2X1203

?
Manufacturer substitution
This part replaces WH02X1203. Substitute parts can look different from the original.
$7.88 |
11% OFF Phone Price : $8.88
In Stock
