Model # WOS52EM4AS4 Official Whirlpool electric wall oven

Here are the diagrams and repair parts for Official Whirlpool WOS52EM4AS4 electric wall oven, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 58 parts  |
Gasket, Blower Motor W10519009
#15

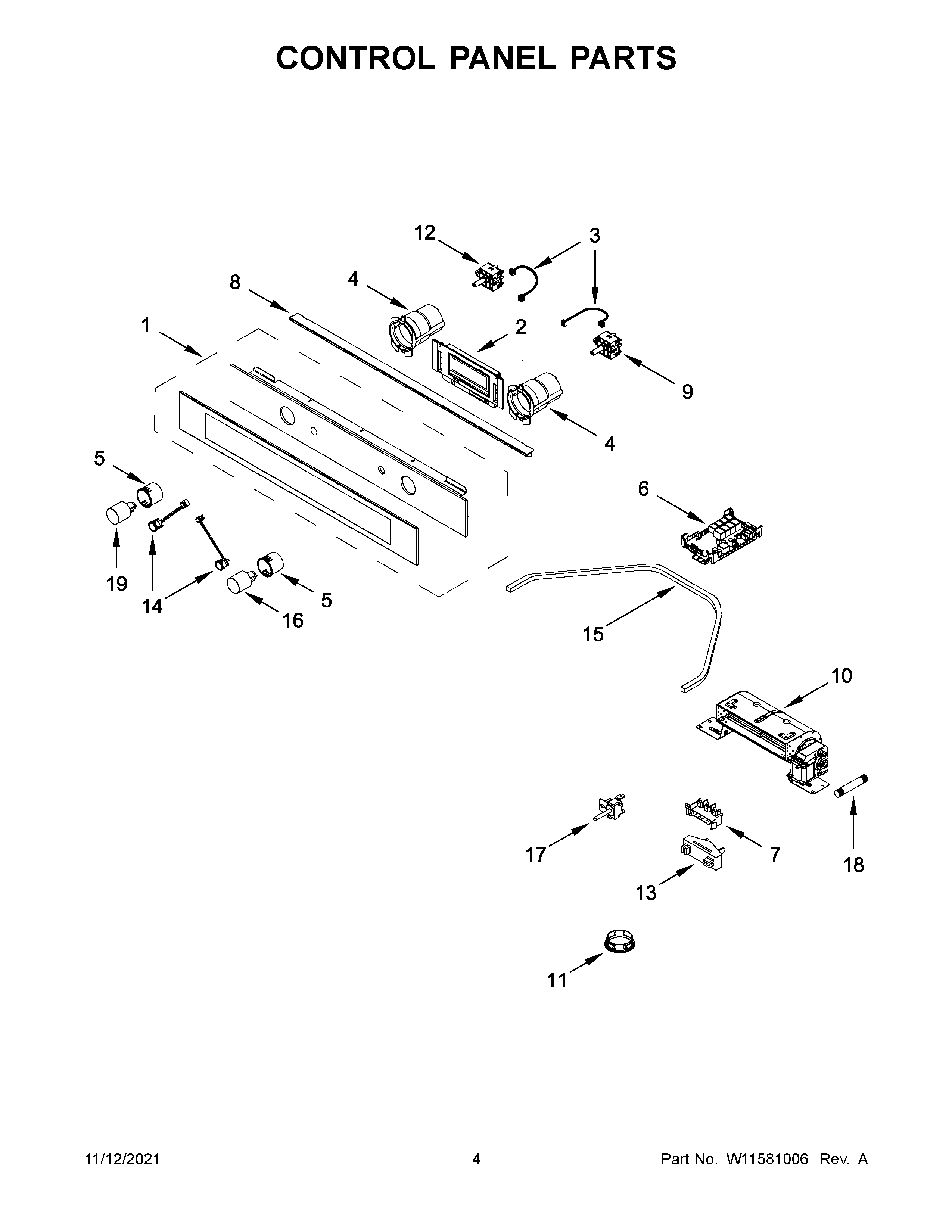

Control panel parts diagram

Gasket, blower motor

Part #W10519009

$13.15
In Stock
Lower Trim W10517979
#2

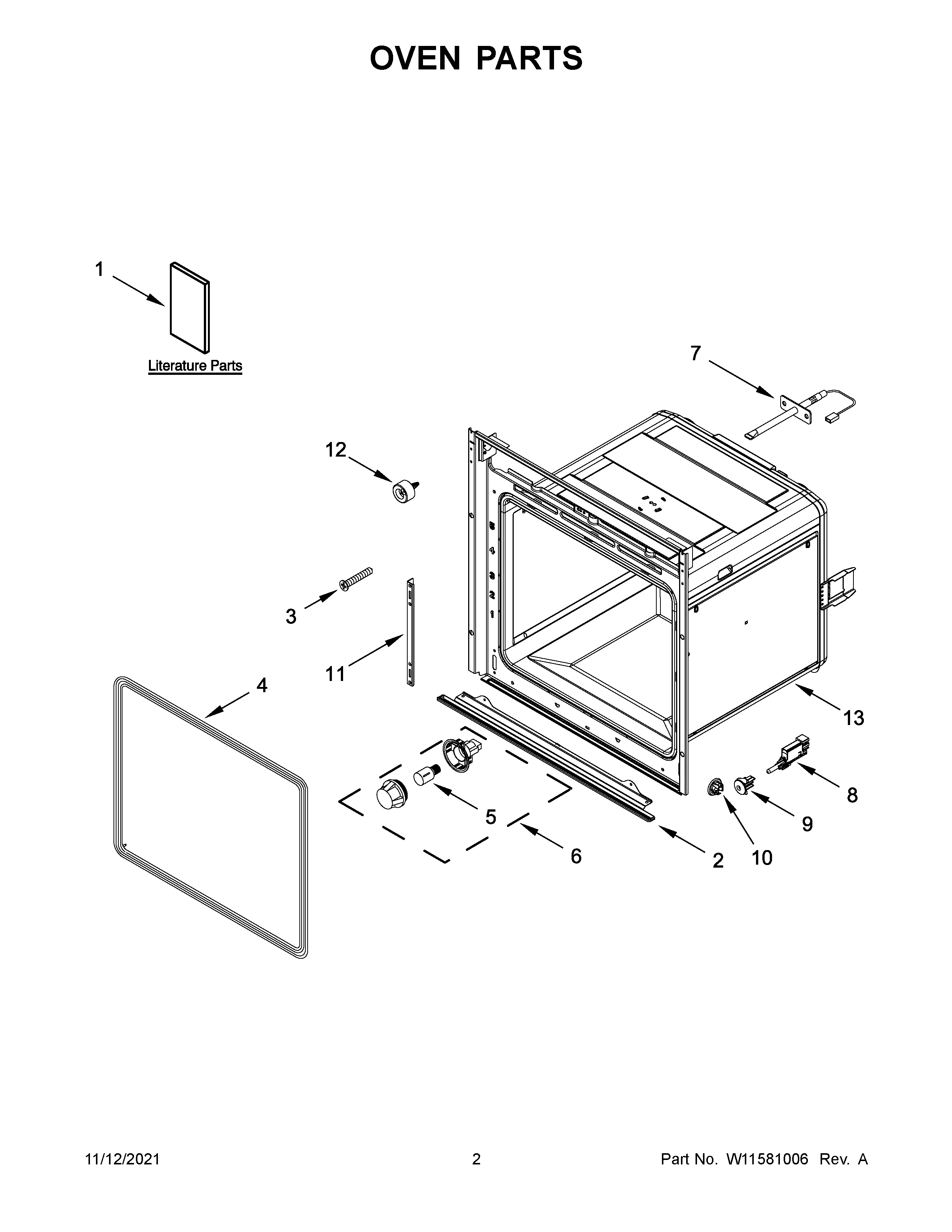

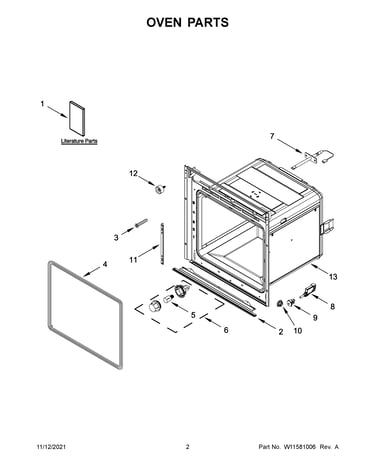

Oven parts diagram

Lower trim

Part #W10517979

$52.80
In Stock
Wall Oven Wire Harness Grommet W10518942
#11

Control panel parts diagram

Wall oven wire harness grommet

Part #W10518942

$13.50
In Stock
Element, Upper Grill (2450 Watts) W10568824
#1

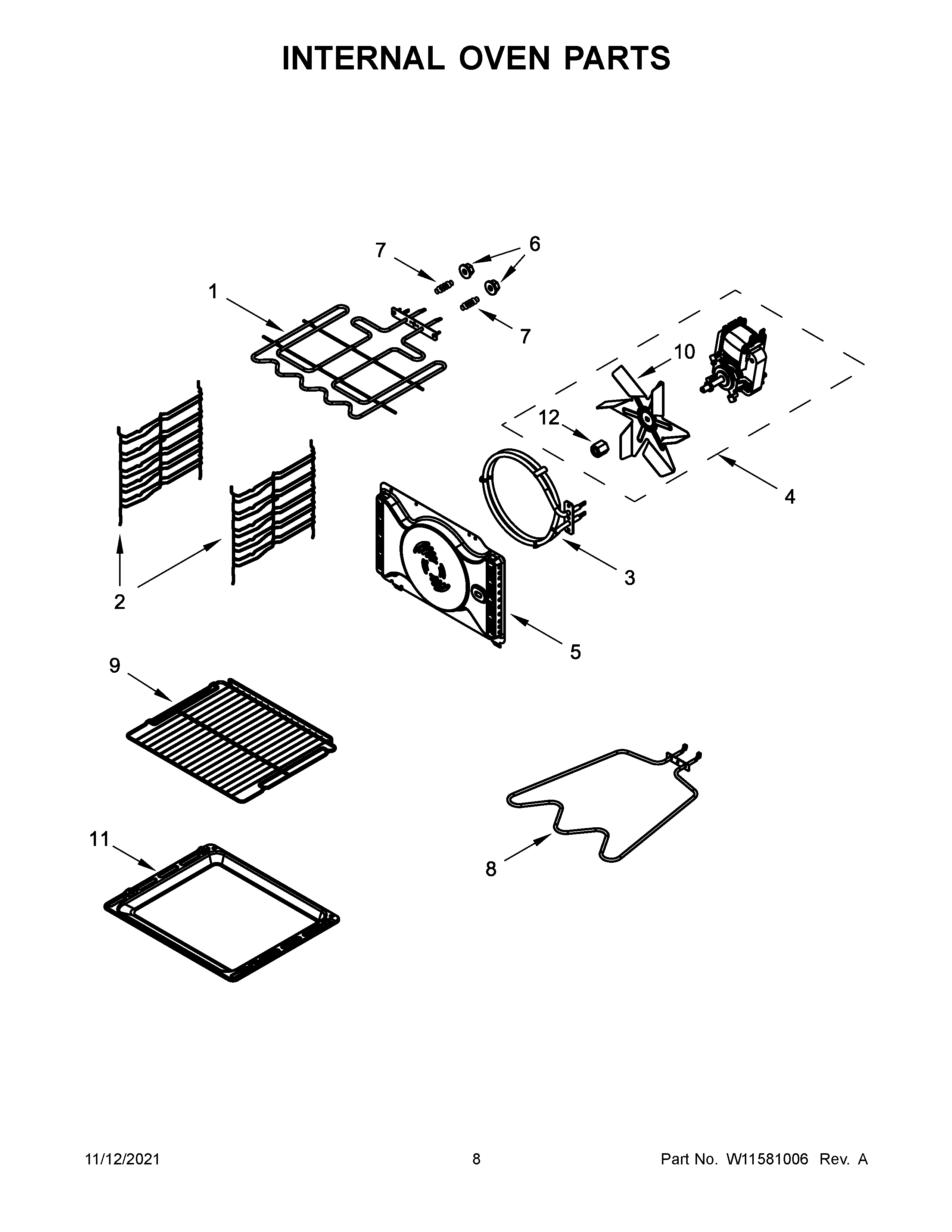

Internal oven parts diagram

Element, upper grill (2450 watts)

Part #W10568824

$159.11
In Stock
Terminal Block W10518946
#7

Control panel parts diagram

Terminal block

Part #W10518946

$30.11
In Stock
Display W10836476
#2

Control panel parts diagram

Display

Part #W10836476

$287.29
In Stock
Bulb, Halogen 40 Watt W10518971
#5

Oven parts diagram

Bulb, halogen 40 watt

Part #W10518971

$35.49
In Stock
Thermostat W10532969
#17

Control panel parts diagram

Thermostat

Part #W10532969

$48.58
In Stock
Hinge, Running Mechanism W11581007
#11

Oven parts diagram

Hinge, running mechanism

Part #W11581007

$16.26
In Stock
Spacer W10240564
#7

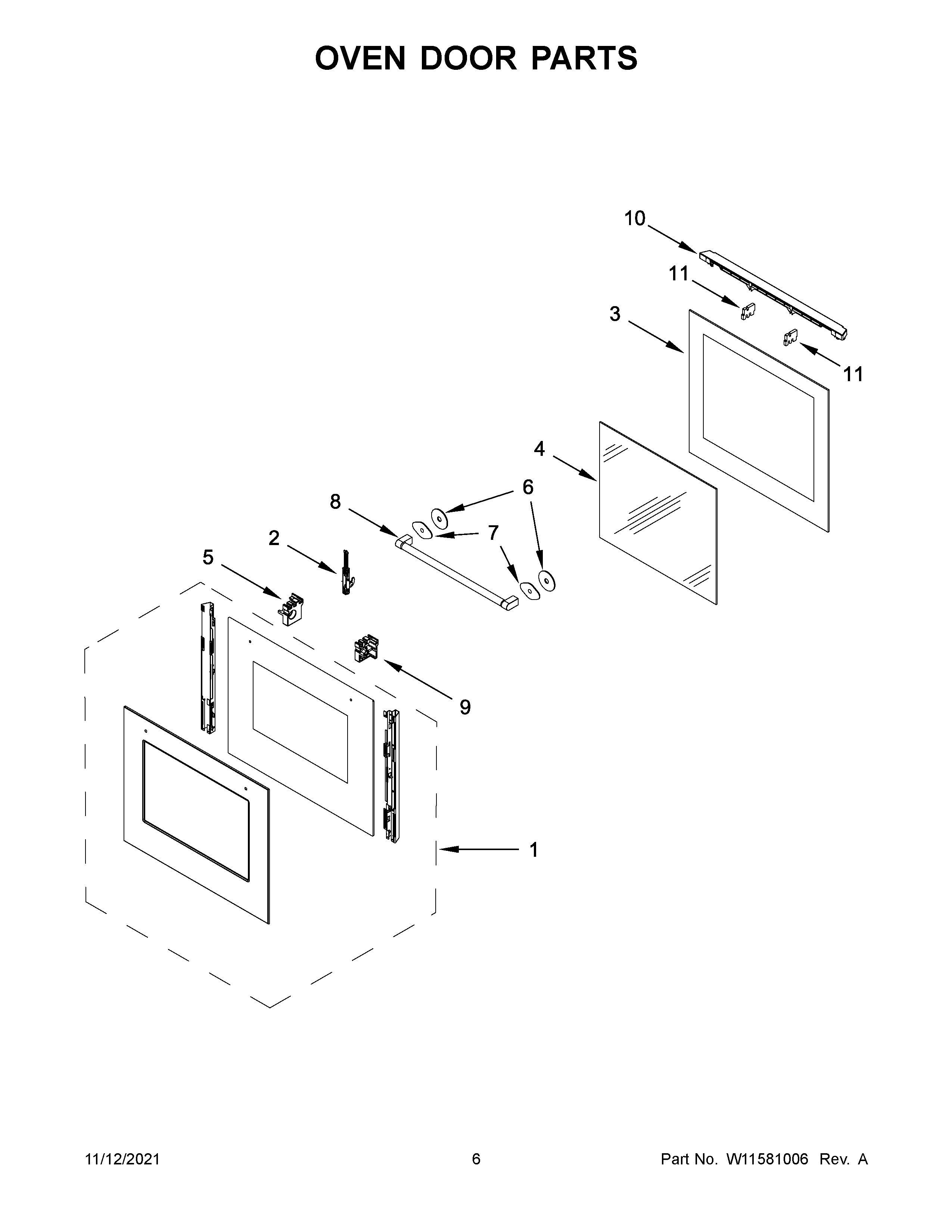

Oven door parts diagram

Spacer

Part #W10240564

$7.80
In Stock
