Model # 502455510 Official Sears 24" girls' touring lightweight bicycle

Here are the diagrams and repair parts for Official Sears 502455510 24" girls' touring lightweight bicycle, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 68 parts  |
Brake Shoe 308697

#NI

All parts diagram

Brake shoe

Part #308697

The manufacturer no longer makes this part, and there's no substitute part

F Axle Set 303518
F axle set

Part #303518

The manufacturer no longer makes this part, and there's no substitute part

Kickstand As 302339
#14

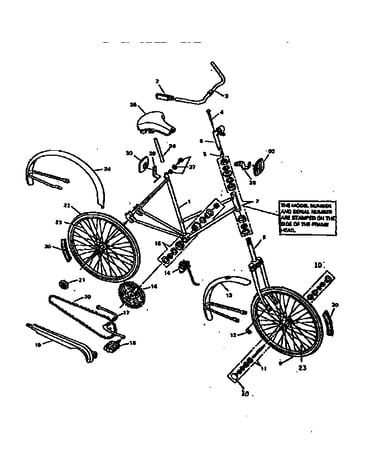

Unit parts diagram

Kickstand as

Part #302339

The manufacturer no longer makes this part, and there's no substitute part

Inner Tube 041011

#NI

All parts diagram

Inner tube

Part #041011

The manufacturer no longer makes this part, and there's no substitute part

Rim Strip 042007

#NI

All parts diagram

Rim strip

Part #042007

The manufacturer no longer makes this part, and there's no substitute part

Tire 040013

#NI

All parts diagram

Tire

Part #040013

The manufacturer no longer makes this part, and there's no substitute part

Chain Link 11333

#NI

All parts diagram

Chain link

Part #11333

The manufacturer no longer makes this part, and there's no substitute part

Carrier 13380

#NI

All parts diagram

Carrier

Part #13380

The manufacturer no longer makes this part, and there's no substitute part

Fork/tube 13914
#2

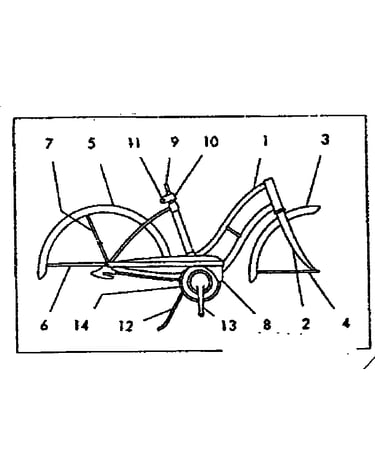

Frame assembly diagram

Fork/tube

Part #13914

The manufacturer no longer makes this part, and there's no substitute part

Crank 12300
#13

Frame assembly diagram

Crank

Part #12300

The manufacturer no longer makes this part, and there's no substitute part
