Model # N1900BTY2 Official Makita planer

Here are the diagrams and repair parts for Official Makita N1900BTY2 planer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 10 of 58 parts |

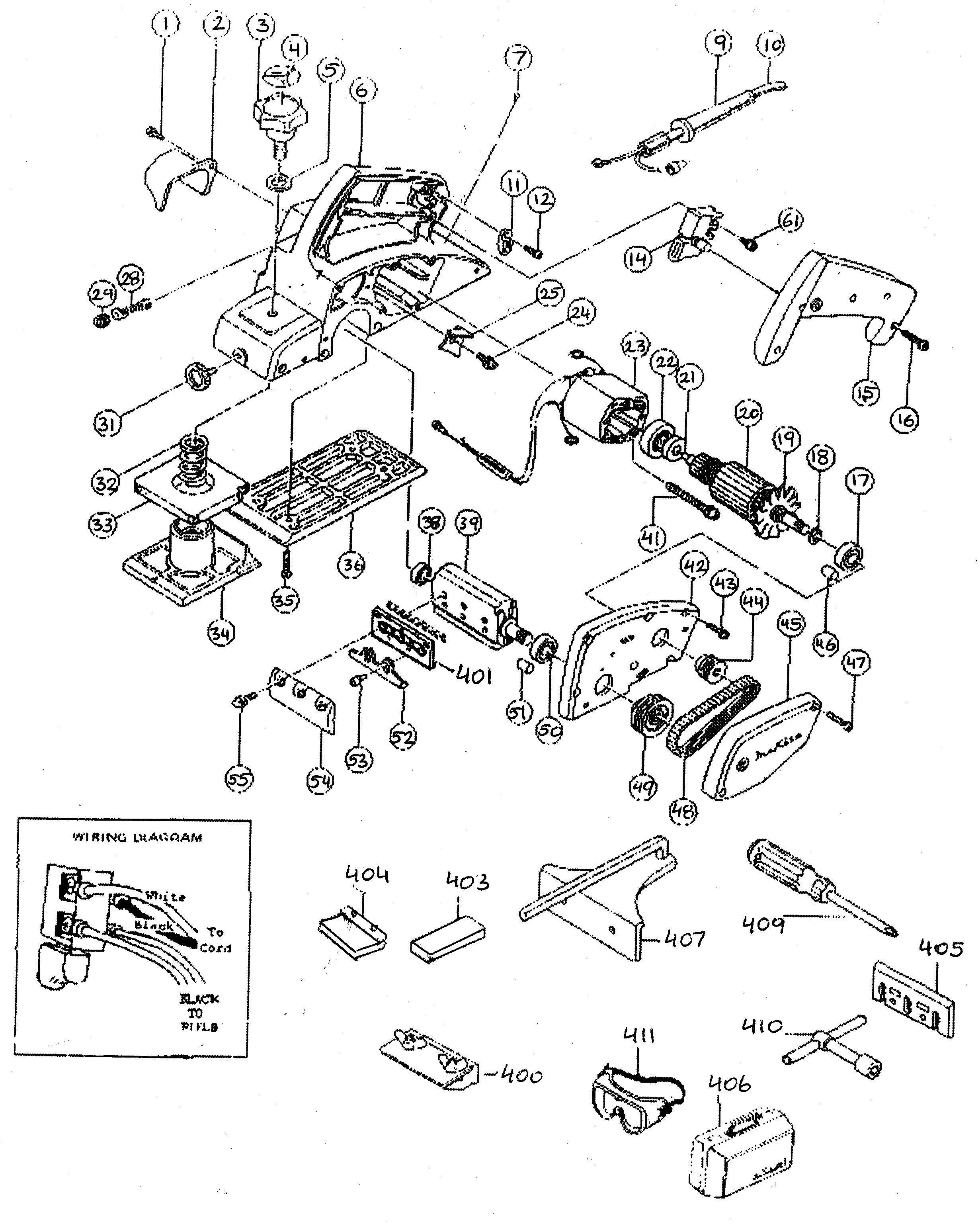

Planer diagram

Makita housing

Part #159858-5

The manufacturer no longer makes this part, and there's no substitute part

#46

Planer diagram

Rubber pin

Part #263002-9

The manufacturer no longer makes this part, and there's no substitute part

#14

Planer diagram

Switch

Part #651232-8

The manufacturer no longer makes this part, and there's no substitute part

#410

Planer diagram

Wrench

Part #782209-3

The manufacturer no longer makes this part, and there's no substitute part

#55

Planer diagram

Bolt

Part #251609-3

The manufacturer no longer makes this part, and there's no substitute part

#20

Planer diagram

Makita armature

Part #511936-3

The manufacturer no longer makes this part, and there's no substitute part

Planer diagram

Screw

Part #265874-8

The manufacturer no longer makes this part, and there's no substitute part

#52

Planer diagram

Adjust plate

Part #342430-2

The manufacturer no longer makes this part, and there's no substitute part

#32

Planer diagram

Spring

Part #231004-3

The manufacturer no longer makes this part, and there's no substitute part

#31

Planer diagram

Knob

Part #251812-6

The manufacturer no longer makes this part, and there's no substitute part
