Model # MVH200E1-P1119102M Official Amana microwave/hood combo

Here are the diagrams and repair parts for Official Amana MVH200E1-P1119102M microwave/hood combo, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 93 parts  |
Primary Switch R0702548
#30

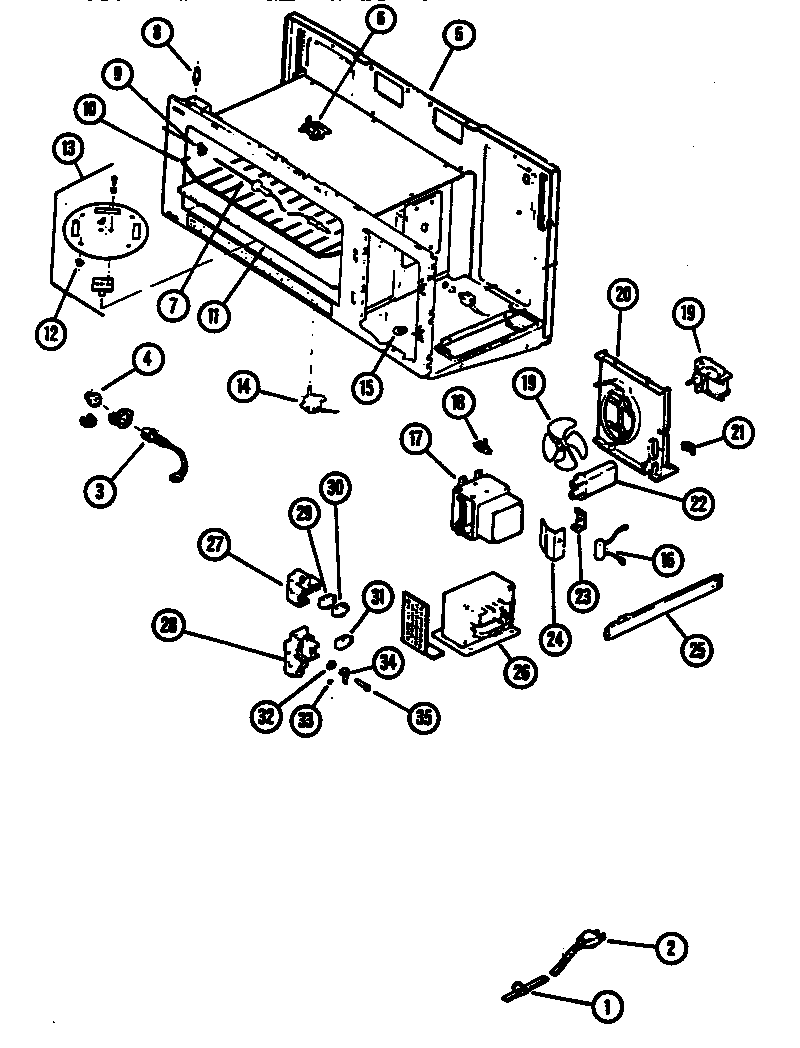

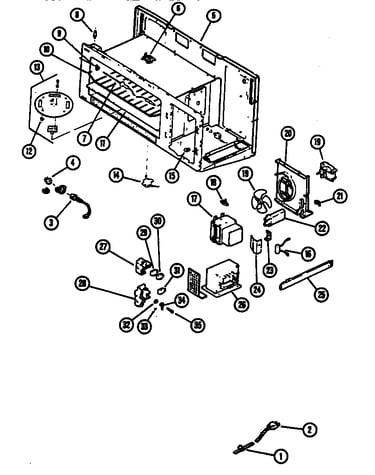

Cavity assy diagram

Primary switch

Part #R0702548

The manufacturer no longer makes this part, and there's no substitute part

Duct-upper Right R0705970
#7

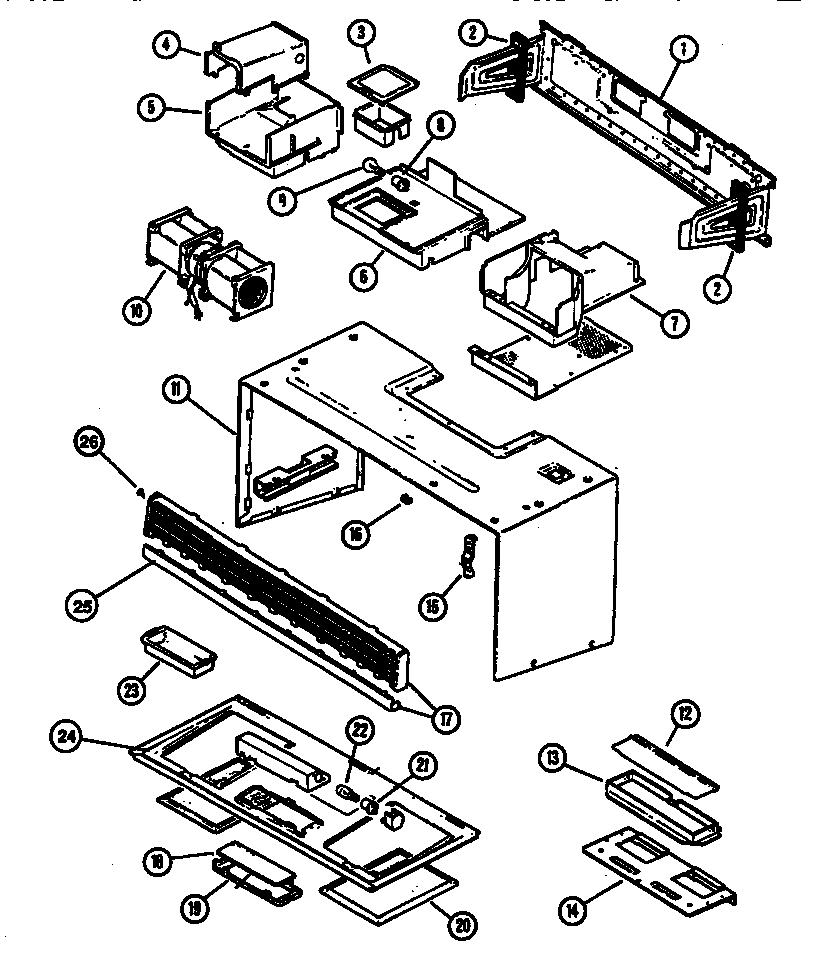

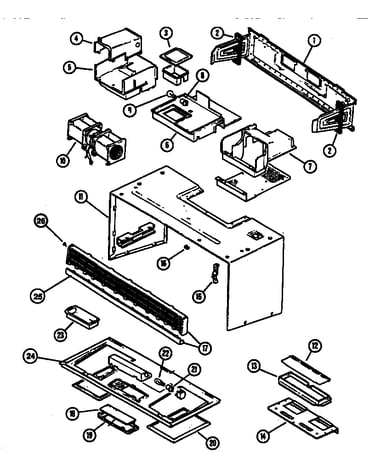

Cabinet assy diagram

Duct-upper right

Part #R0705970

The manufacturer no longer makes this part, and there's no substitute part

Speed Nut R0701023
#16

Cabinet assy diagram

Speed nut

Part #R0701023

The manufacturer no longer makes this part, and there's no substitute part

Barrier Hv Trans R0705895
#24

Cavity assy diagram

Barrier hv trans

Part #R0705895

The manufacturer no longer makes this part, and there's no substitute part

Hinge, Control Box R0705951
#9

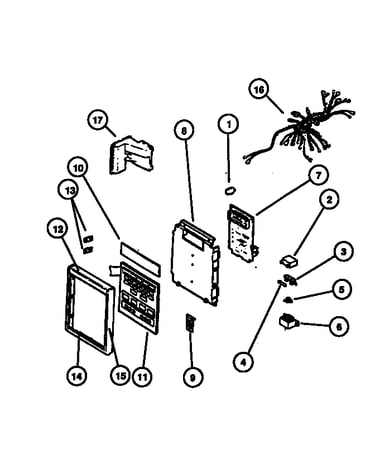

Control panel assy diagram

Hinge, control box

Part #R0705951

The manufacturer no longer makes this part, and there's no substitute part

Capacitor .88 Mfd. R0711503
#22

Cavity assy diagram

Capacitor .88 mfd.

Part #R0711503

The manufacturer no longer makes this part, and there's no substitute part

Screw R0700094
#20

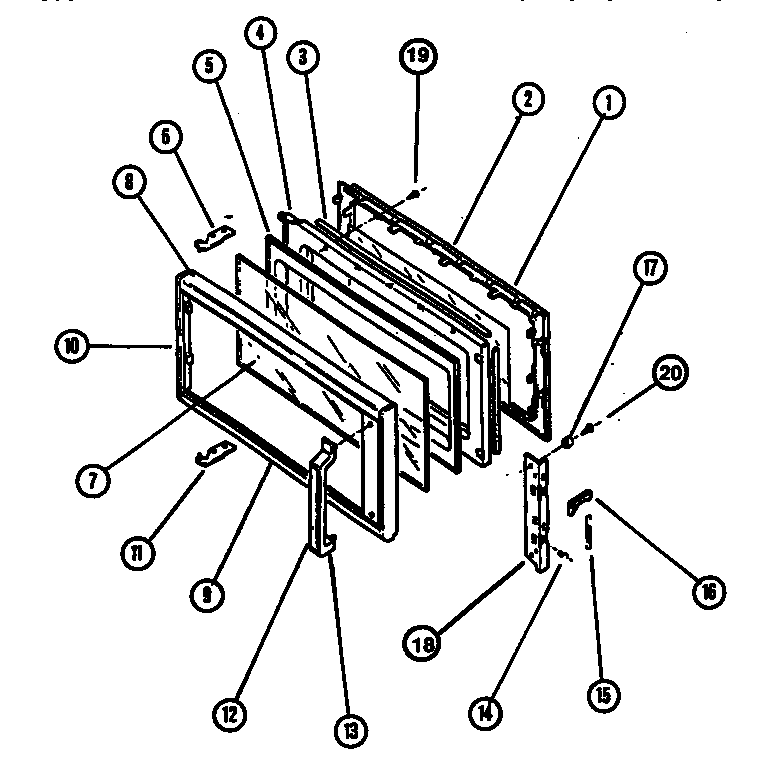

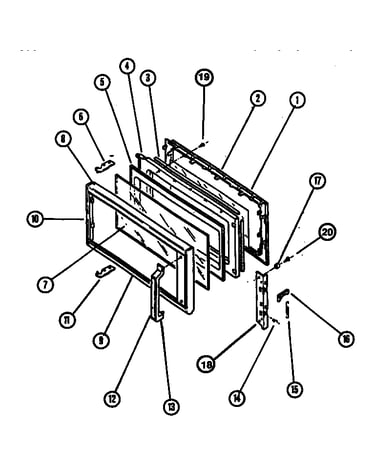

Door assy diagram

Screw

Part #R0700094

The manufacturer no longer makes this part, and there's no substitute part

Back Cover R0703235
#5

Cavity assy diagram

Back cover

Part #R0703235

The manufacturer no longer makes this part, and there's no substitute part

Lamp-oven R0712014
#9

Cabinet assy diagram

Lamp-oven

Part #R0712014

The manufacturer no longer makes this part, and there's no substitute part

Exhaust Duct R0705963
#4

Cabinet assy diagram

Exhaust duct

Part #R0705963

The manufacturer no longer makes this part, and there's no substitute part
