White-Westinghouse
Dehumidifier

Model # MDD50WW1 Official White-Westinghouse dehumidifier - 5995258802

Here are the diagrams and repair parts for Official White-Westinghouse MDD50WW1 dehumidifier - 5995258802, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

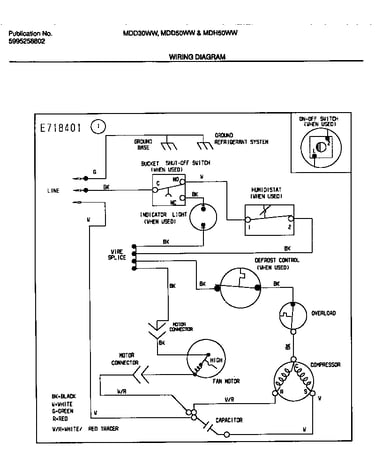

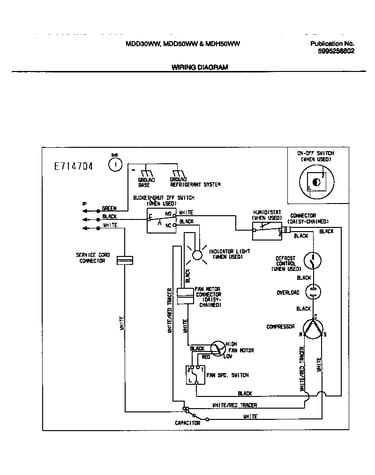

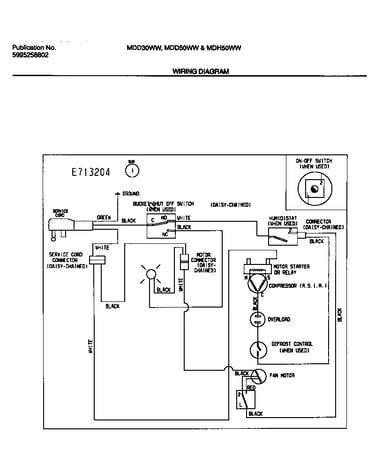

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 70 parts  |
Room Air Conditioner Screw 5303015427
Room air conditioner screw

Part #5303015427

Replaced by #134178901

?
Manufacturer substitution
This part replaces 5303015427. Substitute parts can look different from the original.
$14.69
In Stock
Bracket 5303296824
#6

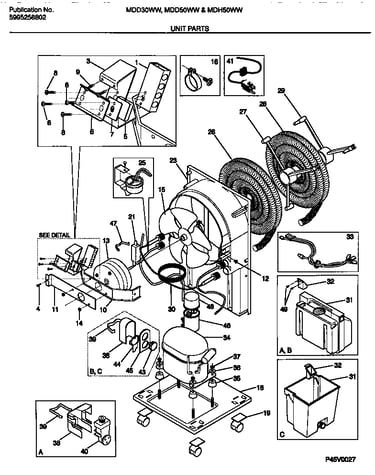

Unit diagram

Bracket

Part #5303296824

This item is not returnable
$2.99
In Stock
Kelvinator Room Air Conditioner Lock Nut 08007481
#14

Unit diagram

Kelvinator room air conditioner lock nut

Part #08007481

This item is not returnable
$5.74
In Stock
Switch 5303012345
#5

Unit diagram

Switch

Part #5303012345

$39.35
In Stock
Compressor 5303015383
#34

Unit diagram

Compressor

Part #5303015383

$201.99
In Stock
Capacitor 5303303824
#46

Unit diagram

Capacitor

Part #5303303824

$30.99
In Stock
Dial Plate 327601903
#5

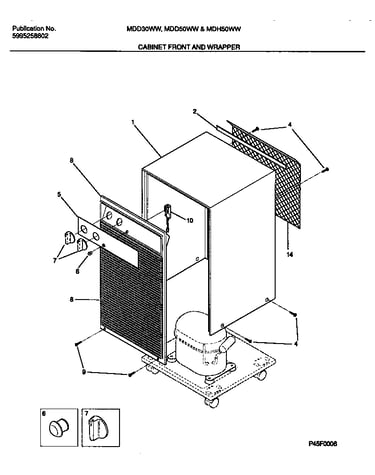

Cabinet front and wrapper diagram

Dial plate

Part #327601903

The manufacturer no longer makes this part, and there's no substitute part

Clamp 5308002985
#39

Unit diagram

Clamp

Part #5308002985

The manufacturer no longer makes this part, and there's no substitute part

Light Lens 08012705
#6

Cabinet front and wrapper diagram

Light lens

Part #08012705

The manufacturer no longer makes this part, and there's no substitute part

Evaporator 3015172
#28

Unit diagram

Evaporator

Part #3015172

The manufacturer no longer makes this part, and there's no substitute part

Most common symptoms to help you fix your dehumidifiers

Choose a symptom to see related dehumidifier repairs.

View all

Why does my dehumidifier run all the time?

Main causes: dehumidifier too small for the space, bad humidity sensor, faulty evaporator thermistor, low refrigerant, b…

Read more

Why isn't my dehumidifier draining?

Main causes: clogged drain hose, drain hose not properly connected…

Read more

Why won't my dehumidifier turn on?

Main causes: lack of electrical power, wiring failure, electronic control board failure, user interface control failure…

Read more

Why is there frost on my dehumidifier's coil?

Main causes: room temperature below 65 degrees Fahrenheit, control system failure…

Read more

Why isn't my dehumidifier's remote monitor working?

Main causes: weak or dead batteries, out of range, radio frequency interference…

Read more

Why doesn't my dehumidifier remove moisture?

Main causes: dirty air filter, clogged grill, dehumidifier placed too close to the wall, dehumidifier too small for the …

Read more

Why won't my dehumidifier run?

Main causes: collection bucket not installed, collection bucket full of water…

Read more

Why is my dehumidifier noisy?

Main causes: loose fan motor mounting screws, loose compressor mounting bracket screws, bad fan, faulty compressor…

Read more

Why does my dehumidifier leak water?

Main causes: collection bucket not installed correctly, cracked collection bucket, loose drain hose connection…

Read more
