Model # FFEC3024LBB Official Frigidaire electric counter unit

Here are the diagrams and repair parts for Official Frigidaire FFEC3024LBB electric counter unit, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

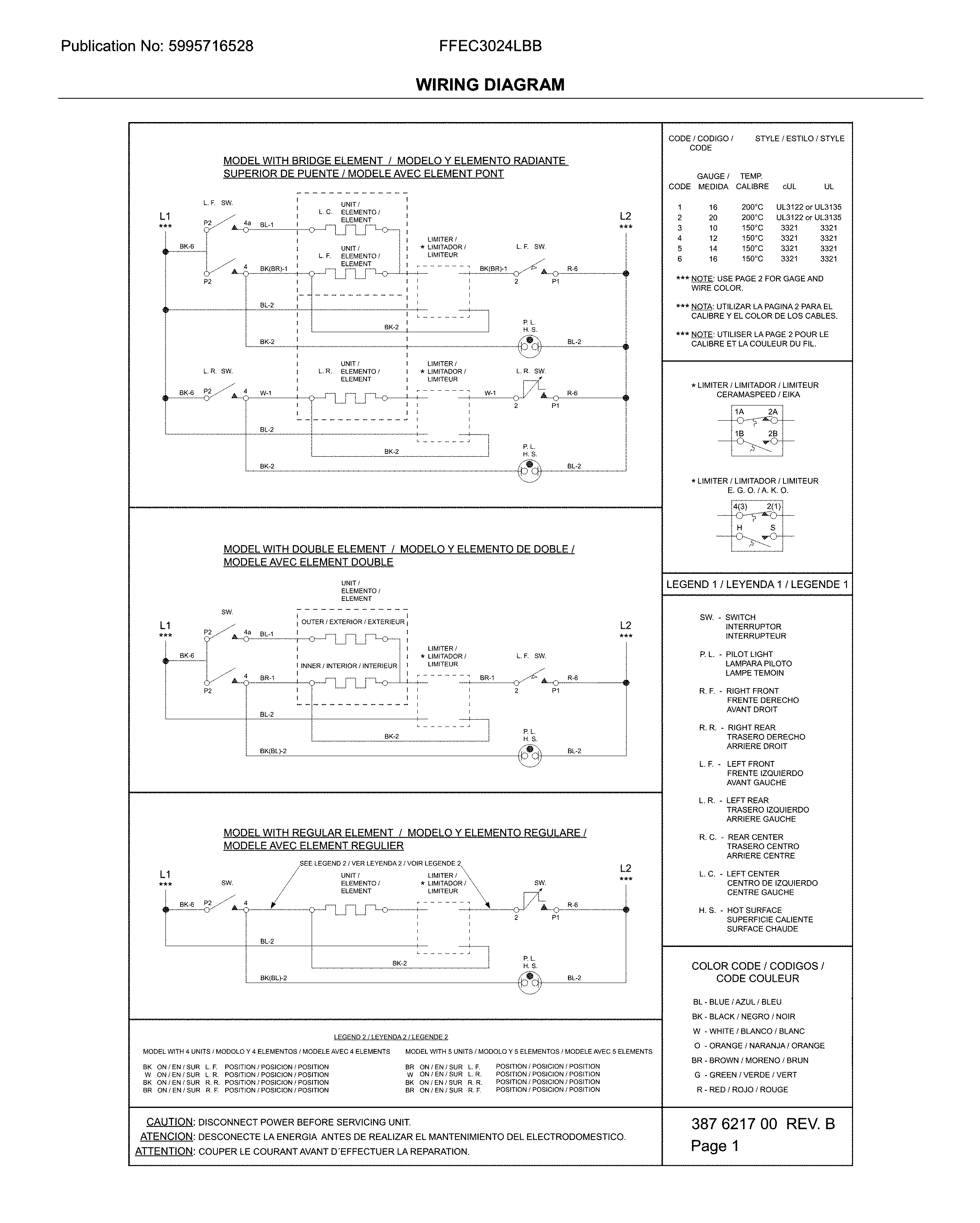

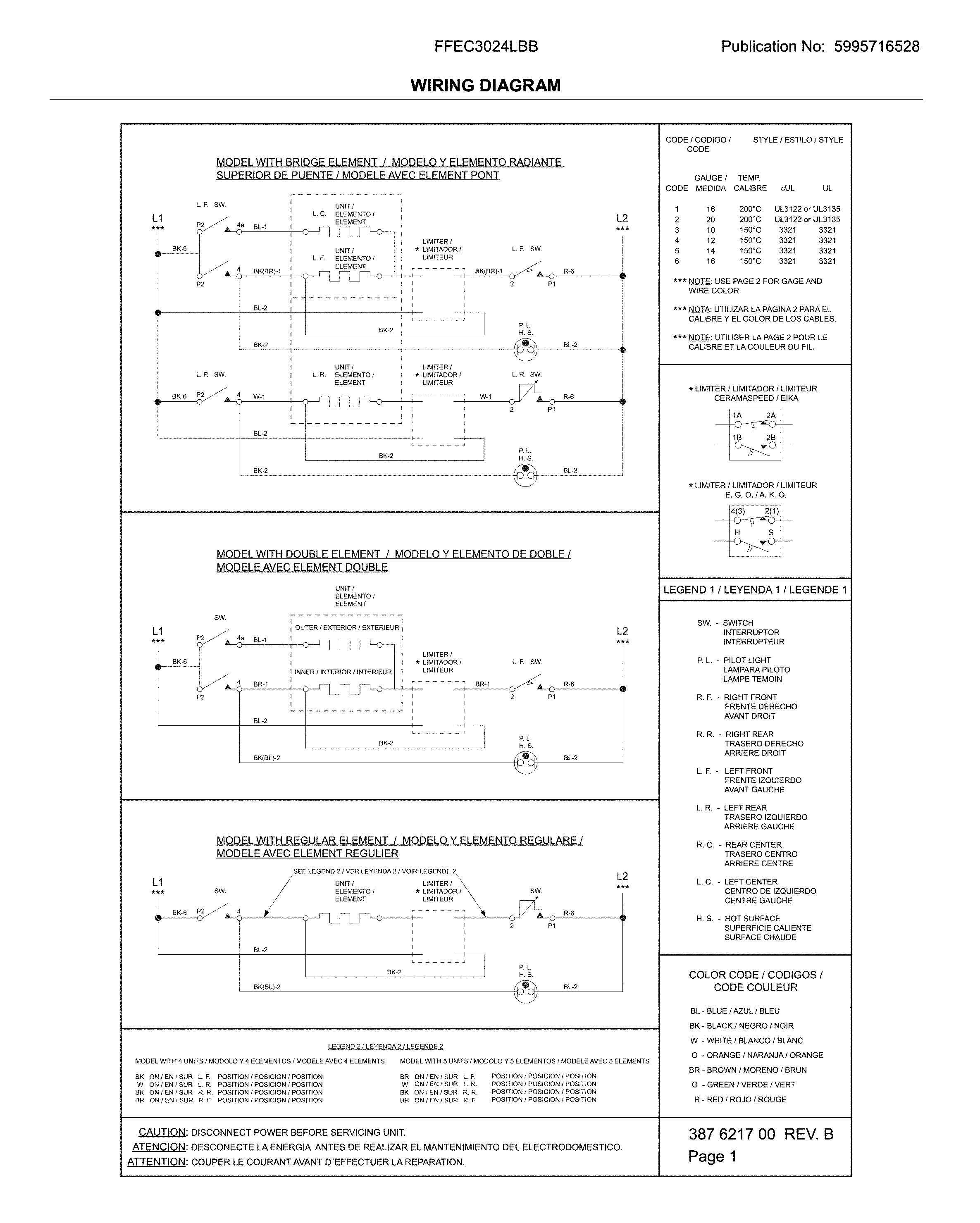

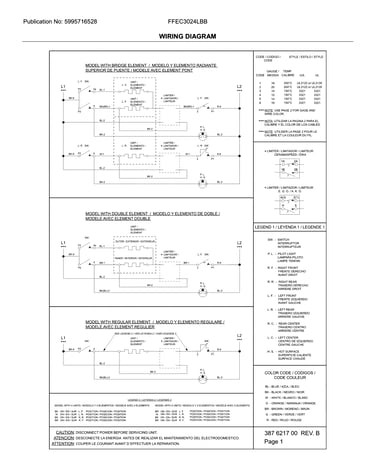

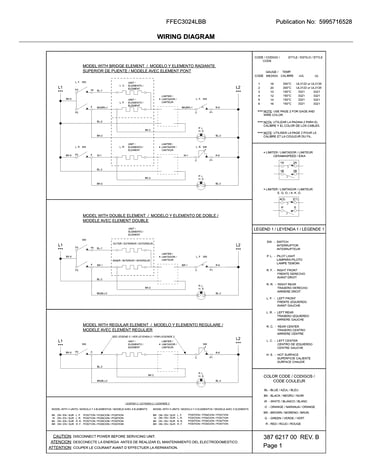

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 27 parts  |
Cooktop Radiant Element, 6-in 374063522
#8

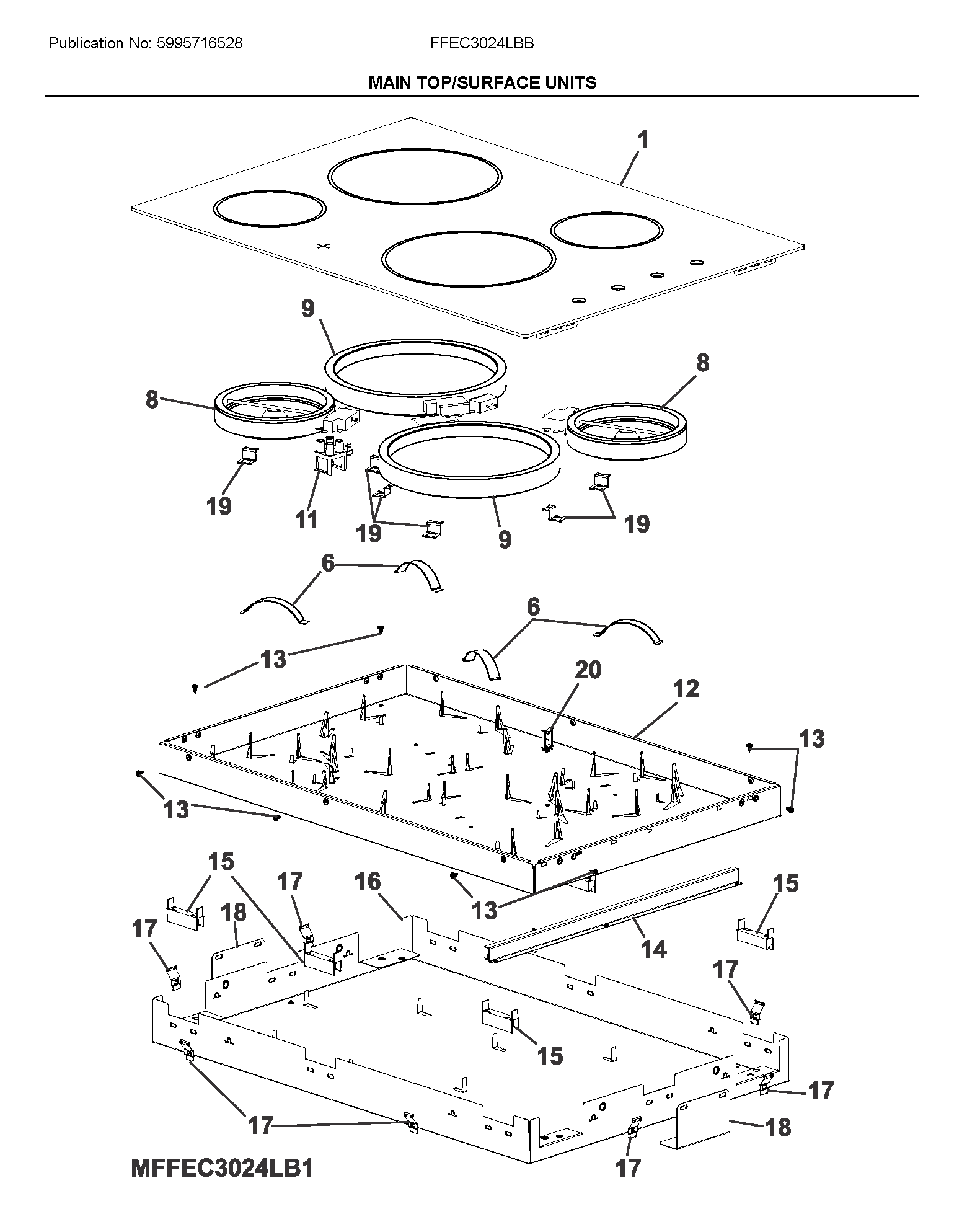

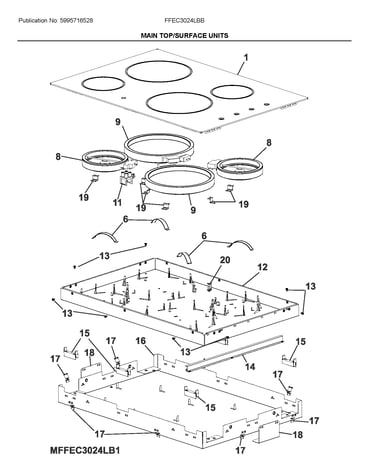

Main top/surface units diagram

Cooktop radiant element, 6-in

Part #374063522

Replaced by #A02843501

?
Manufacturer substitution
This part replaces 374063522. Substitute parts can look different from the original.
$117.03 |
9% OFF Phone Price : $129.03
In Stock
Cooktop Centering Spring 387174602
#17

Main top/surface units diagram

Cooktop centering spring

Part #387174602

This item is not returnable
$6.63
In Stock
Cooktop Main Top 305379341
#1

Main top/surface units diagram

Cooktop main top

Part #305379341

$560.67 |
$12.00 OFF Phone Price : $572.67
In Stock
Cooktop Radiant Element Support Bracket 387683300
#19

Main top/surface units diagram

Cooktop radiant element support bracket

Part #387683300

$12.57
In Stock
Screw 319224001
#7

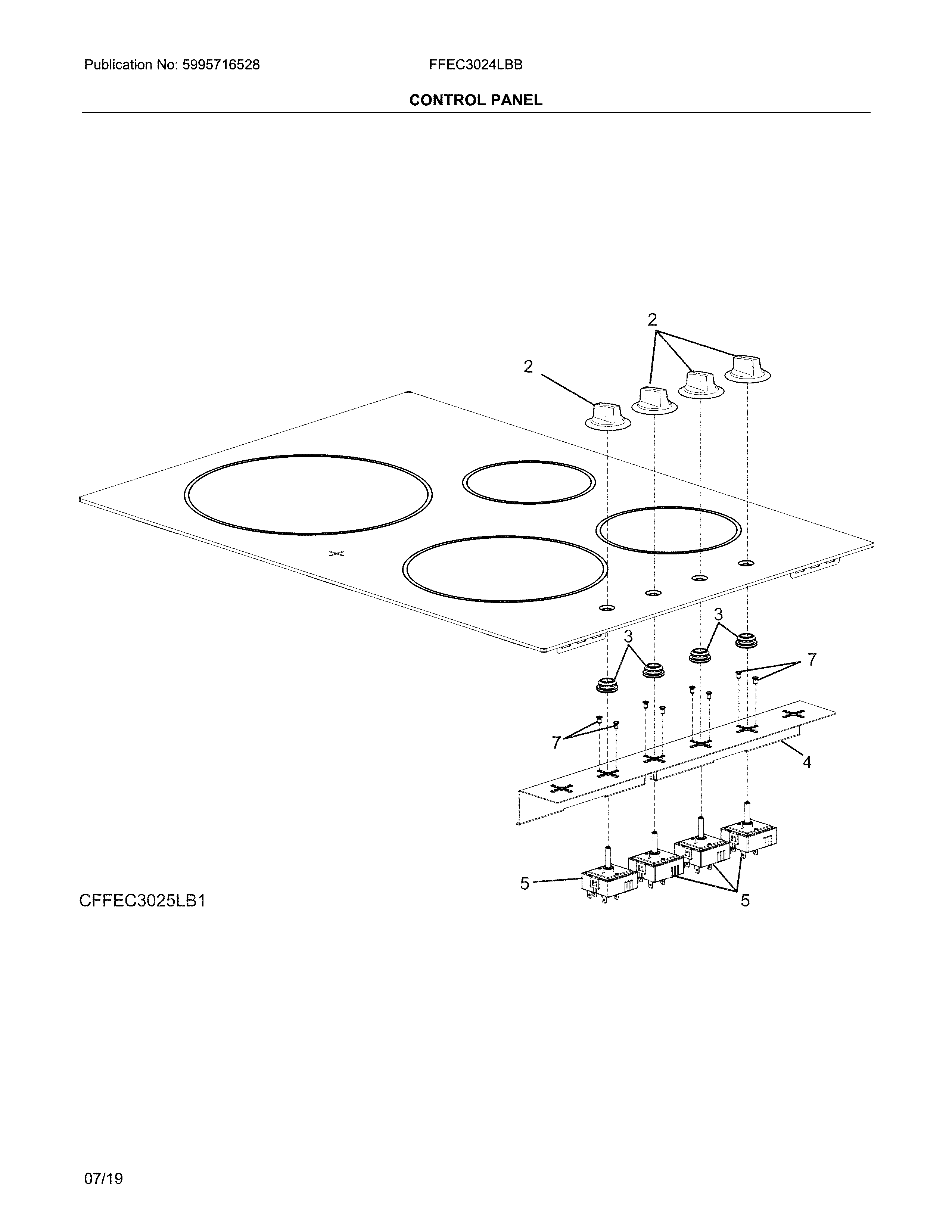

Control panel diagram

Screw

Part #319224001

$12.60
In Stock
Spring 387372900
#6

Main top/surface units diagram

Spring

Part #387372900

$13.97
In Stock
Support 387683500
#14

Main top/surface units diagram

Support

Part #387683500

$22.37
In Stock
Screw 305452800
#NI

Main top/surface units diagram

Screw

Part #305452800

$9.09
In Stock
Harness 5304521294
#NI

Main top/surface units diagram

Harness

Part #5304521294

$196.02
In Stock
Spacer 387627600
#15

Main top/surface units diagram

Spacer

Part #387627600

$12.57
In Stock
