Model # EI30DD10KSB Official Electrolux vent hood

Here are the diagrams and repair parts for Official Electrolux EI30DD10KSB vent hood, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

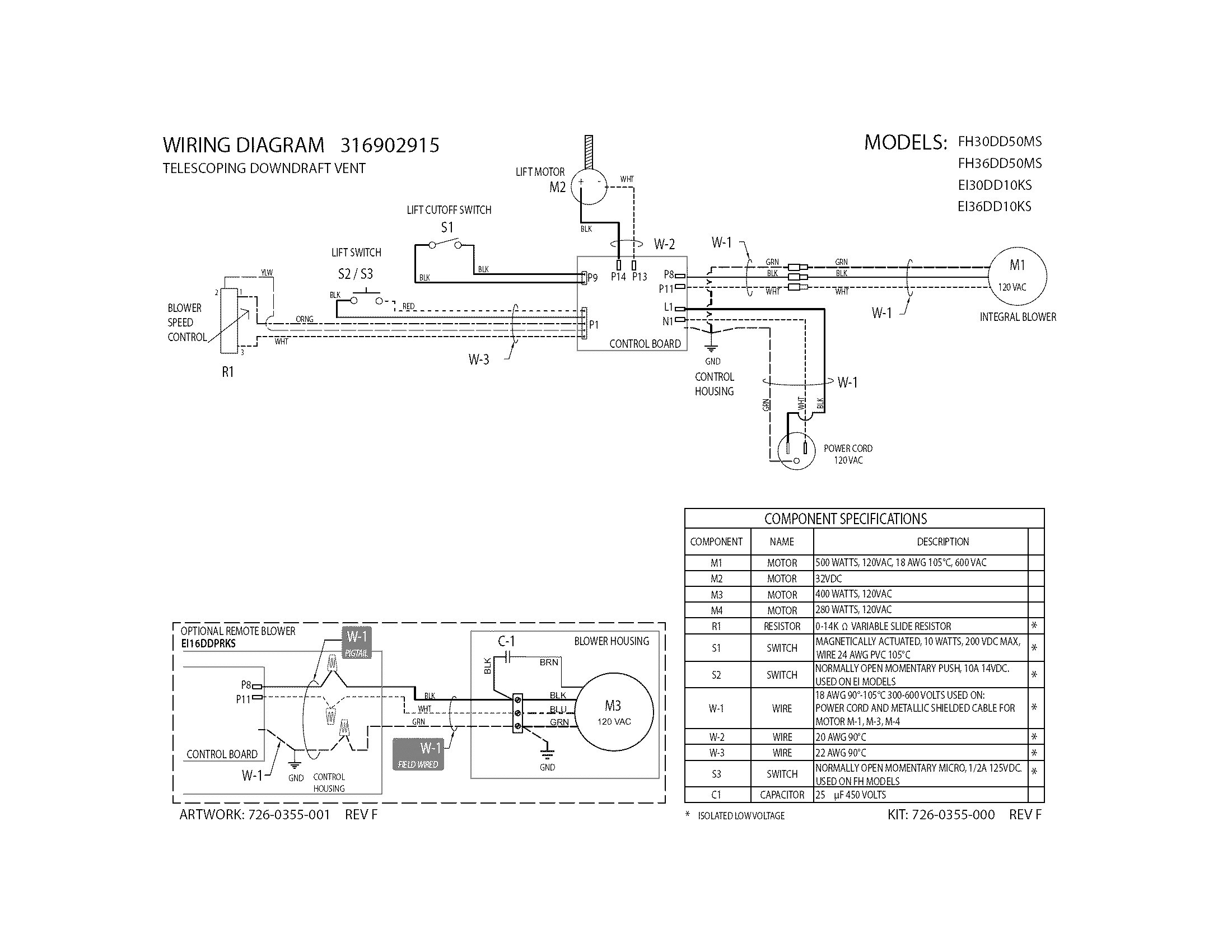

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 18 parts  |
Guide Assembly 5304500762
#1

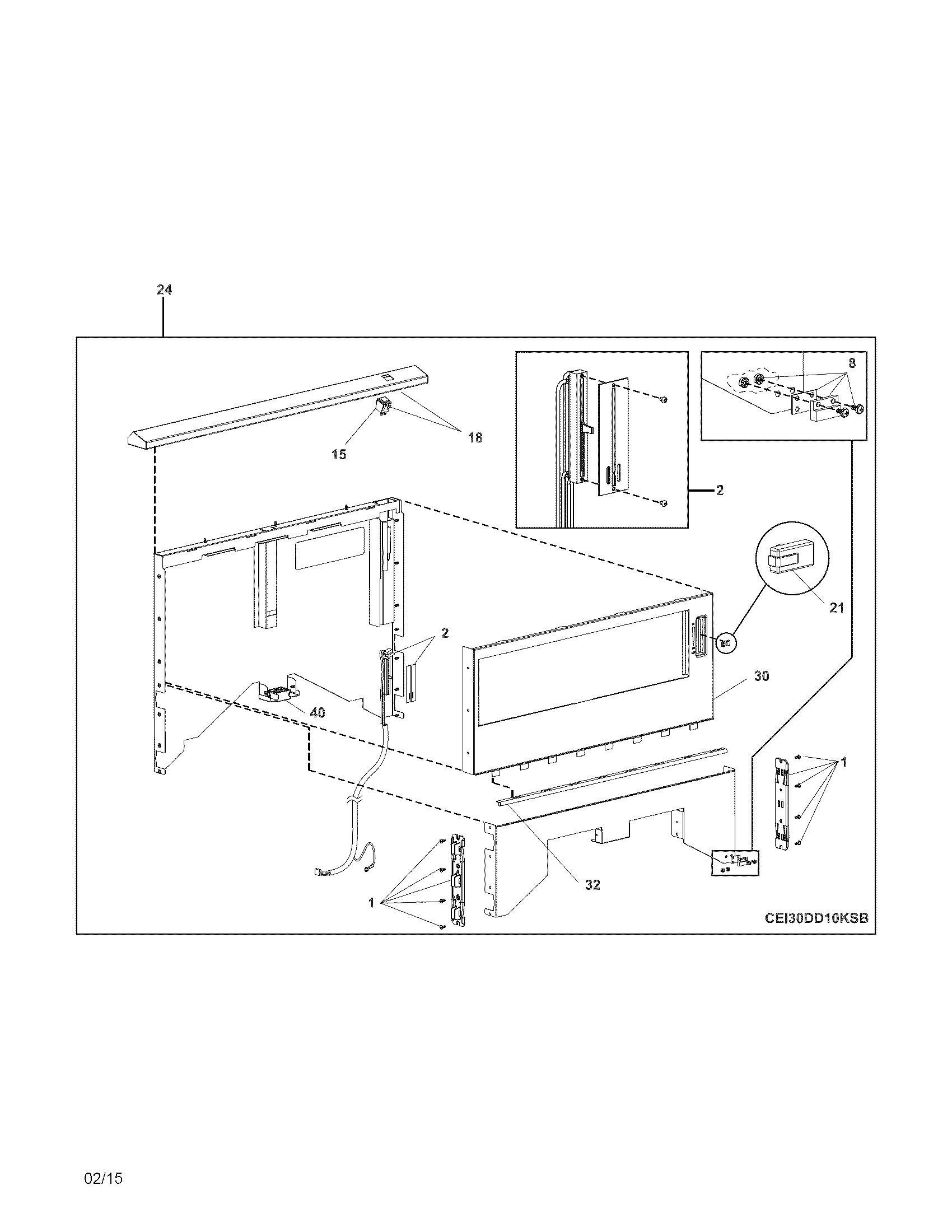

Chimney assembly diagram

Guide assembly

Part #5304500762

The manufacturer no longer makes this part, and there's no substitute part

Magnet Kit 5304487435
#8

Chimney assembly diagram

Magnet kit

Part #5304487435

The manufacturer no longer makes this part, and there's no substitute part

Seal Kit 5304487459
#32

Chimney assembly diagram

Seal kit

Part #5304487459

The manufacturer no longer makes this part, and there's no substitute part

Range Knob 5304487526
#21

Chimney assembly diagram

Range knob

Part #5304487526

The manufacturer no longer makes this part, and there's no substitute part

Trim Assembly 5304487443
#18

Chimney assembly diagram

Trim assembly

Part #5304487443

The manufacturer no longer makes this part, and there's no substitute part

Panel 5304487457
#30

Chimney assembly diagram

Panel

Part #5304487457

The manufacturer no longer makes this part, and there's no substitute part

Switch Kit 5304487429
#2

Chimney assembly diagram

Switch kit

Part #5304487429

The manufacturer no longer makes this part, and there's no substitute part

Chimney Assembly 5304500766
Chimney assembly

Part #5304500766

The manufacturer no longer makes this part, and there's no substitute part

Filter Kit 5304487464
#37

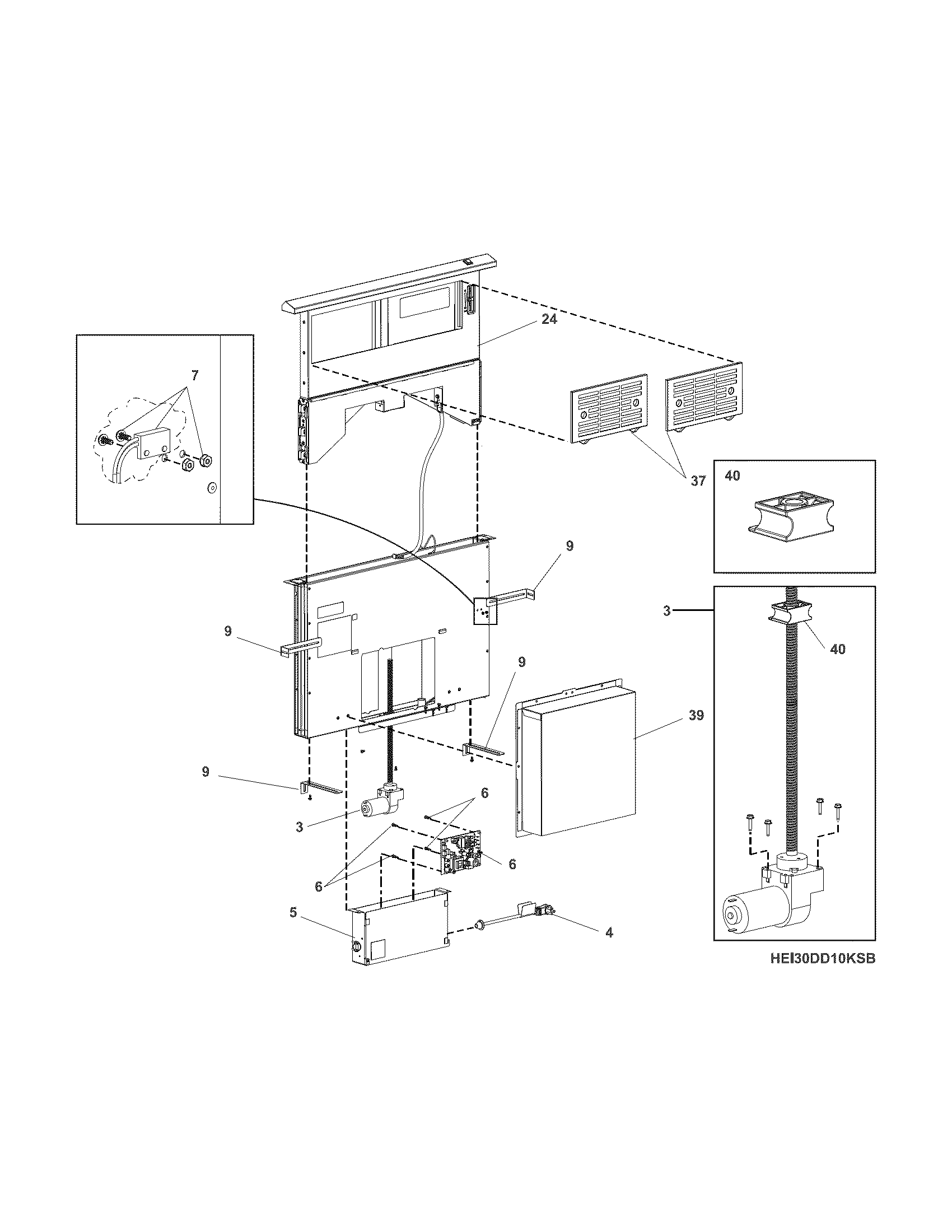

Body/motor parts diagram

Filter kit

Part #5304487464

The manufacturer no longer makes this part, and there's no substitute part

Downdraft Vent Gear Motor Assembly 5304487430
#3

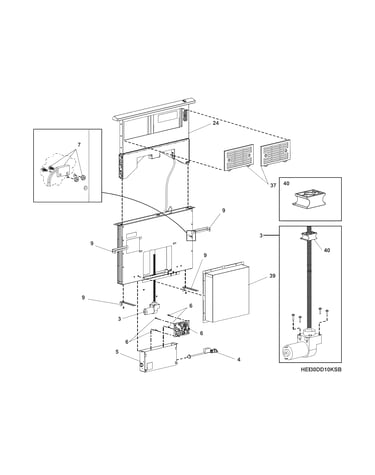

Body/motor parts diagram

Downdraft vent gear motor assembly

Part #5304487430

The manufacturer no longer makes this part, and there's no substitute part
